Basic Serial Functional Specification for LV-5210/7215/7210

LV-5210/7215/7210

BASIC SERIAL FUNCTIONAL SPECIFICATION

Page 1

Basic Serial Functional Specification for LV-5210/7215/7210

-CONTENT-

1. Overview

2. Serial Interface Specification

2.1 Transfer Specification

2.2 Connection

3. Notes for Communication

4. Functional Execute Command Table

5. Status Read Command Table

6. Functional Execution Command Table

6.1 Format

6.2 When the command pipelining is needed

6.3 Transfer Example

6.4 Operation Requirements

6.5 POWER ON Command

6.6 POWER OFF Command (Quick POWER OFF)

6.7 POWER OFF Command

6.8 Computer 1 Command

6.9 Computer 2 Command

6.10 Video Command

6.11 VOLUME + Command

6.12 VOLUME – Command

6.13 AUDIO MUTE ON Command

6.14 AUDIO MUTE OFF Command

6.15 VIDEO MUTE ON Command

6.16 VIDEO MUTE OFF Command

6.17 Screen Normal size COMMAND

6.18 Screen Wide size Command

6.19 Image Standard Command

6.20 Image Real Command

6.21 Image Cinema Command

6.22 Image 1 Command

6.23 MENU ON Command

6.24 MENU OFF Command

6.25 DISPLAY CLEAR COMMAND

6.26 BRIGHTNESS + Command

6.27 BRIGHTNESS - Command

6.28 Computer 2 Component Command

Page 2

Basic Serial Functional Specification for LV-5210/7215/7210

6.29 Computer 2 RGB Command

6.30 Computer 2 Scart Command

6.31 IMAGE (Toggle) Command

6.32 ON START SETTING COMMAND

6.33 ON START CANCELLATION COMMAND

6.34 Power management Ready Command

6.35 Power management OFF Command

6.36 Power Management Shut Down Command

6.37 D.ZOOM + COMMAND

6.38 D.ZOOM - COMMAND

6.39 Video Auto COMMAND

6.40 Video S-Video COMMAND

6.41 Video S-Video COMMAND

6.42 POINTER RIGHT COMMAND

6.43 POINTER LEFT COMMAND

6.44 POINTER UP COMMAND

6.45 POINTER DOWN Command

6.46 Mouse Right Click Command

6.47 ENTER(SET) COMMAND

6.48 FREEZE ON COMMAND

6.49 FREEZE OFF COMMAND

6.50 INPUT 1 Analog RGB Command

6.51 INPUT 1 DVI(PC Digital) Command

6.52 INPUT 1 DVI(AV HDCP) Command

6.53 Page Up Command

6.54 Page Down Command

6.55 AUTO PC ADJ. COMMAND

6.56 PRESENTATION TIMER COMMAND

6.57 KEYSTONE UP COMMAND

6.58 KEYSTOEN DOWN COMMAND

6.59 KEYSTOEN RIGHT COMMAND

6.60 KEYSTOEN LEFT COMMAND

7. Status Read Command

7.1 Format

7.2 Transfer Example

7.3 Status Read Command

7.4 Lamp Time Read Command

7.5 Setting Read Command

Page 3

Basic Serial Functional Specification for LV-5210/7215/7210

7.6 Setting Command

7.7 Temp Read Command

Page 4

Basic Serial Functional Specification for LV-5210/7215/7210

1 Overview

1.1 This Specification defines projector control commands for LV-7215/7210 /LV-5210 (0.8 “ XGA

second model) / 0.8 SVGA second model)

1.2 The projector control commands are for controlling projector through RS232C from a

computer.

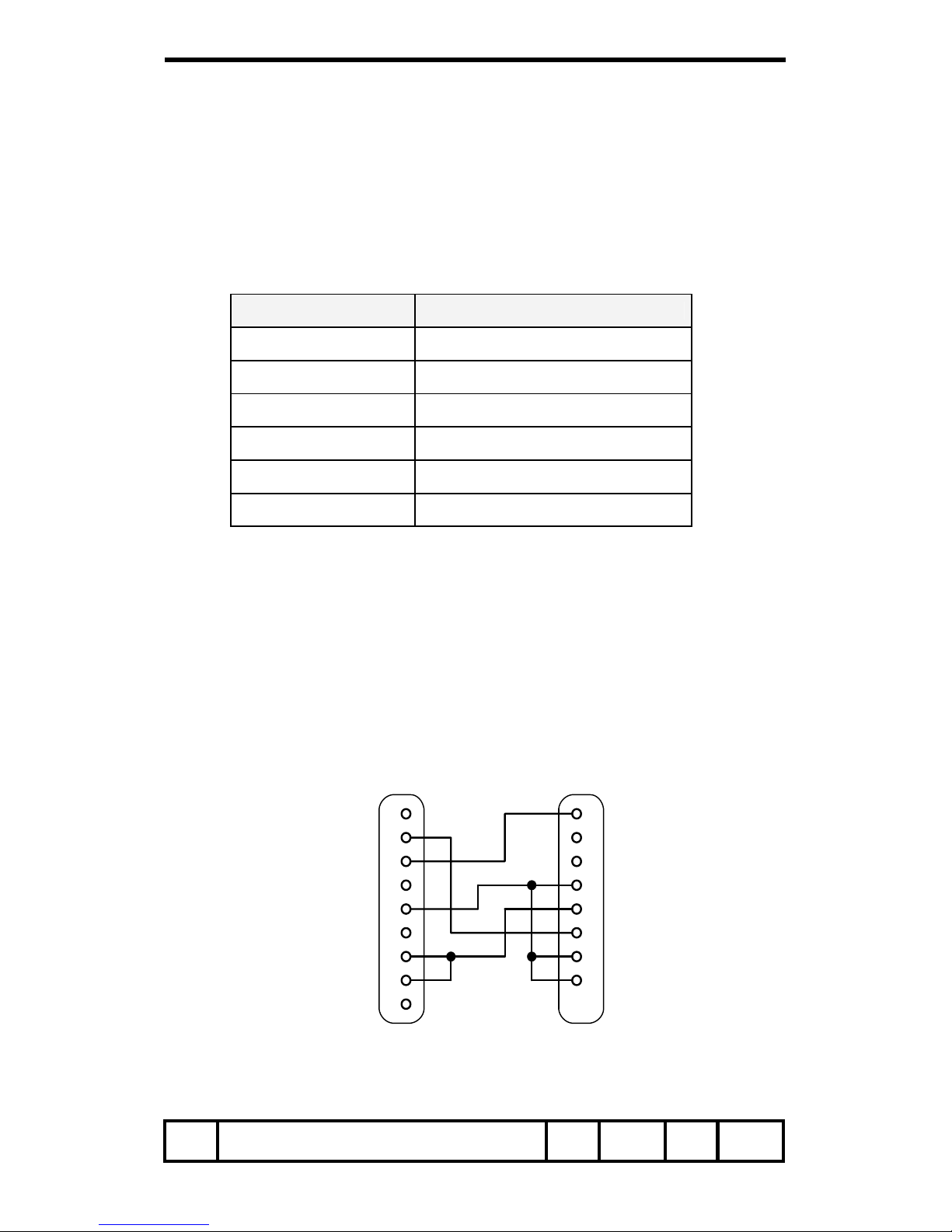

2 Serial Interface Specification

2.1 Transfer Specification

Specification

Shynchro system Asynchronous

Transmission Speed 9600 / 19200

Data Length 8 bit

Parity None

Stop Bit 1

Flow Control None

1. Transfer rate: initial setting value is 19200

2. Transfer rate can be changed by service mode

2.2 Connection

Dedicated serial cable that comes with the projector must be used for a

connection to a computer and a projector.

PC Projector

COM No.1 Control Port

RXD

TXD

DTR

DSR

RTS

CTS

RING

(D-Sub9Pin) (Mini8Pin))

Page 5

Basic Serial Functional Specification for LV-5210/7215/7210

3 Notes for Communication

3.1 The projector command is defined one command/one line that starts “C” and ends carriage

return (0x0D).

3.2 There are two types of command, functional execution commands and state read commands.

Example of Functional Execution Command: “C05” [CR]

Example of State Read Command: “CR0” [CR]

When it takes more than one second to receive on command, it clears information of buffer.

(until the projector receives the carriage return since the projector has received the first

data.)

3.3 When control command pipelining, after the response, wait interval of time, 100ms, as

below.

More than 100ｍｓ

Command

PC →Projector “C”“0”“7”CRNextcommand

Projector →PC ACK CR

Response

( a few ms- 5s)

3.3.1 When a computer sends next command before receiving a return command, the

projector may not operate properly.

3.3.2 When there is no response after 5 seconds, issue next command.

3.4 It takes about 5 seconds for internal initialization after plugging in AC. During this time,

it cannot process command. Do not issue any commands.

3.5 Response for Status Read Command after accepting has different characters. See 7.

Status Read Command.

3.6 Characters for commands must be Capital (A - Z).

Page 6

Basic Serial Functional Specification for LV-5210/7215/7210

4 Functional Execution Command Table

Command Item Command Item

C00 POWER ON C2A Power Management Ready

C01

POWER OFF (Quick Power

OFF) C2B Power Management OFF

C02 POWER OFF C2E Power Management Shut down

C05 Computer 1 (MC/W/N) C30 D.ZOOM +

C06 Computer 2 C31 D.ZOOM -

C07 Video C32 Video Auto

C09 VOLUME + C33 Video Video

C0A VOLUME - C34 Video S-Video

C0B AUDIO MUTE ON C3A POINTER RIGHT

C0C AUDIO MUTE OFF C3B POINTER LEFT

C0D VIDEO MUTE ON C3C POINTER UP

C0E VIDEO MUTE OFF C3D POINTER DOWN

C0F REGULAR IMAGE(4:3) C3E Mouse right click

C10 WIDE IMAGE(16:9) C3F ENTER (SET)

C11 Image Standard C43 FREEZE ON

C12 Image High contrast C44 FREEZE OFF

C13 Image Cinema C50 Computer 1 Analog RGB

C14 Custom C52 Computer 1 DVI (PC Digital)

C1C MENU ON C53 Computer 1 DVI (AV HDCP)

C1D MENU OFF C59 Page Up

C1E DISPLAY CLEAR C5A Page Down

C20 BRIGHTNESS + C89 Auto PC ADJ.

C21 BRIGHTNESS - C8A PRESENTATION TIMER

C24 Computer 2 Component C8E KEYSTONE UP

C25 Computer 2 RGB C8F KEYSTONE DOWN

C26 Computer 2 Scart C90 KEYSTONE RIGHT

C27 IMAGE (Toggle) C91 KEYSTONE LEFT

C28 ON START Enable

C29 ON START Disable

5 Status Read Command Table

Command Function

CR0 Status Read

CR1 Input Mode Read

CR3 Lamp Time Read

CR4 Setting Read

CR6 Temp Read

Page 7

Basic Serial Functional Specification for LV-5210/7215/7210

6 Functional Execution Command Table

6.1 Format

6.1.1 PC issues a command as below format

“C” COMMAND [CR]

Command: 2 characters (See Functional Execution Command Table)

6.1.2 A projector changes received data to decode and sends a return result after being

ready to receive next command.

[ACK] [CR]: (0x06、0x0D)When received functional execution commands.

6.1.3 “?” [CR]: When cannot read received data

6.2 When the command pipelining is needed

When some functions need command pipelining , the performance is the same as the remote

control’s performance.

1. System: issue any commands every 100ms after receiving response

2. When receiving the same command continuously with 120ms, the function is

executed for 120ms from that moment.

3. When receiving the same command continuously, with 120ms, the function

is executed for 120ms form the moment.

4. The next command is not issued after 120ms, and the execution is stopped.

5. If the projector receives other incoming commands within 120ms, the

execution is stopped.

6.3 Transfer Example

Change to Video mode with Basic Command

Command

PC →Projector “C” “0” “7” CR

Projector →PC

ACK CR

Processing

(A few - 5s)

Page 8

Basic Serial Functional Specification for LV-5210/7215/7210

6.4 Operation Requirements

When the projector’s status in this below, functional execution commands are limited.

Projector Status Available Functional Execution Commands

Standby Mode C00:POWER ON Only

Processing Countdown

C00:POWER ON→Terminate processing Countdown

C01:POWER OFF

C02:POWER OFF→Terminate processing Countdown

Processing Cooling Down NONE(does not execute even if receiving a command)

Abnormal Temperature Status NONE(does not execute even if receiving a command)

Processing Mode Change NONE(does not execute even if receiving a command)

Processing Power Save・Cooling

Down NONE(does not execute even if receiving a command)

Processing Power Save

C00:POWER ON

C01:POWER OFF

Other Commands: POWER ON

Note) When the status is above, even if the projector receives other command in the above

status, the projector returns [ACK] [CR].

6.5 POWER ON COMMAND

COMMAND “C00” [CR]

Detail Note) When the status is above, even if the projector receives other command

in the above status, the projector returns [ACK] [CR].

Acceptable [ACK] [CR]

Response

Unacceptable “?” [CR]

6.6 POWER OFF COMMAND (QUICK Power OFF)

COMMAND “C01” [CR]

Detail

Power OFF(Stand By)

When Power OFF with ON-OFF button of the projector or the remote

control, “Power OFF” will be displayed. However, as soon as this command

is sent, Quick Power OFF is executed.

Acceptable [ACK] [CR]

Response

Unacceptable “?” [CR]

6.7 POWER OFF COMMAND

COMMAND “C02” [CR]

Detail

Power OFF(Stand By)

When Power OFF with ON-OFF button of the projector or the remote

control, “Power OFF” will be displayed. However, as soon as this command

is sent, Power OFF is executed.

Acceptable [ACK] [CR]

Response

Unacceptable “?” [CR]

Page 9

Basic Serial Functional Specification for LV-5210/7215/7210

6.8 Computer 1 COMMAND

COMMAND “C05” [CR]

Detail

Select Computer 1 input.

When optional accessory, MCI BOX is installed, select the function

(Memory Card / Wireless / Wired).

Acceptable [ACK] [CR]

Response

Unacceptable “?” [CR]

6.9 Computer 2 COMMAND

COMMAND “C06” [CR]

Detail

Select Computer 2 input.

When Computer 2 terminal is set to Monitor Out, the command will not be

executed (the response is “Acceptable” through.)

Acceptable [ACK] [CR]

Response

Unacceptable “?” [CR]

6.10 Video COMMAND

COMMAND “C07” [CR]

Detail Select Video input

Acceptable [ACK] [CR]

Response

Unacceptable “?” [CR]

6.11

VOLUME + COMMAND

COMMAND “C09” [CR]

Detail

Volume Up

This Command works same as “VOLUME +” of the projector and the remote

control.

Acceptable [ACK] [CR]

Response

Unacceptable “?” [CR]

6.12

VOLUME - COMMAND

COMMAND “C0A” [CR]

Detail

Volume Down

This Command works same as “VOLUME +” of the projector and the remote

control

Acceptable [ACK] [CR]

Response

Unacceptable “?” [CR]

Page 10

Autres manuels pour 7215 - LV XGA LCD Projector

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Canon Projecteur

Canon

Canon SX7 MARKII Manuel utilisateur

Canon

Canon LV-S4 Manuel utilisateur

Canon

Canon LV 7490 Manuel utilisateur

Canon

Canon LV-7250 Manuel utilisateur

Canon

Canon LV-7575 Manuel utilisateur

Canon

Canon WUX500ST Manuel utilisateur

Canon

Canon LV-7345 Manuel utilisateur

Canon

Canon 1318C002 Manuel utilisateur

Canon

Canon LX-MH502Z Manuel utilisateur

Canon

Canon LV-5200 Manuel utilisateur

Canon

Canon REALIS WUX10 MARK II D Manuel utilisateur

Canon

Canon SX50 - REALiS SXGA+ LCOS Projector Manuel utilisateur

Canon

Canon REALiS SX80 Mark II D Manuel utilisateur

Canon

Canon 5x17 FC Manuel utilisateur

Canon

Canon LV-HD420 Manuel utilisateur

Canon

Canon LV-7345 Manuel utilisateur

Canon

Canon REALiS WUX5000 Manuel utilisateur

Canon

Canon LV-5210 Manuel utilisateur

Canon

Canon LV-7385 Manuel utilisateur

Canon

Canon LV-7105 Manuel utilisateur

Canon

Canon WUX6000 Manuel d'installation

Canon

Canon LV-5110 Manuel utilisateur

Canon

Canon T2000 Manuel utilisateur

Canon

Canon LV-7292A Manuel utilisateur

Manuels Projecteur populaires d'autres marques

iEmmet

iEmmet MP-312 Manuel utilisateur

Epson

Epson VS400 Manuel utilisateur

Sony

Sony VPL-HS10 Marketing Specifications & Features Manuel utilisateur

Sony

Sony VPL-HW65ES Manuel de service

Toshiba

Toshiba TLP-791U Manuel utilisateur

Philips

Philips LC1341 Guide de référence

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manuel utilisateur

NEC

NEC NP600S EDU Manuel utilisateur

BenQ

BenQ SH753P Manuel utilisateur

Eiki

Eiki EK-623U series Manuel utilisateur

Epson

Epson PowerLite Pro Cinema 6020UB Manuel utilisateur

Epson

Epson PowerLite Home Cinema 705HD Manuel utilisateur

Christie

Christie LHD700 Manuel utilisateur

Navitar

Navitar FX Manuel utilisateur

InFocus

InFocus LitePro 560 Manuel utilisateur

Sony

Sony SRX-R815P Manuel utilisateur

Vivitar

Vivitar DP1500 X Manuel utilisateur

Acer

Acer C20 Series Manuel utilisateur
