Congratulations on purchasing your new Canon®S600 Color Bubble Jet™Printer!

With this printer, you can print basic business documents in color or black and

white, as well as print on a variety of specialty media, such as Canon High

Resolution Paper (ideal for business documents such as presentations that

include large numbers of color illustrations), Canon Glossy Photo Paper or Canon

Photo Paper Pro (for digital photographs) and Canon Transparencies (for

presentations). For a full list of the Canon specialty media that can be used with

your S600 printer, see “Specialty Media” on page 3.

Turning Your Printer On and Off

Turning Your Printer On and OffTurning Your Printer On and Off

Turning Your Printer On and Off

To turn your printer on or off, press the

POWER button.

The POWER lamp will flash green when

warming up or when a print job is being

sent to the printer. It will glow a steady

(non-flashing) green when the printer is

ready for use or when the print job is

complete.

This quick start guide describes some of the features of your

S600 printer and how to use them. For more information, view

and/or print the S600 User’s Guide on the Setup Software &

User’s Guide CD-ROM.

Driver features and screen shots described in this guide reflect

Windows®98 and may be different for Windows NT®4.0 and

Windows 2000 users.

If the POWER lamp flashes

orange, see “Handling

Error Messages” on

page 30.

Basic Printing

What Is a Printer Driver?

What Is a Printer Driver?What Is a Printer Driver?

What Is a Printer Driver?

Most computers require special software to link the software applications you

use to create documents or images with your printer. This software, called a

printer driver, converts information from the application into a format that the

printer can understand. The Canon S600 printer driver also provides other

features such as monitoring the printer’s paper supply and ink levels.

Selecting the S600 Printer for Use

Selecting the S600 Printer for UseSelecting the S600 Printer for Use

Selecting the S600 Printer for Use

If the S600 is the only printer connected to your computer, it will automatically be

set as the default (main) printer. However, if your computer has access to multiple

printers, you can set the S600 as the default printer.

To set the S600 as the default printer in Windows

To set the S600 as the default printer in WindowsTo set the S600 as the default printer in Windows

To set the S600 as the default printer in Windows®:

1. Click Start

StartStart

Start, then Settings

SettingsSettings

Settings, then Printers

PrintersPrinters

Printers.

2. Right-click the Canon S600

Canon S600Canon S600

Canon S600 printer icon, then click Set as Default

Set as DefaultSet as Default

Set as Default. The Canon

S600 printer icon will display a check mark indicating it is the default printer.

To select the S600 from within a Windows application:

To select the S600 from within a Windows application:To select the S600 from within a Windows application:

To select the S600 from within a Windows application:

Even if another printer is set as the default printer, you can still select the Canon

S600 for a specific print job from within most Windows applications.

1. From the File

FileFile

File menu, click Print

PrintPrint

Print.

2. Select Canon S600

Canon S600Canon S600

Canon S600 from the Name drop-down list, then click OK

OKOK

OK.

To select the S600 in Mac

To select the S600 in MacTo select the S600 in Mac

To select the S600 in Mac®OS:

OS:OS:

OS:

1. Click Apple

AppleApple

Apple, then Chooser

ChooserChooser

Chooser.

2. Click the S600

S600S600

S600 printer icon. The S600 will remain the default printer until

another is selected.

Menus vary between applications. Consult your application user

documentation if the Print option is not listed.

Basic Printing

Recommended Paper Use

There are two steps recommended for getting the best output for your printed

documents:

•Set the printer thickness lever for the media used. (See “Load Limit and Paper

Thickness Lever Position” on page 4.)

•Select the correct media setting in the printer driver. (See “Chapter 2:

Advanced Print Features” on page 9.)

General Business Printing

General Business PrintingGeneral Business Printing

General Business Printing

For everyday paper printing, use plain paper (17 to 28 lb.). Use standard #10

envelopes with your S600 printer.

Specialty Media

Specialty MediaSpecialty Media

Specialty Media

For optimum results, Canon recommends that you use genuine Canon media with

your S600 printer. Follow the instructions that come with any specialty media on

storing, handling and printing.

The specialty media available for use with the S600 include:

•Canon High Resolution Paper

•Canon Transparencies

•Canon Banner Paper

•Canon Glossy Photo Paper

•Canon Photo Paper Pro

•Canon Glossy Photo Cards

•Canon High Gloss Photo Film

•Canon Magnet Sheets

•Canon Greeting Cards

•Canon T-Shirt Transfers

For instructions on loading and handling specialty media, see the

instructions that come with that media type or see the S600

User’s Guide on the Setup Software & User’s Guide CD-ROM.

Handle media carefully by its edges. Dirt or fingerprints on the

print surface will adversely affect print quality.

Basic Printing

Media to Avoid

Media to AvoidMedia to Avoid

Media to Avoid

Do not use the following types of media with your S600 as they could produce

poor quality print images, or jam or damage the printer:

•Paper that is folded, excessively curled, wrinkled or wrapped

•Damp paper

•Excessively thin or thick paper

•Paper with pasted photos, stickers, etc.

•Envelopes with overlapping flaps or self-sealing flaps

•Tractor feed paper, perforated paper or 3-hole punched paper, or paper with

any type of attached fasteners, ribbons, etc.

Loading Paper and Other Media

Loading Paper and Other MediaLoading Paper and Other Media

Loading Paper and Other Media

Load Limit and Paper Thickness Lever Position

Load Limit and Paper Thickness Lever PositionLoad Limit and Paper Thickness Lever Position

Load Limit and Paper Thickness Lever Position

Media Type

Media TypeMedia Type

Media Type Paper Rest

Paper RestPaper Rest

Paper Rest

Load Limit

Load LimitLoad Limit

Load Limit

Paper Thickness

Paper ThicknessPaper Thickness

Paper Thickness

Lever Position

Lever PositionLever Position

Lever Position

Plain paper up to 100 sheets (17 lb.) Left

High Resolution Paper up to 80 sheets Left

Photo Paper Pro up to 20 sheets Left

Photo Paper Pro (4 x 6) up to 20 sheets Left

High Gloss Photo Film 1 sheet Left

Glossy Photo Paper up to 10 sheets Left

Glossy Photo Cards up to 20 sheets Left

Transparencies up to 30 sheets Left

Magnet Sheets 1 sheet Left

Greeting Cards 1 sheet Left

#10 Envelopes up to 10 envelopes Right

Banner Paper 1 sheet (can print up to 6 connected sheets) Right

T-Shirt Transfers 1 sheet Right

Basic Printing

The S600 can print on paper ranging from

standard copier paper (usually 17–28 lb.) to

specialty media paper and envelopes.

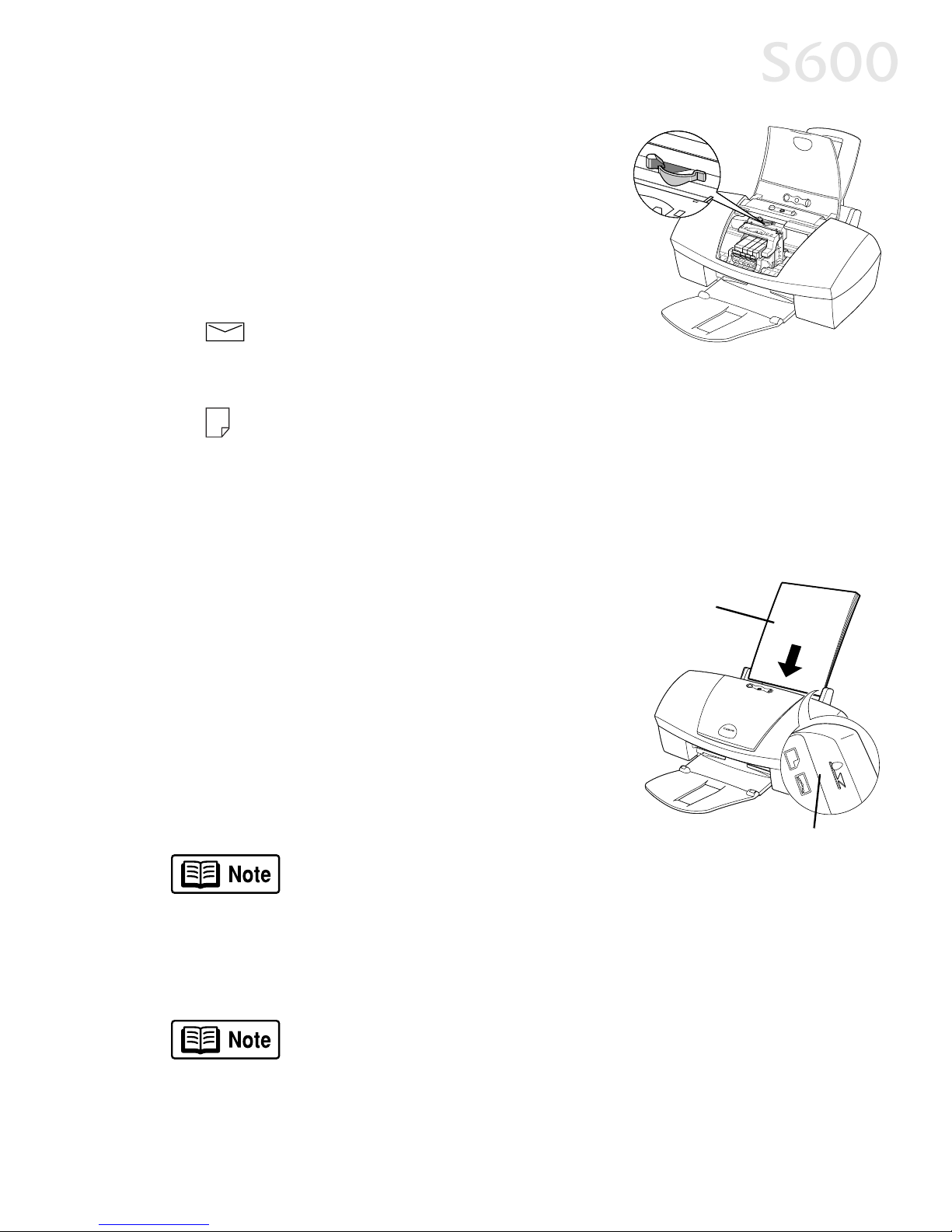

The paper thickness lever is located inside the

front cover, on the printhead holder. It controls

the paper feed for the type and weight of the

media on which you are printing.

For envelopes (see “To load

envelopes:” on page 6), banners

and T-Shirt Transfers.

For regular paper and other media with a left position in the table (see

“Load Limit and Paper Thickness Lever Position” on page 4).

Use the chart on the previous page to ensure that the paper thickness lever is set

correctly for the type of media you are using.

To load paper or other media:

To load paper or other media:To load paper or other media:

To load paper or other media:

1. Make sure the paper thickness lever is set

correctly for the media used.

2. Slide the paper guide completely to the left.

3. Fan the edges of the sheets to remove static

cling and avoid paper jams, then tap the

edges of the stack against a flat surface so

the stack is aligned.

4. Insert the media into the paper rest, with

the print side facing up.

5. Slide the paper guide to the edge of the media until it is firmly in place.

Some papers, especially specialty media, have specific sides for

printing. The print side is usually the glossier side or the brighter

white side.

When using specialty media, do not touch the print side.

You can load up to 100 sheets of plain (17 lb.) paper or 80 sheets

of Canon High Resolution Paper in the paper rest at one time.

Never load the paper above the load limit mark.

Load limit mark

Print side

Basic Printing

To load envelopes:

To load envelopes:To load envelopes:

To load envelopes:

1. Lift the cover and set the paper thickness lever to the envelope mark. Close

the cover.

2. Slide the paper feed guide to the left.

3. Press down on the corners and sides

of the envelopes to make them as flat

as possible by expelling all of the air.

To avoid paper jams, make sure

envelopes are flat before you load

them into the paper tray.

4. With the address side facing up and

pointed in the direction shown in the

illustration, align the stack with the

right side of the paper rest, then

insert the stack into the printer.

5. Slide the paper guide to the edge of

the envelopes until it is firmly in

place.

Make sure that none of the flaps overlap. If the envelope edges

are not flat, crease them with the side of a pen.

Do not allow more than 10 envelopes to stack on the paper

output tray.

Flap side of envelope faces down

Autres manuels pour S600

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Canon Imprimante

Canon

Canon SELPHY ES2 Manuel utilisateur

Canon

Canon PIXMA iP4820 Series Manuel utilisateur

Canon

Canon FedEx Office imagePRESS C750 Guide rapide

Canon

Canon imagePROGRAF W2200S Manuel utilisateur

Canon

Canon Color imageRUNNER LBP3460 Manuel utilisateur

Canon

Canon iP4500 - PIXMA Color Inkjet Printer Manuel utilisateur

Canon

Canon E4500 Series Guide de configuration

Canon

Canon MAXIFY MB2350 Guide de configuration

Canon

Canon MF264dw II Manuel utilisateur

Canon

Canon MF543x MF542x Manuel utilisateur

Canon

Canon iPF5100 - imagePROGRAF Color Inkjet Printer Manuel utilisateur

Canon

Canon iR6570 series Manuel de service

Canon

Canon TS3300 Series Manuel utilisateur

Canon

Canon PRO-300 Series Guide de configuration

Canon

Canon LBP-3260 Mode d’emploi

Canon

Canon imageRUNNER ADVANCE C350 series Manuel utilisateur

Canon

Canon Color imageCLASS MF9220Cdn Instructions de montage

Canon

Canon NP6218 Manuel utilisateur

Canon

Canon BJC-55 Series Manuel utilisateur

Canon

Canon imageRUNNER 2224 Manuel utilisateur

Canon

Canon PIXMA iX7000 Manuel utilisateur

Canon

Canon PIXMA MG5500 Series Manuel utilisateur

Canon

Canon PIXMA MX420 Series Instructions d'utilisation

Canon

Canon Printing Using a Direct Camera/Printer Connection Guide Direct... Mode d’emploi

Manuels Imprimante populaires d'autres marques

Lexmark

Lexmark 1400 Series Manuel

Evolis

Evolis Elypso Manuel utilisateur

Kyocera

Kyocera FS-9530DN Manuel utilisateur

Samsung

Samsung BIXOLON SRP-350plusF Manuel utilisateur

Dell

Dell Color Laser Printer 2130cn Manuel utilisateur

Tektronix

Tektronix Phaser 840 Manuel utilisateur

Epson

Epson ET-7750 Mode d'emploi

Eltron

Eltron P210 Guide Manuel utilisateur

Ricoh

Ricoh MD-P1 Manuel utilisateur

Epson

Epson SC-F7100 series Manuel utilisateur

Epson

Epson Stylus C40UX Manuel utilisateur

IRA3D

IRA3D POETRY4 Manuel utilisateur

Ricoh

Ricoh Aficio AP400 Manuel utilisateur

BIXOLON

BIXOLON SRP-352plusV Manuel utilisateur

Epson

Epson Stylus Photo PX700W Instructions de montage

Ricoh

Ricoh SP204SF Manuel utilisateur

Star Micronics

Star Micronics futurePRNT TSP100 Manuel utilisateur

Epson

Epson TM-TM88V-i Manuel d'utilisation et d'entretien
