Canon PIXMA TS3322 Manuel utilisateur

Guía de inicio

Lea primero Información de seguridad e

información importante (apéndice).

Conguración en línea

Hay vídeos e instrucciones detalladas

en el sitio web de Canon.

Conﬁgurar un ordenador

Conﬁgurar un teléfono inteligente

Getting Started

Read Safety and Important Information

(addendum) rst.

Online Setup

Detailed instructions and videos are

available on the Canon website.

Setup a Computer

Setup a Smartphone

Instalación de la impresora................................................................... página 1

Conexión con un ordenador, teléfono inteligente o tableta .................. página 4

Vídeos instructivos

Cómo sujetar la impresora

Installing the Printer................................................................................. page 1

Connecting to a Computer, Smartphone or Tablet .................................. page 4

Holding the Printer

Instructional Videos

ENGLISH

1. Checking Included Items

•

FINE cartridges

Color Black

•

Power cord

•

Safety and Important Information

•

Getting Started (this manual)

2. Removing Packing

Materials

1 Remove and dispose of any packing materials and

orange tape from the printer's exterior.

2 Open the cover.

3 Remove and dispose of the orange tape and

protective material inside.

4 Close the cover.

3. Turning on the Printer

1 Connect the power cord.

At this time, do not connect any other cables.

2 Press the ON button.

If E> 0> 9appears on the screen, press the ON

button to turn off the printer, and then redo from

step 2 of "2. Removing Packing Materials".

Online Setup

4. Installing the FINE

Cartridges

1 Open the cover.

2 aRemove the Color FINE cartridge from the

container.

bRemove the protective tape.

Do not touch.

Be careful of ink on the protective tape.

3 aInsert the Color FINE cartridge into the FINE

cartridge holder on the left-hand side at a

slight upward angle.

bPush the FINE cartridge in and up rmly until it

snaps into place.

Conrm that the FINE cartridge is straight and level.

Do not bump it against

the surrounding parts.

Click!

ENGLISH

4 Repeat steps 2 to 3 to install the Black FINE

cartridge on the right-hand side.

5 Close the cover.

If E> 0> 4appears on the screen, return to step

3 of "4. Installing the FINE Cartridges" and conrm

that the Color and Black FINE cartridges are

installed correctly.

5. Loading Paper

1 Open the paper support.

2 Slide the paper guide to the left.

3 aLoad Letter or A4 sized plain paper against the

right edge with the print side facing up.

bSlide the paper guide to align it with the side of

the paper stack.

4 Pull out the paper output tray.

5 Open the output tray extension.

6. Preparing for Connection

1 Conrm that the screen appears as shown below.

Flashing

7-a

Computer and

smartphone

Connecting to a Computer

If you are using multiple computers, perform these steps on each computer.

1 Access the Canon website from a

computer.

2 Select Set Up.

3 Enter your printer's model name and

click Go.

4 Click Start.

5 Click If you have already prepared

your printer, go to Connect.

Note

The following steps are for Windows

(except Windows 10 in S mode) and

macOS users. For other operating systems,

continue setup by following the on-screen

instructions instead.

6 Click Download.

7 Run the downloaded le.

8 Click Start Setup.

9 Follow the on-screen instructions.

• These operations may take some time.

• To connect to a smartphone as well, see

"7-b. Connecting to a Smartphone" on

page 5.

What device are you connecting?

Computer Smartphone

7-a.Connecting to a Computer

To use your printer without connecting to any other devices. "7-c"

7-b

ENGLISHENGLISH

Connecting to a Smartphone

If you are using multiple smartphones, perform these steps on each smartphone.

Prepare the following before starting.

aEnable the Wi-Fi setting on your smartphone.

bConnect your smartphone to the wireless router (if you have a wireless router).

Refer to your smartphone and wireless router manuals for more details.

7-b. Connecting to a Smartphone

7-c No Device Connected

1 Press the Stop button.

2 Conrm that the screen appears as shown below.

Once you have added your printer, you can print from your smartphone.

To print photos, see "Loading Photo Paper" on page 6.

1 Install the "Canon PRINT Inkjet/

SELPHY" app on your smartphone.

• Scan the QR code shown on

the right to access the Canon

website, and then download

the app.

2 Open your smartphone's Wi-Fi settings.

Tap the network name (SSID) that starts

with "Canon_ij_".

If "Canon_ij_" does not appear, proceed

to step 3.

(Example of iOS screen)

3 Open the installed app.

4 Follow the on-screen instructions in the

app to add your printer.

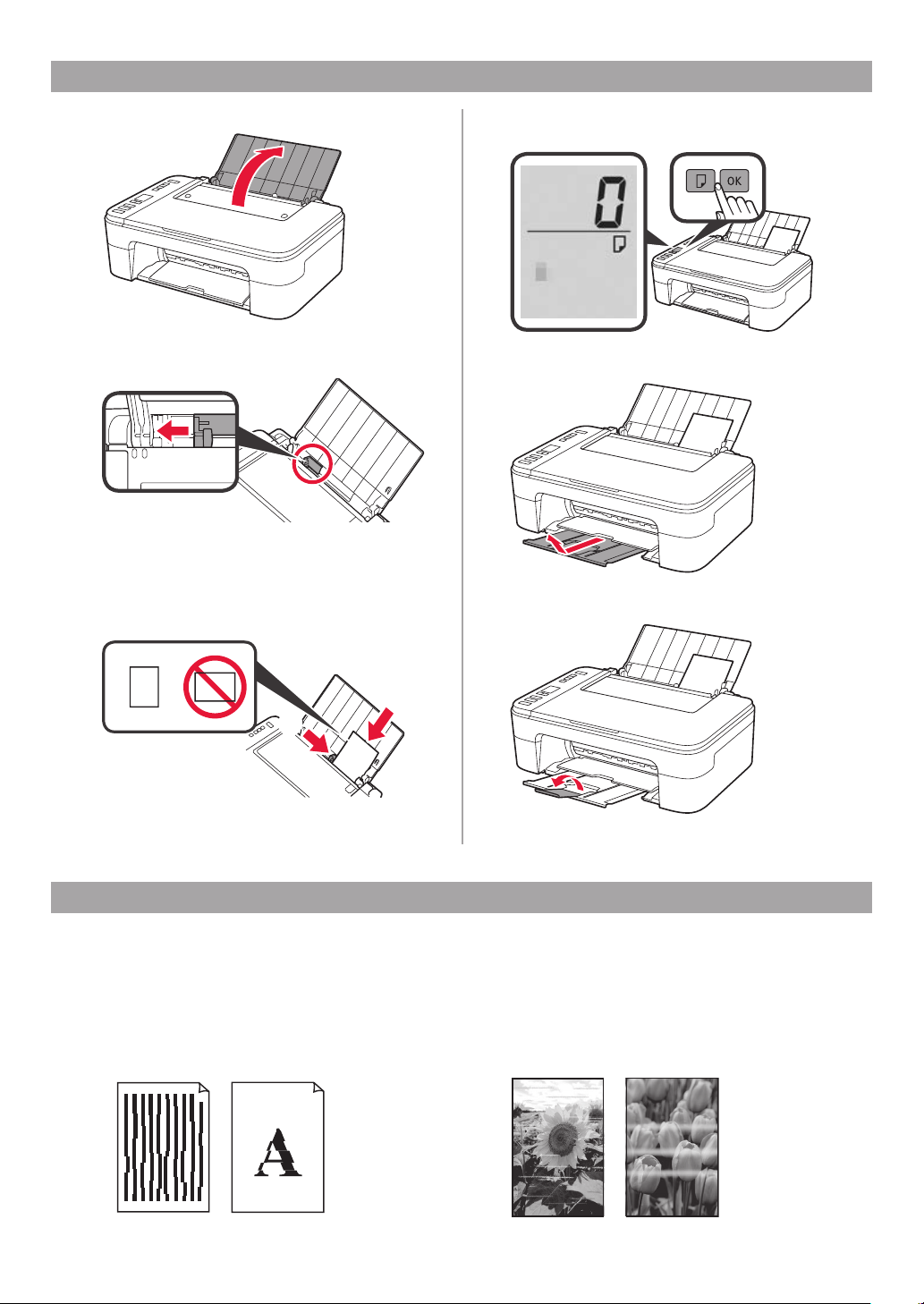

1 Open the paper support.

2 Slide the paper guide to the left.

3 aLoad several sheets of photo paper against

the right edge with the print side facing up.

bSlide the paper guide to align it with the side

of the paper stack.

4 Press the Paper Select button, select a paper

size, and then press the OK button.

5 Pull out the paper output tray.

6 Open the output tray extension.

Loading Photo Paper

If Print Results Are Unsatisfactory

Perform Print Head Alignment if straight lines are crooked or colors are inconsistent, or print results are otherwise not

what you expected.

For details, click Maintenance on the Online Manual and refer to If Printing Is Faint or Uneven > Aligning the

Print Head.

Refer to the back cover of this manual for how to open the Online Manual.

■ Lines Are Misaligned ■ Uneven or Streaked Colors

ESPAÑOL

1. Comprobar los elementos

suministrados

•

Cartuchos FINE

Color Negro

•

Cable de alimentación

•

Información de seguridad e

información importante

•

Guía de inicio (este manual)

2. Retirar los materiales de

protección

1 Retire y tire todos los materiales de protección y la

cinta naranja del exterior de la impresora.

2 Abra la cubierta.

3 Retire y tire la cinta naranja y el material de

protección que hay dentro.

4 Cierre la cubierta.

3. Encender la impresora

1 Conecte el cable de alimentación.

En este momento, no conecte ningún otro cable.

2 Pulse el botón ACTIVADO (ON).

Si en la pantalla aparece E> 0> 9, pulse el botón

ACTIVADO (ON) para apagar la impresora y repita

desde el paso 2 de "2. Retirar los materiales de

protección".

Conguración en línea

4. Instalar los cartuchos

FINE

1 Abra la cubierta.

2 aRetire el cartucho FINE de color del

contenedor.

bRetire la cinta protectora.

No tocar.

Tenga cuidado con la tinta de la cinta protectora.

3 aInserte el cartucho FINE de color en el soporte

del cartucho FINE en el lado izquierdo de

forma ligeramente inclinada hacia arriba.

bPresione el cartucho FINE hacia adentro

y hacia arriba rmemente hasta que encaje en

su posición.

Conrme que el cartucho FINE está recto y nivelado.

No golpear contra los

objetos de alrededor.

¡Clic!
