SERVICE BULLETIN COMP. SYSTEMS

Issued by Canon Europa N.V.

MODEL: BJC-55 No.: PRNT-896

(QK-12E-0129)

Date: 29.09.00

LOCATION: MAIN UNIT

SUBJECT: DIFFERENCES BETWEEN BJC-50 AND BJC-55

DETAIL

This bulletin has been issued to notify of the differences between the BJC-50/50v and BJC-55/BJ M40

for servicing. This has been issued as a substitute for the Service Manual, which will not be issued.

C.IWS applies to the BJC-55/BJ M40.

TABLE OF CONTENTS

1. PRODUCT OUTLINE

2. CHANGES FROM THE BJC-50v

3. EXTERNAL APPEARANCE

4. SPECIFICATIONS

4.1 Printer Specifications

4.2 Number of Pages Printable of the Cartridges

4.3 Printer Driver / Scanner Driver Type

4.3.1Restrictions on IrDA communication under Windows 2000

4.4 Interface Specifications

4.4.1IrDA interface

4.4.2USB interface

4.5 Photo BJ Cartridge Specifications

5. OPERATION

5.1 Function Setting

5.2 Ink Low Warning Reset By Button Operation

5.3 Direct Printing Function Of Images From Digital Cameras

5.4 Flash ROM Writing Operation

5.4.1Writing method

5.4.2Writing error

5.4.3USB port selection

6. TECHNICAL REFERENCE

6.1 5V Power Supply Circuit Change

7. SPECIAL TOOLS

8. PARTS LIST

9. CIRCUIT DIAGRAM

COMP. SYSTEMS - 2 - PRNT-896

1. PRODUCT OUTLINE

The BJC-55/BJ M40 are mobile, color BJ printers targeting the personal-use market. As a

successive model of the BJC-50/50v, the ease of connection has been improved, mobile

printer function has been strengthened, and the following functions have been added:

(1) The high-speed IrDA (Ver.1.1) enables the printer to attain print speed comparable

to that of the Centronics interface.

(2) Direct printing from digital cameras with IrTran-P. (BJ M40 only)

(3) Support of the USB I/F function.

(4) Photo printing function.

2. CHANGES FROM THE BJC-50/50v

1) New adoption of the photo cartridge (Photo printing function has been added.)

2) The IrDA version upgrade from Ver. 1.0 to 1.1 has enabled faster transmission.

3) New adoption of IrTranP (Direct printing from digital cameras/BJ M40 only).

4) Parallel interface has been eliminated. USB I/F has been adopted.

5) Button reset of the ink low warning is added.

6) Demonstration pattern printing is eliminated.

(The other self test print can be performed by the same operation as with the BJC-50/50v.)

7) Various specifications

8) A special tool (spur cleaner) is included.

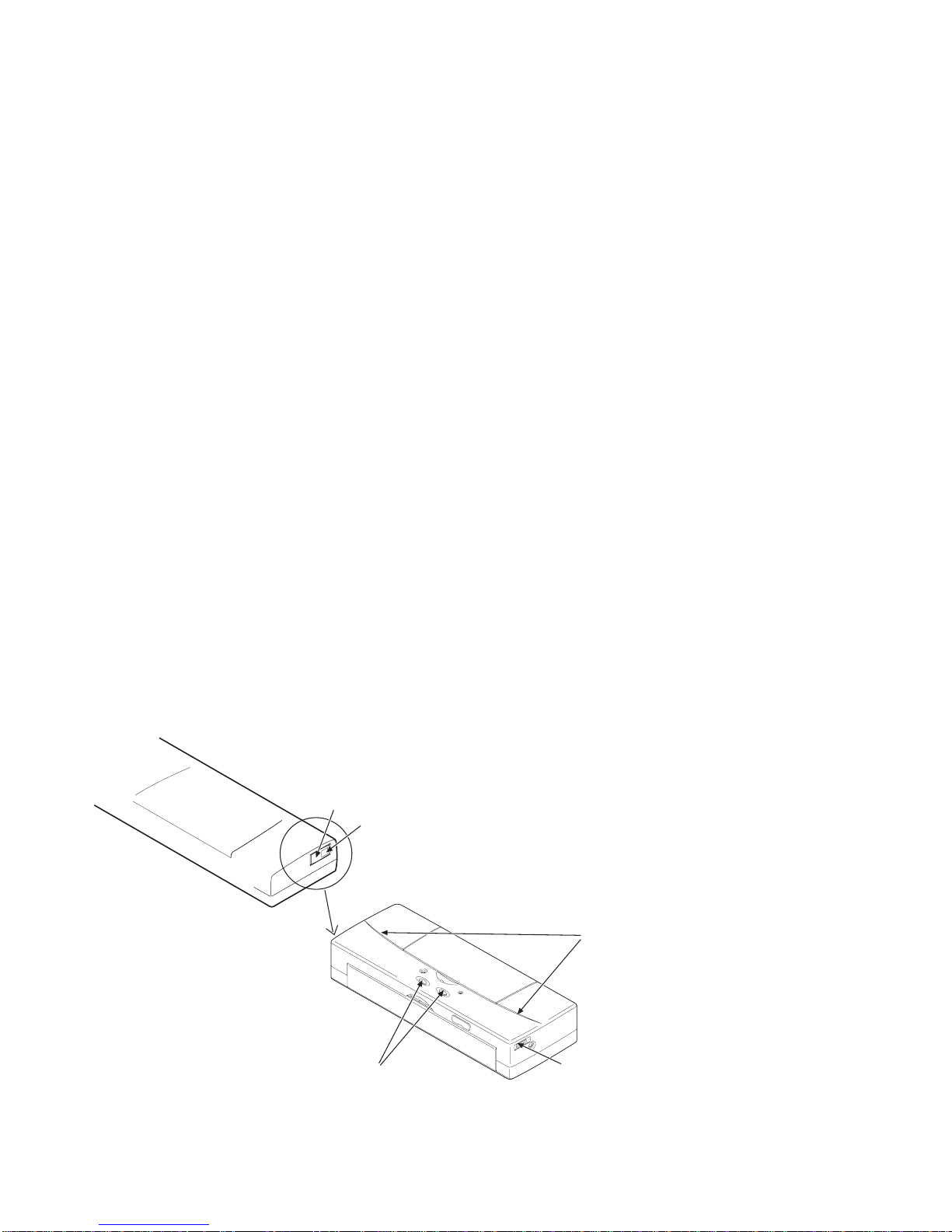

3. EXTERNAL APPEARANCE

The BJC-55/BJ M40 has the same appearance as the BJC-50/50v, except for the following:

(1) The USB I/F connector has been positioned on the left side of the printer. Along with

this, the IrDA module has been moved, and the parallel interface has been eliminated.

(2) The color of the panel switch has been changed from an opaque to atransparent purple.

(3) The color of the lock switch has been changed from black to the same purple as the

panel switch.

(4) The line direction along the head cover of the upper cover has been changed.

Changed from black to purple.

Changed from an opaque to

a transparent purple.

The line direction has been changed.

IrDA Interface Module

USB Interface Connector

COMP. SYSTEMS - 3 - PRNT-896

4. SPECIFICATIONS

4-1. Printer Specifications

Type Mobile serial color bubble jet printer

Paper feeding Manual sheet feed / Auto sheet feed (when the optional ASF-50 has

method been installed.)

Printing speed Throughput: High Speed Standard High Quality

BC-10 Bk Cartridge

New monochrome pattern (E)

5.5 ppm 5.0 ppm -----

New monochrome pattern (J)

5 ppm 5.0 ppm -----

BC-11e Color Cartridge

New color pattern (E)

2 ppm 1.6 ppm -----

New color pattern (J)

2.0 ppm 1.8 ppm -----

BC-12e Photo Cartridge ----- ----- 0.1 ppm

Full address printing

Printing direction Unidirectional (automatically selected according to the print data)

Max. Print Width 203 mm (8 inches)

Line feed pitch 136 ms/line (128" /360" line feed)

Built-in print LQ mode (BJC-55 only) / BJ mode (BJ M40 only) / Native mode /

control mode BJL command

Detection functions Presence of paper: Available

Presence of BJ cartridge: Available

Waste ink amount: Available

Paper width: Not available

Distinction of BJ cartridge: Available

Ink low: Available (by using the dot-count)

Noise Sound pressure level: conforms to ISO9296

Approx. 43 dB (A) or less during operation (HQ/HS mode)

Environmental During operation Temperature 5

C to 35

C (41

F to 95

requirements Humidity 10%RH to 90%RH (no condensation)

Non operation Temperature 0

C to 35

C (32

F to 95

Humidity 5%RH to 95%RH (no condensation)

Power supply Input voltage/Frequency: AC100 -240V, 50/60 Hz

Power consumption

Printing status Standby status Soft power off Charging status

Approx. 23 W* Approx. 1.7 W** Approx. 0.9 W** Approx. 10 W**

Approx. 1.8 W*** Approx. 1.0 W*** Approx. 10 W***

Approx. 2.6 W**** Approx. 1.6 W**** Approx. 10 W****

*: Approx. 30 W when the AC adapter is used.

**: When the input power is AC 100V.

***: When the input power is AC 120V.

****: When the input power is AC 230 - 240V.

External dimensions

302 mm (W) x 112.5 mm (D) x 50 mm (H)

Weight Approx. 0.9 Kg (including BJ cartridge)

COMP. SYSTEMS - 4 - PRNT-896

4-2. Number of Pages Printable of the Cartridges

Black BJ Cartridge BC-10

: Approx. 270 pages (JAIDA J1 Pattern: Japanese

measurement pattern for pages printable)

(1500 character pattern: Overseas measurement

pattern for pages printable)

Color BJ Cartridge BC-11e

: Bk: Approx. 160 pages (ISO JIS-SCID N5 Pattern)

Cl: Approx. 50 pages (ISO JIS-SCID N5 Pattern)

Color BJ Cartridge BC-12e Photo

: Bk: Approx. 60 pages

(ISO JIS-SCID N5 Pattern, High resolution paper)

Cl: Approx. 20 pages

(ISO JIS-SCID N5 Pattern, High resolution paper)

Bk: Approx. 90 pages

(ISO JIS-SCID N5 Pattern, Plain paper)

Cl: Approx. 35 pages

(ISO JIS-SCID N5 Pattern, Plain paper)

Note: See

"4-5 Photo BJ Cartridge Specifications"

for details of the BC-12e.

4-3. Printer Driver / Scanner Driver Type

Valid driver and interface part combinations for this printer are shown below.

Printer Driver Scanner Driver

USB I/F Infrared I/F USB I/F Infrared I/F

Windows 95/98 ∆

∆

Ο∆

Windows 2000 Ο∆

Ο∆

Windows CE ΟΟ XX

Macintosh ΟXΟX

Ο: Compliant ∆: Conditionally compliant X: Not compliant

The operation of the printer driver supporting USB is assured only in preinstalled

Windows 98 PCs.

IrDA 1.1 is assured only in preinstalled Windows 98/2000 PCs,

except PC-9800 series.

Except PC-9800 series. Restricted as shown in 4-3-1.

Except PC-9800 series.

4-3-1. Restrictions on IrDA communication under Windows 2000

The following restrictions or problems occur in case of communication via IrDA under

Windows 2000, connecting with this printer.

As only one-way communication is possible, status information of the main unit cannot be

obtained, causing the following restrictions:

1) The status monitor does not function.

Therefore, the status monitor is disabled by default in the printer driver of this printer

in the case of communication via IrDA under Windows 2000. Users can start the

status monitor by selecting "Start Status Monitor" from the "Property" sheet, however,

"Communication Impossible" is indicated.

COMP. SYSTEMS - 5 - PRNT-896

2) The installed cartridge is unknown.

3) The possibility of ink-low error is displayed only by printer LED. (The information

is not displayed on the host computer.)

4) The print job cannot be canceled from the host computer when an error has occurred.

After the cause of the error is resolved, the printer can be recovered by pressing the

RESUME

button on the printer's operation panel. The error can then be recovered on

the host computer, although the ongoing print job is deleted.

Plug and Play is not supported.

1) The host computer occasionally fails to recognize the infrared port of the printer in

4Mbps communication. "Hard power reset," i.e. disconnection of the printer from mains

power and removal of the battery, is required to recover from this condition. The

frequency of occurrence and the duplication are low. In case of frequent occurrence,

however, this problem can be avoided by lowering the communication speed.

2) If the cleaning operations, etc., start during printing, the error message "Write error"

may be displayed on the host computer. When the cleaning operations, etc. are

finished, the error message disappears, and printing operations continue.

3) If another operation is executed at the host computer (eg., launching another

application) while printing a large file (printing photo images from Photoshop etc.),

paper may automatically be ejected, or the printer may reset.

4-4. Interface Specifications

The interface specifications of this printer are shown below.

1) Infrared Interface

IrDA Interface Ver. 1.1 / IrTranP

ASK Interface

2) USB Interface

1) The supported version of IrDA has been changed from Ver. 1.0 to 1.1.

2) IrTranP compliant. (BJ M40 only)

3) USB interface compliant.

4) Parallel interface has been eliminated.

4-4-1. IrDA Interface

1) Interface

IrDA Version 1.1 compatible

2) Optical specifications

Light generation

Wavelength: 0.85 to 0.90 µm

Intensity: 100 to 500 m W/Sr

Light angle: Approx. ±15

(along optical axis)

COMP. SYSTEMS - 6 - PRNT-896

Light interception

Wavelength: 0.85 to 0.90 µm

Intensity: 4µ W/cm

to 500m W/cm

10µ W/cm

to 500m W/cm

(when the communication speed is more than 0.576 MHz.)

Light angle: Approx. ±15

(along optical axis)

3) Transfer speed 9600/19200/38400/57600/115.2k/576k/1.152M/4M bps

4) Communication Half duplex, start/stop system (bidirectional):

method when the transfer speed is less than 115.2kbps

Half duplex, frame synchronization system (bidirectional):

when the transfer speed is more than 0.576Mbps

5) Communication 0 to 1m: when the transfer speed is less than 115.2kbps

distance 0 to 0.8m: when the transfer speed is more than 0.576Mbps

6) Maximum data 2048 byte/packet

reception

7) Modulation method 3/16 RZI (Return to Zero Invert):

when the transfer speed is less than 115.2kbps

1/4 RZI (Return to Zero Invert):

when the transfer speed is 0.576Mbps and 1.152Mbps

4 PPM (Pulse Position Modulation):

when the transfer speed is 4Mbps

4-4-2. USB Interface

1) Device structure Self-powered device

2) Data transfer Half duplex serial interface

method Universal Serial Bus Specification Revision 1.0 compatible

Universal Serial Bus Device Class Definition for Printing

Device Version 1.0 compatible

Signal rate: 12Mbps (full speed)

Transfer type: Control transfer/Bulk transfer

3) Input/output circuit No. Signal name

1 Vcc

2 -Data Data signal line

3 +Data Data signal line

4 GND

Vcc: "H" level input voltage: +2.0V to +5.5V

"L" level input voltage: +0.0V to +0.8V

-Data, +Data: Differential input sensitivity: Min. 0.2V

"H" level input voltage: +2.8V to +3.6V

"L" level input voltage: +0.0V to +0.3V

4) Interface cable Material: AWG No.28 or larger

Full speed device cable (twisted pair shielded cable)

Less than 5 m

5) Interface connector Printer-side: USB (Series B) receptacle

Cable-side: USB (Series B) plug

Series B

COMP. SYSTEMS - 7 - PRNT-896

4-5. Photo BJ Cartridge Specifications

Photo cartridge BC-12e

BJ cartridge BC-12e: Replaceable color BJ cartridge

(drop modulation adopted)

Ink cartridge BCI-12Bk: Black (64 nozzles)

Ink cartridge BCI-12Color: Yellow, Magenta, Cyan (24 nozzles x 3)

Weight Approx. 29 g (including both ink cartridges)

Print speed Approx. 0.1 ppm

(A4 full address printing: reference value)

Nozzle check pattern Same as the BC-11e

HR-Fine mode

Carriage motion: 3 pass

Printing nozzle: 8 nozzles

Resolution: 360 dpi

Carriage driving frequency: 5.00 kHz

Photo print mode can be used to obtain high level gradation print quality when using the

Photo BJ cartridge. These cartridges contain low density ink which achieves a rich

gradation and reduced graininess by printing several times over the same dot.

The printer driver divides the pixel data into a maximum of 4-values (not printed, print 1

dot, print 2 dots and print 3 dots) enabling each pixel to be printed in up to 4 gradations.

The printer therefore makes three passes using a maximum of 150% more ink than usual.

This Photo cartridge adopts drop modulation, decreasing granularity of the low density

parts by efficiently ejecting large and small ink droplets.

Head ID

Carriage ribbon cable contact part pin No. / Signal name

Head 11/ID0 12/ID1 13/HCONT

BC-10 L L H

BC-11e H L L

BC-12e H H L

No head installation error H H -----

The printer cannot detect ink cartridge type, and the ink cartridges suitable for the BC-11e

and BC-12e heads are not incompatible, so that the following installation problem may

occur. Regardless if the BCI-12 Bk/Color low density photo ink cartridge is installed in the

BC-11e by mistake, the printer recognizes it as the usual BC-11e color cartridge, resulting

in low density imaging. Likewise, if the BCI-11 Bk/Color cartridge is installed in the BC-

12e head, the opposite occurs and high density image printing takes place.

COMP. SYSTEMS - 8 - PRNT-896

5. OPERATION

5-1. Function Setting

Default setting

The default settings can be selected by button operation when the power is turned on.

When the printer is turned on, hold down the

POWER

button until the beeper sounds the

specified number of times for the desired function setting (BJ M40: Table1&2), and

release the

POWER

button to set. Function Setting

Mode Beeper Remark

Table 1 7 times Factory default setting (Japan/CCSI

/Canada/low voltage regions)

Table 2 8 times

Table 3 9 times Factory default setting (Others)

Table 4 10 times

Table 5 11 times

Table 6 12 times BJC-55 only

BJC-55

1) No BJ mode setting

2) Addition of setting to enable/disable the ink low warning.

3) Addition of euro font setting (Code Page 858).

Table 1 Table 2 Table 3 Table 4 Table 5 Table 6

Print mode HQ HQ HQ HQ HQ ---

Left Margin LTR LTR A4 A4 A4 ---

Text Scale Mode Disable Disable Disable Disable Disable ---

Paper Feed Position 8.5 mm 8.5 mm 8.5 mm 8.5 mm 8.5 mm ---

Smoothing Disable Disable Disable Disable Disable ---

Reduction 1/1 1/1 1/1 1/1 1/1 ---

Automatic Power Off Enable Enable Enable Enable Enable ---

Font Roman Roman Roman Roman Roman ---

Font Lock Disable Disable Disable Disable Disable ---

Input/Download Buffer 25kB/0kB 25kB/0kB 25kB/0kB 25kB/0kB 25kB/0kB ---

Automatic Line Feed CR CR CR CR CR ---

International Character Set

USA USA USA USA USA ---

Character Set Italics Italics Italics Italics

Graphics Graphics

Code Page 437 437 437 437 858 858

Ink Low Warning Disable Enable Disable Enable Disable ---

Note:

The setting to enable Table 6 changes only "Character Set" and "Code Page." (That is,

"Character Set" and "Code Page" are changed to "Graphics" and "858," respectively.)

COMP. SYSTEMS - 9 - PRNT-896

BJ M40

1) No setting regarding the LQ mode

2) The setting to enable/disable the ink low warning is added.

Table 1 Table 2

Operation mode change BJ BJ

Print mode HQ HQ

Automatic power off Enable Enable

Smoothing Disable Disable

Remaining ink Disable Enable

Reduction 1/1 1/1

Paper feed position 8.5 mm 8.5 mm

Receive buffer 23kB 23kB

ANK character quality Normal Normal

ANK character set Katakana Katakana

CR function (+LF) CR CR

ANK international Japan Japan

character

COMP. SYSTEMS - 10 - PRNT-896

5-2. Ink Low Warning Reset By Button Operation

Ink low warning

This printer detects the remaining ink level by counting the number of ejected ink dots in

the same way as the BJC-50/50v. When the setting of the ink low warning is enabled, and

the remaining ink gets low, the beeper sounds twice, and the

ERROR INDICATOR

blinks.

Pressing the

Cartridge Replacement

button will sound the beeper and move the carriage

to the center, and the

ERROR INDICATOR

indicates the ink cartridge for which the

remaining ink is low as shown below.

The ink low warning reset function by button operation is added to this printer. The button

operation procedures are shown below. (The ink low warning of the BJC-50/50v can be

reset from the host computer only.)

Operation

1) Turn on the printer.

2) Press the

Cartridge Replacement

button to move the carriage to the center.

If the carriage was moved to the center by the driver, the reset operation by the

button operation is not possible.

3) Make sure that the proper cartridge is installed in the carriage. If not, install the proper

one. (The ink dot counter reset is effective only to the ink cartridge type installed in

the carriage.)

4) Press and hold the

RESUME

button for the number of beeps corresponding to the

warned ink type to select the ink type for which the dot counter is to be reset, and

release the

RESUME

button. The number of beeps is as follows:

Once: The dot counter of the BCI-10/BCI-11Bk/BCI-12Bk is reset.

Twice: The dot counter of the BCI-11Color/BCI-12 Color is reset.

3 times: The dot counter of the BCI-11Bk&Color/BCI-12Bk&Color is reset.

4 times: The selected ink type is canceled.

5) Press the

Cartridge Replacement

button.

The dot counter of the ink selected in the procedure 4) and the ink low warning are

reset, and at the same time, the carriage returns to the home position.

Blinks once: when the remaining ink of the BCI-10 / BCI-11Bk / BCI-12Bk is little

Blinks twice: when the remaining ink of the BCI-11Color / BCI-12Color is little

Blinks 3 times: when the remaining ink of the BCI-11 BK & Color / BCI-12 BK & Color is little

Autres manuels pour BJC-55 Series

Table des matières

Autres manuels Canon Imprimante

Canon

Canon iP6210D - PIXMA Color Inkjet Printer Manuel

Canon

Canon MX720 Series Guide de configuration

Canon

Canon imageCLASS LBP913w Manuel utilisateur

Canon

Canon iP1500 - PIXMA Color Inkjet Printer Manuel

Canon

Canon imageRUNNER 2545 Manuel utilisateur

Canon

Canon BJ-200EX Manuel utilisateur

Canon

Canon pixma ix6800 series Guide de configuration

Canon

Canon PIXMA MX432 Manuel utilisateur

Canon

Canon imagePASS-G1 Manuel d'utilisation et d'entretien

Canon

Canon imagePRESS C1 Manuel d'utilisation et d'entretien

Canon

Canon NP6512 Manuel utilisateur

Canon

Canon PIXMA iX6820 Manuel utilisateur

Canon

Canon MX490 Series Manuel utilisateur

Canon

Canon Color image RUNNER LBP5360 Manuel utilisateur

Canon

Canon iP3300 - PIXMA Color Inkjet Printer Manuel

Canon

Canon PIXMA MP230 Manuel utilisateur

Canon

Canon iP1800 - PIXMA Color Inkjet Printer Manuel

Canon

Canon Laser Class 2060 Manuel utilisateur

Canon

Canon PIXMA MP499 Instructions d'installation et d'entretien

Canon

Canon iPF655 - imagePROGRAF Color Inkjet Printer Manuel utilisateur

Canon

Canon i960 Series Manuel utilisateur

Canon

Canon iPF500 - imagePROGRAF Color Inkjet Printer Manuel utilisateur

Canon

Canon Pixma iP5200 Series Manuel utilisateur

Canon

Canon i900D Series Manuel utilisateur

Manuels Imprimante populaires d'autres marques

Lexmark

Lexmark 1400 Series Manuel

Evolis

Evolis Elypso Manuel utilisateur

Kyocera

Kyocera FS-9530DN Manuel utilisateur

Samsung

Samsung BIXOLON SRP-350plusF Manuel utilisateur

Dell

Dell Color Laser Printer 2130cn Manuel utilisateur

Tektronix

Tektronix Phaser 840 Manuel utilisateur

Epson

Epson ET-7750 Mode d'emploi

Eltron

Eltron P210 Guide Manuel utilisateur

Ricoh

Ricoh MD-P1 Manuel utilisateur

Epson

Epson SC-F7100 series Manuel utilisateur

Epson

Epson Stylus C40UX Manuel utilisateur

IRA3D

IRA3D POETRY4 Manuel utilisateur

Ricoh

Ricoh Aficio AP400 Manuel utilisateur

BIXOLON

BIXOLON SRP-352plusV Manuel utilisateur

Epson

Epson Stylus Photo PX700W Instructions de montage

Ricoh

Ricoh SP204SF Manuel utilisateur

Star Micronics

Star Micronics futurePRNT TSP100 Manuel utilisateur

Epson

Epson TM-TM88V-i Manuel d'utilisation et d'entretien
