Getting Started

Quick Operation P.15

Quick Setup NEXT PAGE

Please read "Important Safety Instructions" before operating this product. After you finish

reading this guide, store it in a safe place for future reference.

The information in this document is subject to change without notice.

https://oip.manual.canon/

Getting Started

Please read "Important Safety Instructions" before operating this product.

P.20

After you nish reading this guide, store it in a safe place for future reference.

The information in this document is subject to change without notice.

הדובעה תליחת



28





You can access

https://oip.manual.canon/ to read the User's Guide that describes all

functions of this machine.



https://oip.manual.canon/



Quick Setup

Before starting the installation

• Remove all of the tape.

• Do not remove the sticker that covers the USB

port.

Sticker

Installation requirements

Provide a space of 100 mm or more around the

machine.

LBP228x

431 mm 373 mm 70 mm

438 mm312 mm131 mm

Cassette feeding

module (optional)

Starter toner cartridge is included.

Installation of the Machine

Installing the MachineItems Included with the Machine

Quick Setup

LBP226dw / LBP223dw

431 mm 373 mm 70 mm

399 mm*

131 mm 250 mm

Cassette feeding

module (optional)

* The protruding portion is not included. The whole

length, if the portion included, is 401mm.

Quick Setup

Up to here

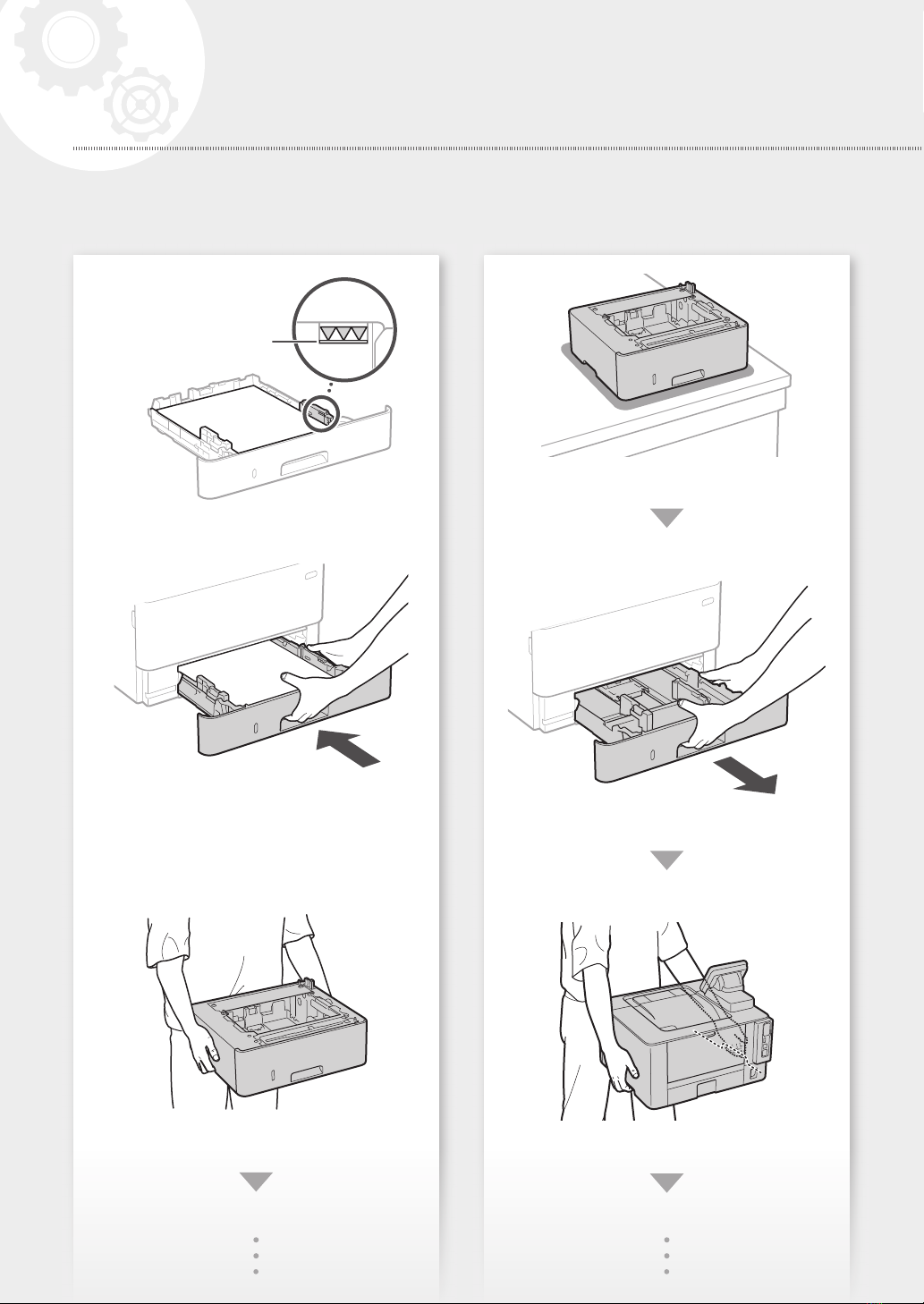

8Install the cassette feeding module

(optional).

Installation of the Machine

Quick Setup

Next, proceed to configure the machine.

Quick Setup

Configuring the Method of

Connecting to a Computer

The design of the operation panel differs

depending on the model of your machine. The

descriptions of the operation panel in this guide

basically presumes that the model is LBP228x.

NOTE

Parts and functions of the operation panel.

P. 16 "Start the Operation from the

Operation Panel"

About Application Library*

Application Library is an application that

allows you to use useful functions for

routine jobs or other convenient functions

in a one-touch operation without

necessity of making functional settings

every time. You can access each

registered function by simply pressing the

appropriate button displayed in the Home

screen. For the respective function, see the

description displayed in the Setup Guide.

* This function may not be available, depending

on the model of the machine.

2. Configure the initial settings, according to the

screen.

• Set the language and country/region.

• Set the time zone and current date/time.

• Configure the settings to prevent

unauthorized access.

• For the purpose of confirmation, enter the

same PIN twice.

Before starting the configuration

• The machine cannot be connected to

both wired and wireless LANs at the

same time.

• If the machine is connected to an

unsecured network, your personal

information might be leaked to a third

party. Please be aware and careful of this.

• The machine does not come with a

router. Please have one ready, if necessary.

• Even in an environment without wireless

LAN router, you can use Access Point

Mode to make a wireless connection to

the machine directly from your mobile

device (Direct Connection).

User's Guide

Specifying the connection method

• To connect via wireless LAN : <Yes>

• To connect via wired LAN or USB : <No>

To connect via wireless LAN

1. Make sure that the computer is connected to a

router properly.

2. Check the network settings on the computer.

Configuring the Machine

Configuring the Initial Settings of

the Machine

Configure the settings in the following order.

Quick Setup

For details

"Setting Up Using the Setup Guide" in the User's Guide

3. Take note of the SSID and network key.

• Check the label on the router. User's Guide

• The setting operation is easier if the router is

provided with a WPS mark. User's Guide

4. Set the access point and network key

according to the screen below.

1. Select <OK>.

2. Select <SSID Settings>.

3. Select <Select Access Point>.

4. Select the access point (SSID), and select

<Next>.

5. Select <OK>.

6. Enter a network key, and select <Apply>.

7. Select <Yes>.

• Wait until message <Connected.> is

displayed.

8. Select <Close>.

• The IP address will be automatically

configured in a few minutes.

5. Install the driver and software.

P. 10 "Installing the software"

Now you are finished with the

configuration of the initial settings.

To connect via wired LAN

The machine does not come with a LAN cable.

Please have one ready, if necessary.

1. Make sure that the computer is connected to a

router properly.

2. Check the network settings on the computer.

3. Connect the LAN cable.

• After connecting the cable, wait a few

minutes (until the IP address is set

automatically).

• If a static IP address has been set on the

computer, set the machine's IP address

manually.

4. Install the driver and software.

P. 10 "Installing the software"

Now you are finished with the

configuration of the initial settings.

Quick Setup

To connect via USB

• The machine does not come with a USB cable.

Please have one ready, if necessary.

• Make sure that the USB cable you

use has the following mark.

• Do not connect the USB cable before installing

the driver. If you did, disconnect the USB cable

from the computer, close the dialog box, and

then perform the following procedure from step

1. Install the driver and software.

P. 10 "Installing the software"

• When a screen with instructions for

connecting the USB cable to the machine is

displayed, remove the sticker that covers the

USB port.

Now you are finished with the

configuration of the initial settings.

Installing the software

• The procedure described here is only applicable

when your computer runs on the Windows OS.

For more details on the software installation

procedure, see the driver's manual.

• For the installation when your computer runs on

the macOS, see the driver's manual.

• Your machine may not come with the driver for

the macOS, depending on the time of purchase.

New drivers are uploaded to the Canon website,

and you can download and use the latest one.

If the screen is not displayed properly, re-insert

the CD-ROM/DVD-ROM or search for "D:\

MInst.exe" on the Windows platform (This

description assumes that "D:" is the CD-ROM/

DVD-ROM drive name).

Configuring the Machine

Quick Setup
