Canon EOS M2 Guide d'installation

In this booklet, basic procedures for easy-to-use “Transferring

Images between Cameras” and “Connecting to a Smartphone”

functions are explained.

For detailed explanation about Wi-Fi functions, refer to “Wi-Fi

Function Instruction Manual” available for download from the

Canon Web site. E

INSTRUCTION

MANUAL

EOS M2 (W)

Wi-Fi Function

Basic Instruction Manual

This camera’s wireless LAN functions let you perform a range of tasks

wirelessly, from sending images to Web services and other cameras to

controlling the camera remotely, simply by connecting to a Wi-Finetwork or

other device supporting this camera’s wireless LAN functions.

* Instructions for (3) to (5) and for (2) to connect via an access point are explained in

the “Wi-Fi Function Instruction Manual” available for download from the Canon Web

site.

What You Can Do Using the Wireless LAN Functions

(CANON iMAGE GATEWAY)

(4) Send images to

a Web service

Save and share images

(2) Connect to a

smartphone

Make images

viewable on a

smartphone

Shoot remotely

with a smartphone

(3) Print images using

a Wi-Fi printer

Print images

(1) Transfer images

between cameras

Exchange images

(5)Viewimages using

a media player

View images

CANON iMAGE GATEWAY Web services are not supported in certain

countries and areas. For information on countries and areas supporting

CANON iMAGE GATEWAY services, refer to the Canon Web site

(http://canon.com/cig).

Settings for “Send images to a Web service” may not be performed from a

computer in certain countries and areas.

What You Can Do Using the Wireless LAN Functions

(1)zTransfer images between cameras (p.13)

Transfer images between this camera and other Canon cameras with

built-in wireless LAN functions.

(2)qConnect to a smartphone (p.21)

View saved images or operate the camera from your smartphone. Install

the dedicated application “EOS Remote” on your smartphone to use these

functions.

(3)lPrint images using a Wi-Fi printer (PDF)

Connect the camera to a wireless LAN compatible printer supporting

PictBridge (Wireless LAN) to print images wirelessly.

(4)mSend images to a Web service (PDF)

Upload your images to CANON iMAGE GATEWAY, an online photo

service for Canon users (free registration required), to share them with

family and friends.

(5)oView images using a media player (PDF)

Display images on the camera’s memory card on your TV set, by using a

media player supporting DLNA* via a wireless LAN.

* Digital Living Network Alliance

In this manual, the term “wireless LAN” is used as a general term for Wi-Fi

and Canon’s original wireless communication functions.

The ** (numbers) for “(p.**)” in this manual indicate reference page

numbers for more information.

Sections of this manual labeled with the following symbols contain

particular types of information as described below.

:Warnings to prevent potential problems during operation.

:Additional information provided to supplement the content about basic

operations.

Conventions Used in This Manual

Microsoft and Windows are trademarks or registered trademarks of Microsoft

Corporation in the United States and/or other countries.

Macintosh and Mac OS are trademarks of Apple Inc., registered in the U.S. and

other countries.

Wi-Fi is a registered trademark of the Wi-Fi Alliance.

Wi-Fi Certified, WPA, WPA2, and the Wi-Fi Certified logo are trademarks of the

Wi-Fi Alliance.

WPS used on camera settings screens and in this manual stands for Wi-Fi

Protected Setup.

UPnP is a trademark of the UPnP Implementers Corporation.

All other trademarks are the property of their respective owners.

Note that Canon cannot be held liable for any loss or damage from erroneous

wireless LAN settings for using the camera. In addition, Canon cannot be held liable

for any other loss or damage caused by use of the camera.

Introduction 2

What You Can Do Using the Wireless LAN Functions............................. 2

Conventions Used in This Manual...........................................................4

Basic Settings for Wireless LAN Functions 7

Registering a Nickname...........................................................................8

Basic Operation and Settings.................................................................11

Transferring Images Between Cameras 13

Selecting the Connection Destination.................................................... 14

Sending Images ..................................................................................... 16

Reconnecting ......................................................................................... 20

Connecting to a Smartphone 21

Preparation............................................................................................. 22

Using Camera Access Point Mode to Establish a Connection...............23

Operating the Camera Using a Smartphone..........................................26

Reconnecting ......................................................................................... 28

Contents

MEMO

Basic Settings for

Wireless LAN Functions

This chapter describes settings necessary for using the

camera’s wireless LAN functions.

First, set the camera’s nickname.

When the camera is connected to another device via a wireless LAN, the

nickname will be displayed on the device. Be sure to set a nickname for your

camera.

1Select [Wi-Fi].

Under the [52] tab, select [Wi-Fi], then

press <0>.

2Select [Enable].

Press the <Y> <Z> keys to select

[Enable], then press <0>.

[Wi-Fi function] is now selectable.

3Select [Wi-Fi function].

Under the [52] tab, select [Wi-Fi

function], then press <0>.

When this setting is selected for the first

time, a screen to register a nickname is

displayed. Select [OK] and proceed on to

step 4.

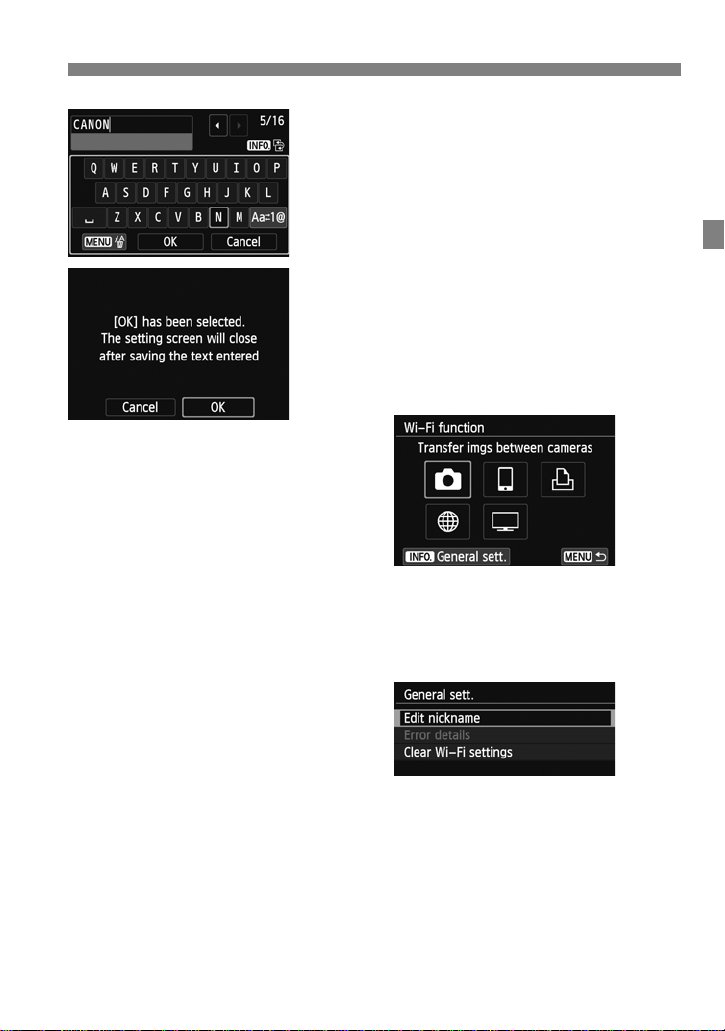

Registering a Nickname

4Enter a nickname.

For instructions on entering characters,

see “Virtual Keyboard Operation” on the

next page.

Up to 16 characters can be entered.

5Finish.

When you are finished, select [OK].

Select [OK] on the confirmation screen,

then press <0>. The nickname is

registered, and the [Wi-Fi function]

screen will appear.

To change the nickname, press the

<B> button on the screen above, then

select [Edit nickname] on the screen

displayed.

Registering a Nickname

Switching to other input areas

To switch between top and bottom input

areas, press the <B> button.

Moving the cursor

To move the cursor, press the <Y> <Z>

keys in the top area.

Entering text

In the bottom input area, press the <S> keys to select characters and

press <0> to enter them.

You can check how many characters you have entered, and how many

more can be entered, by referring to [*/*] on the upper right of the screen.

Switching to other input modes

Select [E] in the bottom area. Each time you press <0>, the input

mode changes. The input mode changes in the following order: lower-case

characters9numbers/symbols 19numbers/symbols 29upper-case

characters.

Deleting text

Press the <M> button to delete one character.

Finishing text entry

Select [OK] in the bottom area to confirm what you have entered and exit

the text entry screen. If a confirmation screen is displayed, select [OK] to

exit.

Canceling text entry

Select [Cancel] in the bottom area to cancel the text entry and exit the text

entry screen. If a confirmation screen is displayed, select [OK] to exit.

Virtual Keyboard Operation
