Canon EOS M10 Manuel utilisateur
CEL-SW2SA210
Getting Started ENGLISH
2
Package Contents
Before use, make sure the following items are included in the package.
If anything is missing, contact your camera retailer.
Camera
(with body cap)
Battery Pack
LP-E12
(with terminal cover)
Battery Charger
LC-E12E
Neck Strap
EM-200DB
Interface Cable
IFC-400PCU
●Printed matter is also included.
●For details on the lens included in the lens kit, check information on
the camera package.
●A memory card is not included.
Compatible Memory Cards
The following memory cards (sold separately) can be used, regardless of
capacity.
●SD memory cards*1
●SDHC memory cards *1*2
●SDXC memory cards*1*2
*1 Cards conforming to SD standards. However, not all memory cards have been
verified to work with the camera.
*2 UHS-I memory cards are also supported.
3
Manuals and Software
Download camera and lens manuals and software from the
following page.
http://www.canon.com/icpd/
●With a computer connected to the Internet, access the above URL.
●Access the site for your country or region.
●Adobe Reader is required to view the manuals.
●For instructions on downloading and installing the software, refer to the
Camera User Guide, available for download.
●You may be requested to enter the
serial number (body number) when
downloading the manuals or software.
In this case, enter the number on
the camera body, behind the screen
(monitor).
4
Part Names
(1) Movie button
(2) Front dial
(3) EF-M lens mount index
(4) Contacts
(5) Shutter button
(6) ON/OFF button
(7) Mode switch
(8) Flash
(9) Lamp
(10) Strap mount
(11) [ (Flash pop up)] switch
(12) Terminal cover
(13) Lens lock pin
(14) Memory card cover
(15) Lens release button
(16) Lens mount
(17) HDMITM terminal
(18) Digital terminal
(19) Tripod socket
(20) Battery cover
(21) DC coupler terminal cover
5
Part Names
(1) Microphone
(2) Screen (monitor)*2/ Touch-screen
panel
(3) Focal plane mark
(4) Indicator
(5) Speaker
(6) Strap mount
(7) [ (Mobile Device Connection)]
button
(8) [ ] button
(9) (N-Mark)*1
(10) [ (Playback)] button
(11) [ (Exposure compensation)] /
[(Single-image erase)] /
Up button
(12) [ (AE lock)] / Left button
(13) [ (Quick Set menu/Set)] button
(14) [ (Flash)] / Right button
(15) [ (Information)] /
Down button
*1 Used with NFC features (see the Camera User Guide).
*2 Gestures may not be detected as easily if you apply a screen protector. In this
case, increase the sensitivity of the touch-screen panel (see the Camera User
Guide).
6
Part Names
Lens
EF-M Lens
(1) Focusing ring
(2) Hood mount
(3) Filter-mounting thread
(4) Lens retraction switch
(5) Lens mount index
(6) Zoom ring
(7) Lens retraction index
(8) Zoom position index
(9) Contacts
7
Initial Preparations
1
Attach the strap.
●Attach the included strap to the camera
as shown.
●On the other side of the camera, attach
the strap the same way.
2
Insert the battery pack.
●Remove the cover from the battery pack,
align the marks on the battery pack
and charger, and insert the battery pack
by pushing it in (1) and down (2).
3
Charge the battery pack.
●Plug the power cord into the charger,
then plug the other end into a power
outlet.
●The charging lamp turns orange, and
charging begins.
●When charging is finished, the lamp turns
green. Remove the battery pack.
●For details on charging time and the
number of shots or recording time
available with a fully charged battery
pack, refer to “Specifications” in the
downloadable Camera User Guide.
4
Open the battery cover.
●Slide the cover (1) and open it (2).
8

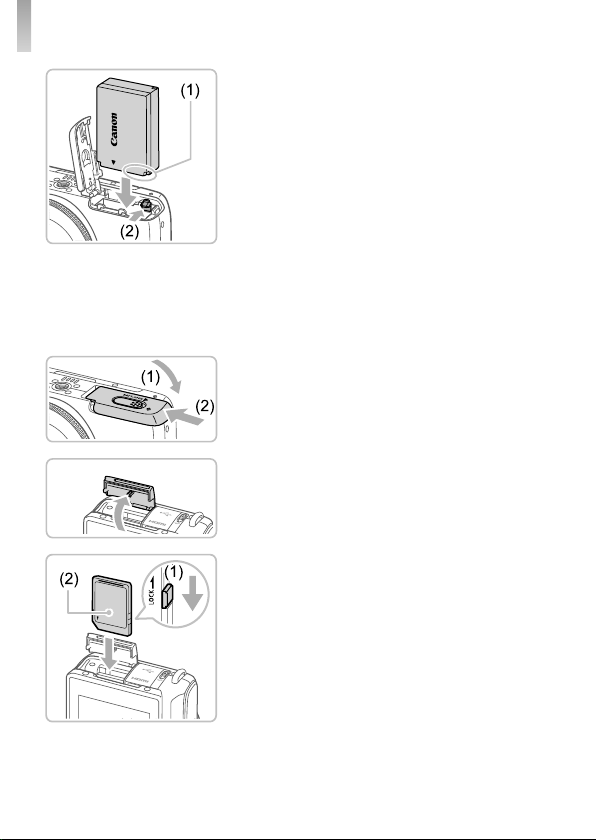

Initial Preparations
5
Insert the battery pack.
●Holding the battery pack with the
terminals (1) facing as shown, press the
battery lock (2) in the direction of the
arrow and insert the battery pack until the
lock clicks shut.
●If you insert the battery pack facing the
wrong way, it cannot be locked into the
correct position. Always confirm that the
battery pack is facing the right way and
locks when inserted.
●To remove the battery pack, press the
battery lock in the direction of the arrow.
6
Close the battery cover.
●Lower the cover (1) and hold it down as
you slide it, until it clicks into the closed
position (2).
7
Open the memory card cover.
●Open the cover in the direction shown.
8
Check your card’s write-protect
switch and insert the memory card.
●Recording is not possible on memory
cards with a write-protect switch when the
switch is in the locked position. Slide the
switch to the unlocked position (1).
●Insert the memory card with the label (2)
facing as shown until it clicks into place.
●To remove the memory card, push it in
until you feel a click, and then slowly
release it.
9
Initial Preparations
9
Close the memory card cover.
●Close the cover in the direction shown
until it clicks shut.
10
Turn the camera on.
●Press the ON/OFF button.
●The [Date/Time] screen is displayed.
11
Set the date and time.
●Press the [ ][ ] buttons to choose an
item.
●Press the [ ][ ] buttons to specify the
date and time.
●When finished, press the [ ] button.
12
Specify your home time zone.
●Press the [ ][ ] buttons to choose your
home time zone.
●Press the [ ] button when finished.
After a confirmation message, the setting
screen is no longer displayed.
●To turn off the camera, press the ON/OFF
button.
10
Initial Preparations
13
Configure the display language.
●Press the [ ] button.
●Press and hold the [ ] button, and then
press the [ ] button.
●Press the [ ][ ][ ][ ] buttons to choose
a language, and then press the [ ]
button.
Changing the Date and Time
To adjust the date and time once you have set it, first press the [ ]
button and then press the [ ][ ] buttons to choose the [ 2] tab. Press the
[ ][ ] buttons to choose [Date/Time], press the [ ] button, set the date
and time as described in step 11, and then press the [ ] button.
