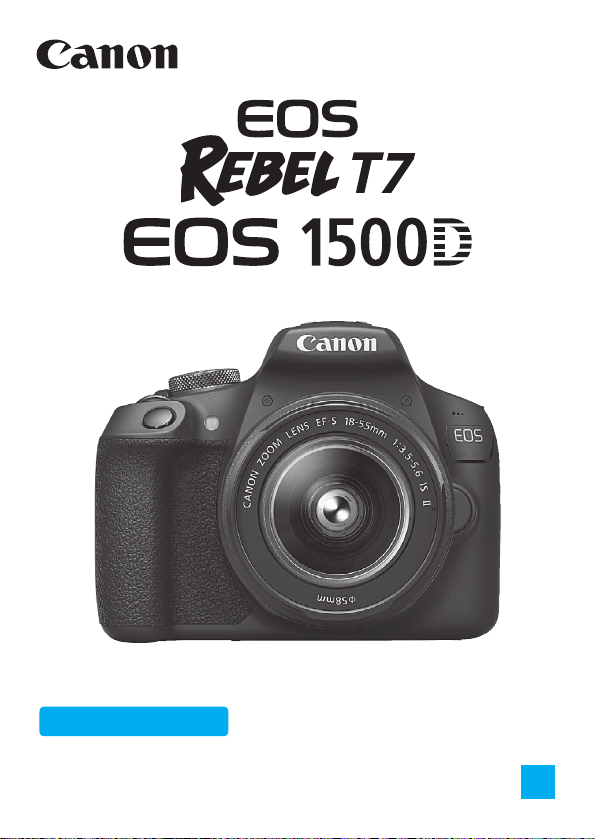

Canon EOS 1500D Rebel T7 Manuel utilisateur

Instruction Manual

Instruction manuals (PDF files) and software can be downloaded

from the Canon Web site (p.4, 315).

www.canon.com/icpd

299

•Type

Type:

Digital, single-lens reflex, AF/AE camera with built-in flash

Recording media:

SD memory card, SDHC memory card, SDXC memory card

Image sensor size: Approx. 22.3 x 14.9 mm

Compatible lenses: Canon EF lenses (including EF-S lenses)

* Excluding EF-M lenses

(35mm-equivalent angle of view is that of a lens with

approx. 1.6x the focal length indicated.)

Lens mount: Canon EF mount

• Image Sensor

Type: CMOS sensor

Effective pixels: Approx. 24.1 megapixels

* Rounded to the nearest 100,000.

Aspect ratio: 3:2

Dust delete feature: Dust Delete Data appending, Clean manually

• Recording System

Recording format: Design rule for Camera File System (DCF) 2.0

Image type: JPEG, RAW (14-bit Canon original)

RAW+JPEG Large simultaneous recording possible

Pixels recorded: L (Large) : 24 megapixels (6000 x 4000)

M (Medium) : Approx. 10.6 megapixels (3984 x 2656)

S1 (Small 1) : Approx. 5.9 megapixels (2976 x 1984)

S2 (Small 2) : Approx. 2.5 megapixels (1920 x 1280)

S3 (Small 3) : Approx. 350,000 pixels (720 x 480)

RAW : 24 megapixels (6000 x 4000)

* Rounded to the nearest 100,000. (For the S3, rounded

to the nearest 10,000.)

Create/select a folder: Possible

File numbering: Continuous, Auto reset, Manual reset

• Image Processing During Shooting

Picture Style: Auto, Standard, Portrait, Landscape, Neutral, Faithful,

Monochrome, User Def. 1 - 3

Basic+: Ambience-based shots, Light/scene-based shots

White balance: Auto (Ambience priority), Auto (White priority), Preset

(Daylight, Shade, Cloudy, Tungsten light, White

fluorescent light, Flash), Custom

White balance correction, and White balance bracketing

provided

* Flash color temperature information transmission

enabled

Specifications

300

Specifications

Noise reduction: Applicable to long exposures and high ISO speed shots

Automatic image

brightness correction:

Auto Lighting Optimizer provided

Highlight tone priority: Provided

Lens peripheral

illumination correction:

Provided

• Viewfinder

Type: Eye-level pentamirror

Field of view coverage: Vertical/Horizontal approx. 95% (with eyepoint approx.

21 mm)

Magnification: Approx. 0.8x (-1 m-1 with 50mm lens at infinity)

Eyepoint: Approx. 21 mm (from eyepiece lens center at -1 m-1)

Dioptric adjustment

range:

Approx. -2.5 - +0.5 m-1 (dpt)

Focusing screen: Fixed, Precision Matte

Mirror: Quick-return type

Depth-of-field preview: Enabled with Custom Function setting

• Autofocus (for viewfinder shooting)

Type: TTL secondary image-registration, phase-difference

detection with the dedicated AF sensor

AF points: 9-point (All AF points support f/5.6. Cross-type AF with

center AF point.)

Focusing brightness

range:

EV 0 - 18 (Center AF point)

EV 1 - 18 (Other AF points)

(With One-Shot AF, at room temperature, ISO 100)

AF operation: One-Shot AF, AI Servo AF, AI Focus AF

AF-assist beam: Small series of flashes fired by built-in flash

• Exposure Control

Metering modes: 63-zone TTL open-aperture metering

• Evaluative metering (linked to all AF points)

• Partial metering (approx. 10% of viewfinder at center)

• Center-weighted average metering

Metering brightness

range:

EV 1 - 20 (at room temperature, ISO 100)

Shooting mode: Basic Zone modes:

Scene Intelligent Auto, Flash Off, Creative Auto, Portrait,

Landscape, Close-up, Sports, Food, Night Portrait

Creative Zone modes:

Program AE, Shutter-priority AE, Aperture-priority AE,

Manual exposure

301

Specifications

ISO speed

(Recommended

exposure index):

Basic Zone modes*: ISO 100 - ISO 3200 set automatically

* Portrait: ISO 100

Creative Zone modes: ISO 100 - ISO 6400 set manually

(whole-stop increments), ISO 100 - ISO 6400 set

automatically, maximum ISO speed settable for ISO

Auto, or ISO expansion to “H” (equivalent to ISO 12800)

Exposure

compensation:

Manual: ±5 stops in 1/3- or 1/2-stop increments

AEB: ±2 stops in 1/3- or 1/2-stop increments (can be

combined with manual exposure compensation)

AE lock: Auto: Applied in One-Shot AF with evaluative

metering when focus is achieved

Manual: With AE lock button

•Shutter

Type: Electronically-controlled, focal-plane shutter

Shutter speed: 1/4000 sec. to 30 sec. (Total shutter speed range.

Available range varies by shooting mode.), Bulb, X-sync

at 1/200 sec.

•Flash

Built-in flash: Retractable, auto pop-up flash

Guide No.: Approx. 9.2/30.2 (ISO 100, in meters/feet) or

approx. 13/42.7 (ISO 200, in meters/feet)

Flash coverage: Approx. 17mm lens angle of view

Recharge time: Approx. 2 sec.

External Speedlite: Compatible with EX-series Speedlites

Flash metering: E-TTL II autoflash

Flash exposure

compensation:

±2 stops in 1/3- or 1/2-stop increments

FE lock: Provided

PC terminal: Not provided

• Drive System

Drive mode: Single shooting, Continuous shooting, Self-timer with 10-

sec. or 2-sec. delay and 10-sec. delay with continuous

shooting

Continuous shooting

speed:

Max. approx. 3.0 shots/sec.

Max. burst (Approx.): JPEG Large/Fine: 150 shots

RAW: 11 shots

RAW+JPEG Large/Fine: 6 shots

* Figures are based on Canon’s testing standards (ISO

100 and Standard Picture Style) using an 8 GB card.

302

Specifications

• Live View Shooting

Aspect ratio: 3:2, 4:3, 16:9, 1:1

Focus method: Contrast detection (FlexiZone-Single, Face detection

Live mode), Phase-difference detection (Quick mode)

Manual focus (approx. 5x / 10x magnification possible)

Focusing brightness range:

EV 1 - 18 (at room temperature, ISO 100)

Metering mode: Real-time metering with image sensor

Metering brightness

range:

EV 0 - 20 (at room temperature, ISO 100)

Grid display: Two types

• Movie Shooting

Recording format: MOV

Movie: MPEG-4 AVC/H.264

Variable (average) bit rate

Audio: Linear PCM

Recording size and

frame rate:

1920x1080 (Full HD): 30p/25p/24p

1280x720 (HD) : 60p/50p

640x480 (VGA) : 30p/25p

* 30p: 29.97 fps, 25p: 25.00 fps, 24p: 23.98 fps,

60p: 59.94 fps, 50p: 50.00 fps

Bit rate: 1920x1080 (30p/25p/24p) : Approx. 46 Mbps

1280x720 (60p/50p) : Approx. 46 Mbps

640x480 (30p/25p) : Approx. 11 Mbps

Focus method: Same as focusing with Live View shooting

Focusing brightness range:

EV 1 - 18 (at room temperature, ISO 100)

Metering mode: Center-weighted average and evaluative metering with

the image sensor

* Automatically set by the focus method.

Metering brightness

range:

EV 0 - 20 (at room temperature, ISO 100)

Exposure control: Autoexposure and manual exposure

Exposure compensation:

±3 stops in 1/3-stop increments

ISO speed

(Recommended

exposure index):

With autoexposure shooting:

ISO 100 - ISO 6400 set automatically

With manual exposure:

ISO 100 - ISO 6400 set automatically/manually

Video snapshots: Settable to 2 sec./4 sec./8 sec.

Sound recording: Built-in monaural microphone

Sound-recording level adjustable, wind filter provided

Grid display: Two types

Still photo shooting: Not possible during movie shooting

303

Specifications

•LCDMonitor

Type: TFT color liquid-crystal monitor

Monitor size and dots: Approx. 7.5 cm (3.0 in.) (4:3) with approx. 920,000 dots

Brightness adjustment: Manual (7 levels)

Interface languages: 25

Feature guide: Displayable

•Playback

Image display format: Basic info, basic info + image quality/playback number,

shooting info. display, histogram, index display (4/9)

Zoom magnification: Approx. 1.5x - 10x

Highlight alert: Overexposed highlights blink

Image browsing

method:

Single image, jump by 10 or 100 images, by shooting

date, by folder, by movies, by stills, by rating

Image rotation: Possible

Ratings: Provided

Movie playback: Enabled (LCD monitor, HDMI)

Built-in speaker

Image protection: Possible

Slide show: All images, by date, by folder, by movies, by stills, by

rating

Five transition effects selectable

Background music: Selectable for slide shows and movie playback

• Post-Processing of Images

Creative filters: Grainy B/W, Soft focus, Fish-eye effect, Toy camera

effect, Miniature effect

Resize: Possible

• Direct Printing

Compatible printers: PictBridge-compatible printers

Printable images: JPEG and RAW images

Print ordering: DPOF Version 1.1 compatible

• Customization Features

Custom Functions: 11

My Menu registration: Possible

304

Specifications

• Interface

Digital terminal: Hi-Speed USB equivalent: Computer communication,

Direct printing, GPS Receiver GP-E2, Connect Station

CS100 connection

HDMI mini OUT

terminal:

Type C (Auto switching of resolution)

Remote control terminal:For Remote Switch RS-60E3

Eye-Fi card: Compatible

•Power

Battery: Battery Pack LP-E10 (Quantity 1)

* AC power can be supplied via household power outlet

accessories.

Number of possible

shots:

(Based on CIPA testing

standards, with 50%

flash use)

With viewfinder shooting:

Approx. 500 shots at room temperature (23°C/73°F),

approx. 410 shots at low temperatures (0°C/32°F)

With Live View shooting:

Approx. 240 shots at room temperature (23°C/73°F),

approx. 230 shots at low temperatures (0°C/32°F)

* With a fully-charged Battery Pack LP-E10.

Movie shooting time: Approx. 1 hr. 30 min. at room temperature (23°C/73°F)

Approx. 1 hr. 25 min. at low temperatures (0°C/32°F)

* With a fully-charged Battery Pack LP-E10.

• Dimensions and Weight

Dimensions (W x H x D):Approx. 129.0 x 101.3 x 77.6 mm / 5.08 x 3.99 x 3.06 in.

Weight: Approx. 475 g / 16.75 oz. (Including battery and card),

Approx. 427 g / 15.06 oz. (Body only)

• Operation Environment

Working temperature

range:

0°C - 40°C / 32°F - 104°F

Working humidity: 85% or less

All the data above is based on Canon’s testing standards and CIPA (Camera &

Imaging Products Association) testing standards and guidelines.

Dimensions and weight listed above are based on CIPA Guidelines (except

weight for camera body only).

Product specifications and the exterior are subject to change without notice.

If a problem occurs with a non-Canon lens attached to the camera, consult the

respective lens manufacturer.

Table des matières

Autres manuels Canon Appareil photo numérique

Canon

Canon EOS 80D (W) Guide d'installation

Canon

Canon PowerShot SX100 IS Manuel utilisateur

Canon

Canon REBEL T1I EOS 500D Manuel utilisateur

Canon

Canon Digital IXUS 200 IS Manuel utilisateur

Canon

Canon EOS 650 Manuel utilisateur

Canon

Canon PowerShot SX420 IS Manuel utilisateur

Canon

Canon PowerShot SX410 IS Manuel utilisateur

Canon

Canon PowerShot A720 IS Manuel utilisateur

Canon

Canon DIGITAL IXUS 430 Manuel utilisateur

Canon

Canon WP-DC32 Manuel utilisateur

Canon

Canon PowerShot A1100 IS Manuel utilisateur

Canon

Canon IXUS 265 HS Manuel utilisateur

Canon

Canon F-1 Manuel utilisateur

Canon

Canon PowerShot SX610 HS Manuel utilisateur

Canon

Canon PowerShot SX100 IS Manuel utilisateur

Canon

Canon PowerShot G10 - Digital Camera - Compact Manuel utilisateur

Canon

Canon CDI-E151-010 Manuel utilisateur

Canon

Canon EOS C500 PL Manuel utilisateur

Canon

Canon EOS 7D Mark II (G) Manuel utilisateur

Canon

Canon EOS-1D Mark II Digial Manuel utilisateur

Canon

Canon PowerShot A400 Manuel utilisateur

Canon

Canon EOS 70 Manuel utilisateur

Canon

Canon POWERSHOT A810 Manuel utilisateur

Canon

Canon PSC 60 Manuel utilisateur

Manuels Appareil photo numérique populaires d'autres marques

Mercury

Mercury 350K Manuel utilisateur

Pentax

Pentax Optio LS 465 Manuel utilisateur

Sanyo

Sanyo VPC-S1085 Manuel utilisateur

GE SMART A1255 Manuel utilisateur

Point Grey

Point Grey Gazelle Manuel utilisateur

Nikon

Nikon COOLPIX A Manuel utilisateur

Pentax

Pentax P-5 Manuel utilisateur

BlazeVideo

BlazeVideo A280 Manuel utilisateur

Sony

Sony MCA-20 Manuel utilisateur

Sony

Sony Alpha DSLR-A290 Manuel utilisateur

ATIK Cameras

ATIK Cameras One Manuel utilisateur

CohuHD Costar

CohuHD Costar 3930 Series Manuel utilisateur

Leica

Leica M10-R Manuel utilisateur

FujiFilm

FujiFilm FinePix A700 Manuel utilisateur

Lorex

Lorex LNZ81P25 Series Manuel utilisateur

GE J1470S Manuel utilisateur

Sony

Sony A6700 Guide de l'utilisateur

Nikon

Nikon Coolpix 100 Manuel utilisateur
