Canon DIGITAL IXUS 400 Mode d’emploi

CHAPTER 4. PARTS CATALOG

CONTENTS

PowerShot S400/DIGITAL IXUS 400/IXY DIGITAL 400

Casing Parts ----------------------------------------------------------------------------------------------------------------------- Pg1

Internal Parts-1 ------------------------------------------------------------------------------------------------------------------- Pg2

Internal Parts-2 ------------------------------------------------------------------------------------------------------------------- Pg3

OPTICAL UNIT ----------------------------------------------------------------------------------------------------------------- Pg4

Accessories-1 ------------------------------------------------------------------------------------------------------------------------- Pg5

Accessories-2 ------------------------------------------------------------------------------------------------------------------------- Pg6

Accessories-3 ------------------------------------------------------------------------------------------------------------------------- Pg7

Service Tools-1 ----------------------------------------------------------------------------------------------------------------------- Pg8

Service Tools-2 ----------------------------------------------------------------------------------------------------------------------- Pg9

Category of CLASS

A: Frequency of use: High

B: Frequency of use: Middle

C: Frequency of use: Low

D: Safety-related critical parts

E: Consumable parts

F: Standard screws and washers

S: Supply of the parts is limited

Y: Service Tools

PowerShot S400

DIGITAL IXUS 400

IXY DIGITAL 400

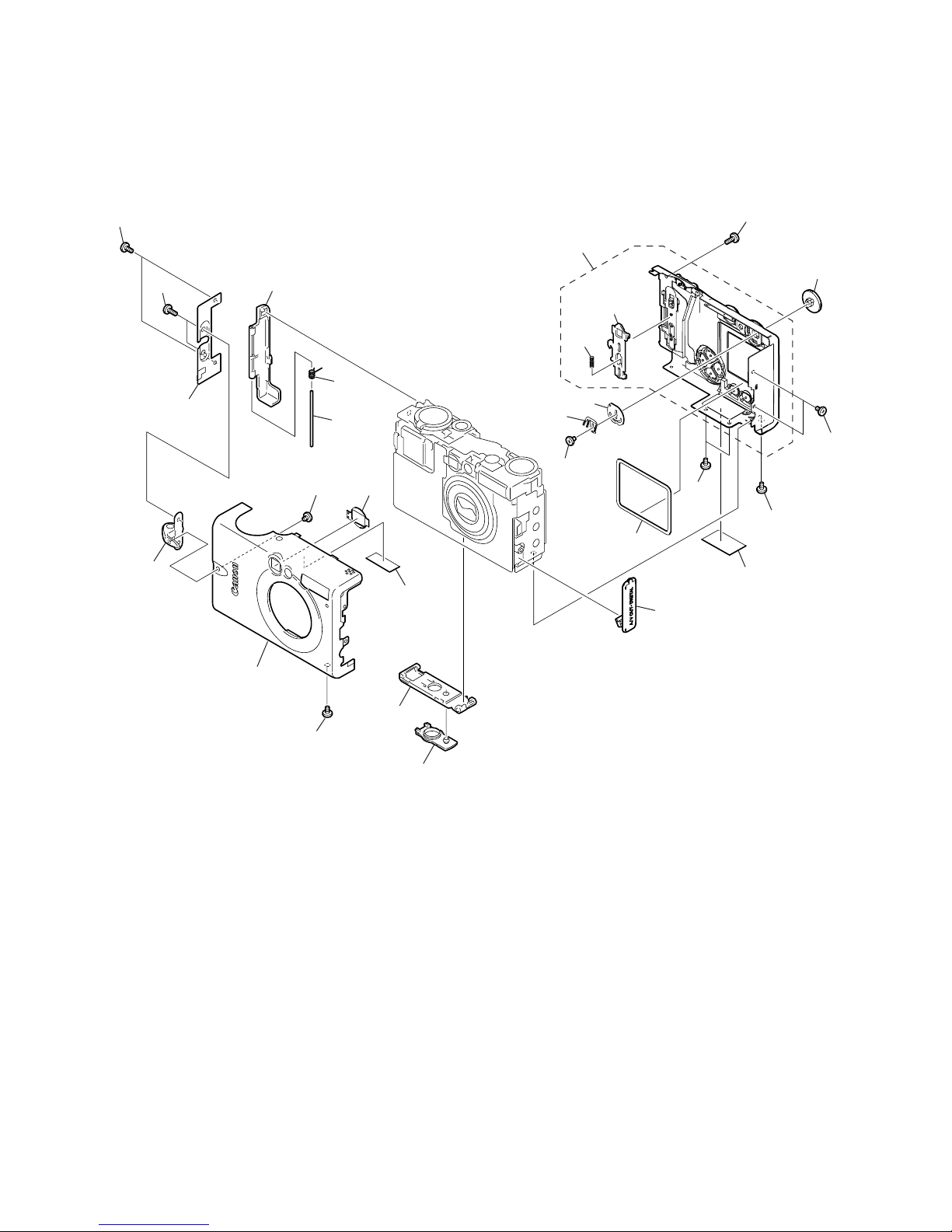

Pg1 Casing Parts

PARTS LIST

SYMBOL PARTS NO. CLASS QTY DESCRIPTION REMARKS

PowerShot S400

DIGITAL IXUS 400

IXY DIGITAL 400

Pg1

1 CD3-0675-000 B 1 COVER, DC COUPLER

2 CD3-0657-000 B 1 COVER, BATTERY

3 CM1-2113-000 B 1 FRONT COVER UNIT IXY DIGITAL 400

CM1-2114-000 B 1 FRONT COVER UNIT PowerShot S400

CM1-2115-000 B 1 FRONT COVER UNIT DIGITAL IXUS 400

4 CD3-0684-000 C 1 SHEET, INSULATION

5 CD3-0648-000 C 1 RUBBER, FINDER

6 CD3-0645-000 B 1 RING, STRAP

7 CL1-2022-000 B 1 SIDE COVER UNIT

8 CD3-0698-000 B 1 COVER, CF

9 CS8-6162-000 C 1 SPRING, CF COVE

10 CD3-0699-000 C 1 BAR, CF COVER

11 CD3-0711-000 C 1 SPRING, MODE DIAL CLICK

12 CD3-0712-000 C 1 PLATE, MODE DIAL CONTACT

13 CM1-2111-000 B 1 REAR COVER UNIT

14 CS8-5264-000 C 1 SPRING, CF LOCK

15 CD1-4200-000 C 1 LOCK, CF COVER

16 CD3-0710-000 B 1 DIAL, MODE

17 CD3-0706-000 C 1 SPACER, LCD

18 CD3-0704-000 B 1 COVER, JACK

19 CY1-6259-000 B 1 PLATE, BODY NUMBER #13011xxxxx

20 CD3-0730-000 C 1 SCREW

21 CD3-0728-000 C 1 SCREW

22 CD3-0687-000 C 1 SCREW

23 CD3-0679-000 C 2 SCREW

24 CD3-0678-000 C 2 SCREW

25 CD3-0734-000 C 1 SCREW

26 CD3-0731-000 C 1 SCREW

27 CD3-0677-000 C 4 SCREW

PowerShot S400

DIGITAL IXUS 400

IXY DIGITAL 400

Pg2

Internal Parts-1

PARTS LIST

SYMBOL PARTS NO. CLASS QTY DESCRIPTION REMARKS

PowerShot S400

DIGITAL IXUS 400

IXY DIGITAL 400

Pg2

1 CM1-2086-000 C 1 OPERATION KEY UNIT

2 CD3-0735-000 C 1 SHEET, DUSTPROOF

3 WK1-5140-000 C 1 BATTERY, LITHIUM(2ND)

4 CD3-0631-000 C 1 SPACER, FINDER GAP

5 CL1-2024-000 C 1 SHIELD SHEET UNIT

6 CM1-2085-000 C 1 PCB ASS’Y, MAIN

7 CM1-2072-000 B 1 SHUTTER BUTTON UNIT

8 CM1-2075-000 C 1 BACK LIGHT UNIT

9 WG2-5243-000 C 1 PANEL, LCD

WG2-5243-001 C 1 PANEL, LCD (SELECTION)

10 CD3-0715-000 C 1 PLATE, OPERATION

11 CD3-0716-000 C 1 TAPE, OPERATION PLATE

12 CD1-3108-000 C 4 SCREW

13 XA1-7170-357 F 3 SCREW

14 XA4-9170-359 F 1 SCREW

PowerShot S400

DIGITAL IXUS 400

IXY DIGITAL 400

Pg3

See Pg4

Internal Parts-2

PARTS LIST

SYMBOL PARTS NO. CLASS QTY DESCRIPTION REMARKS

PowerShot S400

DIGITAL IXUS 400

IXY DIGITAL 400

Pg3

1 CD3-0723-000 C 1 SOCKET, TRIPOD

2 CM1-2090-000 C 1 FINDER UNIT

3 CM1-2074-000 C 1 BATTERY BOX UNIT

4 CD3-0655-000 C 1 SPRING, BATTERY LOCK

5 CD3-0654-000 C 1 LOCK, BATTERY

6 CD3-0690-000 C 1 SHEET, GROUND

7 CK2-2027-000 C 1 FPC, MAIN-FLASH

8 CM1-2071-000 C 1 FLASH BASE UNIT

9 CM1-2112-000 C 1 SPEAKER SHEET UNIT

10 CM1-2084-000 C 1 CF UNIT

11 CD3-0707-000 C 1 FRAME, MAIN

12 CY4-6074-000 D 1 FUSE, MATSU. DENKI UNHS 206

13 XA4-9140-359 F 2 SCREW

14 XA1-7170-307 F 3 SCREW

15 CD3-0700-000 C 2 SCREW

16 XA4-9170-309 F 2 SCREW

17 XA4-5140-209 F 1 SCREW

18 XA4-5170-309 F 4 SCREW

PowerShot S400

DIGITAL IXUS 400

IXY DIGITAL 400

Pg4

OPTICAL UNIT

PARTS LIST

SYMBOL PARTS NO. CLASS QTY DESCRIPTION REMARKS

PowerShot S400

DIGITAL IXUS 400

IXY DIGITAL 400

Pg4

1 CD3-0597-000 B 1 CAP, BASE BARREL

2 CD3-0548-000 C 1 SHEET, LENS BARREL

3 CD3-0543-000 B 1 CAP, BARREL

4 CD3-0558-000 C 1 TAPE, BARREL CAP SIZE (015)

5 CD3-0552-000 B 1 CAP, FRONT

6 CD3-0550-000 B 2 PLATE, BARRIER

7 CD3-0551-000 C 1 BASE, BARRIER

8 CD3-0554-000 C 1 PLATE, BARRIER DRIVE

9 CD3-0557-000 C 1 SPRING, BARRIER OPEN

10 CD3-0556-000 C 1 SPRING, BARRIER CLOSE

11 CD3-0553-000 C 1 RING, BARRIER DRIVE

12 CM1-2062-000 C 1 OPTICAL UNIT

PowerShot S400

DIGITAL IXUS 400

IXY DIGITAL 400

Pg5

N.Sl : N.S Stand for No Stock (Product available)

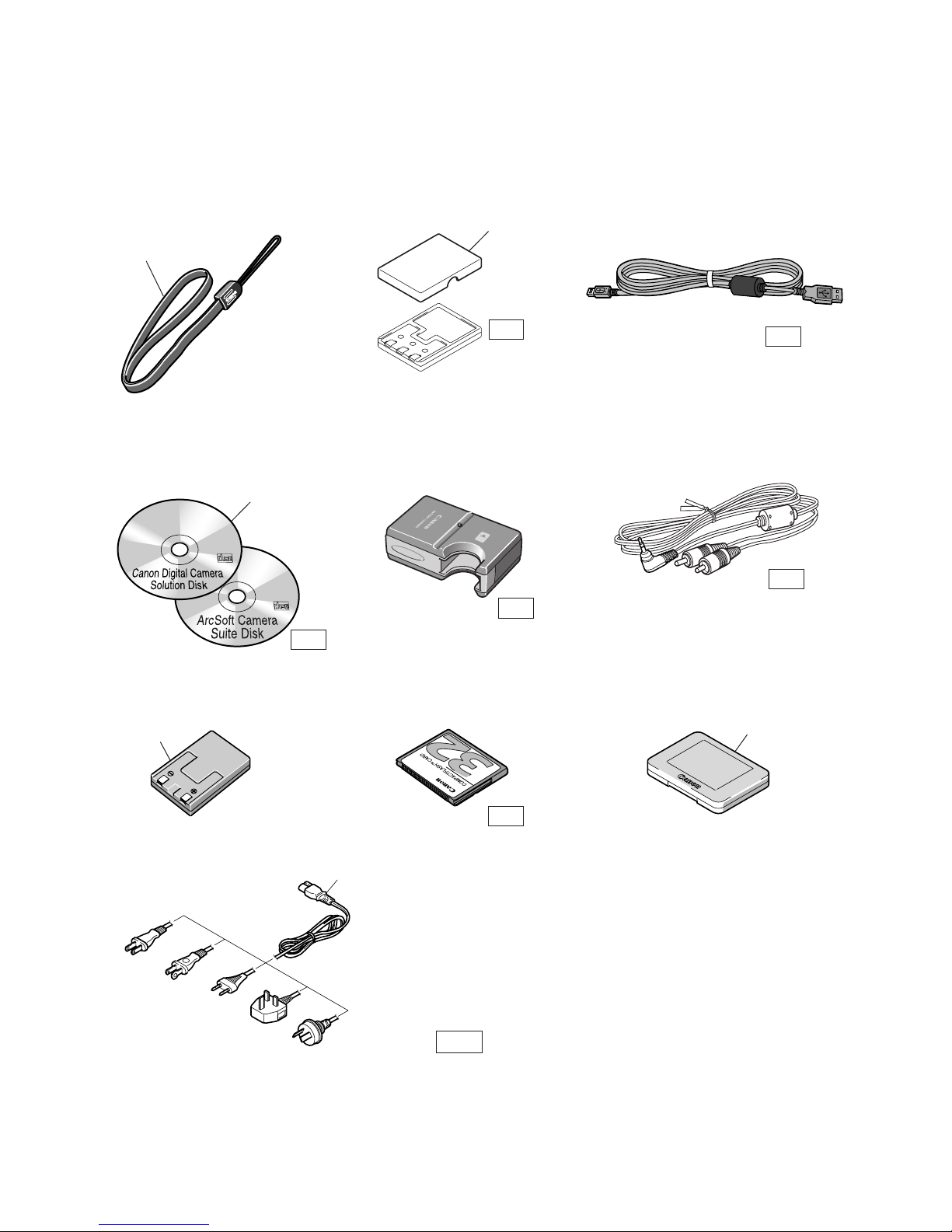

Accessories-1

Terminal Cover NB-1LH USB Interface Cable

IFC-300PCU

AV Cable AVC-DC100Battery Charger

CB-2LS/2LSE

Canon Digital Camera

Solution Disk,

ArcSoft Camera Suite Disk

DC Coupler DR-500

AC Cable

N.S N.S

N.S

CF Card FC-32M

PLUG TYPE

FC-32M

N.S

Wrist Strap WS-300

CF Case

N.S
