Canon MP980 series Manuel utilisateur

Make sure to read this manual before using the machine. Please keep it in hand for future reference.

MP980

Getting Started

=Read Me First=

series

Photo All-In-One

Symbols■

The following symbols are used to mark important instructions. Observe these instructions.

Instructions that, if ignored, could result in personal injury or material damage.

Instructions that must be observed for safe operation.

Additional explanations.

Descriptions for operations that take some time to complete.

Model Number: K10327(MP980)

Microsoft is a registered trademark of Microsoft Corporation.

Windows is a trademark or registered trademark of Microsoft Corporation in the U.S. and/or other countries.

Windows Vista is a trademark or registered trademark of Microsoft Corporation in the U.S. and/or other countries.

Macintosh, Mac, and AirPort are trademarks of Apple Inc., registered in the U.S. and other countries.

Wi-Fi is a registered trademark of the Wi-Fi Alliance.

The Wi-Fi CERTIFIED logo is a certication mark of the Wi-Fi Alliance.

•

Contents

Unlock the Scanning Unit (Cover)

Align the Print Head

After Installing the Machine

Loading Paper

Setup the Machine and the Computer

Conrming the Setup Flow

Install the Ink Tanks

Install the Print Head

Turn the Power On

(B)

(C)

(A)

Unlock the Scanning Unit (Cover)

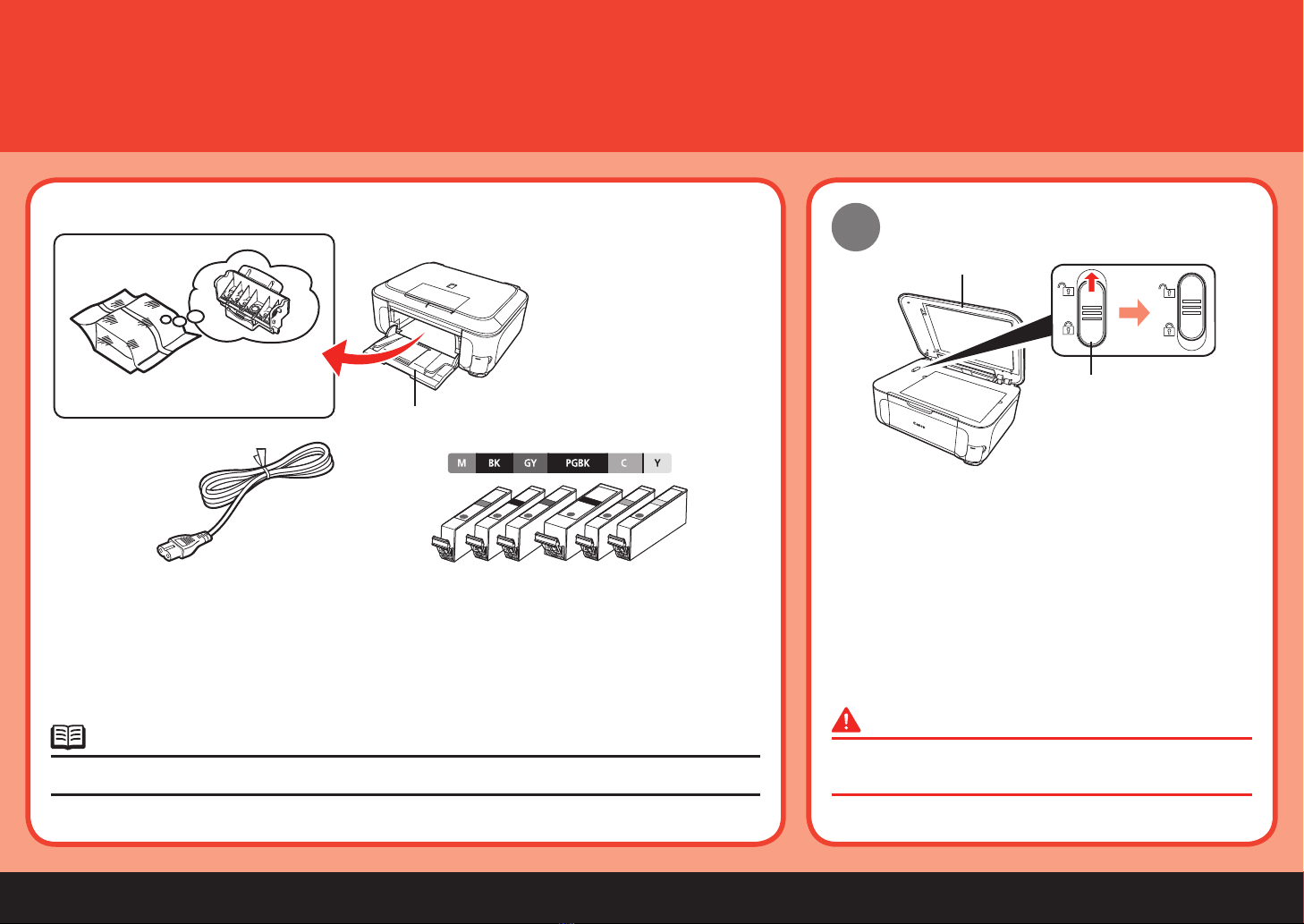

First, check the included items

Manuals

Setup CD-ROM (containing the drivers, applications and on-screen manuals)

Warranty

MP-101 paper (for Automatic Print Head Alignment)

•

Close the Document Cover (B).

Open the Document Cover (B).

Move the Scanner Lock Switch (C) towards the

release mark to unlock the Scanning Unit (Cover).

Before turning on the machine, remove all the orange

tapes and the protective sheets.

•

Open the Paper Output

Tray with your hands, and

take out the Print Head.

The Print Head is placed

inside of the Paper Output

Tray (A).

A USB cable is necessary to connect the machine with your computer.•

ink tank

Print Head

power cord

(1)

(2)

(A)

(B)

(C)

(D)

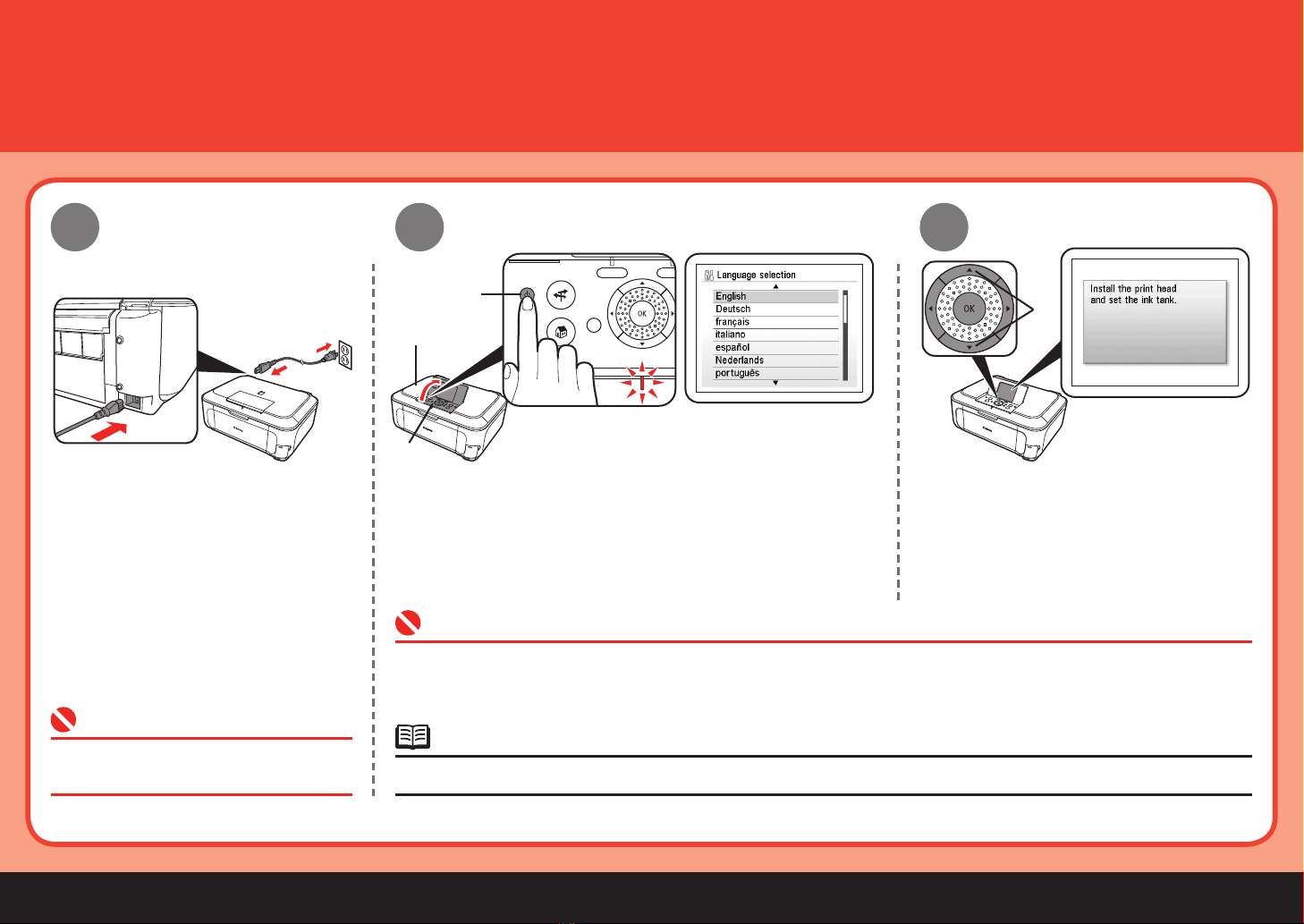

Turn the Power On

Do NOT connect the USB cable at this

stage.

•

Plug in the power cord on the left

side at the back of the machine and

connect the other end to the wall

outlet.

Open the Operation Panel (A), then press the ON button (B)

to turn on the machine.

Make sure that the Document Cover (C) is closed.

If an unintended language is displayed on the LCD, press the Back button on the Operation Panel to return to the

Language selection screen.

•

Use the { or } button (D) on the

Operation Panel to select the language

for the LCD, then press the OK button.

The standby screen is displayed.

The machine may make some operating noises. This is normal operation.•

(E)

(A)

(B)

(C)

(D)

Install the Print Head

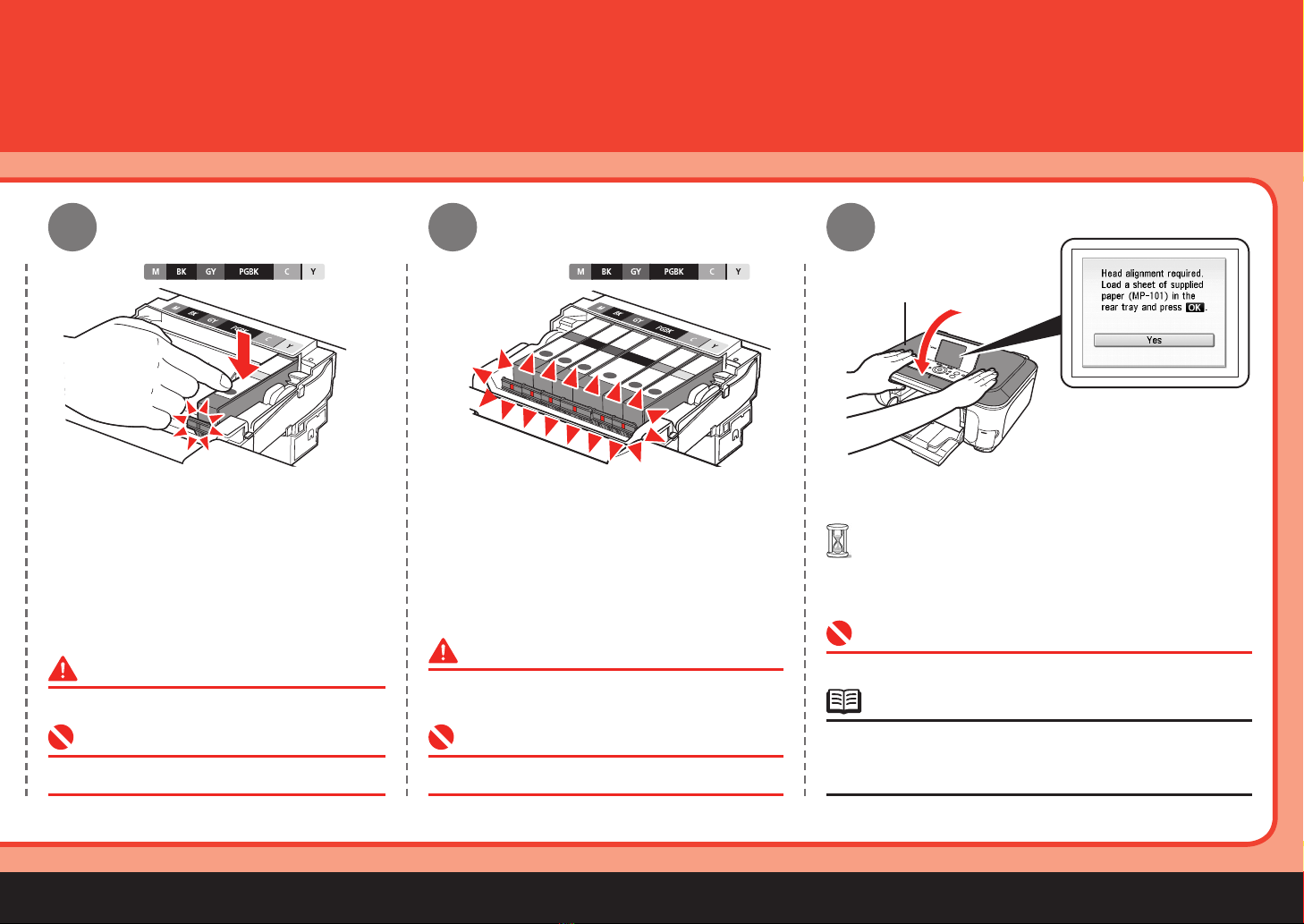

Raise the Print Head Lock Lever (E).Open the Paper Output Tray (A), then lift the

Scanning Unit (Cover) (B) until it locks into place.

The Scanning Unit (Cover) (B) is fixed automatically.

The Print Head Holder (C) comes out. (This is where

you install the Print Head.)

For your safety, always grip as illustrated.

Close the Document Cover (D) and lift it with the

Scanning Unit (Cover).

•

•Firmly raise the Print Head Lock Lever until it stops. (The

Print Head Lock Lever may feel heavy.)

•

If the Print Head Holder does not move, make sure that the

machine is turned on.

•

Do not handle the Print Head

roughly such as applying them

excessive pressure or dropping

them.

•

The Print Head Holder makes a noise as it moves.

This is normal operation.

•

(E)

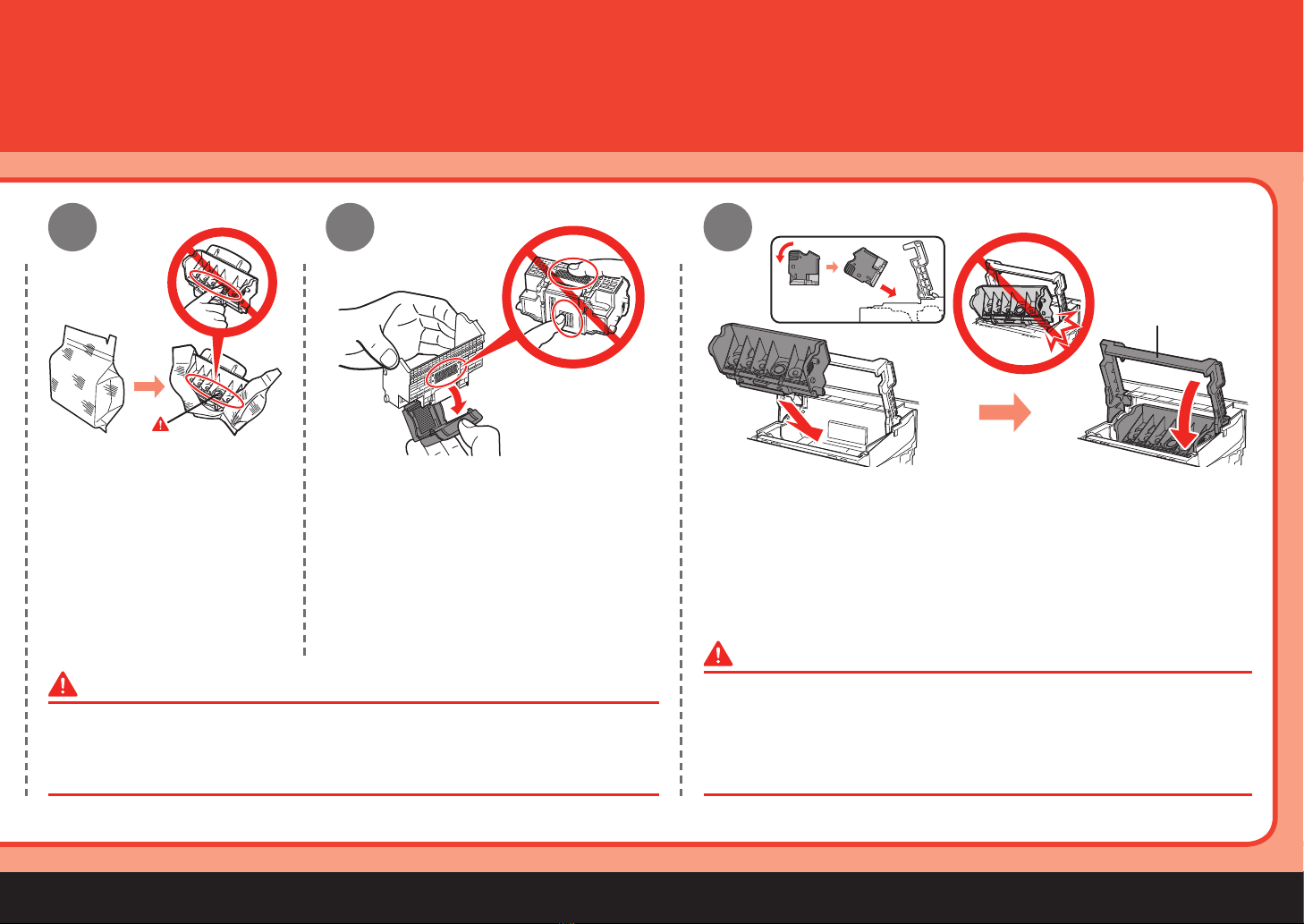

Remove the Print Head from

the silver package.

Remove and discard the orange protective

cap.

Tilt the Print Head and set it in place. Lower the Print Head Lock

Lever (E) completely.

There may be some transparent or light blue ink on the inside of the bag the Print

Head comes in, or the inside of the protective cap - this has no effect on print quality.

Be careful not to get ink on yourself when handling these items. Be careful not to

stain your hands.

•

Do not knock the Print Head against the sides of the Holder.

Be sure to install it in a well-lit environment.

Pinch the Print Head Lock Lever rmly and lower it gently.

Once you have installed the Print Head, do not remove it unnecessarily.

•

(1)

(2)

(A)

Install the Ink Tanks

Do not hold the sides of the ink tank; ink may splash.•

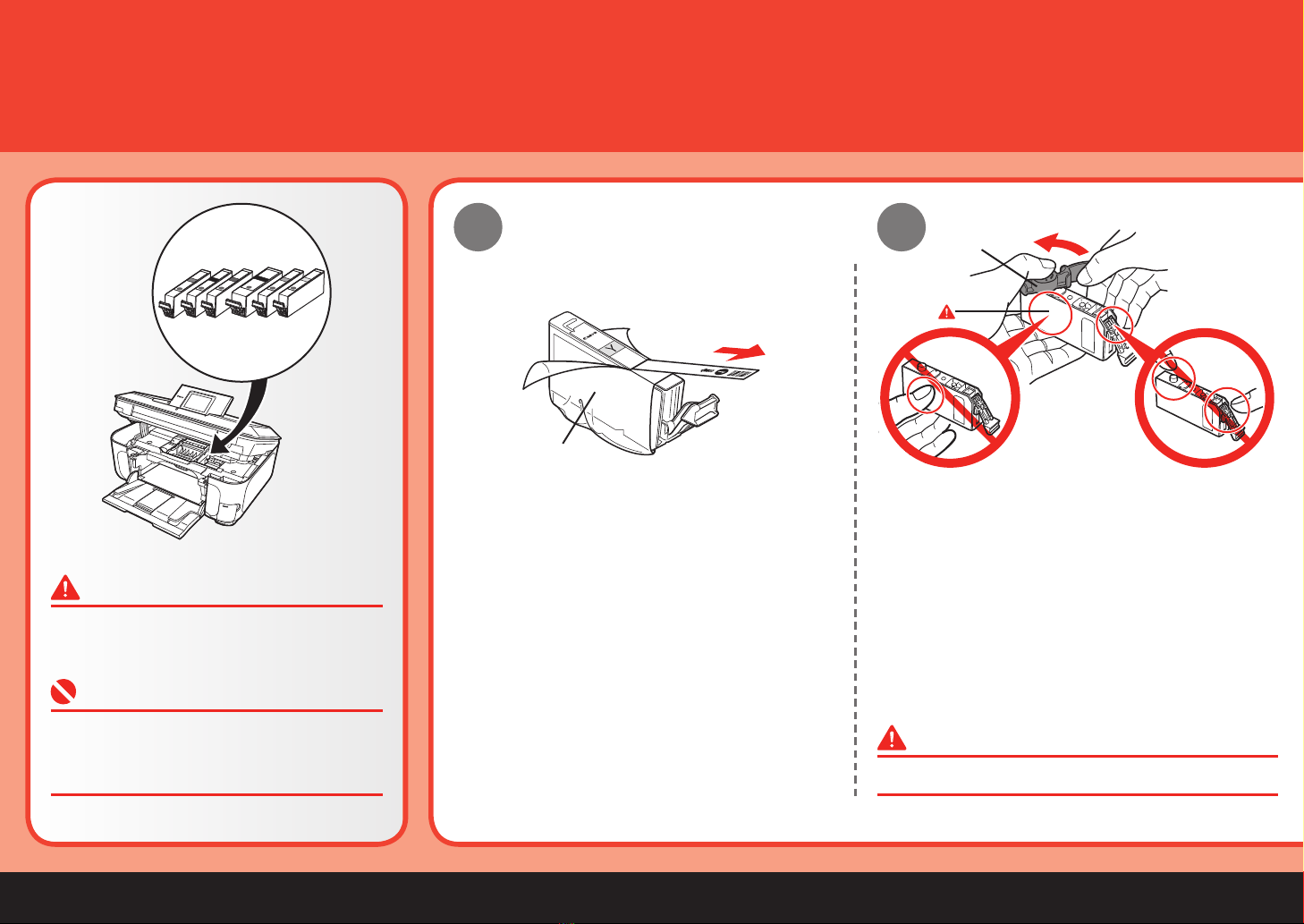

Pull the orange tape (1) in the direction of the

arrow to peel off the protective film and remove

the film (2) completely.

If the Print Head Holder moves to the right,

close and reopen the Scanning Unit (Cover).

Be sure to use the supplied ink tanks.

•

Do not handle the ink tanks roughly such

as applying them excessive pressure or

dropping them.

•

While pressing down with your left thumb, twist

off the orange protective cap (A) located on the

bottom of the ink tank.

(B)

453

Install all the other ink tanks in the same

way.

Install all the ink tanks.

Close the Scanning Unit (Cover) (B).

Wait until the screen above appears (about 6

minutes) and go to the next step.

The machine may make some operating noises

when preparing to print. This is normal operation.

•

Once you have installed the ink tanks, do not

remove them unnecessarily.

•

Make sure all the Ink lamp lights red.•

For your safety, always grip as illustrated.•

If an error message is displayed on the LCD, make

sure that the Print Head and the ink tanks are correctly

installed.

•

Press the PUSH mark on the ink tank until

it clicks into place.

Make sure the Ink lamp lights red.

Install the Ink Tank

Be sure to install it in a well-lit environment.•

Match the labels when installing.•

(C)(C)

(A)

(B)

Align the Print Head

Align the Print Head for better print results.

This takes about 7 minutes.

Use a sheet of supplied speciality paper

(MP-101) for alignment.

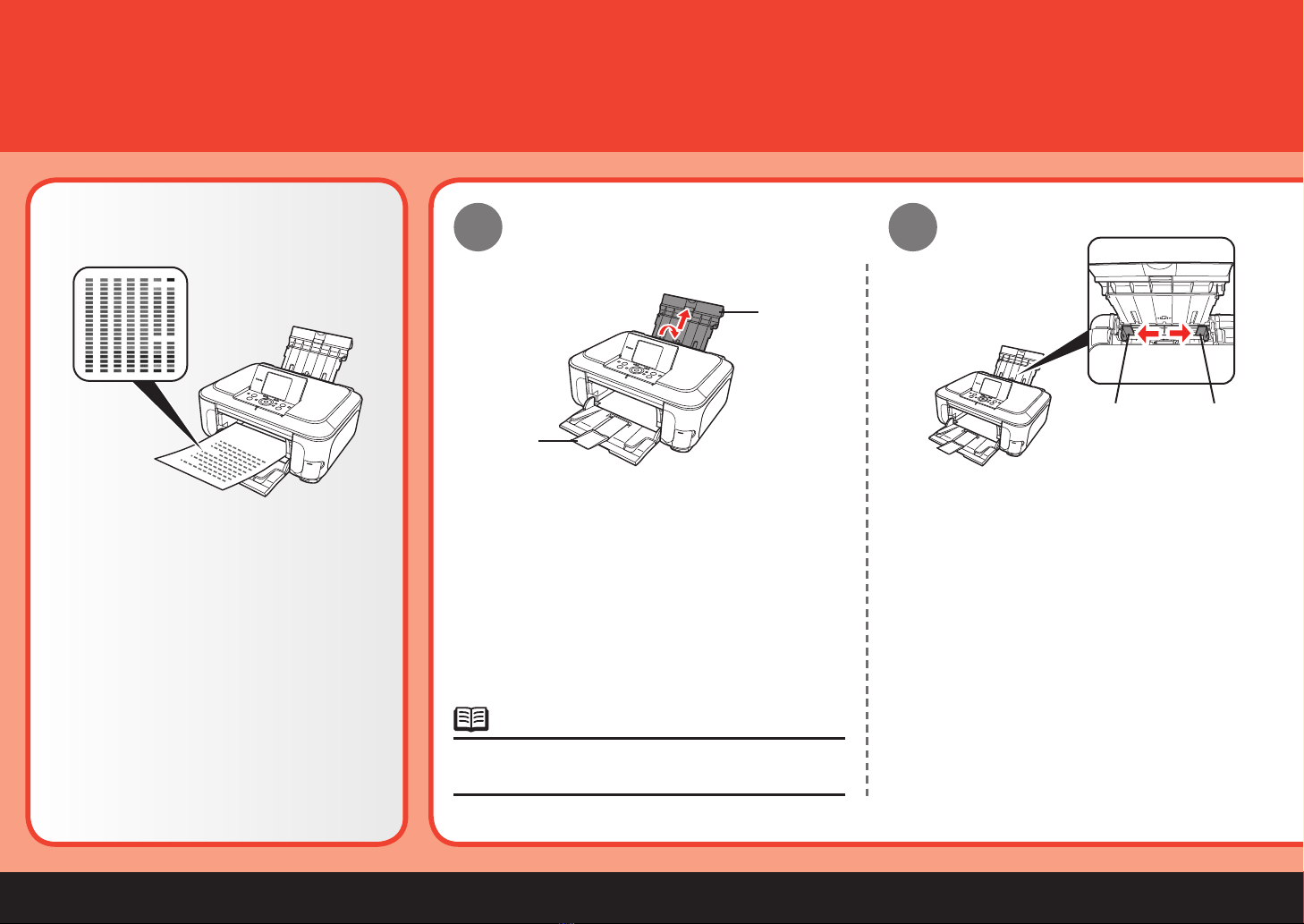

Make sure that the Output Tray Extension (B) is

extended.

•

Open the Paper Support (A) and pull it out. Move the Paper Guides (C) to both edges.
