Canon MultiPASS C5500 Manuel utilisateur

Color Bubble Jet™Printer

Scanner Copier Fax

CANON\PR_GRY2A.eps

MultiPASS™

C5500

See What We Mean.

™

Quick Start Guide

CANON MPC5500/QSG, Cover - File: 55-QSCVR.eps

W. Swanlund UPDATE2> August 12 '98

Important! Youmustfollowthesteps

describedinthisQuickStartGuide.It'sagood

ideatoreadtheentireQuickStartGuidebefore

youstarttosetuptheMultiPASSC5500.

FRONT COVER = PAGE 1

CongratulationsonyourpurchaseoftheCanon

MultiPASS™C5500ColorBubbleJetPrinter-

ColorScanner-ColorCopier-Fax.

ThisQuickStartGuidedescribes

thestepsyoufollowtounpack

andsetupyournew

multi-talentedcolorprinter.

CANON MPC-5500/QSG, Page 2 - File: 55-QSP2.eps

W. Swanlund CORREX2> August 15 '98

Hardware and Software Requirements

Carefully remove

all items from

the box.

Remove the items from the documentation packages.

Remove these hardware items from the top tray:

Important! Before you start, make sure you have the following computer setup.

(These are the minimum requirements.)

IBM®PC or compatible computer with a 486DX2 66 MHz or higher processor

(Pentium®processor recommended)

Microsoft®Windows®98 or Windows 95 (not compatible with Windows 3.1

or Windows NT)

16 megabytes (MB) of RAM (32 MB recommended)

50 MB of available hard disk space

Bi-directional, Centronics®-compatible parallel cable (IEEE 1284-compliant);

a cable less than 6.6 feet in length is recommended.

CD ROM drive (2X or better) (If you do not have a CD ROM drive, you can call

the Canon Computer Systems, Inc. Customer Care Center to order the MultiPASS

Desktop Manager and Printer Driver on diskettes.)

These configurations are required by the MultiPASS Printer Driver,

MultiPASS Desktop Manager for Windows, and ScanGear for MultiPASS.

Canon Creative Pro has additional requirements. See the Canon Creative Pro

booklet for details.

Lift out the MultiPASS unit.

Always lift the unit from

the bottom.

Ink

Cartridge

BCl-21

Made in

Japan

Black

SENDING DOCUMENT

SUPPORT TELEPHONE

LINE POWER

CORD

DOCUMENT GUIDE FOR

SCANNED DOCUMENTS OUTPUT TRAY

EXTENSION

BC-21e COLOR BJ

CARTRIDGE EXTRA BCI-21

BLACK BJ TANK SB-21 BJ CARTRIDGE

STORAGE BOX

Important! Save the box and

shipping materials. You may

need them later if you have to

transport the printer.

Unpack the MultiPASS C5500

Make sure your

documentation

packages include

these items.

Quick Start Guide (this booklet)

User's Manual

Canon Creative Pro packet (including CD)

Important! Save your sales receipt for proof of purchase in case your printer

requires warranty service.

Registration card

Warranty card

Be sure to register electronically or fill out your Registration card and send it to

Canon. After you set up the MultiPASS C5500, you can fax the Registration card

directly to Canon (see the Registration card for details).

CANON MPC-5500/QSG, Page 3 - File: 55-QSP3.eps

W. Swanlund UPDATE2> August 12 '98

Remove all

pieces of

shipping tape

from the unit.

Remove all pieces of shipping tape from the outside of the MultiPASS.

Be sure to remove the tape from

the back of the unit also.

Remove the shipping tape and

protective plastic piece from

the sheet feeder.

Note that tape

may not be in the

exact locations

shown here.

SHEET FEEDER

AUTOMATIC

DOCUMENT FEEDER

(ADF)

OPERATOR PANEL

NOTE: The Canon Creative CD contains all the software you need to use the

MultiPASS C5500. The CD packet is separate from the shrink-wrapped package

that contains this Quick Start Guide and your User's Manual.

CANON MPC-5500/QSG, Page 4 - File: 55-QSP4.eps

W. Swanlund June 27,1998

Setting Up the MultiPASS C5500

Peel the clean

protective sheet

off the

LCD display.

Fit the tabs on the sending document

support into the slots above the

Automatic Document Feeder (ADF);

the support then rests on the

MultiPASS C5500.

Placethe main unit of theMultiPASS C5500 on a levelsurface with plenty of room

towork.

Attach the

sending

document

feeder.

Attaching Miscellaneous Items

Lift the

operator panel

and remove the

soft piece of

styrofoam

from the unit's

Automatic

Document

Feeder (ADF).

Use both hands to grip the operator panel, and gently pull it toward you.

Remove the soft styrofoam sheet.

DO NOT attempt to remove the

small white piece of plastic that is

attached with a screw to the inside

of the operator panel. Only remove

the loose sheet of shipping material.

Gently press the operator panel

to close it.

Attach the

document guide.

When the guide is inserted correctly, you can pull it out or push it in to fit

the size of the document you are sending.

CANON MPC-5500/QSG, Page 5 - File: 55-QSP5.eps

W. Swanlund CORREX> August 12 '98

Attach the

output tray

extension.

Squeeze the ends of the support and insert them in the slots on the output tray;

then gently release them.

Fit the ends of the longer metal guide into the slots below the operator panel on

the MultiPASS C5500.

Slide the guide into the unit.

OUTPUT TRAY

EXTENSION

DOCUMENT

GUIDE

CANON MPC-5500/QSG, Page 6 - File: 55-QSP6.eps

W. Swanlund Juen 27, 1998

Connect one end of the supplied telephone line to the jack on the side of

the MultiPASS C5500.

Connect the

phone line.

Connecting the Phone Line(s), Printer Cable, and Power Cord

Connect the other end of the line to the telephone jack in your wall.

You can connect a telephone, answering machine, or data modem to the jack

on the side of the MultiPASS C5500.

Connect a

telephone,

answering

machine, or

data modem.

If you have only one telephone line, the most efficient way to use your system

is to attach a cordless phone with a built-in answering machine to the

MultiPASS C5500.

If you have a separate telephone and a separate answering machine, be sure to

attach the telephone to the answering machine, and then attach the answering

machine to the MultiPASS C5500.

If you have a modem installed in your computer, you can attach it to the

MultiPASS C5500. Connect the telephone line from the wall outlet to the jack.

Then connect the line from the jack on the MultiPASS C5500 to the jack on

the modem. If others access your computer frequently through the modem, or if

you use your modem extensively, you may want a dedicated telephone line for

your modem.

HINTS

If you have only one telephone line and plan to use the MultiPASS C5500

for receiving both faxes and voice calls, you must attach a telephone and/or

answering machine to the unit.

Connect a

bi-directional

parallel cable to

the MultiPASS

C5500.

CANON MPC-5500/QSG, Page 7 - File: 55-QSP7.eps

W. Swanlund CORREX> August 12 '98

Make sure the computer is turned off.

You can purchase a Centronics-compatible, parallel cable with bi-directional

capability from your dealer or from any computer store. Make sure the cable is

IEEE 1284-compliant.

A cable of 6.6 feet or less in length is recommended.

Align the cable connector with the interface port so the shapes match.

Gently press the cable connector into the port.

Secure the cable connector by snapping the two wire clips (located on the sides

of the port) into the cable connector.

Connect the other end of the cable to the parallel interface port

on your computer.

If you plan to use the MultiPASS C5500 without connecting it to your computer,

see Appendix B of your User's Manual for instructions on how to program your

name and fax number.

CANON MPC-5500/QSG, Page 8 - File: 55-QSP8.eps

W. Swanlund June 27, 1998

Plug the power cord connector into the back of the unit.

Attach the

power cord.

Plug the other end of the power cord into a properly grounded AC outlet

(three-pronged outlet).

The MultiPASS C5500 is equipped with a 3-prong, grounding-type plug

(the third pin is a grounding pin). This plug will only fit into a grounding-type

outlet. This is a safety feature. If you are unable to insert the plug into your

outlet, contact an electrician to replace your outlet (do not use a 3-to-2 adapter).

Do not defeat the safety purpose of the grounding-type plug.

Do not plug the MultiPASS C5500 into the same outlet as your computer or

into an outlet shared with an appliance such as an air conditioner, electric

typewriter, or copier. These devices generate electrical noise that may interfere

with operation of the MultiPASS C5500.

The MultiPASS C5500 has no power switch. The power is on as long as the

system is plugged in.

Caution

Ink

Cartridge

BCl-21

Made in

Japan

Black

Ink

Cartridge

BCl-21

Made in

Japan

Color

Made in Japan

Color BJ

Cartridge

BC-21e

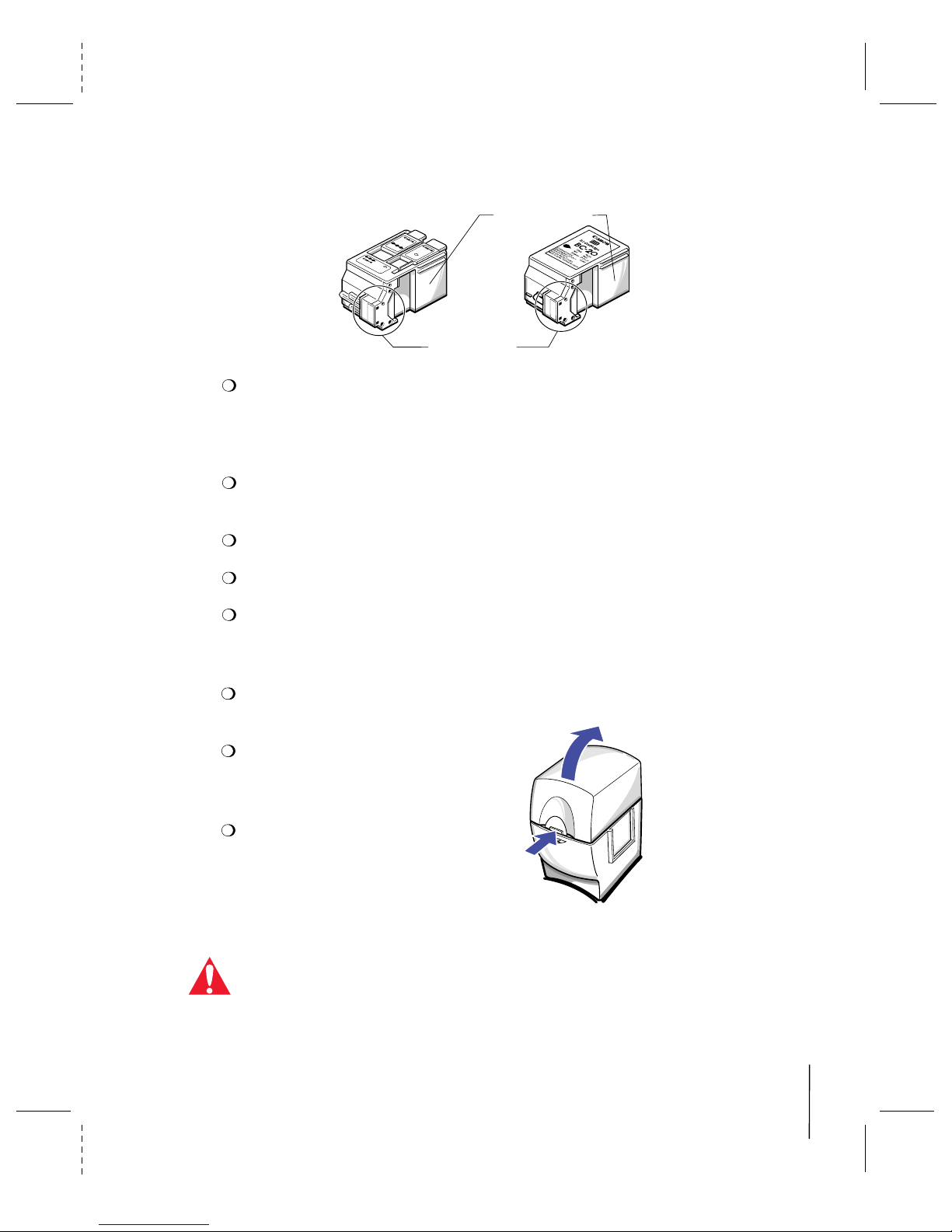

BJ® Cartridge Guidelines

To change the BJ cartridge, press the CARTRIDGE button.

Do not manually move the cartridge holder.

Always store the BJ cartridge you

are not using in the Ink Cartridge

Storage Box.

When opening the Ink Cartridge

Storage Box, press in on the

release tab that locks the cover

in place.

Spilled ink can stain any surface. Open BJ cartridges and BJ tanks very carefully.

See your User's Manual for complete details on BJ cartridge and BJ tank maintenance.

Use the BC-21eColorBJCartridge for high quality color printing.

Use the BC-22ePhoto BJCartridge for photo quality color printing.

Use the BC-20Black BJCartridge for high speed, black ink only printing.

Use the BC-29FNeon BJCartridge for fluorescent inks.

When you install the BC-22e Photo BJ Cartridge, you must set up the printer driver

for Photo Color mode. See your User's Manual for details.

Do not unpack a BJ cartridge until you are ready to use it.

Do not vigorously shake the cartridge while handling it.

Important! Always perform the print head cleaning procedure after installing

a new BJ cartridge or to improve print quality. Press the FUNCTION button;

press <or > until you see HEAD CLEANING in the LCD panel; press START/COPY.

PRINT HEAD

DO NOT TOUCH

INK CARTRIDGE

STORAGE BOX

HOLD HERE ONLY

CANON MPC-5500/QSG, Page 9 - File: 55-QSP9.eps

W. Swanlund CORREX> Aug. 15 '98

Caution

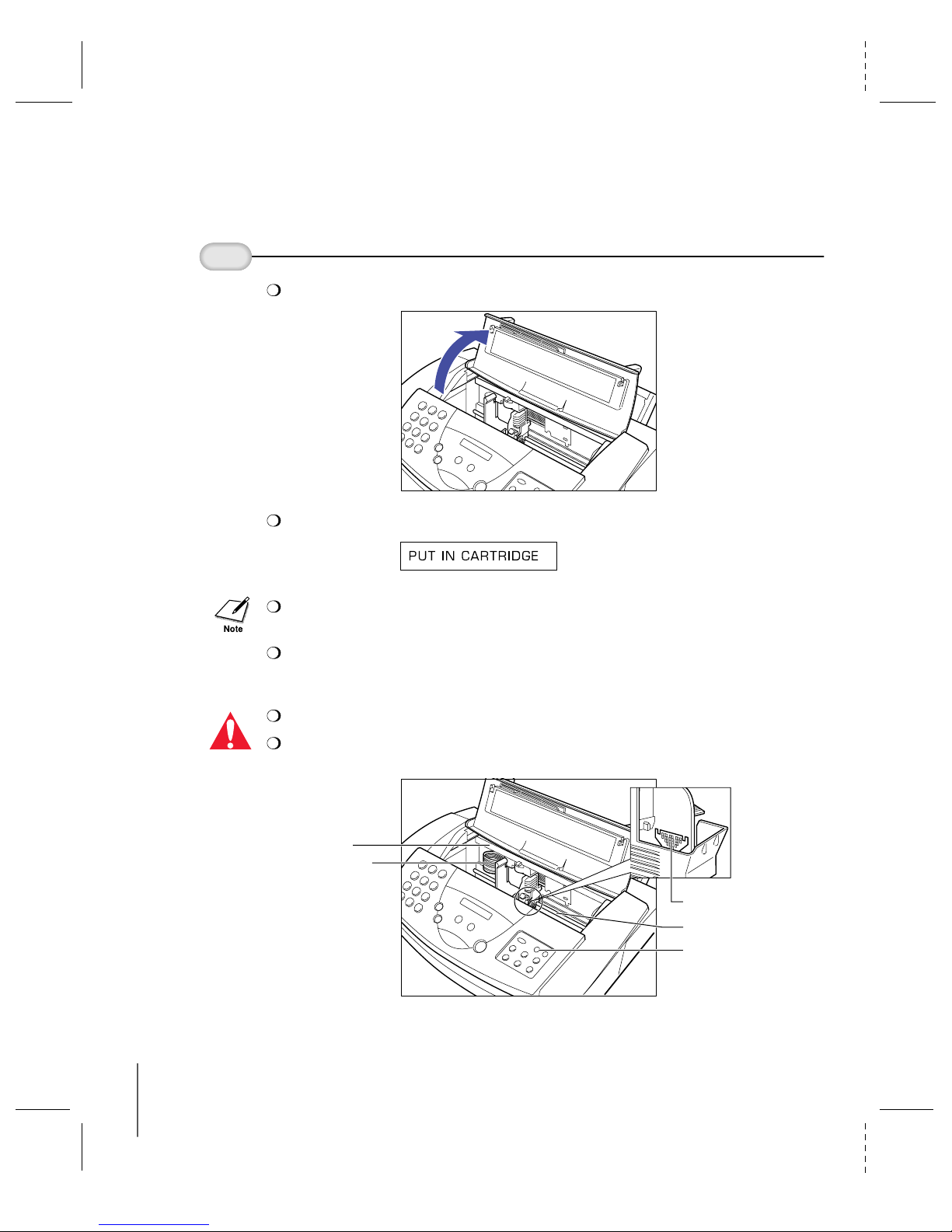

Open the

printer cover.

Grasp both sides of the cover and lift up.

Installing the BJ Cartridge

Make sure the MultiPASS C5500 is plugged in.

The LCD reads:

When you plug in the MultiPASS C5500 for the first time the cartridge holder

moves to the center of the unit so you can install the BJ cartridge.

If the cartridge holder is not in the center, press the CARTRIDGE button

on the operator panel.

Do not move the cartridge holder manually; this may damage the unit.

Do not touch the ribbon cable, the small circuit board, the guide rail, or the

round shaft.

Caution

RIBBON CABLE

CIRCUIT BOARD

GUIDE RAIL

ROUND SHAFT

CARTRIDGE

BUTTON

CANON MPC-5500/QSG, Page 10 - File: 55-QSP10.eps

W. Swanlund UPDATE3> August 14 '98

Autres manuels pour MultiPASS C5500

Table des matières

Autres manuels Canon Imprimante tout-en-un

Canon

Canon imageRUNNER ADVANCE C7065 Manuel utilisateur

Canon

Canon imageRUNNER 5000i Manuel utilisateur

Canon

Canon imageRUNNER ADVANCE 715 IF Manuel utilisateur

Canon

Canon imageRUNNER ADVANCE C2030 Manuel utilisateur

Canon

Canon MultiPASS C20 Manuel utilisateur

Canon

Canon imageCLASS D760 Manuel utilisateur

Canon

Canon PIXMA MG3240 Series Manuel utilisateur

Canon

Canon PIXMA MG5500 Series Guide de configuration

Canon

Canon imageRunner iR2270 Manuel utilisateur

Canon

Canon PIXMA MX700 Series Manuel utilisateur

Canon

Canon ImageRUNNER ADVANCE DX C5760i Guide d'installation

Canon

Canon ImageCLASS MF4690 Manuel d'installation et d'exploitation

Canon

Canon BJ-30 Manuel utilisateur

Canon

Canon MX920 series Guide de configuration

Canon

Canon mg6400 series Guide de configuration

Canon

Canon imageRUNNER ADVANCE C7260 Mode d’emploi

Canon

Canon ImageCLASS MF4690 Manuel

Canon

Canon MB5450 Series Guide de configuration

Canon

Canon imageclass mf820cdn Manuel utilisateur

Canon

Canon MX530 series Guide de configuration

Canon

Canon imagePRESS C800 Series Manuel utilisateur

Canon

Canon imageRUNNER 1435iF Manuel utilisateur

Canon

Canon imageRUNNER 2200 Manuel utilisateur

Canon

Canon 4788B018 Manuel utilisateur

Manuels Imprimante tout-en-un populaires d'autres marques

Triumph Adler

Triumph Adler DC 2016 Manuel

Epson

Epson WorkForce WF-2510 Guide de l'utilisateur

Epson

Epson Stylus Scan 2000 Manuel d'installation et d'exploitation

Epson

Epson PictureMate Snap PM 240 Mode d’emploi

Konica Minolta

Konica Minolta bizhub C35 Manuel utilisateur

Brother

Brother MFC-J430w Manuel utilisateur

Konica Minolta

Konica Minolta BIZHUB 558 Manuel utilisateur

Lexmark

Lexmark MX710 Series Manuel

Brother

Brother MFC-9760 Manuel utilisateur

Lexmark

Lexmark XC8155 Manuel utilisateur

Lexmark

Lexmark X642E Manuel utilisateur

Sharp

Sharp MX-2310U Mode d’emploi

Aficio

Aficio 200 Manuel utilisateur

Ricoh

Ricoh Pro C900 Manuel utilisateur

Lexmark

Lexmark X925 Manuel utilisateur

Brother

Brother Business Smart MFC-J4510dw Manuel utilisateur

Epson

Epson Stylus CX8400 Series Manuel utilisateur

Oce

Oce VarioLink 5022 Manuel utilisateur
