Set-Up Instructions

Thank you for purchasing the Canon FAXPHONE L80.

To get your machine ready for use, please follow the instructions in this document before

referring to any other documentation.

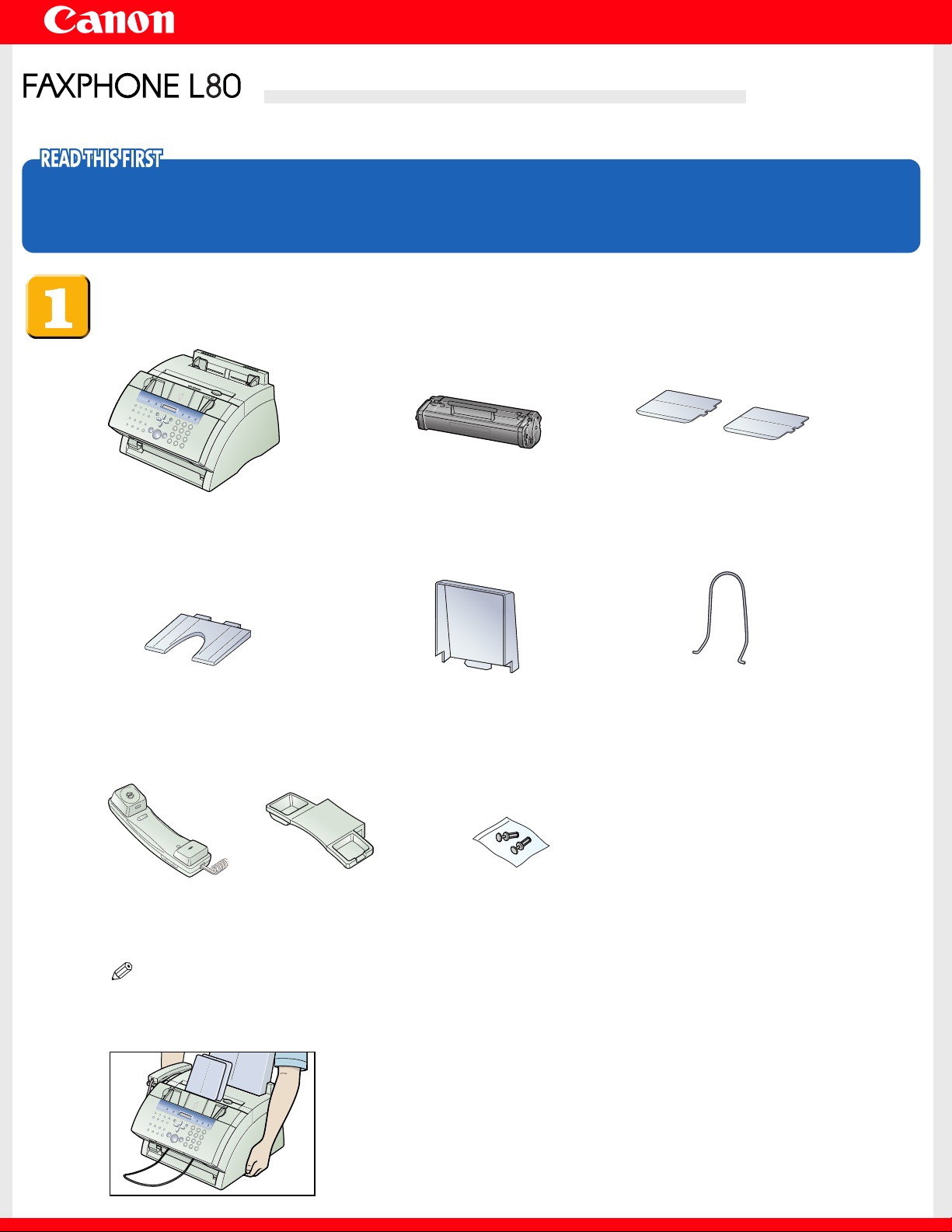

Unpack the machine and its components.

Check that you have the following:

NOTE

•You need a USB cable (less than 16.4 ft./5 m) to connect your machine to a computer.

•To lift the machine, hold it firmly and level as illustrated.

●Machine ●FX-3 S Cartridge ●Support trays (2)

●Multi-purpose

tray

●Multi-purpose tray

cover

●Document support

●Handset ●Handset cradle ●Plugs with

pins (2)

●Paper loading warning label

●Power cord

●Telephone line cord

●Documentation

Set-Up Instructions

Basic Guide

Warranty

Registration card (for USA only)

●FAXPHONE L80 Software CD-ROM

●Destination labels

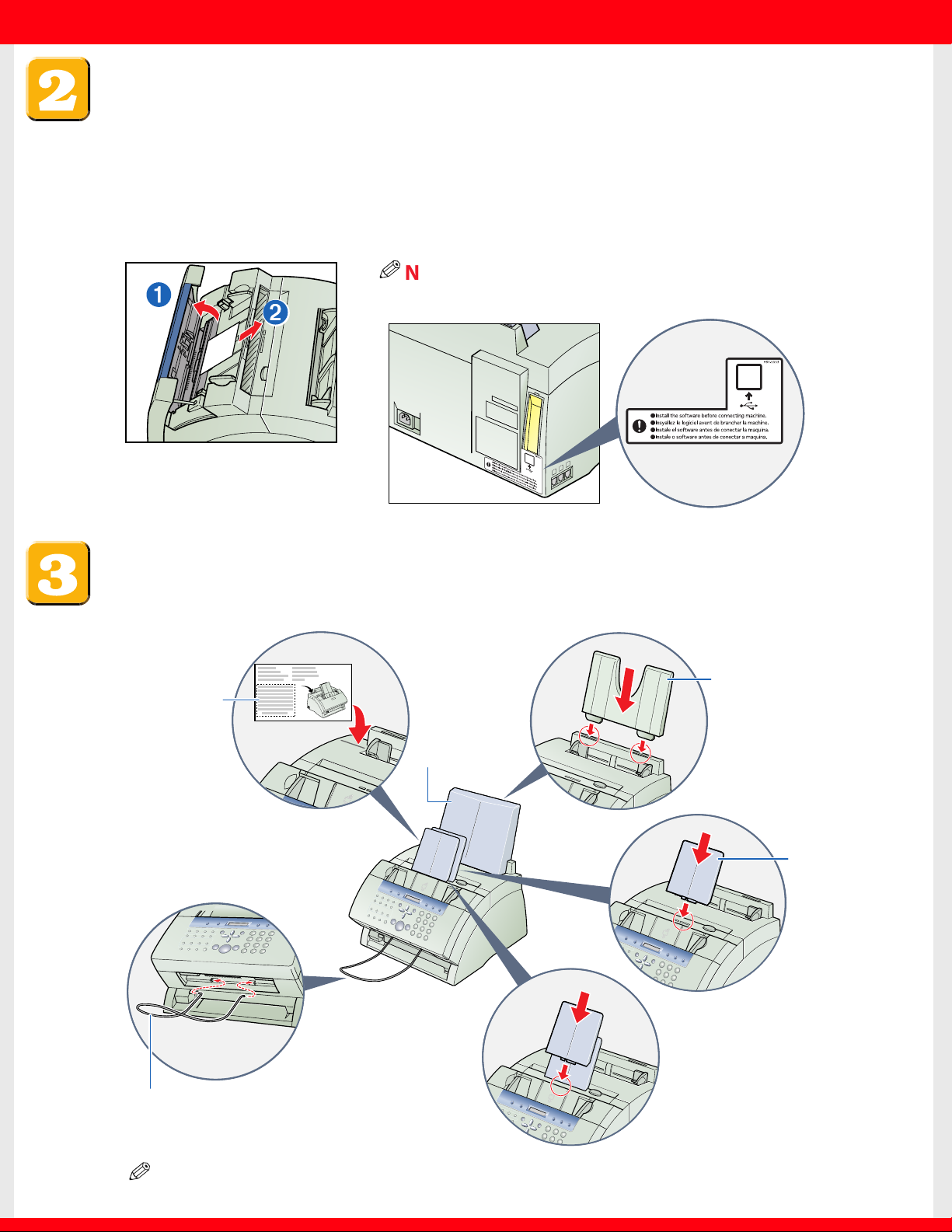

Remove the shipping materials from the machine.

1Place the machine on a flat surface.

2Remove all shipping tapes from the exterior of the machine.

3Gently open the operation panel ➊(it only opens partially) and remove the protective

sheet ➋from the ADF.

4Close the operation panel by pressing at the center until it locks into place.

Assemble the machine.

USB label

NOTE

•Do not remove the USB label on the back of the machine at this stage.

Multi-purpose tray

Support tray

Document

support

Paper loading

warning label

Multi-purpose

tray cover

1 Attach the paper

loading warning

label.

5Insert the document

support into the slots

on the machine.

2Insert the multi-purpose tray

into the slots on the machine.

3Insert one of the

support trays into

the slots above the

delivery slot.

4Insert the other

support tray into

the slots above the

ADF.

NOTE

•Place the multi-purpose tray cover on the machine after loading paper (see the next page).

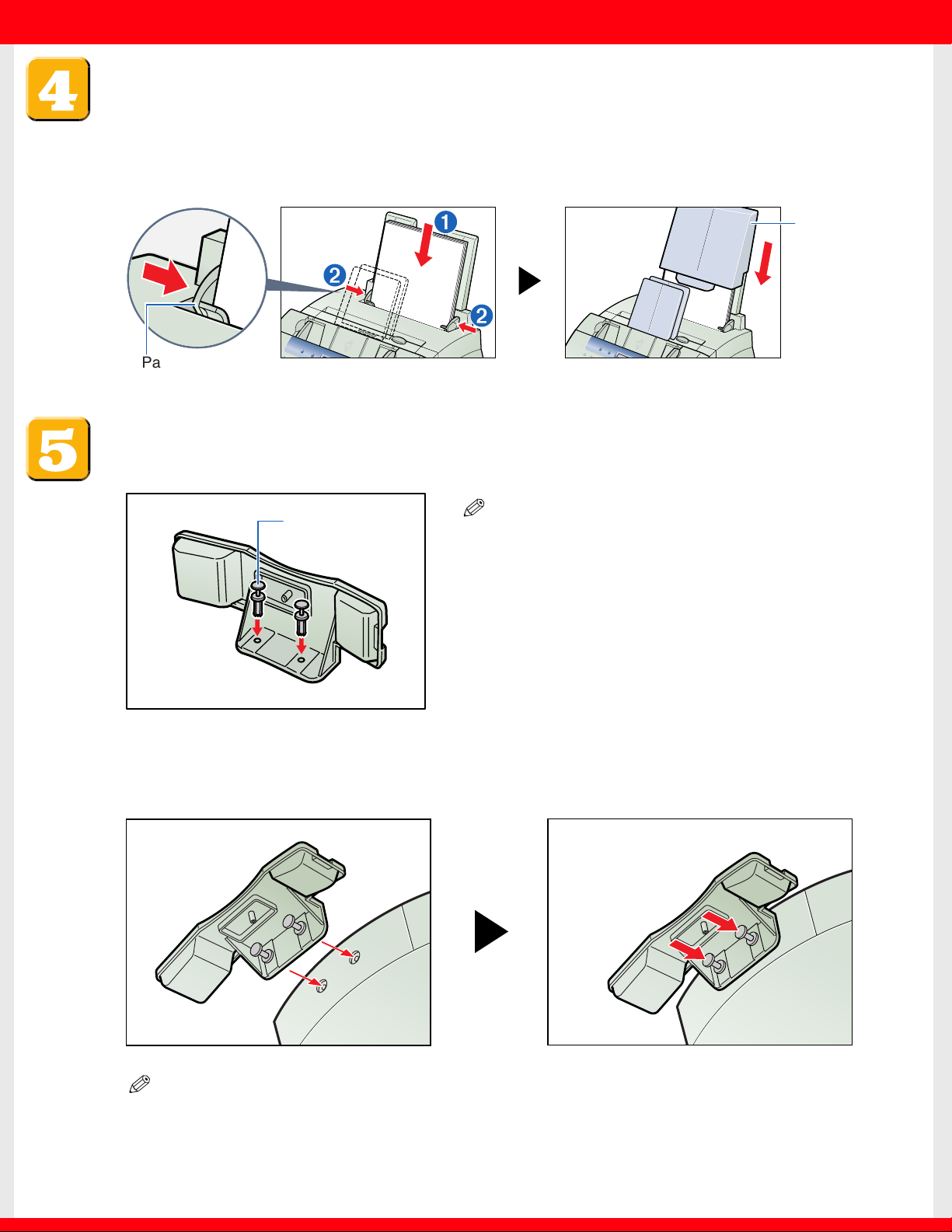

Load paper.

1Insert a stack of paper into the multi-purpose tray ➊(print side facing you and top

edge first), then adjust the paper width guides to the width of the paper ➋.

2Attach the multi-purpose tray cover to prevent dust accumulating inside the machine.

Attach the handset cradle to the machine.

1Insert the plugs with pins into the holes on the handset cradle.

2Turn the machine so that the left side is facing you.

3Insert the plugs (with the handset cradle) into the holes on the machine.

4Carefully push the pins into the plugs as far as they will go.

Paper width guide

Multi-purpose

tray cover

Plug with pin

NOTE

•If the pins are not pushed fully into the plugs, the handset cradle will not be securely attached to the

machine.

NOTE

•Do not push the pins all the way into the plugs at this stage.

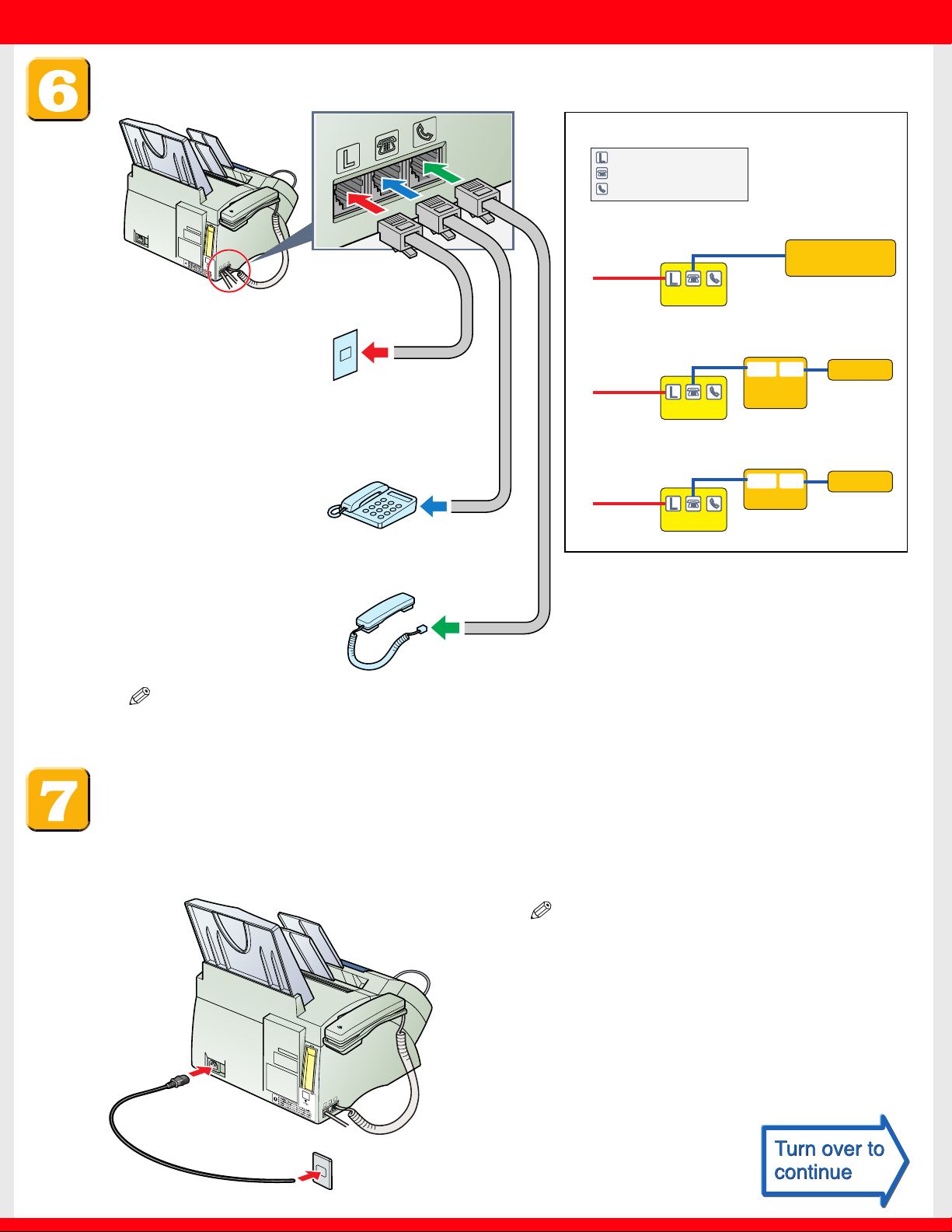

Connect the handset and telephone line cord.

Connect the power cord.

When the power cord is plugged into the machine and into the wall outlet, the machine is turned on.

The LCD displays PLEASE WAIT, then PUT IN CARTRIDGE.The LCD returns to the standby display when

you install the FX-3 S Cartridge.

•Telephone or answering machine

•Telephone and answering machine

Connect external devices as follows:

Telephone

line

Telephone or

answering machine

Telephone

line

Answering

machine

LINE TEL Telephone

Machine

•Built-in computer modem and telephone

Telephone

line

Computer

LINE TEL Telephone

Machine

= Telephone line jack

= External device jack

= Handset jack

Handset

Place the handset on

the cradle. Connect the

handset cord to the hjack.

External device (optional)

Connect the cord of an

extension telephone,

answering machine or

data modem to the tjack.

Telephone line cord

Connect the supplied

cord to the Ljack.

Then connect the other end to the

telephone line jack on your wall.

NOTE

•The machine does not have a power switch.

NOTE

•You must complete all the steps in this document to receive faxes properly.

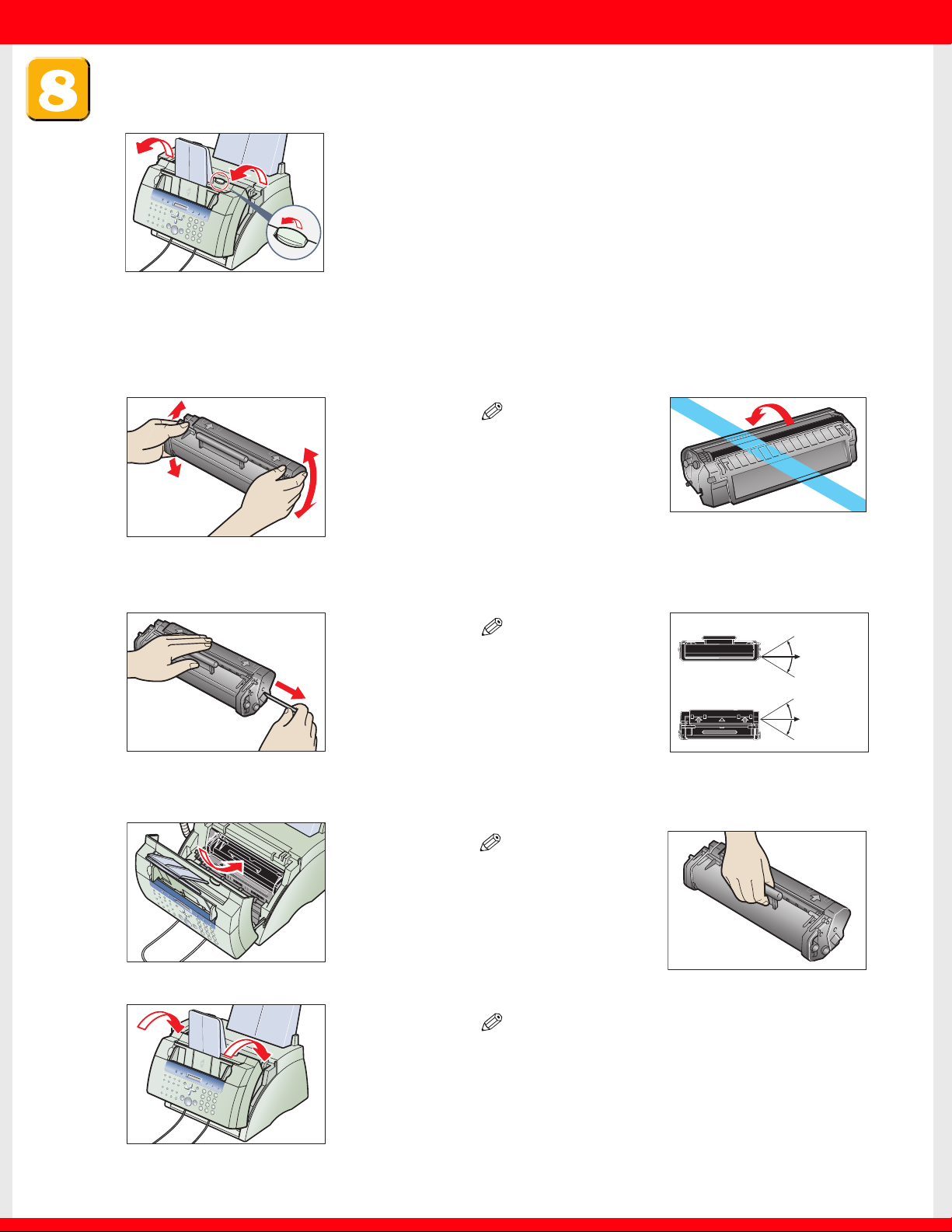

Install the FX-3 S Cartridge.

1Lift the latch and open the front cover.

2Remove the FX-3 S Cartridge from its protective bag.

3Gently rock the cartridge from side to side a few times to distribute the toner evenly

inside it.

•Print quality may be poor if the toner is unequally distributed.

4Place and hold the cartridge on a flat, clean surface, then gently pull the plastic tab

straight out to remove the plastic seal.

5Hold the cartridge by its handle and insert it into the machine as far as it will go,

making sure that its side tabs are aligned with the guides inside the machine.

6Use both hands to close the front cover.

NOTE

•Do not open the drum

protective shutter on

the cartridge.

NOTE

•Use a firm, even pull to

remove the seal.

TOP VIEW

SIDE VIEW

PULL WITHIN

THIS RANGE

PULL WITHIN

THIS RANGE

NOTE

•Always hold the

cartridge by its handle.

NOTE

•The FX-3 S Cartridge is a starter cartridge

supplied with the machine.The replacement

cartridge is the FX-3 Cartridge separately

available from Canon.

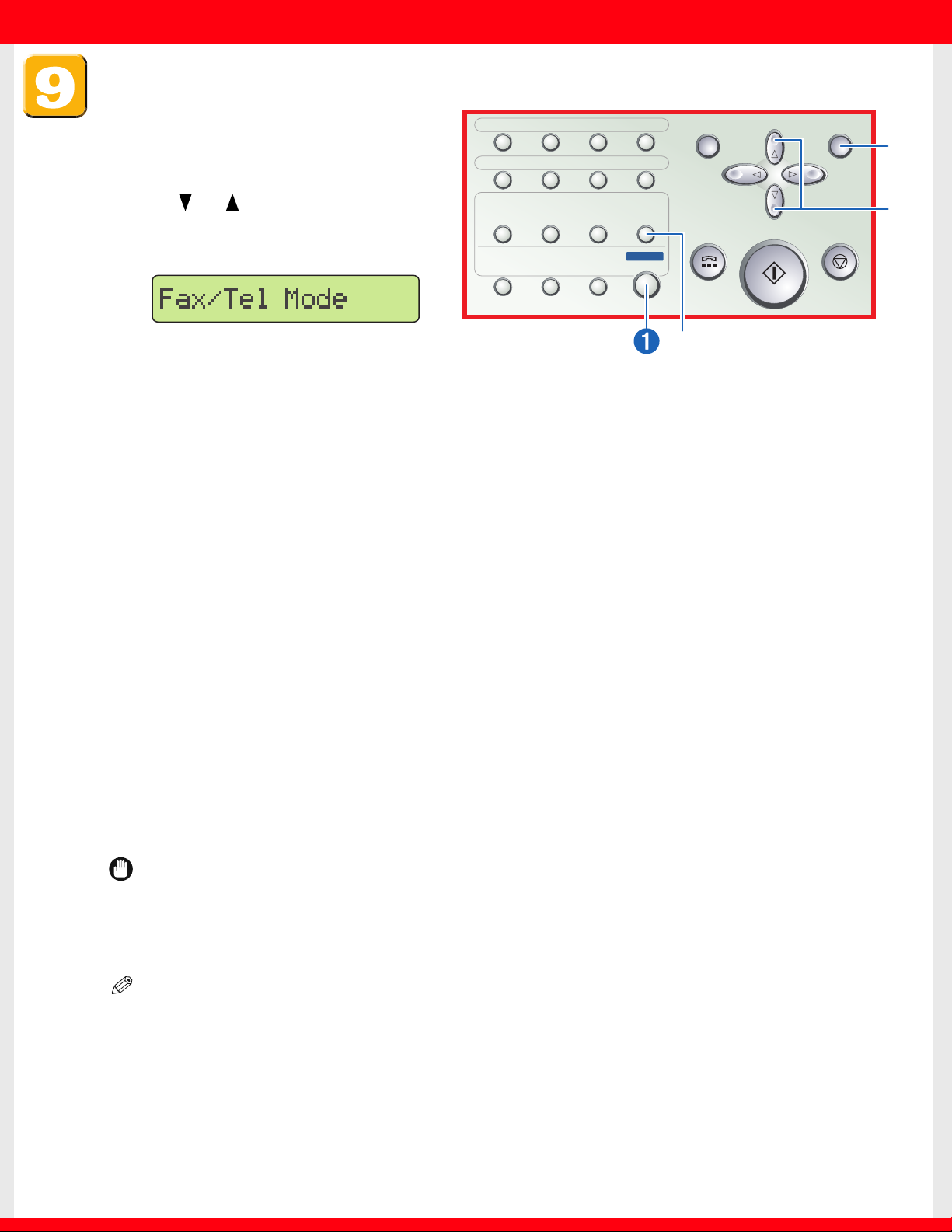

Set the fax receive mode.

1Press Function ➊.

2Press Receive Mode ➋.

3Press or ➌until the mode you

want appears in the LCD:

ex.

You can select from the following:

Fax/Tel Mode:

When the handset or the extension telephone is connected to the machine, the machine

automatically switches between faxes and voice calls.

MANUAL MODE:

When the handset or the extension telephone is connected to the machine, you can receive faxes by

pressing Start/Copy before hanging up the handset or the extension telephone.

ANS.MACHINE MODE:

If you want to receive faxes automatically and route voice calls to an answering machine.

4Press Set ➍to return to standby mode.

FAX ONLY MODE:

If you use your machine to receive only faxes.

DRPD:

To distinguish between fax and voice calls by using Distinctive Ring Pattern Detection.

IMPORTANT

•Before sending a fax, you MUST register the fax number, your name, and the current date and

time in the machine. For details, see p. 2-5 of the Basic Guide.

NOTE

•For details on setting FAX ONLY MODE or DRPD mode, see p. 8-2 of the User’s Guide included in the

CD-ROM.

•The DRPD mode requires subscription to a DRPD service. For more information, contact your local

telephone company.

01 02 03 04

05 06 07 08

Data

Registration

Data

Registration Delayed

Transmission

Delayed

Transmission Memory

Reference

Memory

Reference Receive

Mode

Receive

Mode

PollingPolling ReportReport SpaceSpace Function

10 11 12

13 14 15

Hook Start/Copy Stop/Reset

Clear Set







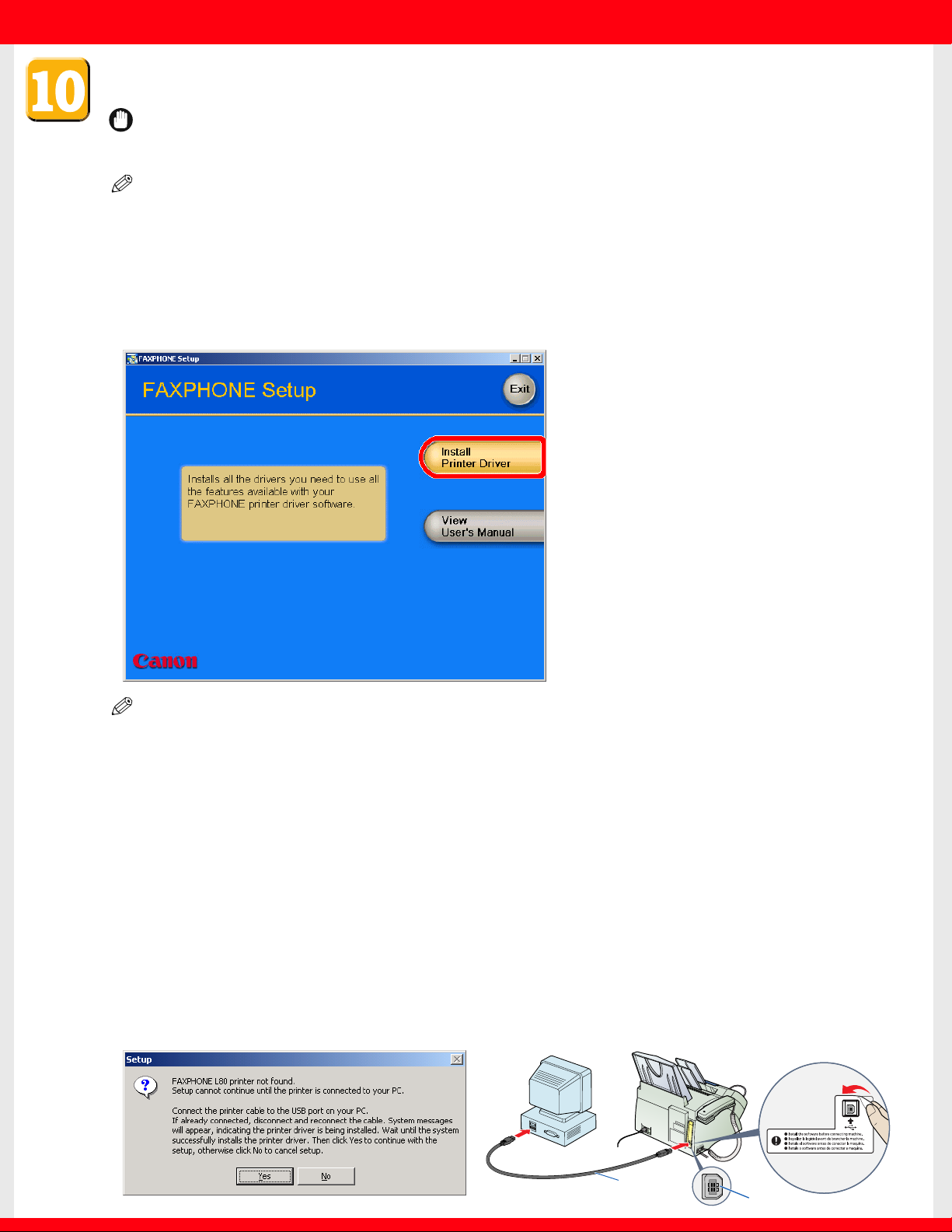

Install the Printer Driver. (Windows 98/Me/2000/XP)

IMPORTANT

•DO NOT connect the USB cable before installing the software.

NOTE

•When installing the software in Windows XP or Windows 2000, log onto the system as a member of

the Administrator group.

•If the Found New Hardware Wizard appears, click Cancel,and follow this procedure.

1Insert the CD-ROM into your CD-ROM drive.

2If AutoRun is enabled, the installation starts automatically.

NOTE

•If installation does not start automatically, choose Run... from the Start Menu.TypeD:\SETUP.EXE

(if your CD-ROM drive is drive D:) in the command line and click OK.

3Click Install Printer Driver to start installation.

4Follow the on-screen instructions to complete the installation process.

During installation, follow these guidelines:

•Click Next or Yes to move from one dialog box to the next.

•Be sure to wait for Windows to complete each setup step. If you hear the computer

working, wait until it is done.

•If the Digital Signature Not Found screen appears, click Yes to continue.

5When prompted, remove the label from the USB port on the back of the machine.

Then connect the USB cable to the machine and your computer.

USB label

USB port

USB cable

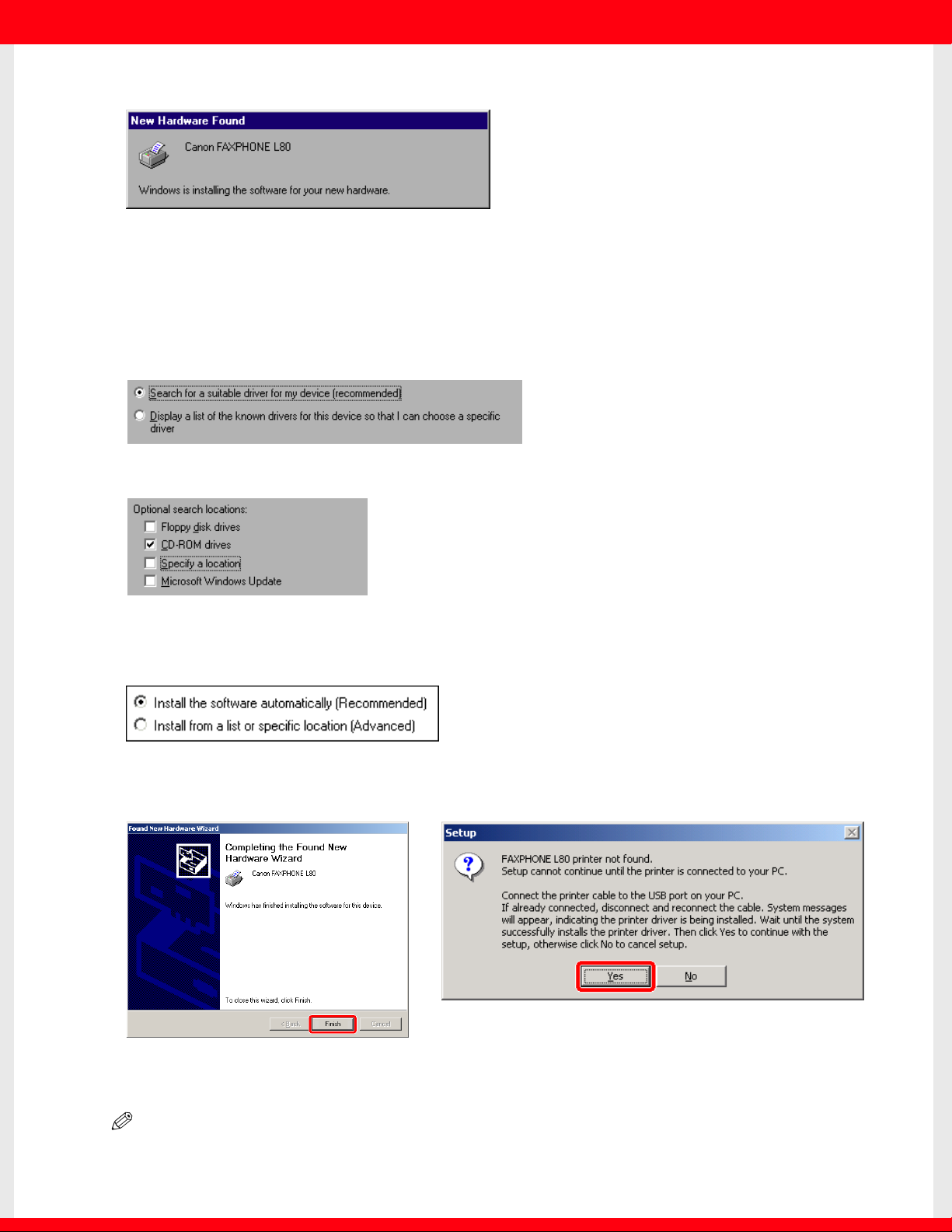

6When the system displays messages indicating that the driver for your printer is being

installed, proceed as follows:

For Windows 98/Me:

Wait for the system to complete the installation of the printer driver.

For Windows 2000:

When the Found New Hardware Wizard appears during the setup, choose the following:

• Search for a suitable driver for the printer. (Do not display a list of drivers.)

• Search only on the installation disk. (Click CD-ROM drives only, and clear the other options.)

For Windows XP:

When the Found New Hardware Wizard appears during the setup, choose the following:

• Select Install the software automatically (Recommended).

7When the printer driver is installed, click Finish to close the Found New Hardware

Wizard.Then click Yes to continue with the setup.

8When the setup is finished, if prompted, restart Windows.

NOTE

•Remember to register your machine to ensure product

support.The serial number is located on the back of the

machine.

Part no. FA7-5436 (000)

Canon is a registered trademark of Canon Inc.

All other products and brand names are registered

trademarks or trademarks of their respective owners.

Specifications subject to change without notice.

PRINTED IN CHINA
