Overview of the Machine

This section shows the component names of the machine and describes the basic operations you need

to know before using it.

Main Components

Front View

Rear View

Inside View

Operation Panel

How to Navigate Menus on the LCD

Selecting Menus on the HOME Screen

Selecting Setting Items

Other Operations

Page top

Page 3 of 1086 pagesOverview of he Machine

Advanced Guide Troubleshooting

Contents > Overview of the Machine > Main Components

Main Components

Front View

Rear View

Inside View

Operation Panel

Front View

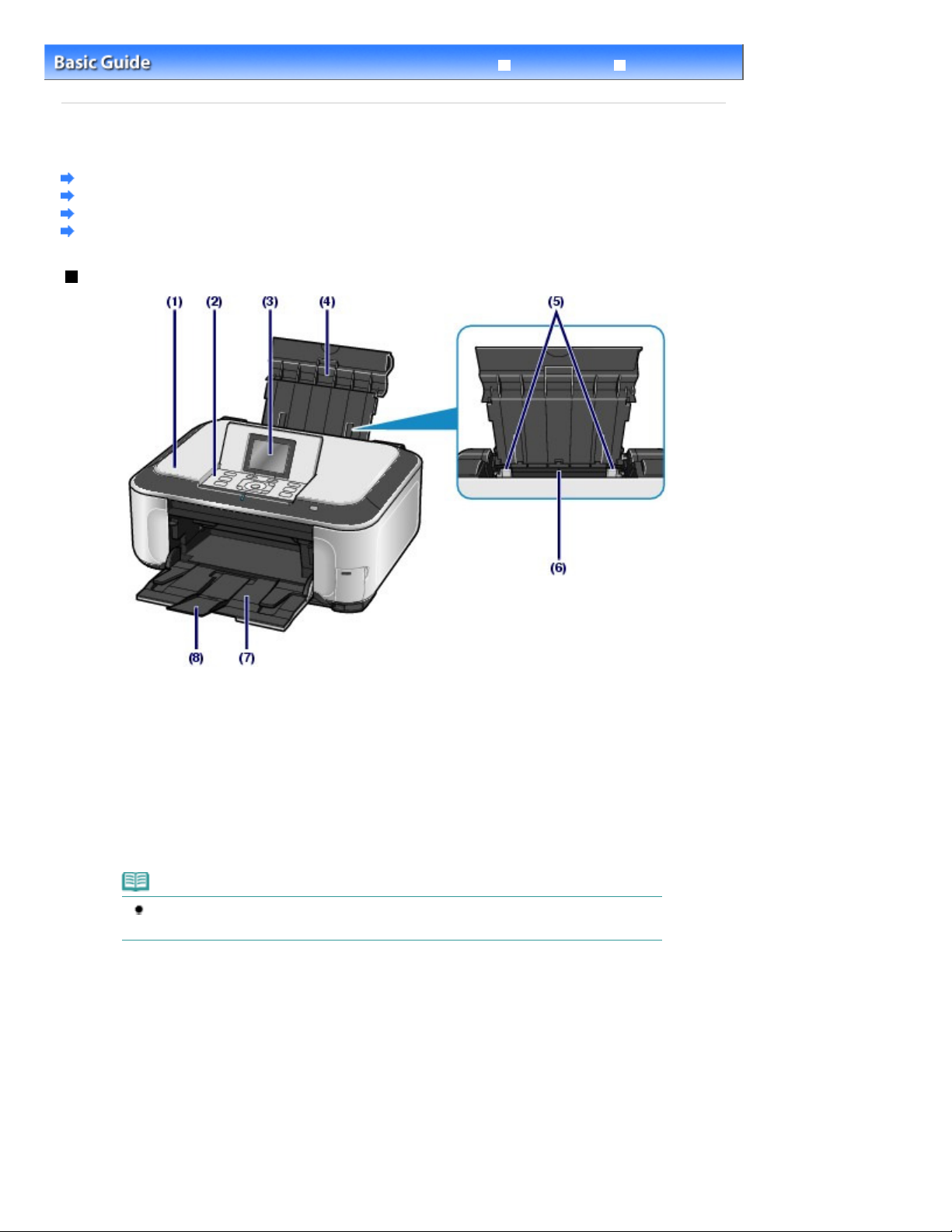

(1) Document Cover

Open to load an original on the Platen Glass.

(2) Operation Panel

Use to change the settings of the machine or to operate it.

See Operation Panel.

(3) LCD (Liquid Crystal Display)

Displays messages, menu selections, and the operation status. You can also preview photos on the LCD

before printing.

Note

The LCD will turn off if the machine is not operated for about 5 minutes. To restore the

display, press any button except the ON button or perform the print operation.

(4) Paper Support

Raise and tip back to load paper in the Rear Tray.

(5) Paper Guides

Slide to align with both sides of the paper stack.

(6) Rear Tray

Load photo paper or envelopes which you can use on the machine. Two or more sheets of the same size

and type of paper can be loaded at the same time, and fed automatically one sheet at a time.

See Loading Paper .

(7) Paper Output Tray

Opens automatically when printing or copying starts and printed paper is ejected.

Page 4 of 1086 pagesMain Componen s

(8) Output Tray Extension

Open to support the printouts. Open it when printing or copying.

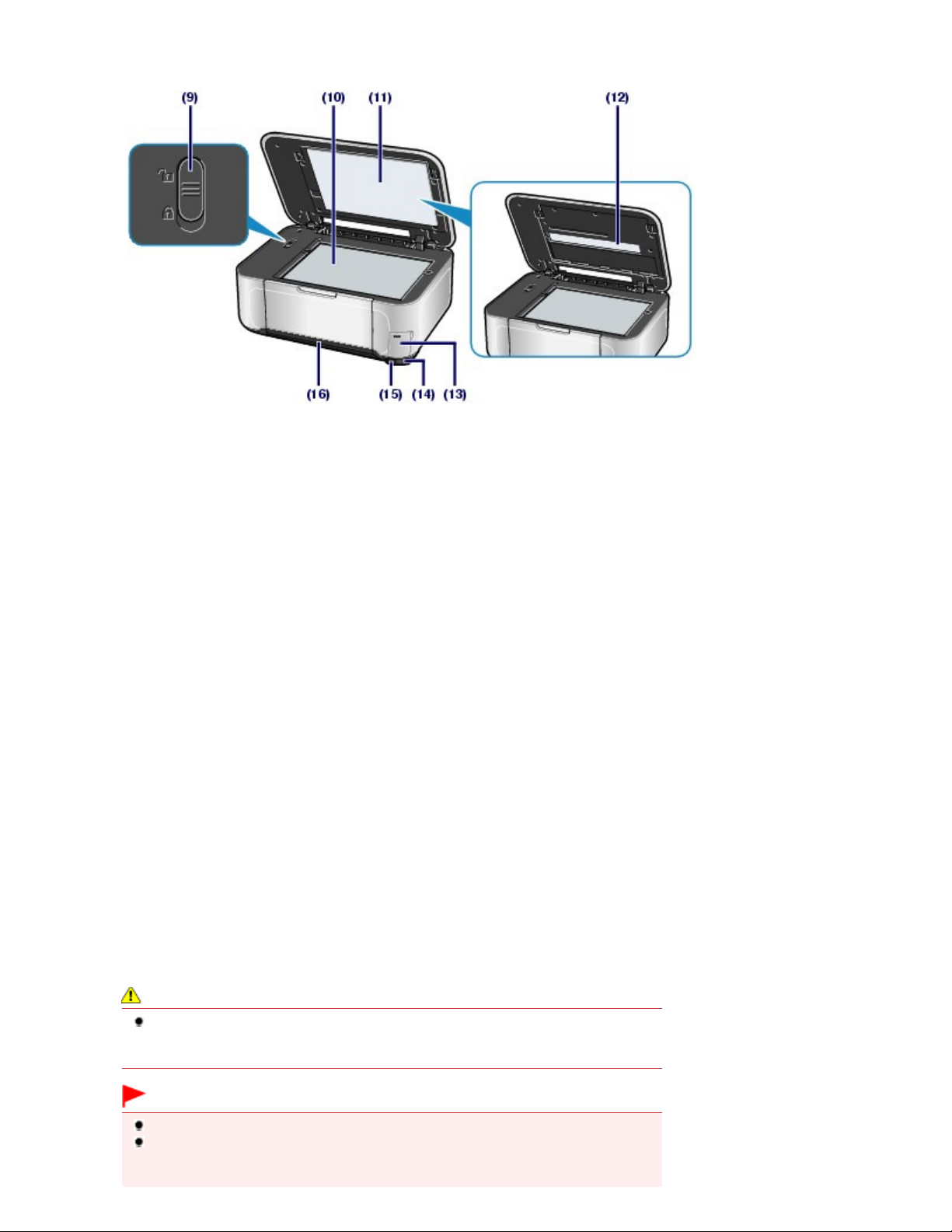

(9) Scanner Lock Switch

Locks the scanner to prevent sliding or damage when transporting the machine. Be sure to unlock it before

turning the power on.

(10) Platen Glass

Load an original to copy or scan.

(11) FAU (Film Adapter Unit) Protective Sheet

Protects the FAU lamp and the Platen Glass. The Film Guide used for scanning film can be stored behind the

FAU Protective Sheet.

See Loading the Films.

(12) FAU (Film Adapter Unit) lamp

Lights up the film when scanning films.

(13) Card Slot Cover

Open to insert a memory card.

See Inserting the Memory Card.

(14) Infrared Port

Use this port to print from a mobile phone with wireless infrared communication.

See Printing Photos from a Wireless Communication Device.

(15) Direct Print Port

Connect a PictBridge compliant device such as a digital camera or the optional Bluetooth Unit BU-30* to print

directly.

See Printing Photos Directly from Your Digital Camera or Mobile Phone .

You can also insert a USB flash drive to this port.

See Inserting the USB Flash Drive.

* The Bluetooth Unit is not available in some countries or regions depending on the local laws and

regulations. For details, contact the service center.

Warning

Do not connect any equipment other than PictBridge compliant devices, the optional

Bluetooth Unit BU-30, and USB flash drives to the Direct Print Port of the machine. This

may cause fire, electric shock, or damage to the machine.

Important

Do not touch the metal casing.

Do not use the USB cable longer than around 10 feet / 3 meters to connect any PictBridge

compliant device to the machine since it may affect the operation of other peripheral

devices.

Page 5 of 1086 pagesMain Componen s

(16) Cassette

Load A4, B5, A5, or Letter-sized plain paper and insert it into the machine. Two or more sheets of the same

size of plain paper can be loaded at the same time, and fed automatically one sheet at a time.

See Loading Paper .

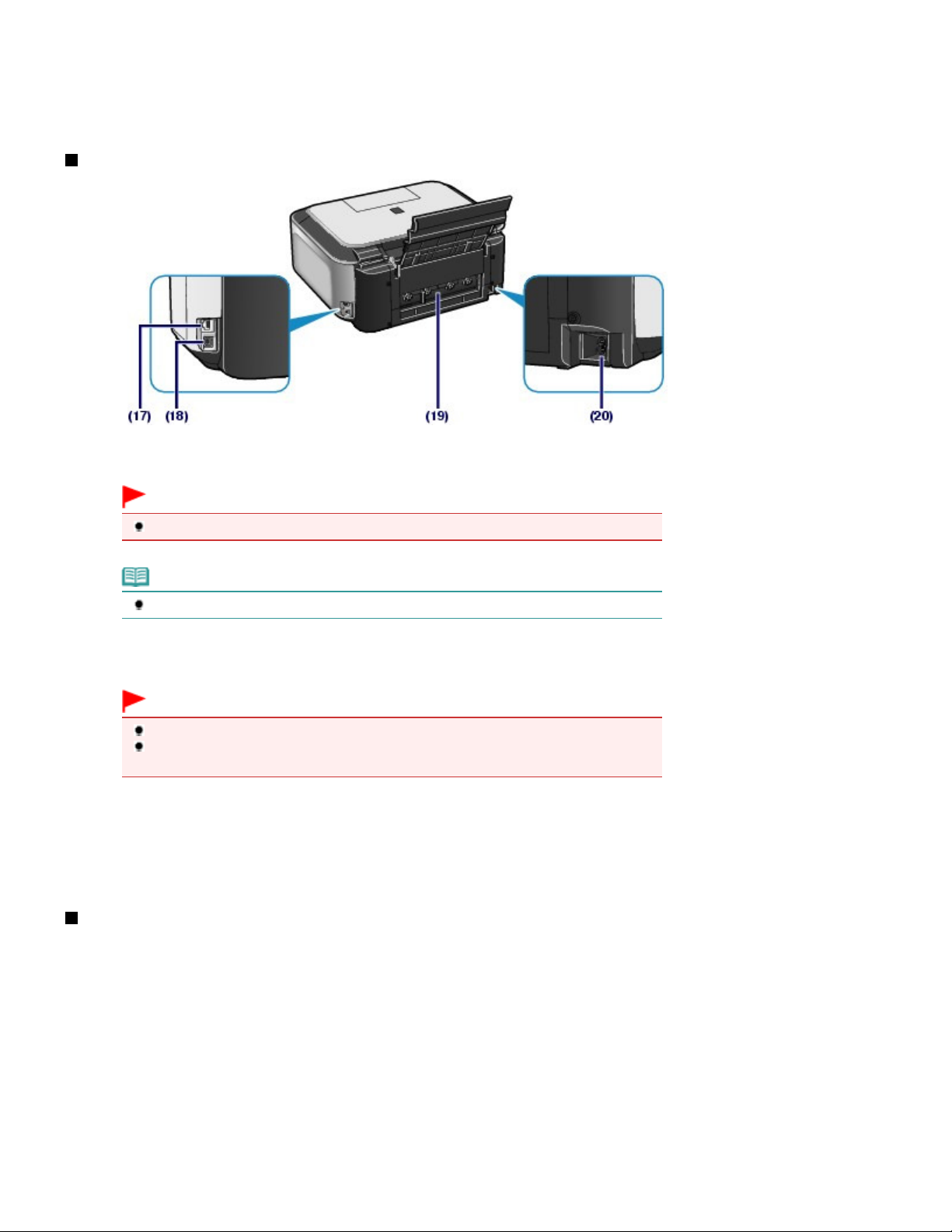

Rear View

(17) Wired LAN Connector

Plug in the LAN cable to connect the machine to a LAN.

Important

Do not touch the metal casing.

Note

Remove the LAN connector cap before connecting the LAN cable.

(18) USB Port

Plug in the USB cable to connect the machine with a computer.

Important

Do not touch the metal casing.

Do not plug in or unplug the USB cable while the machine is printing or scanning originals

with the computer.

(19) Rear Cover

Detach to remove jammed paper.

(20) Power Cord Connector

Plug in the supplied power cord.

Inside View

Page 6 of 1086 pagesMain Componen s

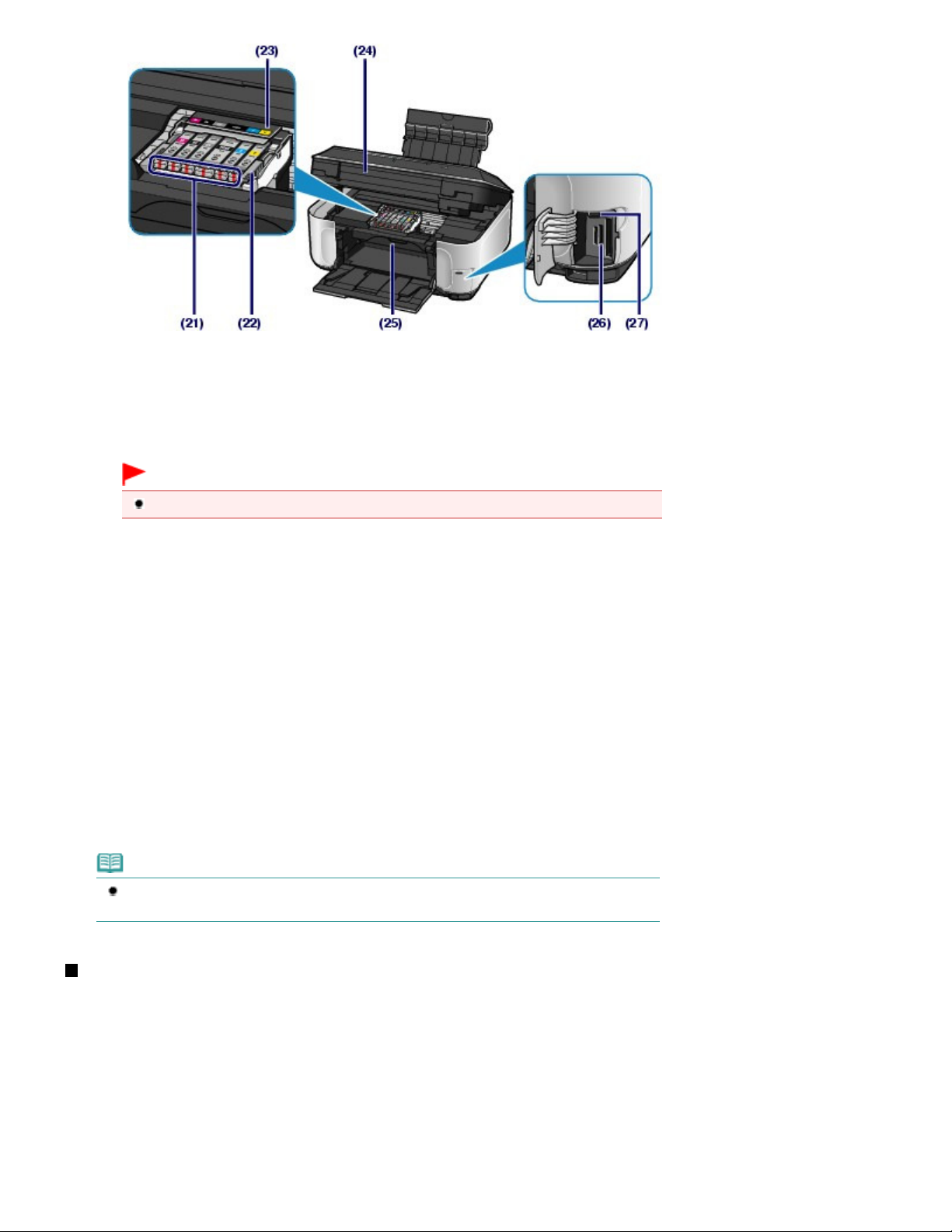

(21) Ink lamps

Light or flash red to indicate the ink tank status.

See Checking the Ink Status.

(22) Print Head Lock Lever

Locks the Print Head into place.

Important

Do not raise this lever after installing the Print Head.

(23) Print Head Holder

Install the Print Head.

(24) Scanning Unit (Cover)

Scans originals. Open it to replace ink tanks, to check ink lamps, or to remove jammed paper inside the

machine. When opening the Scanning Unit (Cover), lift it with the Document Cover closed.

(25) Inner Cover

Close it when printing on paper.

(26) Card Slot

Insert a memory card.

See Inserting the Memory Card.

(27) Access lamp

Lights or flashes to indicate the memory card status.

See Inserting the Memory Card.

Note

For details on installing the Print Head and ink tanks, refer to the printed manual: Getting

Started.

Operation Panel

Page 7 of 1086 pagesMain Componen s

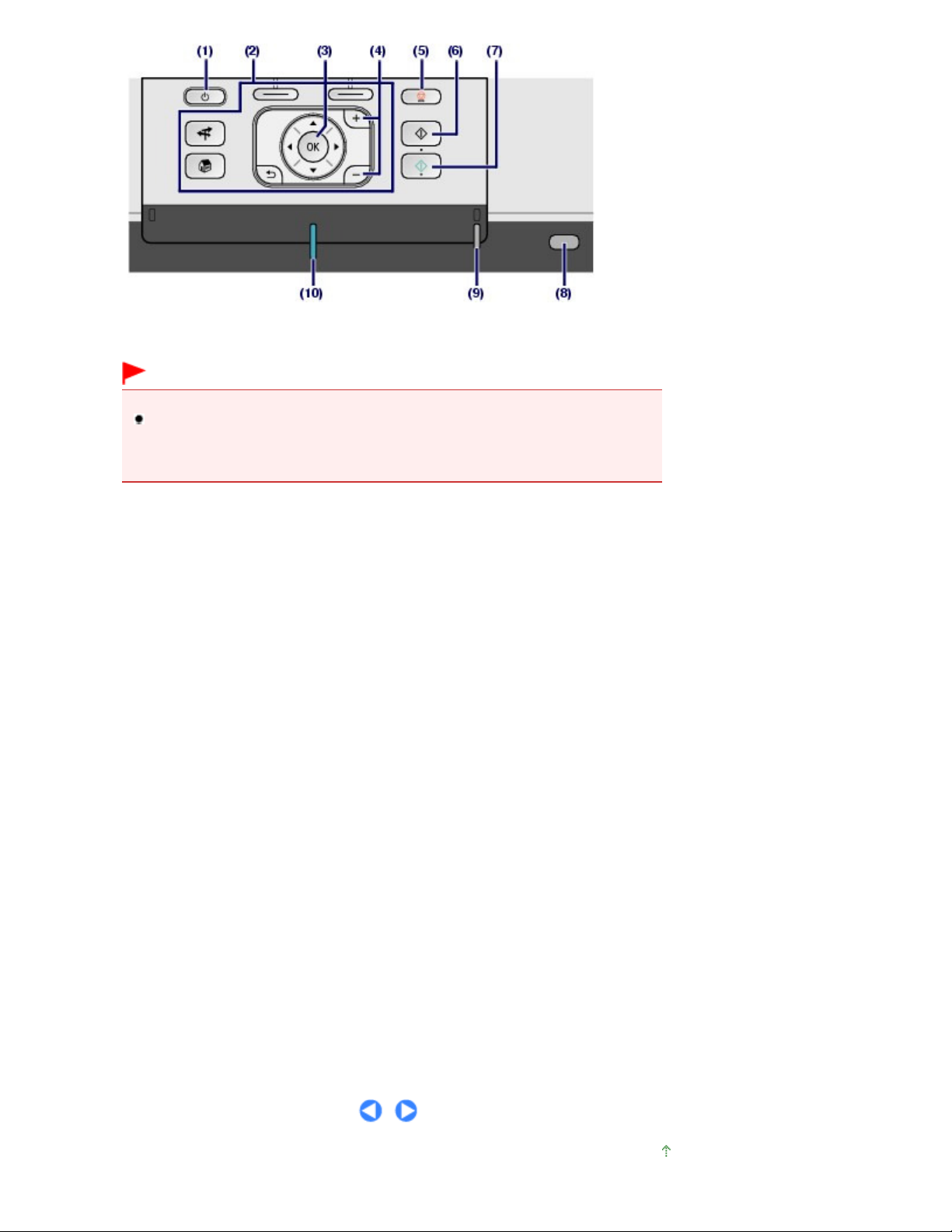

(1) ON button

Turns the power on or off. Before turning on the power, make sure that the Document Cover is closed.

Important

Disconnecting the power plug

When disconnecting the power plug after turning off the power, be sure to confirm that

the Power lamp is not lit. If the power plug is disconnected from the wall outlet while the

Power lamp is lit or flashing, the machine may become unable to print properly since the

Print Head is not protected.

(2) Buttons to use when navigating menus on the LCD

See How to Navigate Menus on the LCD .

(3) OK button

Selects a menu or setting item.

See How to Navigate Menus on the LCD .

Resolves an error when printing is in progress or resumes the machine's normal operation after removing

jammed paper.

(4) [+] [-] buttons

Specifies the number of copies to copy or print.

(5) Stop button

Cancels operation when a print, copy, or scan job is in progress.

(6) Black button

Starts black & white copying, scanning, etc.

(7) Color button

Starts color printing, copying, or scanning.

(8) Wi-Fi lamp

Lights or flashes blue to indicate the wireless LAN status.

Lights: Wireless LAN active is selected.

Flashes: Printing or scanning over wireless LAN. Also flashes while searching for wireless LAN access

point during setup and when connecting to the access point.

(9) Alarm lamp

Lights or flashes orange when an error occurs, such as paper-out or ink-out.

(10) Power lamp

Lights blue after flashing when the power is turned on.

Page top

Page 8 of 1086 pagesMain Componen s

Advanced Guide Troubleshooting

Contents > Overview of the Machine > How to Navigate Menus on the LCD

How to Navigate Menus on the LCD

This machine allows you to print photos on a memory card or USB flash drive, make copies, or scan an

original without a computer. To operate the machine, you can turn around the Easy-Scroll Wheel on the

Operation Panel or press the , , , or button on the Easy-Scroll Wheel to navigate menus or

select setting items on the LCD, then press the OK button.

This section describes the basic operation to navigate menus on the HOME screen and to select setting

items necessary for printing.

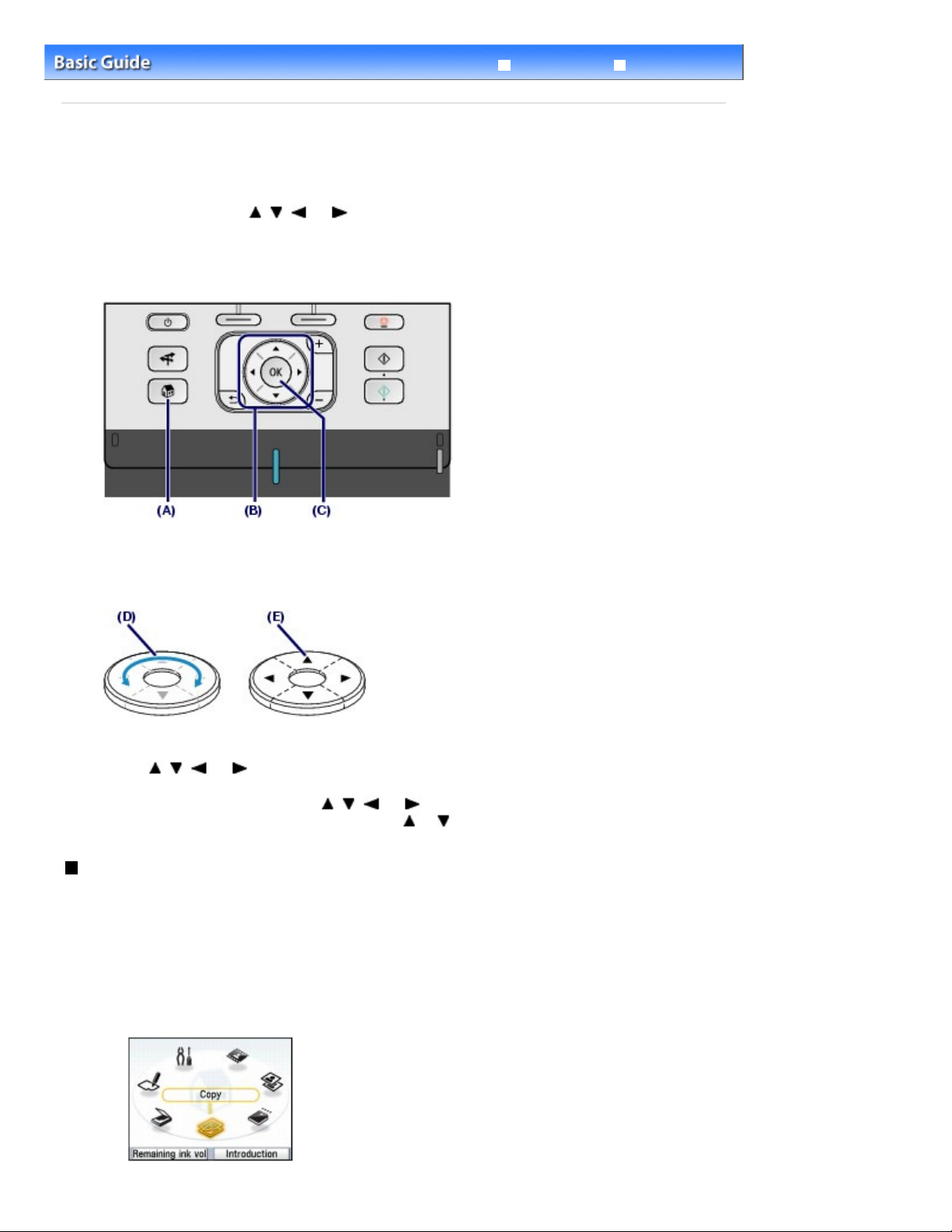

Using the Easy-Scroll Wheel (B)

The Easy-Scroll Wheel is used to select menus or setting items.

The Easy-Scroll Wheel can be used in two ways. You can operate the machine either way.

(D) Turn around the Easy-Scroll Wheel with your finger to select items.

(E) Press the , , , or button to select items.

When it is indicated in this guide that the , , , or button can be used, it is also described in the

operation procedure, i.e., "the Easy-Scroll Wheel (the or button)".

Selecting Menus on the HOME Screen

The HOME screen will appear when the power is turned on or when the HOME button is pressed.

To start printing photos on a memory card or USB flash drive, copying, or scanning, select menus on the

HOME screen.

1. Press the HOME button (A).

The HOME screen will appear.

Page 9 of 1086 pagesHow o Naviga e Menus on he LCD

2. Turn around the Easy-Scroll Wheel (B) to select the menu to use, and press the

OK button (C).

You can also use the or button on the Easy-Scroll Wheel (B) to select the menu.

The selected menu screen will appear.

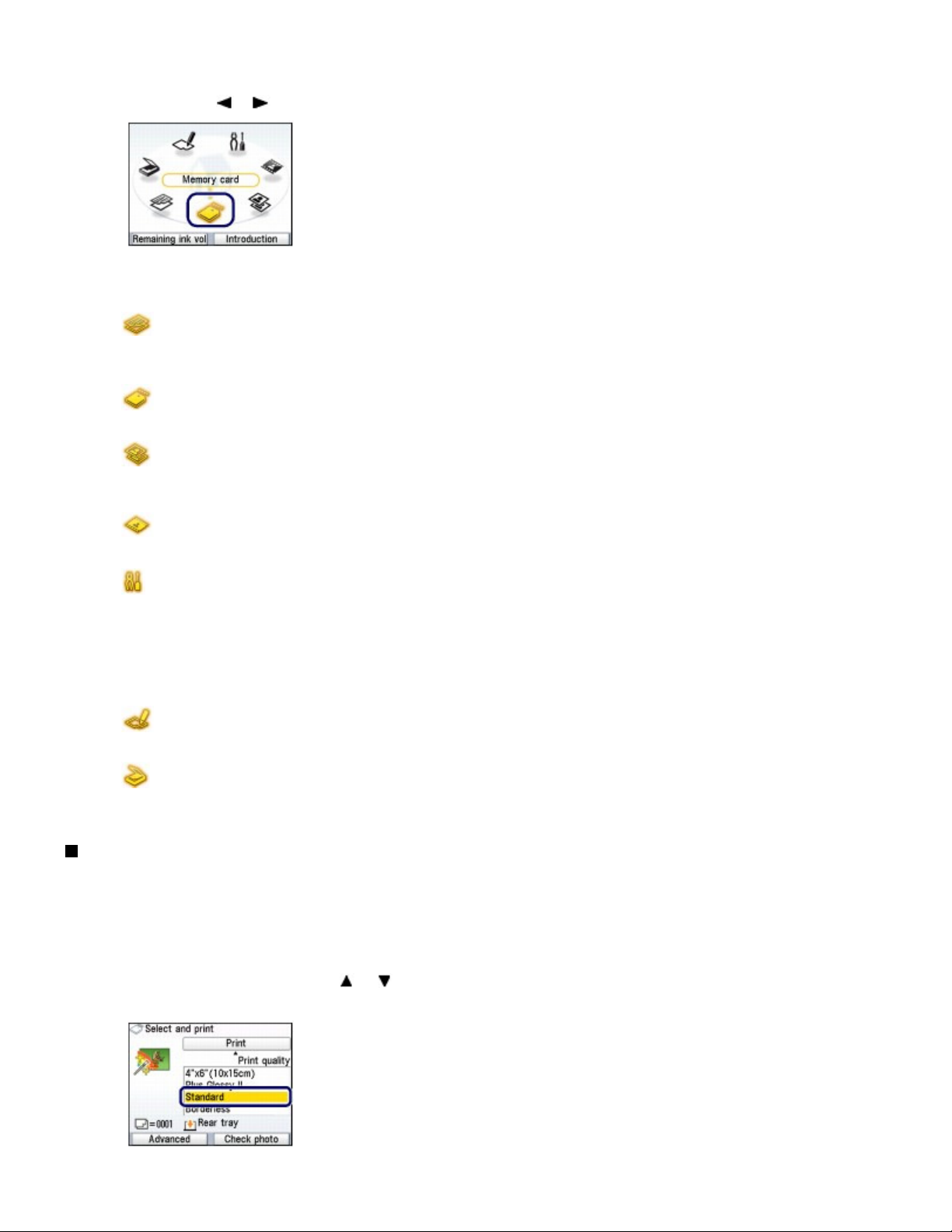

The following menus are available on the HOME screen.

Copy

You can change copy scale or erase dark frame or shade of

bound part when copying a book. And also you can copy an

original in various layouts.

See Copying.

Memory card

You can print photos saved on a memory card of your digital

camera or USB flash drive.

See Printing from a Memory Card.

Easy photo reprint

You can scan printed photos and print them easily. You can

specify the number of copies for each photo. You can also

print photos on sicker paper.

See Printing Photos from Printed Photos or Films .

Film print

You can scan images on the 35 mm film strip or mount films to

print them.

See Printing Photos from Printed Photos or Films .

Settings

You can maintain the condition of the machine, configure

wireless LAN, change settings of the machine, or print the

template forms such as notebook paper, etc.

See When Printing Becomes Faint or Colors Are Incorrect ,

Cleaning the Paper Feed Roller , Machine Settings, or Printing

the Template Forms such as Notebook Paper .

For details on the wireless LAN setup, refer to the printed

manual: Getting Started.

Photo index sheet

You can easily print photos on a memory card or USB flash

drive using the Photo Index Sheet.

See Using Photo Index Sheet to print.

Scan

You can forward scanned data to your computer or save

them on a memory card or USB flash drive inserted into the

machine with the Operation Panel.

See Scanning.

Selecting Setting Items

The displayed screen varies depending on the menu you selected, but the operation is the same.

This section describes the procedure to select a setting item, using the operation to change the print

quality on the print confirmation screen in Select and print of Memory card as an example.

1. Use the Easy-Scroll Wheel (the or button) (B) to select Standard, and press

the OK button (C).

Page 10 of 1086 pagesHow o Naviga e Menus on he LCD

Autres manuels pour 3749B002

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Canon Imprimante tout-en-un

Canon

Canon Pixma MG2160 Manuel utilisateur

Canon

Canon i-SENSYS MF6140dn Manuel utilisateur

Canon

Canon MF7280 - ImageCLASS B/W Laser Manuel utilisateur

Canon

Canon Color imageCLASS MF8170c Instructions d'installation et d'entretien

Canon

Canon imageRUNNER 2320 Manuel utilisateur

Canon

Canon PIXMA MP610 Series Manuel utilisateur

Canon

Canon PIXMA MX512 Manuel utilisateur

Canon

Canon imageRUNNER 3530 Manuel utilisateur

Canon

Canon MultiPASS F30 Manuel utilisateur

Canon

Canon PIXMA MX432 Manuel

Canon

Canon IMAGERUNNER 2525 Instructions d'installation

Canon

Canon iR5075 Manuel utilisateur

Canon

Canon 3749B002 Manuel utilisateur

Canon

Canon Color imageCLASS MF8080Cw Guide de sécurité

Canon

Canon 3300B002 Manuel utilisateur

Canon

Canon 3743B002 Guide de l'utilisateur

Canon

Canon iR C6800 Series Manuel utilisateur

Canon

Canon PIXMA MG6120 Series Manuel

Canon

Canon ImageRunner C2550 Instructions d'installation et d'entretien

Canon

Canon imageCLASS MF8380Cdw Guide de sécurité

Canon

Canon PIXMA MP600 Mode d’emploi

Canon

Canon imageCLASS MF5870dn Manuel utilisateur

Canon

Canon imageRUNNER 4570 Instructions d'installation et d'entretien

Canon

Canon MX330 series Instructions d'utilisation

Manuels Imprimante tout-en-un populaires d'autres marques

Triumph Adler

Triumph Adler DC 2016 Manuel

Epson

Epson WorkForce WF-2510 Guide de l'utilisateur

Epson

Epson Stylus Scan 2000 Manuel d'installation et d'exploitation

Epson

Epson PictureMate Snap PM 240 Mode d’emploi

Konica Minolta

Konica Minolta bizhub C35 Manuel utilisateur

Brother

Brother MFC-J430w Manuel utilisateur

Konica Minolta

Konica Minolta BIZHUB 558 Manuel utilisateur

Lexmark

Lexmark MX710 Series Manuel

Brother

Brother MFC-9760 Manuel utilisateur

Lexmark

Lexmark XC8155 Manuel utilisateur

Lexmark

Lexmark X642E Manuel utilisateur

Sharp

Sharp MX-2310U Mode d’emploi

Aficio

Aficio 200 Manuel utilisateur

Ricoh

Ricoh Pro C900 Manuel utilisateur

Lexmark

Lexmark X925 Manuel utilisateur

Brother

Brother Business Smart MFC-J4510dw Manuel utilisateur

Epson

Epson Stylus CX8400 Series Manuel utilisateur

Oce

Oce VarioLink 5022 Manuel utilisateur
