Candy CBG6250/1XGG Manuel utilisateur
Cooker Hood
Model CBG6250/1XGG
Made in ChinaInstructions Book
Information and Advice
Under certain circumstances, electrical appliances may lead to dangerous hazards.
CAUTION: Accessible parts may become hot when used with cooking appliances
G)
Disconnect the electrical plug prior to any maintenance.
F
)
Constantly check food which is being fried to avoid overheated oil splashing and
becoming a fire hazard.
E
)
Avoid opening the gasometer when there is no pan on the stove, as it is can
damage the filters and lead to a fire.
D
)
Do not light a flame under the cooker hood.
C
)
Do not touch the light bulb within half an hour after the appliance has been used.
B
)
Do not check the status of the filters while the cooker hood is operating.
A
)
There should be adequate ventilation in the room when the cooker hood is used
at the same time as appliances using gas or other fuels.
H
)
Regulations concerning the discharge of air have to be fulfilled.
I
)
When the range hood and appliances supplied with energy other than electricity
are simultaneously in operation, the negative pressure in the room must not
exceed 4 Pa (4x10 bar).
¯5
J
)
If the supply cord is damaged,it must be replaced by the manufacturer,its service
agent or a similarly qualified person in order to avoid a hazard.
K
)
This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities or lack of experience and knowledge
unless they are supervised or given instruction concerning the use of the
appliance by a person responsible for their safety. Children should be supervised
to ensure they do not play with the appliance.
L
)
The range hood is intended to be installed over a hob having no more than four
hob elements.
M)
This appliance is intended for indoor and household use only.
O
)
Please note: Observe the warning in the instruction sheet concerning the
operation of the appliance when air is discharged from the room.
N
)
When the appliance is not in use and before cleaning, unplug the appliance from
the outlet.
P
)
There is a fire risk if cleaning is not carried out in accordance with the instructions.

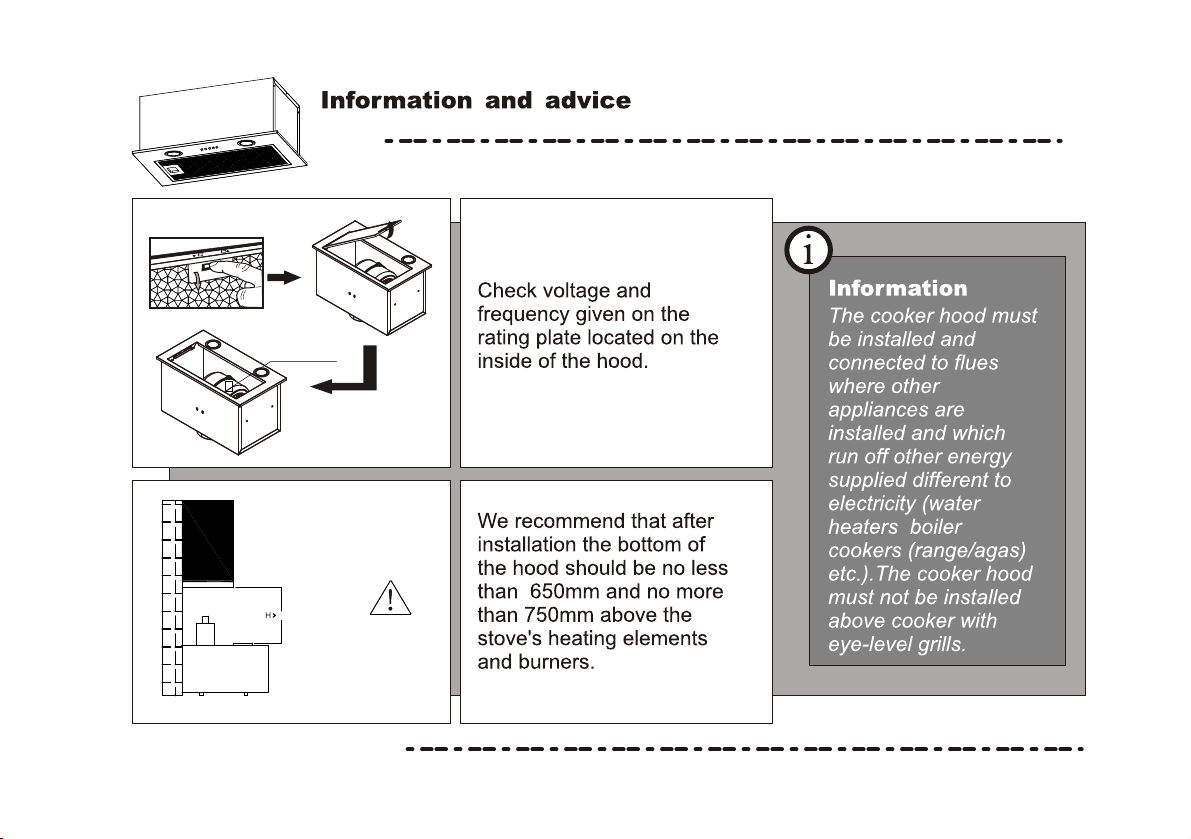

Information and Advice
CAUTION: Accessible parts may become hot when used with cooking appliances
Rating plate
1
2
650mm
Cooker Hood Dimensions
3
285
10
260 277
200
282
480
515
499
520
4
Mark out the dimensions of the cut-out based on your Cooker Hood.
A
C
D
B
A
B
C
D
499
487
268
200
INSTALLATION
Remove the grease filter, unscrew the 4 screws of
the fixed panel and remove it.
Connect the exhaust pipe to the ducting adaptor
and locate on the extractor as indicated.
5 6
INSTALLATION
Place the extractor into the cabinet opening and
secure it with screws.
Secure the panel on with the 4 previously
removed screws and insert the grease filter.
7 8
Controls
Press the switch of light to be on,the left and right bulbs light on.
Otherwise the bulbs don't work.When pressing the push button “1”
on,the motor runs at low speed.When pressing the push button “2”
on,the motor runs at middle speed.When pressing the push button
“3” on,the motor runs at high speed.When pressing the push button
“0”, the motor stops running.
0 1 2 3
Charcoal filter
In re-circulating mode, air is vented back into the kitchen through the opening in the
cooker hood.
This method is advised if you are not using your hob intensively. Re-circulated air
requires the use of charcoal filters to remove odours.
To ensure the best performance from your cooker hood, the charcoal filter should be
replaced every 3-6 months, dependent on use.
To attach a new charcoal filrer, follow the steps below:
1.Remove the grease filter.
2. Place the charcoal filter on the centre of the motor support.
3.Replace the grease filter.
This charcoal
filter is
non-washable
and must be
replaced as
required.
9 10 11
