Candy CCC 60BA/1 Manuel utilisateur

ENGLISH -------------------------------------------------------------------- page 001

POLISH ----------------------------------------------------------------------- page 015

CZECK (CS) ---------------------------------------------------------------- page 029

SLOVENIAN ---------------------------------------------------------------- page 043

SLOVAK (SK) -------------------------------------------------------------- page 057

HUNGARIAN ---------------------------------------------------------------- page 071

ROMANIAN ----------------------------------------------------------------- page 085

BULGARIAN(BG) ---------------------------------------------------------- page 099

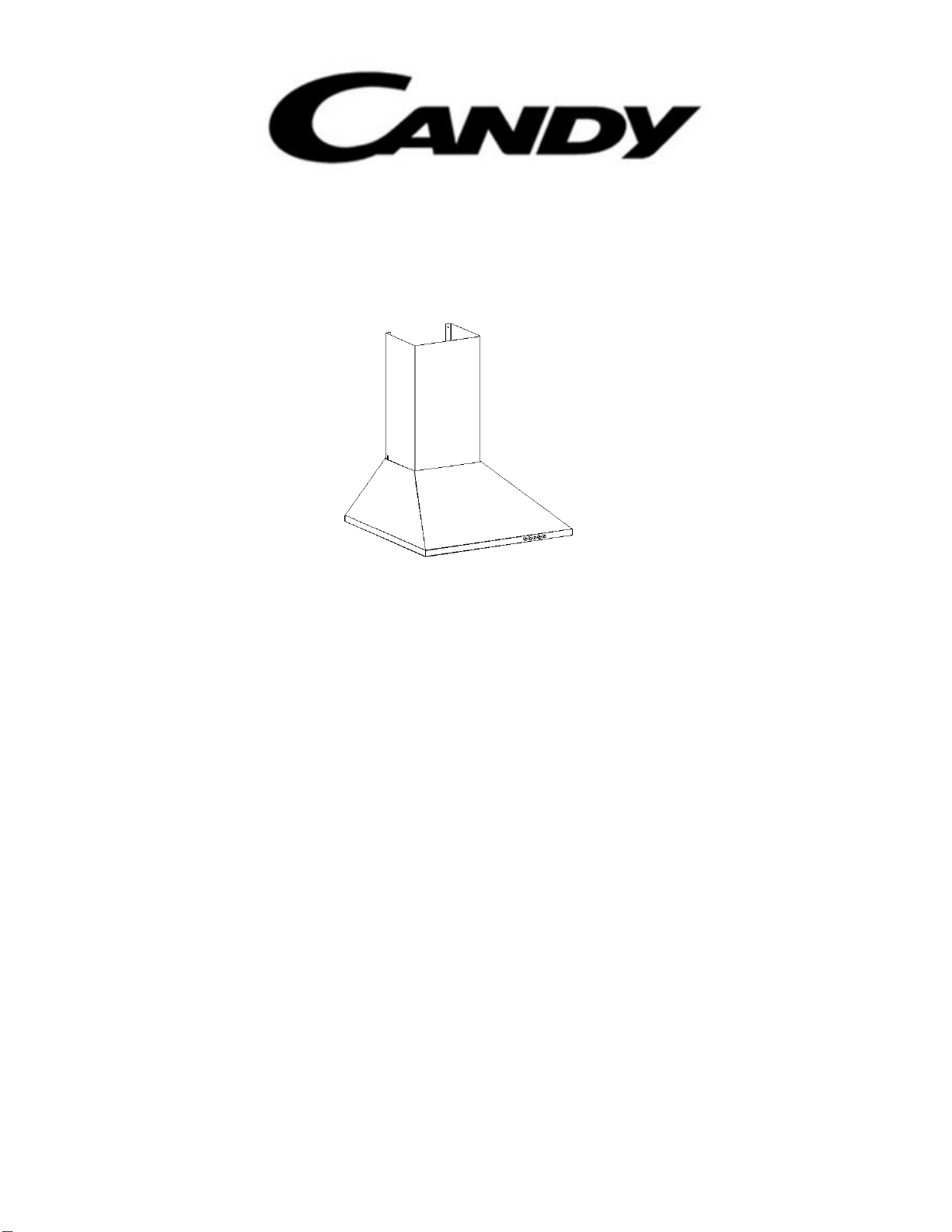

CCC 60BA/1 & CCC 60GH/1

CCC 60X/1 & CCC 60N/1

INSTALLATION AND USER’S MANUAL

CCC 60BA/1 & CCC 60GH/1

CCC 60X/1 & CCC 60N/1

INTRODUCTION

Thank you for choosing this cooker hood.

This instruction manual is designed to provide you with all required instructions

related to the installation, use and maintenance of the appliance. In order to operate

the unit correctly and safety, please read this instruction manual carefully before

installation and usage.

SAFETY PRECAUTION

• Important! Always switch off the electricity

supply at the mains during installation and

maintenance such as light bulb replacement.

• The cooker hood must be installed in

accordance with the installation instructions and

all measurements followed.

• All installation work must be carried out by a

competent person or qualified electrician.

• Please dispose of the packing material carefully.

Children are vulnerable to it.

• Pay attention to the sharp edges inside the

cooker hood especially during installation and

cleaning.

• When the range hood is located above a gas

appliance, the minimum distance between the

supporting surface for the cooking vessels on

the hob and the lowest part of the range hood

that distance must be:

Gas cookers: 70 cm

Electric cookers: 70 cm

Coal or oil cookers: 80 cm

• Make sure the ducting has no bends sharper

than 90 degrees as this will reduce the

efficiency of the cooker hood.

• Cooker hood is for domestic use only.

• Always put lids on pots and pans when cooking

on a gas cooker.

• Do not try to use the cooker hood without the

grease filters or if the filters are excessively

greasy.

• When in extraction mode, air in the room is

being removed by the cooker hood. Please

make sure that proper ventilation measures are

being observed. The cooker hood removes

odours from room but not steam.

• There shall be adequate ventilation of the room

when the range hood is used at the same time

as appliances burning gas or other fuels.

• Do not install above a cooker with a high level

grill.

• Do not leave frying pans unattended during use

because overheated fats or oils might catch fire.

• Never leave naked flames under the cooker

hood.

• If the cooker hood is damaged, do not attempt

to use.

• If the supply cord is damaged, it must be

replaced by the manufacturer, its service agent

or similarly qualified persons in order to avoid a

hazard.

• This appliance can be used by children aged

from 8 years and above and persons with

reduced physical, sensory or mental capabilities

or lack of experience and knowledge if they

have been given supervision or instruction

concerning use of the appliance in a safe way

and understand the hazards involved. Children

shall not play with the appliance. Cleaning and

user maintenance shall not be made by children

without supervision.

• Caution: The appliance and its accessible parts

can become hot during operation. Be careful to

avoid touching the heating elements. Children

younger than 8 years old should stay away

unless they are under permanent supervision.

− There shall be adequate ventilation of the

room when the range hood is used at the

same time as appliances burning gas or

other fuels.

− There is a fire risk if cleaning is not carried

out in accordance with the instructions.

− Do not flambé under the cooker hood.

− CAUTION: Accessible parts may become hot

when used with cooking appliances.

− The air must not be discharged into a flue that

is used for exhausting fumes from appliances

burning gas or other fuels.

− The minimum distance between the

supporting surface for the cooking vessels on

the hob and the lowest part of the range hood.

(When the range hood is located above a gas

appliance, this distance shall be at least

70 cm.

− Regulations concerning the discharge of air

have to be fulfilled.

• Clean your appliance periodically by following

the method given in the chapter

MAINTENANCE

• Warning: Failure to install the screws or fixing

device in accordance with these instructions

may result in electrical hazards.

• Regarding the instructions method of fixing for

the fixed appliance and how the appliance is to

be fixed to its support, thanks to refer to the

section “INSTALLATION AND FIXING”.

• Regarding the instructions for the bulb

changing, thanks to refer to the section “bulb

changing”.

• ILCOS D code for this lamp is: DBS-2/65-H-

120/33

PARTS SUPPLIED

Description

Illustration

Qty.

Cooker hood

Chimney

Plate I

Plate II

Screw

(4mm x 40mm)

Screw

(4mm x 30mm)

Wall plug

Screw

(4mm x 8mm)

Charcoal filter

(CCC 60N/1

CCC 60X/1

Optional)

INSTALLATION (VENT OUTSIDE)

If you have an outlet to the outside, your cooker hood can be connected as below

picture by means of an extraction duct (enamel, aluminum, flexible pipe or

inflammable material with an interior diameter of 150mm).

Before installation, turn the unit off and unplug it from the outlet.

The cooker hood should be placed at a distance of 70~80cm above the

cooking plane for best effect.

1. Remove the metal grease filters.

2. Position the hood against the wall that you are intending to install it on

and mark the position of the support holes that are to be drilled (as

shown in the figure below).

2a. The support screw holes are indicated by figure Ain this drawing and

the anchoring screw holes are indicated by figure B.

70cm

80cm

3. Using a drill bit with a 6 mm diameter, make

holes in the wall on the positions that you

have marked in step 2.

4. Insert rawl plugs into all of the holes that you have drilled.

5. Fasten the support screws halfway in, leaving them 10 mm out of the

wall.

6. Hang the hood onto the support screws.

7. Fully tighten the support screws (A) and then screw the anchoring

screws (B) through the relevant holes in the cooker hood. Fully tighten

the anchoring screws into the wall.

8. Plate I and II are used to fix the chimney on the wall. Put the inner chimney on the

outer chimney. Then pull the inner chimney upwards. Install plate I on the chimney

by two screws (4mm x 8mm).

Place the chimney on the cooker hood and determine the location of plate I and II.

Drill holes to accommodate plate I & II.

Screw

(4mm x 8mm)

Plate 1

Outer chimney

Inner chimney
