Campbell 03002 R.M Manuel utilisateur

03002 R.M. Young Wind Sentry Set

03101 R.M. Young Wind Sentry Anemometer

03301 R.M. Young Wind Sentry Vane

Revision: 9/13

Campbell Scientific, Inc.

Warranty

“PRODUCTS MANUFACTURED BY CAMPBELL SCIENTIFIC, INC. are

warranted by Campbell Scientific, Inc. (“Campbell”) to be free from defects in

materials and workmanship under normal use and service for twelve (12)

months from date of shipment unless otherwise specified in the corresponding

Campbell pricelist or product manual. Products not manufactured, but that are

re-sold by Campbell, are warranted only to the limits extended by the original

manufacturer. Batteries, fine-wire thermocouples, desiccant, and other

consumables have no warranty. Campbell's obligation under this warranty is

limited to repairing or replacing (at Campbell's option) defective products,

which shall be the sole and exclusive remedy under this warranty. The

customer shall assume all costs of removing, reinstalling, and shipping

defective products to Campbell. Campbell will return such products by surface

carrier prepaid within the continental United States of America. To all other

locations, Campbell will return such products best way CIP (Port of Entry)

INCOTERM® 2010, prepaid. This warranty shall not apply to any products

which have been subjected to modification, misuse, neglect, improper service,

accidents of nature, or shipping damage. This warranty is in lieu of all other

warranties, expressed or implied. The warranty for installation services

performed by Campbell such as programming to customer specifications,

electrical connections to products manufactured by Campbell, and product

specific training, is part of Campbell’s product warranty. CAMPBELL

EXPRESSLY DISCLAIMS AND EXCLUDES ANY IMPLIED

WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A

PARTICULAR PURPOSE. Campbell is not liable for any special, indirect,

incidental, and/or consequential damages.”

Assistance

Products may not be returned without prior authorization. The following

contact information is for US and international customers residing in countries

served by Campbell Scientific, Inc. directly. Affiliate companies handle

repairs for customers within their territories. Please visit

www.campbellsci.com to determine which Campbell Scientific company serves

your country.

To obtain a Returned Materials Authorization (RMA), contact CAMPBELL

SCIENTIFIC, INC., phone (435) 227-9000. After an application engineer

determines the nature of the problem, an RMA number will be issued. Please

write this number clearly on the outside of the shipping container. Campbell

Scientific's shipping address is:

CAMPBELL SCIENTIFIC, INC.

RMA#_____

815 West 1800 North

Logan, Utah 84321-1784

For all returns, the customer must fill out a "Statement of Product Cleanliness

and Decontamination" form and comply with the requirements specified in it.

The form is available from our web site at www.campbellsci.com/repair. A

completed form must be either emailed to repair@campbellsci.com or faxed to

(435) 227-9106. Campbell Scientific is unable to process any returns until we

receive this form. If the form is not received within three days of product

receipt or is incomplete, the product will be returned to the customer at the

customer's expense. Campbell Scientific reserves the right to refuse service on

products that were exposed to contaminants that may cause health or safety

concerns for our employees.

Table of Contents

PDF viewers: These page numbers refer to the printed version of this document. Use the

PDF reader bookmarks tab for links to specific sections.

1. Introduction.................................................................1

2. Cautionary Statements...............................................1

3. Initial Inspection .........................................................1

3.1 Ships With List.....................................................................................2

4. Quickstart ....................................................................2

4.1 Step 1 — Mount the Sensor .................................................................2

4.2 Step 2 — Use SCWin Short Cut to Program Datalogger and

Generate Wiring Diagram.................................................................5

5. Overview......................................................................7

6. Specifications .............................................................8

6.1 Wind Speed (Anemometer)..................................................................8

6.2 Wind Direction (Vane).........................................................................9

6.3 Wind Sentry Assembly ........................................................................9

7. Installation...................................................................9

7.1 Siting ....................................................................................................9

7.2 Assembly and Mounting ....................................................................10

7.2.1 03002 Wind Sentry Set ...............................................................10

7.2.2 03101 Anemometer.....................................................................10

7.2.3 03301 Vane .................................................................................11

7.3 Wiring ................................................................................................11

7.4 Programming......................................................................................13

7.4.1 Wind Speed.................................................................................13

7.4.2 Wind Direction............................................................................13

7.4.3 Wind Vector Processing Instruction ...........................................14

7.4.4 Example Programs ......................................................................14

7.4.4.1 CR1000 Program..............................................................15

7.4.4.2 CR10X Program...............................................................15

7.4.5 Long Lead Lengths .....................................................................17

8. Sensor Maintenance.................................................17

Table of Contents

9. Troubleshooting........................................................18

9.1 Wind Direction .................................................................................. 18

9.2 Wind Speed ....................................................................................... 18

10. References.................................................................19

Appendices

A. Wind Direction Sensor Orientation .......................A-1

A.1 Determining True North and Sensor Orientation ............................ A-1

B. Wind Direction Measurement Theory....................B-1

B.1 BRHalf Instruction .......................................................................... B-1

B.2 EX-DEL-SE (P4) Instruction........................................................... B-1

Figures

4-1. CM200-Series Crossarm with CM220 Right Angle Mounting

Bracket ............................................................................................. 3

4-2. 03002 mounted to CM200-Series Crossarm with CM220 .................. 4

4-3. 03002 mounted to CM200-Series Crossarm with pn 17953............... 4

7-1. The CM216 allows an 03002 or 03101 to mount atop the mast of

a CM110, CM115, or CM120 tripod ............................................. 10

7-2. 03101 mounted to a crossarm via a 1049 NU-RAIL ......................... 11

A-1. Magnetic declination for the contiguous United States (2004)........ A-2

A-2. Declination angles east of True North are subtracted from 0 to

get True North.............................................................................. A-3

A-3. Declination angles west of True North are added to 0 to get True

North............................................................................................ A-3

B-1. 03002 and 03301 potentiometer in a half bridge circuit.................. B-1

Tables

5-1. Recommended Cable Lengths............................................................. 7

7-1. 03002-L Wiring ................................................................................. 12

7-2. 03101 and 03301 Wiring ................................................................... 12

7-3. Wind Speed Multiplier (With Pulse Channel Configuration Set to

Low Level AC, Output “Hz”)........................................................ 13

7-4. Parameters for Wind Direction.......................................................... 14

7-5. Wiring for Example Programs using the 03002-L............................. 14

R.M. Young Wind Sentry

1. Introduction

The 03002 Wind Sentry Set measures both wind speed and direction. It

consists of a 3-cup anemometer and a wind vane mounted on a small crossarm.

The anemometer (pn 03101) and vane (pn 03301) may be purchased

separately.

Before installing the 03002, please study

•Section 2, Cautionary Statements

•Section 3, Initial Inspection

•Section 4, Quickstart

2. Cautionary Statements

•The 03002 is a precision instrument. Please handle it with care.

•If the 03002 is to be installed at heights over 6 feet, be familiar with tower

safety and follow safe tower climbing procedures.

•Danger — Use extreme care when working near overhead electrical wires.

Check for overhead wires before mounting the 03002 or before raising a

tower.

•The black outer jacket of the cable is Santoprene® rubber. This

compound was chosen for its resistance to temperature extremes, moisture,

and UV degradation. However, this jacket will support combustion in air.

It is rated as slow burning when tested according to U.L. 94 H.B. and will

pass FMVSS302. Local fire codes may preclude its use inside buildings.

3. Initial Inspection

•Upon receipt of the 03002, inspect the packaging and contents for damage.

File damage claims with the shipping company. Immediately check

package contents against the shipping documentation (see Section 3.1,

Ships With List). Contact Campbell Scientific about any discrepancies.

•The model number and cable length are printed on a label at the

connection end of the cable. Check this information against the shipping

documents to ensure the expected product and cable length are received.

R.M. Young Wind Sentry

3.1 Ships With List

The 03002 Wind Sentry ships with:

(1) 03002 Wind Sentry including

03102 anemometer

03302 vane

crossarm

band clamp (pn 4919)

(1) 12" x 1.0" unthreaded aluminium pipe (pn 3659)

(1) Allen wrench (pn 5201)

The 03101 anemometer ships with:

(1) 03101 anemometer

(1) 10" x 3/4" threaded galvanized pipe (pn 12243)

(1) Allen wrench (pn 5201)

The 03301 Vane ships with:

(1) 03301 vane

(1) 10” x 3/4” threaded galvanized pipe (pn 12243)

(1) Allen wrench (pn 5201)

4. Quickstart

4.1 Step 1 — Mount the Sensor

This quick start is for the 03002 wind set. Refer to Section 7, Installation, if

installing just the 03101 anemometer or 03301 vane. Section 7, Installation,

also provides siting information.

Tools required:

•5/64” Allen wrench

•Allen wrench provided with sensor

•1/2” open end wrench

•compass and declination angle for the site (see Appendix A)

•small screw driver provided with datalogger

•UV resistant cable ties

•small pair of diagonal-cutting pliers

•6 – 10” torpedo level

Install the 03002 using:

•Standard 1.0-in. IPS schedule 40 pipe (pn 3659)

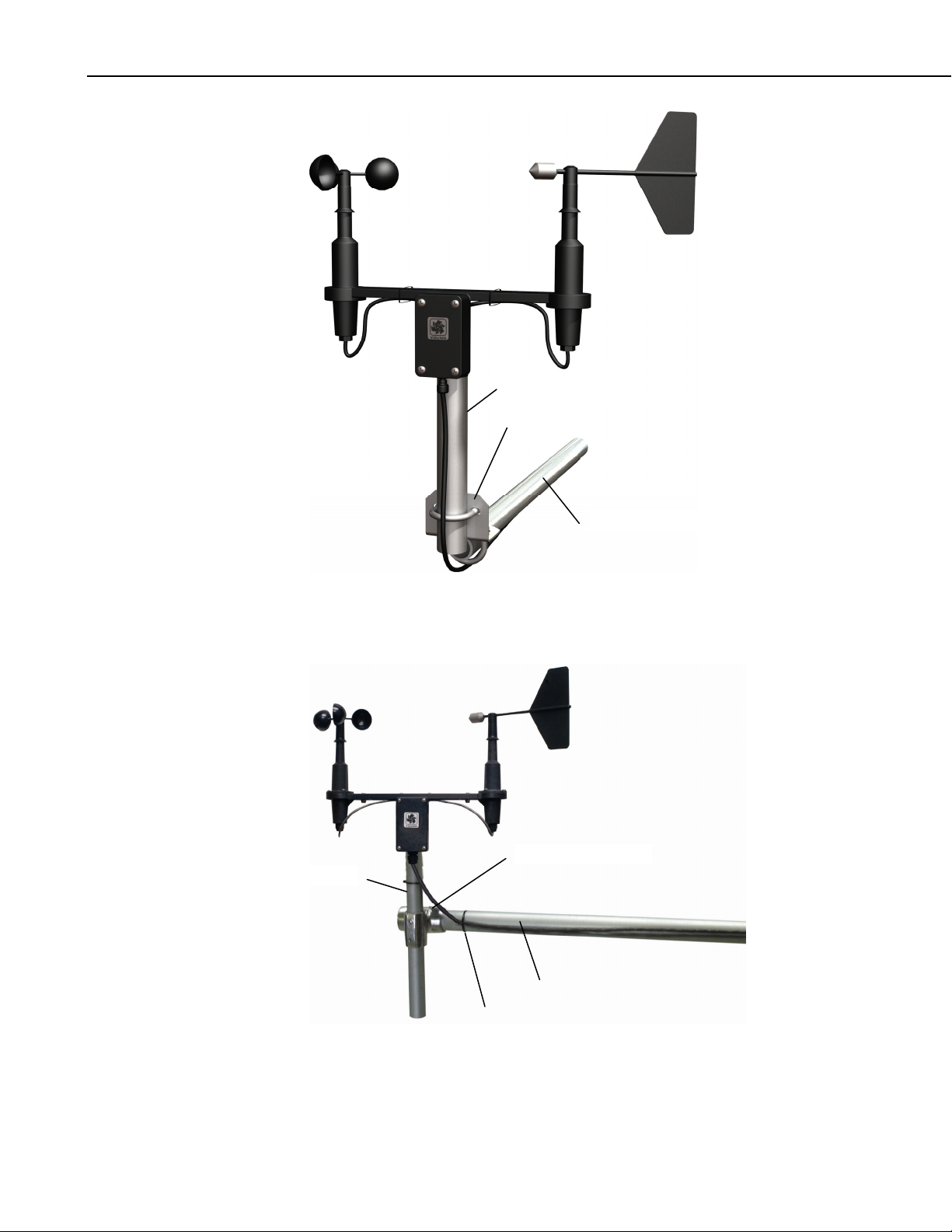

•CM220 Right-Angle Mounting Kit (FIGURE 4-1 and FIGURE 4-2),

•17953 1 x 1 inch NU-RAIL Crossover Fitting (FIGURE 4-3)

R.M. Young Wind Sentry

1. Install the cup wheel to the anemometer shaft using the Allen wrench

provided with the sensor.

2. Mount a CM202, CM204, or CM206 crossarm to the tripod or tower.

3. Orient the crossarm North-South, with the CM220 mount or 17953 NU-

RAIL on the north end. Appendix A contains detailed information on

determining True North using a compass and the magnetic declination for

the site.

4. Secure the 12 in. aluminum pipe to the CM220 mount or 17953 NU-RAIL.

The 3659 aluminum pipe is shipped with the 03002.

5. Place the 03002 on the pipe, and orient the sensor crossarm North-South

with the vane to the North.

6. Tighten the mounting post band clamp. Final sensor orientation is done

after the datalogger has been programmed to measure wind direction as

described in Appendix A.

7. Route the sensor cable along the underside of the crossarm to the tripod or

tower, and to the instrument enclosure.

8. Secure the cable to the crossarm and tripod or tower using cable ties.

FIGURE 4-1. CM200-Series Crossarm with CM220 Right Angle

Mounting Bracket

CM220

CM200-Series Crossarm

R.M. Young Wind Sentry

FIGURE 4-2. 03002 mounted to CM200-Series Crossarm with CM220

FIGURE 4-3. 03002 mounted to CM200-Series Crossarm with

pn 17953

CM220

Alumimum Pipe

CM200-Series Crossarm

pn 17953 NU-RAIL

Aluminum Pipe

CM200-Series Crossarm

Cable Tie

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Campbell Instrument de mesure

Campbell

Campbell HC2S3 Manuel utilisateur

Campbell

Campbell TDR200 Manuel utilisateur

Campbell

Campbell CS650 Manuel utilisateur

Campbell

Campbell CRS451 Manuel utilisateur

Campbell

Campbell CR850 Manuel utilisateur

Campbell

Campbell HC2-S3-L Manuel utilisateur

Campbell

Campbell NOR 140 Manuel utilisateur

Campbell

Campbell SR05 Manuel utilisateur

Campbell

Campbell CS300 Manuel utilisateur

Campbell

Campbell TEMPERATURE PROBE 109SS Manuel utilisateur

Campbell

Campbell CR10XTCR Manuel utilisateur

Campbell

Campbell EC150 Manuel utilisateur

Campbell

Campbell CNR1 Manuel utilisateur

Campbell

Campbell OXYGUARD TYPE III CS512 Manuel utilisateur

Campbell

Campbell IRGASON Manuel utilisateur

Campbell

Campbell CS616 Manuel utilisateur

Campbell

Campbell CS650 Manuel utilisateur

Campbell

Campbell CS300 Manuel utilisateur

Campbell

Campbell CMP3-L Manuel utilisateur

Campbell

Campbell SMP10 Manuel utilisateur

Campbell

Campbell HFP01 Manuel utilisateur

Campbell

Campbell CMP3 Manuel utilisateur

Campbell

Campbell Met One 034A-L Manuel utilisateur

Campbell

Campbell RainVUE Series Manuel utilisateur

Manuels Instrument de mesure populaires d'autres marques

Suaoki

Suaoki D40 Manuel utilisateur

Elster

Elster BK-G1.6 Manuel utilisateur

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manuel

Duratool

Duratool D03128 Manuel utilisateur

Vega

Vega VEGAPULS 65 Manuel utilisateur

Tonghui

Tonghui TH2618B Manuel utilisateur

Tenmars

Tenmars TM-801 Manuel utilisateur

MSR

MSR 145 Manuel utilisateur

TPS

TPS WP-82 Manuel utilisateur

ELMETRON

ELMETRON CP-511 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 003C30 Manuel utilisateur

Tenma

Tenma 72-10465 Manuel utilisateur

Endress+Hauser

Endress+Hauser Proline Promag 50 Caractéristiques techniques

Siemens

Siemens SITRANS F Coriolis FCT030 Manuel de la liste des pièces

KLINGER

KLINGER CMF V Series Manuel utilisateur

EXFO

EXFO FTB-2 Manuel d'exploitation et d'entretien

Keysight

Keysight M8290A Manuel utilisateur

ADTEK

ADTEK MW-5 Manuel utilisateur
