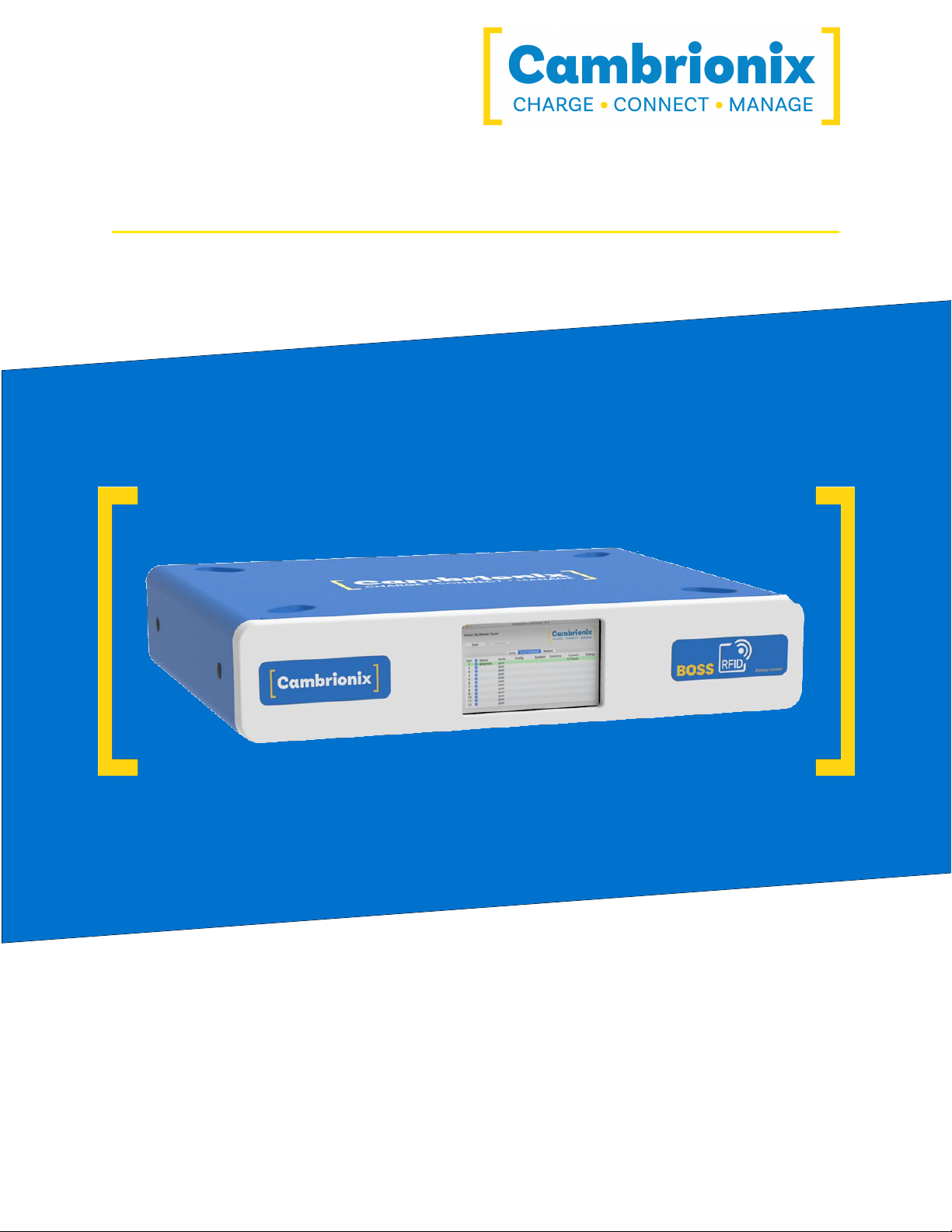

CAMBRIONIX ModIT-Boss Manuel utilisateur
User Manual
ModIT-Boss
ModIT-Boss Page 2 of 15
1.Table of Contents
1.Table of Contents 2
2.Safety 3
2.1.Signal word panel 3
2.2.Safety alert symbol 4
2.3.Pictograms 4
2.4.Product modification 4
2.5.Power supply 5
2.6.Storage and Installation 6
3.Getting Started 7
3.1.What's Included 7
3.2.Connecting to the mains 7
3.3.Registration 7
3.4.Cleaning your ModIT-Boss 8
4.Installing Host System 9
5.Product Specifications 12
5.1.Input Power 12
5.2.Physical specifications 12
6.Compliance and Standards 13
ModIT-Boss Page 3 of 15
2.Safety
This user manual is for informational purposes only, it contains information for start-up and
operation of this product. Note: the contents and the product described are subject to change
without notice. To avoid injuries and damage observe the safety instructions of the user
manual.
Understanding and observing the instructions in this user manual are prerequisites for
hazard-free use and safety during operation. This user manual cannot cover all conceivable
applications. If you would like additional information or if problems arise that are not
sufficiently addressed in this manual please ask your distributor or contact us directly using the
means preferred which are located on the back cover of this manual.
Personal Injury and Damage to the product
lObserve the safety instructions in this user manual
2.1.Signal word panel
Depending on the probability of serious consequences, potential dangers are identified with a
signal word, the corresponding safety colour, and if appropriate, the safety alert symbol.
Indicates a potentially hazardous situation which, if not avoided, may result in moderate or
minor (reversible) injury.
Indicates a potentially hazardous situation which, if not avoided, may result in damage to the
product and/ or its functions or of a property in its proximity.
ModIT-Boss Page 4 of 15
2.2.Safety alert symbol
Use of the safety alert symbol indicates a risk of injury.
Observe all measures that are marked with the safety alert symbol in order to
avoid injury
2.3.Pictograms
Warning Signs
Electrical hazard Fire Hazard
Mandatory action signs
Read operating instructions Mandatory regulation
2.4.Product modification
Cambrionix products are designed and manufactured to meet the requirements of UK and
International safety regulations. Modifications to the product could affect safety and render the
product non-compliant to relevant safety standards, which could result in injury or damage to
the product.
Electric shock or personal injury may occur
lDo not modify the product in any way
lDo not dismantle the product
ModIT-Boss Page 5 of 15
Fire or personal injury may occur
lDo not obstruct air vents on the product
lDo not cover the product in combustible material
Damage to your product may occur
lDo not bend or compress any part of the product
2.5.Power supply
This section describes safety precautions you must follow when using the power supply.
Electric shock or personal injury may occur
lDo not use a damaged power cord or plug, or a loose power socket
lDo not touch the power plug with wet hands
lDo not allow liquids to come into contact with the unit or power supply
Damage to your product may occur
lDo not short circuit the Power Supply Unit (PSU) supplied with your
product
lDo not disconnect the power cord while the product is being used
lDo not bend or pull the power cord with excessive force
ModIT-Boss Page 6 of 15
2.6.Storage and Installation
This section describes safety precautions you must follow when installing and storing your
ModIT-Boss.
Electric shock or personal injury may occur
lDo not place the power cord near heat sources
lConnect the plug to an earthed socket
Damage to your Cambrionix product may occur
lOperate the product only in an environment where the ambient
temperature is inside the operating temperature range
lOperate the product only in an environment where the relative humidity is
inside the operating range
lBe careful not to leave the power cord underneath a heavy object
Overheated power sockets may cause a fire
lDo not overload the power socket that your hub is connected to
lInsert the power plug all the way into the socket so that it is not loose
ModIT-Boss Page 7 of 15
3.Getting Started
3.1.What's Included
l2m Mains power cable (Country specified on order)
lModIT-Boss Unit
3.2.Connecting to the mains
Making sure you adhere to local safety regulations, connect the power cable to the socket and
switch the power supply on.
3.3.Registration
You may register your product at www.cambrionix.com to download LiveViewer and our API.
ModIT-Boss Page 8 of 15
3.4.Cleaning your ModIT-Boss
Cleaning the product is generally not required, although in some instances it may be necessary
if excess dirt/ dust/ hair has accumulated, or if minor liquid spillages have occurred on the
module during operation or storage.
Electric shock or personal injury may occur
lIf there is a dirt/ spillage over a ventilation slot, external data/ power
connector or product aperture, please remove power from the unit without
touching the liquid and contact Cambrionix immediately
lEnsure that the product is switched off and the power cord is removed from the product.
Hold the power cable by the plug and do not touch either the plug or the power cord
with wet or damp hands as an electrical shock may result
lWipe the product with a clean, dry and soft cloth. Do not use detergents which contain
alcohol, solvent or surface-active agents. Do not spray water or detergent directly onto
the product
lWet a soft and dry cloth in water and wring thoroughly to clean the product as required
lDry the product thoroughly once the cleaning has finished
lReconnect the power cord and use your product as advised once cleaning and drying is
complete
ModIT-Boss Page 9 of 15
4. Installing Host System
One of the features of the Boss Module is the ability to install a Mac mini inside. This provides
different levels of sophistication to the ability of your device.
There are 8 screws on the underside of the case and 7 on the rear that need to be removed
there are also two pins on each side of the boss unit that will need to be removed.
Remove these using a screwdriver and slide the top of the Boss Module 4 inches, as
demonstrated in the in the graphic below.
The graphic below demonstrates how the product should look at this stage. Notice the
highlighted yellow screws, which should all have been removed at this point
ModIT-Boss Page 10 of 15
With a spanner, undo the highlighted nut below. Once removed, it will allow you to slide the
lid off fully.
Once the lid is completely removed, it will reveal the inside of the product. Next, remove
the screws (highlighted in yellow) in order to remove the Mac mini chassis.
Once you have removed the Mac mini chassis place your Mac mini on the circular mat
(outsides highlighted below). You can then attach the mini Mac to the three wires on the
left.
