Cabletron Systems Netlink FRX4000 Instructions de montage

Installation

Setup

Guide

The Complete Networking SolutionTM

Cabletron Systems reserves the right to make changes in specifications and other information con-

tained in this document without prior notice. The reader should in all cases consult Cabletron

Systems to determine whether any such changes have been made.

The hardware, firmware, and/or software described in this manual is subject to change without

notice.

IN NO EVENT SHALL CABLETRON SYSTEMS BE LIABLE FOR ANY

INCIDENTAL, INDIRECT, SPECIAL, OR CONSEQUENTIAL DAMAGES

WHATSOEVER (INCLUDING BUT NOT LIMITED TO LOST PROFITS)

ARISING OUT OF OR RELATED TO THIS MANUAL OR THE INFOR-

MATION CONTAINED IN IT, EVEN IF CABLETRON SYSTEMS HAS

BEEN ADVISED OF, KNOWN, OR SHOULD HAVE KNOWN, THE POS-

SIBILITY OF SUCH DAMAGES.

of America. Order Number: FRX4-INST-DOC.

See third-party software copyrights in the Netlink FRX4000 and

FRX6000 User Guide.

Netlink is a trademark of Cabletron Systems, Inc. All other product designations are the property

of their respective owners.

Statement of FCC Compliance

The equipment providedby Cabletron Systems, Inc. anddocumented in this manual has been tested

and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC

Rules.These limits are designed to provide reasonable protection against harmful interference

when the equipment is operated in a commercial environment.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and

used in accordance with the installation manual, may cause harmful interference to radio commu-

nications. Operation of this equipment in a residential area is likely to cause harmful interference,

in which case the user will be required to, at his/her own expense, take the necessary measures to

eliminate the interference.

To ensure compliance with the Class A FCC limits, use only shielded cables with this equipment.

Any cable installed above a ceiling or below a floor must be of a material and construction

approved by UL for that application.

Statement of DOC Compliance

This digital apparatus does not exceed the Class A limits for radio noise emissions from digital

apparatus set out in the Radio Interference Regulations of the Canadian Department of Communi-

cations.

Le presentappareil numerique n'emet pasde bruits radioelectriques depassant les limits applicables

aux appareils numeriques de la class A prescrites dans le Reglement sur le brouillage radioelec-

trique edicte par le ministere des Communications du Canada.

Installation & Setup Guide i

Digital Service Codes

Facility Interface Codes for Digital Services:

Code Description

04DU5-58 56 Kbps Digital Interface

04DU5-64 64 Kbps Digital Interface

Service Order Code for Digital Services:

Code Description

6.0N Does not provide billing and encoding analog protection. Uses either an integrated

or external CSU. Affidavit to telco is required.

About This Manual

Terminology and Conventions

This typeface represents general text. This typeface represents computer input and

output.

This symbol points to an informational note relating to the text, table, or figure that

immediately precedes or follows it.

This symbol and text identifies a cautionary note, the content of which

is more critical to heed than an informational note.

References to keyboard keys appear as "[N]", where “N” is a specific key:

Screen displays are provided to show the general appearance of actual screens. They are only

examples—they do not necessarily represent an operational system.

Related Documents

A copy of the Netlink FRX4000 and FRX6000 User Guideshould always be on site at each

FRX6000. Copies of this and other Cabletron documents can be ordered from Cabletron Systems

or your local distributor of Cabletron products.

ii FRX4000

Site Requirements

Environment: 32–104oF (0-40oC) and 5–95% humidity, non-condensing.

An AC power outlet of the appropriate voltage (110–125/60 Hz or 200–240

VAC/50 Hz) must be located within five feet of the device.

For adequate air flow, allow at least four inches of clearance at the rear and at

least two inches at the sides, front, and top. DO NOT remove the rubber

mountingfeet from the bottom of the unit, as these provide necessary space for

air flow through the fan. Also, make sure the FRX4000 sits on its mounting

feet, not on its sheet metal bottom surface. Do not place the unit on a surface

that is smaller in area than the spaces between the mounting feet.

If you will be rack mounting the FRX4000, the holes in the vertical mounting

angles in the rack must either be threaded (10-32) or have captive nuts installed.

For reference, an FRX4000 weighs 9 lbs. (4.1 kg), and is 17.5" (44 cm) wide,

11" (27.7 cm) deep, and 1.75" (4.4 cm) high.

Required Equipment

Tools

The only tools you need are a small flat-head screwdriver and a medium

Phillips-head screwdriver.

User Cables

The LAN interface on the Ethernet model of FRX4000 is provided in RJ-45

(UTP) and 15-pin "D" female (AUI, for Thicknet). The LAN interface on the

Token Ring model is provided in RJ-45 (UTP) and 9-pin "D" female (STP).

The LAN cable and, if Ethernet AUI, the transceiver, must be provided by the

customer.

The optional CSU/DSU interface is RJ-48S. The cablemust be provided by the

customer.

Assuming that you ordered the necessary WAN interface cables with the

FRX4000, you will need to know which cable will plug into which WAN port.

Table 1 (on page 7) lists the WAN ports and cables.

Installation & Setup Guide 1

Operator Interface

The FRX4000 does not require a keyboard or terminal for normal operation.

However, setup and configuration of a new FRX4000 requires a directly con-

nected async terminal or a PC emulating a terminal.

Set the async terminal device for:

9600 bps Autowrap Application keypad

8 bits no parity No newline Application cursor key

No break VT100 mode Tab every 8 columns

For direct connection to a terminal or PC, each FRX4000 is shipped with:

• Cable, DB9S to DB9S, 5 feet, Cabletron number FRX-PC-CAB, for

connecting the Console port (see Figure 7 on page 6) directly to a PC

(with software emulating an async terminal). (See Figure 1.)

• Adapter, DB9P to DB25S, Cabletron number FRX-9/25-ADAP, for

connecting the FRX4000 directly (via cable FRX-PC-CAB) to a cus-

tomer-supplied async terminal (See Figure 2).

• Cable, DB9S to DB9P, 5 feet, Cabletron number FRX-MOD-CAB,for

connecting the FRX4000 to a modem. (See Figure 3.) This requires the

following, supplied by the customer:

• Two auto-answer modems, capable of 9600 bps. (If the modem at

the FRX4000 end does not have a DB25S connector, you will also

need a gender adapter.)

• One straight-through cable from async terminal to modem.

Figure 1 Auxiliary Console Cabling - Console Port to PC

2FRX4000

PC Monitor

FRX4000

PC-to-Console port cable

(FRX-PC-CAB)

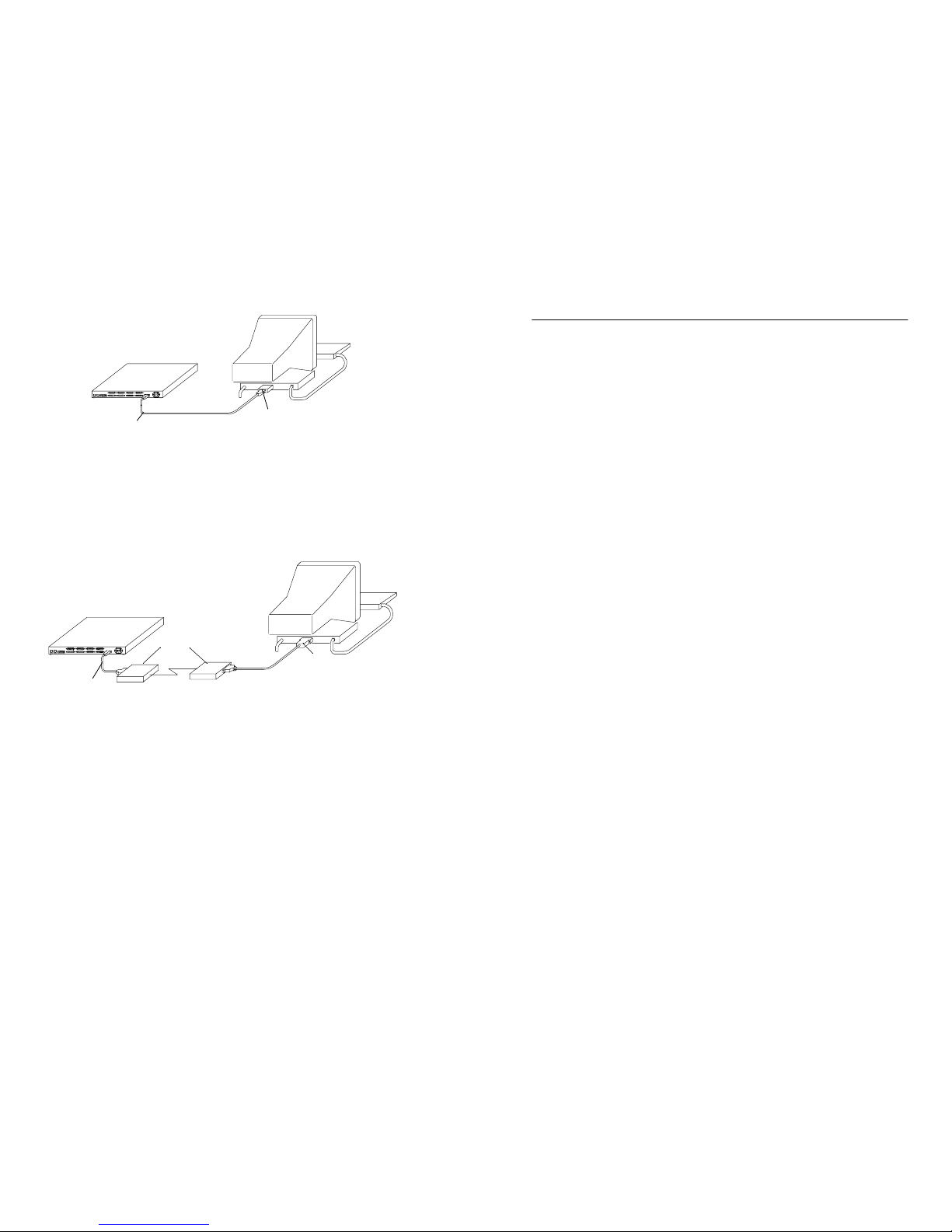

Figure 2 Auxiliary Console Cabling - Console Port to Async Terminal

Figure 3 Auxiliary Console Cable - Console Port to Modem

Installation & Setup Guide 3

Installing an FRX4000

The customer and sales representative decide on the necessary hardware and

software components at the time a FRX4000 is ordered. These components

(except cables) are then installed before the unit is shipped to the customer.

Steps to be taken at the customer site are described in this section.

1. Unpackand inspect the equipment. A shipment will generally include two

boxes, the contents of which are described below. If there is evidence of

physical damage, contact the transport company that delivered the

equipment. If parts are missing, contact your sales representative.

Box 1 contains:

• "Read Me First" packet: includes software license agreement, updates

to this document, and other pertinent information.

• FRX4000 (including serial expansion card, if ordered).

• Power cable.

• One V.35 DTE I/O cable.

• Auxiliary Console cable set:

Cable FRX-PC-CAB

Cable FRX-MOD-CAB

Adapter FRX-9/25-ADAP.

• Rack-mount kit:

2 rack-mount brackets|

12 6-32x1/4 flat-head screws

4 10-32x5/8 pan-head screws

4 #10 split-ring lock washers

4 #10 flat washers.

• This Installation & Setup guide.

Box 2 contains all other cables that were ordered with the FRX4000.

2. Record the serial number found on the bottom of the FRX4000. This will

be needed for any correspondence with Cabletron Systems concerning the

device.

3. If you are not rack mounting the unit, go to step 5. If you are mounting the

unit into a 19-inch rack, attach the mounting brackets as shown in Figure

4, using the 6-32x¼ screws included with the brackets.

Notethat the design of the brackets allowsyou to attach them with the tabs

at either the front or the rear of the FRX4000.

4FRX4000

Async terminal

FRX4000

PC-to-Console port cable

(FRX-PC-CAB)

Adapter

(FRX-9/25-ADAP)

Async terminal

FRX4000

Auxiliary Console cable

(FRX-MOD-CAB)

RS-232 cable

Auto-answer

modems

Figure 4 Attaching the Rack-Mounting Brackets

4. Attach the FRX4000 to the rack's mounting angles as shown in the next

two figures. If mounting the device into a rack with EIA-standard hole

spacing (repeating pattern of 5/8"-5/8"-1/2"), make sure each mounting

tabon theFRX4000is centered ona hole with 5/8" between itand the next

hole in either direction, as shown in Figure 5.

Figure 5 Mounting Angle Hole Spacing

Installation & Setup Guide 5

Figure 6 Rack Mounting the FRX4000

5. Plug all cables into the appropriate connectors at the rear of the unit (see

Figure 7).It will help identify the cables at the other end if you label each

one with the associated port number.

Figure 7 FRX4000 Connectors

6FRX4000

6-32x1/4

5/8”

10-32x5/8 Screw

Lock Washer

Flat Washer

Ports 4–7 are on optional

expansion module

Optional

CSU/DSU port

LAN port

WAN0WAN1WAN2WAN3

WAN4WAN5WAN6WAN7

Power Connector

and Switch

Console Port

Tighten the retaining screws on each WAN port cable connector and the

Console port cable connector. If attaching a Thick Ethernet cable to the

AUI port,note that the connector has a slide latch. Snap the latch over the

posts on the cable connector to lock it in place.

If the assembly is rack mounted, secure the cables to the sides of the ver-

tical rails or to a horizontal bar or rail with cable ties, to provide strain

relief to the cable connectors.

WAN ports 0-7 provide the following interfaces:

* If the optional CSU/DSUport is used, WAN port1 is not functional.

DCE cables have female connectors at the user end, and DTE

cables have male connectors.

Installation & Setup Guide 7

The cable connected to the Console Port dependson what device is at the

other end of the cable, as shown in Figure 1 through Figure 3.

6. Make sure the AC power switch on the rear of the FRX4000 (see Figure

7) is Off. (The switch is off when the left side is depressed.) This is simply

to assure the FRX4000 will not start before you are ready.

7. Plug the other ends of the cables into the appropriate devices: modems,

user devices, other FRX4000s, extender cables, AC receptacle.

Secure each connector by the appropriate means. Note that each WAN

port cable has retaining screws to secure it to another cableor device. The

mating connector should have threaded (4-40) stand-offs to accept the

screws. If it does not, wrap the connection with cable ties, electrical tape,

or something else that will ensure a secure fit.

8. Switchon the terminal (if necessary), then the FRX4000. The FRX4000's

green Power light should come on.

Figure 8 LEDs

9. As the FRX4000 boots (starts), a series of messages will be displayed,

tracking the loading of the software. These messages are written to a file

named BOOTRPT.TXT. If there appears to be a problem during boot-up,

the contents of this file can be displayed (as described later), to help

determine the problem.

When theboot process is complete, a screen similarto Figure 9willbe dis-

played. (No status will be shown until the software is configured.)

8FRX4000

Table 1 WAN Port Cables

Port

Number Type of

Connector Interface

with Cable 5-foot I/O Cable:

Cabletron Number

WAN 0, 1 * RS-232 RS-232 DTE FRX4-DTED25-CAB

RS-232 DCE FRX4-DCED25-CAB

WAN 2, 3 Universal RS-232 DTE FRX4-232DTE-CAB

(HD-44) RS-232 DCE FRX4-232DCE-CAB

V.35 DTE FRX4-V35DTE-CAB

V.35 DCE FRX4-V35DCE-CAB

RS-449 DTE FRX4-449DTE-CAB

RS-449 DCE FRX4-449DCE-CAB

X.21 DTE FRX4-X21DTE-CAB

X.21 DCE FRX4-X21DCE-CAB

WAN 4–7 RS-232 RS-232 DTE FRX-232DTE-CAB

RS-232 DCE FRX-232DCE-CAB

V.35 V.35 DTE FRX-V35DTE-CAB

V.35 DCE FRX-V35DCE-CAB

RS-422 RS-449 DTE FRX-449DTE-CAB

RS-449 DCE FRX-449DCE-CAB

X.21 DTE FRX-X21DTE-CAB

X.21 DCE FRX-X21DCE-CAB

Power Fault

Figure 9 Port Status Display

10. Now you must configure the software from the Auxiliary Console.

Records must be configured to identify the locations and operating param-

eters of the FRX4000 and its ports. Configuration of these records is doc-

umented in the Netlink FRX4000/FRX6000 User Guide,which is shipped

with each FRX6000 and is optional with FRX4000.

If you want to proceed to the configuration screens, press [F1] at the Port

Status Display. When prompted, type (uppercase) NETLINK, then press

[Enter]. (NETLINK is specified as the password when the software is

installed. This can be changed in a menu operation.) This will display the

Main Menu.

Figure 10 Main Menu

Installation & Setup Guide 9

To select a menu item, press the letter displayed at the left of theitem. To

display a list of valid options at any point, press the [?] key.

If you wantto display the BOOTRPT.TXT file, press [F], then [C] from the

Main Menu.

This completes the installation. If this FRX4000 is the first one in a network

that contains other FRX4000s running an older release of the software, the new

software can be downloaded to the other FRX4000s. (This works only with

other FRX4000s-although the base software is the same, you cannot download

from an FRX4000 to an FRX6000, 9W004, or SmartSwitch 1800.)

Updating Other FRX4000s

To remotely update another FRX4000 with software from the new FRX4000,

follow this procedure:

1. Make sure File Transfer IDs are specified in the Node Defaults records of

both FRX4000s.

2. Press [C] at the On-Line Node Operations menu (or [B], [A], [C] from the

Main Menu).

3. When prompted, enter the File Transfer ID and password of the node you

are updating.

4. Press [Y] or [N] when asked: Will the remote node be using any of IP, LLC2,

or IPX?

5. Press [Y] when asked:Are you sure you want todo a remote software update?

The transfer process, repeated for each file, is as follows:

1. The originating node will send a message that includes the name and size

of the largest file to be sent. A request for the remote node's release

number will also be sent with the first file name. If the release numbers of

the sending and receiving nodes are incompatible, the transfer will not

occur, and an error message will be displayed. If this happens, contact

your service representative.

2. The remote node will check to make sure there is enough disk space to

accept the file; if not, the connection will be cleared and a corresponding

message displayed. If there is enough disk space, the file will be trans-

ferred, and stored in the remotenode under a temporary filename until the

node verifies that the file is the expected size. (If it is not, the temporary

file will be deleted.)

3. If the temporary file is the expected size, the "old" file will be deleted and

the new file renamed. As the update progresses, you can press [F4] at any

time to abort thetransfer andcleartheconnection. Oncethe update iscom-

plete, the sending node will clear the connection.

10 FRX4000

Node Name=

Port Status Display (Page 1)

L P Type PPS Conn# State L P Type PPS Conn# State

F1: Login

Node Name=

Netlink FRX version “n.n.n”

M A I N M E N U

A Configuration

B Operations

C Status Displays

DEvents

EStstistics

FReports

Option:

Questions?

If you have questions or problems, please contact Cabletron Systems Technical

Support at:

Phone: 603-332-9400

Fax: 603-337-3075

E-mail: [email protected]

Installation & Setup Guide 9

Document number 09-41-06-103-02

The Complete Networking SolutionTM

Autres manuels pour Netlink FRX4000

Table des matières

Autres manuels Cabletron Systems Matériel réseau

Cabletron Systems

Cabletron Systems TRFMIM-22 Manuel utilisateur

Cabletron Systems

Cabletron Systems CBUPRI/E1 Manuel utilisateur

Cabletron Systems

Cabletron Systems 9C300-1 Manuel utilisateur

Cabletron Systems

Cabletron Systems W85 Manuel utilisateur

Cabletron Systems

Cabletron Systems FE-100 Manuel utilisateur

Cabletron Systems

Cabletron Systems Environmental Module TM 9C300-1 Manuel utilisateur

Cabletron Systems

Cabletron Systems Device Management Module Dec GigaSwitch Manuel utilisateur

Cabletron Systems

Cabletron Systems Spectrum EMM-E6 Manuel utilisateur

Cabletron Systems

Cabletron Systems TRMIM-10R Manuel utilisateur

Cabletron Systems

Cabletron Systems 3Com PortSwitch Hub Manuel utilisateur

Cabletron Systems

Cabletron Systems Netlink FRX8000 Instructions de montage

Cabletron Systems

Cabletron Systems BRIM-W6 Manuel utilisateur

Cabletron Systems

Cabletron Systems NB30 Manuel utilisateur

Cabletron Systems

Cabletron Systems MMAC-M3FNB Manuel utilisateur

Cabletron Systems

Cabletron Systems MMAC-Plus 9G536-04 Manuel utilisateur

Cabletron Systems

Cabletron Systems 6C105 Manuel d'exploitation et d'entretien

Cabletron Systems

Cabletron Systems TRMIM-22 Manuel utilisateur

Cabletron Systems

Cabletron Systems 9E429-36 Guide de démarrage rapide

Cabletron Systems

Cabletron Systems WPIM-SY Manuel de programmation

Cabletron Systems

Cabletron Systems CSMIM-T1 Manuel utilisateur

Cabletron Systems

Cabletron Systems NBR-220 Manuel de programmation

Cabletron Systems

Cabletron Systems SPECTRUM FRX6000 Manuel utilisateur

Cabletron Systems

Cabletron Systems STS-5SU Manuel utilisateur

Cabletron Systems

Cabletron Systems MMAC-M5FNB Manuel utilisateur

Manuels Matériel réseau populaires d'autres marques

Matrix Switch Corporation

Matrix Switch Corporation MSC-HD161DEL Manuel utilisateur

B&B Electronics

B&B Electronics ZXT9-IO-222R2 Manuel utilisateur

Yudor

Yudor YDS-16 Manuel utilisateur

D-Link

D-Link ShareCenter DNS-320L Manuel utilisateur

Samsung

Samsung ES1642dc Instructions d'utilisation

Honeywell Home

Honeywell Home LTEM-PV Instructions de montage

evertz

evertz 7700 Series Manuel utilisateur

D-Link

D-Link ShareCenter DNS-343 Manuel utilisateur

Asante

Asante AsanteBridge 1012 Manuel utilisateur

FireBrick

FireBrick FB2700 Manuel utilisateur

Audiovox Electronics

Audiovox Electronics ARWH2T Manuel utilisateur

ADC

ADC DSX-1 Manuel

NetComm

NetComm NF2 Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 5620 Manuel utilisateur

Dell EMC

Dell EMC XC6420 Series Manuel utilisateur

Lanner

Lanner NCA-1020A Manuel utilisateur

Allied Telesis

Allied Telesis AT-TN121-A Manuel utilisateur

Arista

Arista CCA-ETM-Q12 Manuel utilisateur
