VIDEO MOUNT PRODUCTS
Instruction Sheet For:
VH-001 & VH-001S
Step 1
Before starting lay out all parts to your mount and match them to
the parts list provided. Verify that you have all your parts necessary
for the primary mount you are attaching to before attempting to
assemble the mount. Note: VH-001 part numbers are in circles and
non-VH-001 part numbers are in hexagons.
Step 2
To determine which steps to follow, first determine which mount you
are trying to attach to the VH-001. If you are trying to connect the
VH-001 to a W-13 or a C-13 proceed to step 3. If you are trying to
connect the VH-001 to a C-20, C-27, W-20, or W-27 proceed to step
6. IfyouaretryingtoconnecttheVH-001toanewstyleVMP014/024,
VMP036/038, VMP042/044, or VMP046/048 proceed to step 9. If you
are trying to connect the VH-001 to a VMP001, VMP003, or VMP006
proceed to step 11. Note: Instructions assume that you have al-
ready assembled the primary mount.

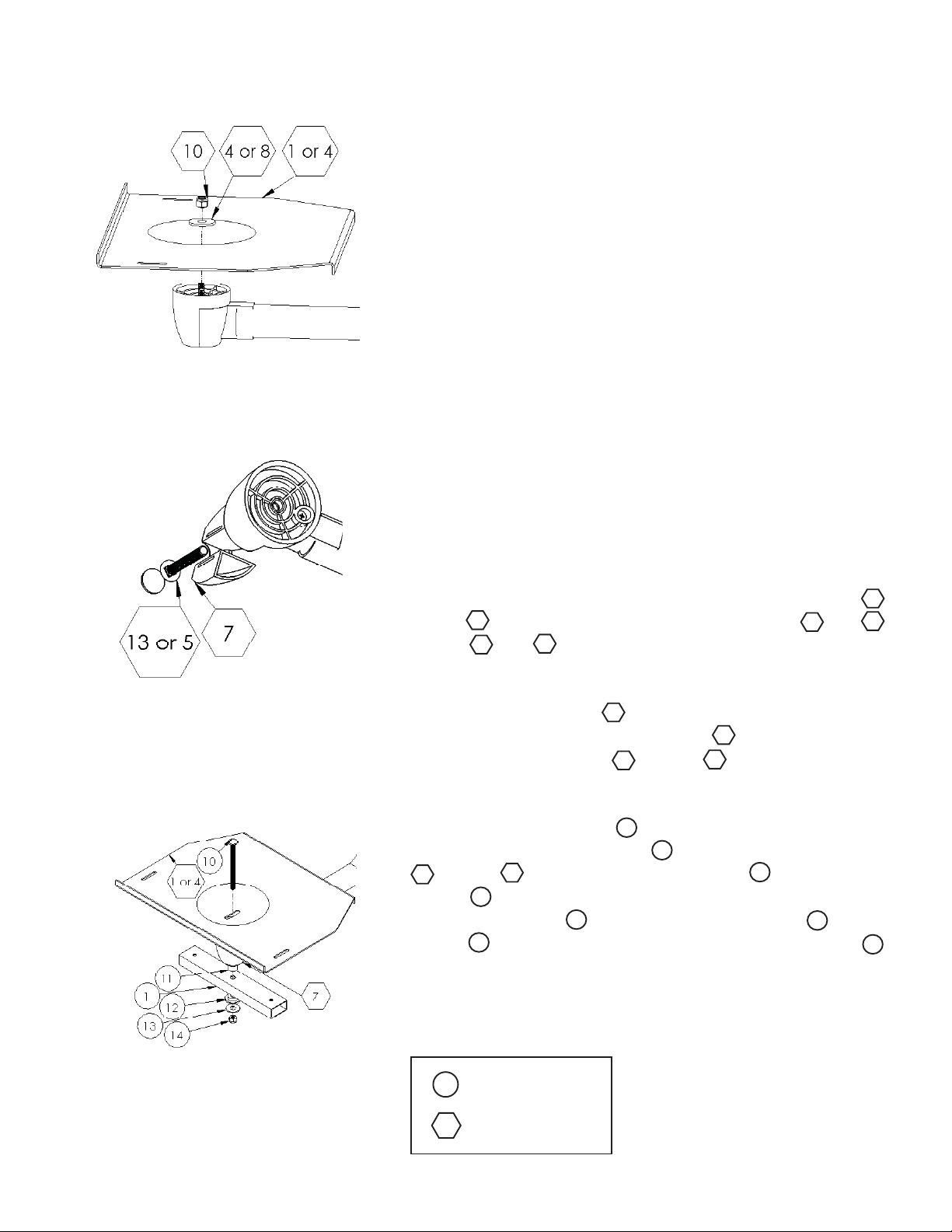

VH-001 to W13 or C13
Step 3
First remove the TV from the mount. Next remove the platform )
W-13 or C-13 by removing the nylon nut and washer and )
W-13 or and C-13.
Step 4
Remove the plastic swivel W-13 and C-13. Snap off the plastic
circle on the bottom of the plastic swivel W-13 and C-13 and
remove the 2.5” long screw W-13 or C-13.
Step 5
Attach the VH-001 force arm VH-001 to the bottom of the plastic
swivel by inserting the long screw VH-001 through the platform
W-13 or C-13 through the plastic swivel VH-001 and the
spacer VH-001. Continue by inserting the long screw through
the VH-001 force arm VH-001 and through the plug VH-001,
washer VH-001, and then attach and tighten the nylon nut )
VH-001. Once this is completed please skip to step 14.
Step 3: Removing the platform from
the W-13/C-13
Step 4: Removing the plastic
connector and swivel
Step 5: Attaching the force arm
Key:
VIDEO MOUNT PRODUCTS
VH-001
Non VH-001
Parts
7
1
7
1
4
5
1
4
1
8
10
7
10
71
4
10
13
11
112
13 14

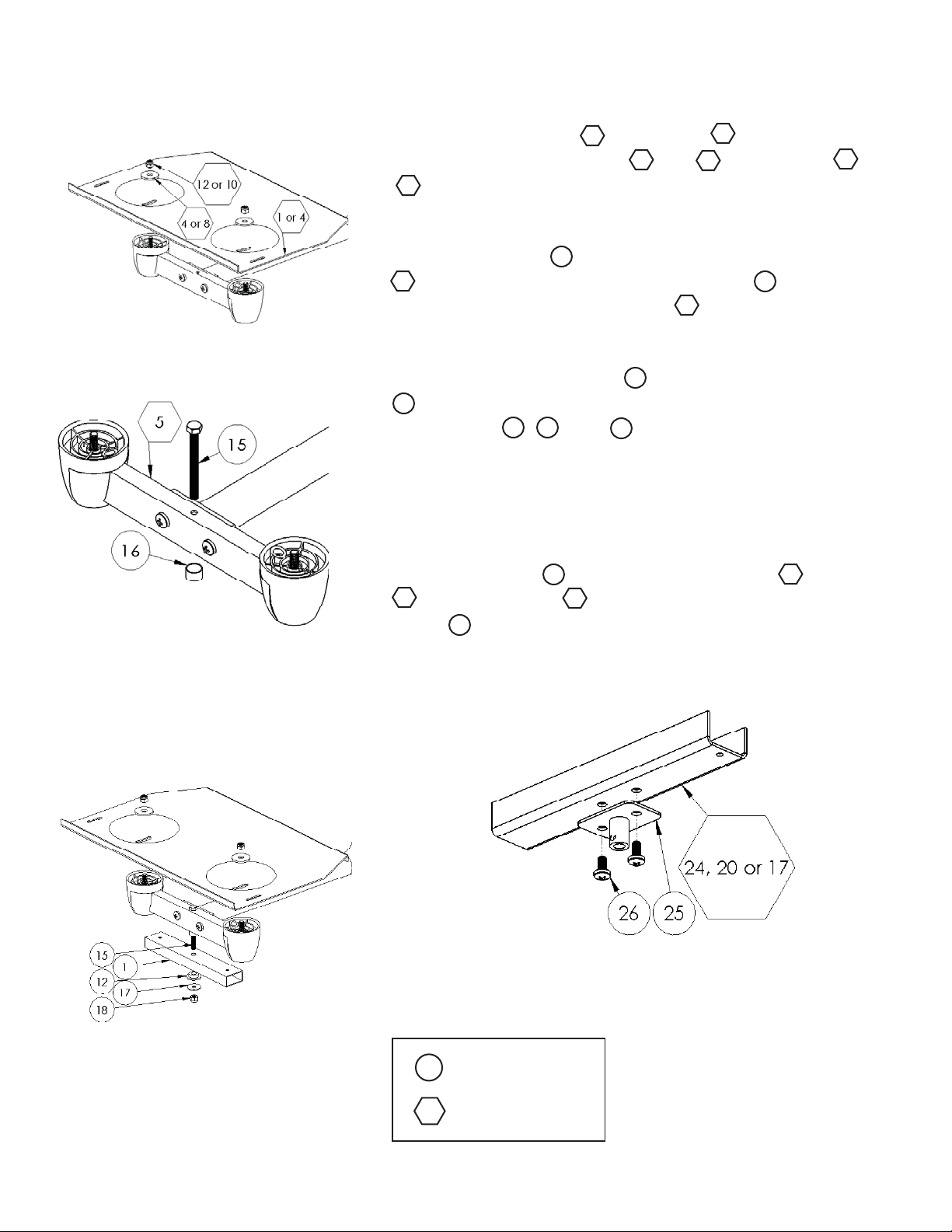

VH-001 to W20, W27, C20, or C27
Step 6
First remove the platform W20 & W27 or C20 & C27 by remov-
ing the washers and nylon nuts and W20 & W27 or and
C20 & C27 from the indentations in the platform.
Step 7
Insert the M6 screw VH-001 through the top of the force arm
W20, W27, C20 & C27 and place the spacer VH-001 around
the screw underneath the force arm for W20, W27, C20 & C27.
Step 8
Connect the VH-001 force arm VH-001 by inserting the M6 screw
VH-001 through the force arm and securing with a plug, washer,
and nylon nut , , and VH-001 and reattach the platform
by reversing step 6. Once this is completed please skip to step 14.
VH-001 to VMP014/024, VMP036/038, VMP042/044 or VMP046/048
Step 9
Attach the connector VH-001 to the lower force arm VMP014/024,
VMP036/038, and VMP042/044 and VMP046/048 using M6
screws VH-001.
VIDEO MOUNT PRODUCTS
Step 6: Removing the platform
Step 7: Inserting the connector screw
Step 8 : Attaching the VH-001
force arm
1
5
1
5
Key:
VH-001
Non VH-001
Parts
Step 9 : Attaching the connector
16
15
4
48
12
10
17
15
18
12
26
25 24
20 17
Step 11 : Removing the nylon nut
Step 12: Attaching the long nut
VIDEO MOUNT PRODUCTS
Step 10
Attach the VH-001 force arm VH-001 to the connector )
VH-001 using the 3/8” screw VH-001 and washer VH-001 in
between the connector and the force arm. Insert a brake screw
VH-001 into the connector using the M3 Allen key VH-001 to
tighten it down onto the 3/8” screw. Once this is completed please
skip to step 14.
VH-001 to VMP001, VMP003, or VMP006
Step 11
First remove the nylon nut VMP001, VMP003, and VMP006
from the bottom of the fixed bracket VMP001 and VMP003 or the 3/8”
screw VMP006.
Step 12
Replace the nylon nut with the long nut VH-001 and tighten the
brake screw VH-001 onto the fixed bracket VMP001 and
VMP003 or the 3/8” screw VMP006 using the M3 Allen Key )
VH-001.
Step 13
Attach the VH-001 force arm VH-001 by inserting a washer )
VH-001 between the nut VH-001 and force arm and then using
the 3/8” screw VH-001 attach the force arm to the nut. Once
the 3/8” screw VH-001 is securely tightened, use a brake screw
VH-001 to secure the 3/8” screw in the nut. Once this is com-
pleted please proceed to step 14.
Step 10 : Attaching the force arm
1
Key:
VH-001
Non VH-001
Parts
Step 13 : Attaching the force arm
25
24 13
23 9
12 14 11
4
9
13
1
27
24
24
23
27
23 4
99
Step 15 : Applying Velcro
Step 16 : Securing the equipment
in the VH-001 (VH-001 is shown
without being attached to a
mount for clarity)
Step 14
Now that the VH-001 force arm VH-001 is attached, it is time to
assemble the rest of the VH-001. First attach the non-skid padding
VH-001 to the adjustable stopper VH-001. Next attach the
adjustable stoppers VH-001 to the extension holder VH-001
using the butterfly nuts and ¼” – 20UNC screws and VH-001.
Step 15
Take the Velcro VH-001 and apply it to the equipment you are go-
ing to place in the VH-001 and on the extension holders VH-001.
You should apply the Velcro to the bottom left and right sides of your
equipment along the edges.
Step16
Insert the extension holders VH-001 into the force arm VH-001.
Slide the desired equipment in between the adjustable stoppers and
both extension holders and VH-001. Secure the position of
the extension holders by tightening down brake screws VH-001
into the force arm while making sure the equipment is centered in
the bracket. Lastly, slide the adjustable stoppers down onto the top
of the equipment and tighten.
Please verify that all nuts and screws are securely tightened.
Step 14: Assembling the extension
holders
1
WARNING: The installer of these products must verify that the mount-
ing surface, ceiling or wall, will safely support the combined weight
of all attached equipment and hardware. Video Mount Products will
not be held liable for the improper use or installation of its products.
Enjoy Your Mount!
45
23 3
7
2
6
8
23
1
2
