Buick Park Avenue 2005 Instructions de montage

Instrument Panel . . . . . . . . . . . . . . . . . . . . . . . . . .2

Instrument Panel Cluster . . . . . . . . . . . . . . . . . . .3

Audio Systems . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Climate Controls . . . . . . . . . . . . . . . . . . . . . . . . . .6

Power Seat Controls . . . . . . . . . . . . . . . . . . . . . . .7

Heated Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Door Locks and Child Security . . . . . . . . . . . . . .8

Rearview Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . .8

Window Controls . . . . . . . . . . . . . . . . . . . . . . . . . .9

Sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Lamp Controls . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Turn Signal/Multifunction Lever . . . . . . . . . . . . .10

Cruise Control . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Headlamps, High Beam . . . . . . . . . . . . . . . . . . .11

Trunk and Fuel Door Releases . . . . . . . . . . . . . .12

Convenience Features . . . . . . . . . . . . . . . . . . . .12

Head-Up Display (HUD) . . . . . . . . . . . . . . . . . . . .13

Ultrasonic Rear Parking Assist (URPA) . . . . . .14

Universal Transmitter (UT) . . . . . . . . . . . . . . . . .14

PASS-Key®III . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Driver Memory Seat and Mirrors . . . . . . . . . . . .15

Driver Information Center (DIC) . . . . . . . . . . . . .16

OnStar®. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

DIC Programming . . . . . . . . . . . . . . . . . . . . . . . .17

Roadside Assistance . . . . . . . . . . . . . . . . . . . . .20

My GMLink . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

Congratulations on your purchase of a Buick Park Avenue. Please read this information and your

Owner Manual to ensure an outstanding ownership experience. Note that your vehicle may not

include all the features described in this booklet. Place this booklet in your Owner Manual

portfolio for easy reference.

A. Air Outlet

B. Exterior Lamps Control

C. Turn Signal/Multifunction Lever

D. Steering Wheel Controls (if

equipped)

E. Hazard Warning Flashers Button

F. Instrument Panel Cluster

G.Shift Lever

H. Audio System

I. Air Outlet

J. Fuel Door Release Button

K. Trunk Release and Lockout Button

L. Hood Release

M.Ignition Switch

N. Traction Control Button

(if equipped)

O.Heated Seat Controls (if equipped)

P. Ashtray and Cigarette Lighter

Q.Climate Control System

R. Glove Box

S. Passenger Climate Control

(option)

Getting to Know Your Park Avenue

Instrument Panel

See Section 3 of your Owner Manual.

12345678910 11

16 17 18 19 20

Instrument Panel Cluster

Your vehicle’s instrument panel is

equipped with this cluster or one very

similar to it. The instrument panel

cluster includes these key features:

1. Tachometer

2. Turn Signal Indicator Light

3. High Beam Indicator Light

4. Speedometer

5. MPH or km/h Indicator Light

6. Safety Belt Reminder Light

7. Fuel Gauge

8. Traction Control System Off

Warning Light

9. Service Vehicle Soon Light

10. Antilock Brake System Warning

Light

11. Brake System Warning/

Parking Brake On Light

12. Security Light

13. PRNDL321 Indicator

14. Driver Information Center (DIC)

15. Oil Pressure Light

16. Battery Warning Light

17. Service Engine Soon Light

18. Cruise Control On Light

19. Engine Coolant Temperature

Gauge

20. Air Bag Readiness Light

IMPORTANT: The instrument panel

cluster is designed to let you know

about many important aspects of

your vehicle’s operation. It is impor-

tant to read your Owner Manual and

become familiar with the information

being relayed to you by the lights,

gauges and indicators, as well as

what action can be taken to ensure

safety and to prevent damage.

Getting to Know Your Park Avenue

Audio Systems TONE: Press this button to select pre-

programmed bass and treble equaliza-

tion settings for classical, pop, rock,

jazz, talk, and country & western stations.

BASS: Press and turn this knob to

increase or decrease the bass.

TREB: Press and turn this knob to

increase or decrease the treble.

FADE: Press and turn this knob to

adjust the sound to the front or rear

speakers.

BAL: Press and turn this knob to adjust

the sound to the left or right speakers.

Numbered Buttons

The six numbered buttons let you set up

to six AM and 12 FM stations (six FM1

stations and six FM2 stations).

To preset a radio station:

• Turn the radio on. Select the band.

• Tune in the desired station.

• Press and hold one of the six num-

bered buttons. The sound will mute.

When it returns, release the button.

The station is now preset.

See Section 3 of your Owner Manual.

AM-FM Stereo with Cassette Tape

Player and Automatic Tone Control

Radio Controls

VOLUME: Press this knob to turn the

radio on or off. Turn the VOLUME knob

to the left to decrease or to the right to

increase the volume.

AM-FM: Press this button to select AM,

FM1 or FM2.

TUNE: Press this button’s up or down

arrow to choose radio stations.

SEEK: Press this button’s up or down

arrow to go to the next higher or lower

station. Press the SEEK button for two

seconds. SCAN will appear in the dis-

play. Use SCAN to listen to stations for

a few seconds.

P SCAN: Press this button to listen to

each of your preset stations for a few

seconds. Press the P SCAN button

again to stop scanning.

AUTO SET: Press this button to seek

and set the 12 strongest FM or six

strongest AM stations. When AUTO SET

stops flashing, the function is complete.

Press AUTO SET again to return to your

manually set stations.

Cassette Tape Player Controls

With the radio on, insert the tape into

the slot. The tape will begin to play.

SIDE: Press this button to change the

side of the tape.

>> Press this button to quickly advance

to another part of the tape. Press the

button again to resume playing the tape.

<< Press this button to reverse the tape

rapidly. Press the button again to stop

the tape.

NEXT: Press this button to search for

the next selection on the tape.

PREV: Press this button to search for

the previous selection on the tape.

SOURCE: Press this button to change

to the radio or cassette function.

EJECT: Press this button to remove the

tape.

Setting the Clock

• Press and hold the HR button until

the correct hour appears.

• Press and hold the MIN button until

the correct minute appears.

See Section 3 of your Owner Manual.

CD Player Controls

AM-FM Stereo with Cassette Tape

Player and CD Player with Automatic

Tone Control (Optional)

With the radio on, insert the CD partway

into the slot with the label side up. The

player will pull the CD in and begin to

play.

RECALL: Press this button to see which

track is playing. Press it again within five

seconds to see how long the track has

been playing. To change the display

(track or elapsed time), press RECALL

to select the display you want and hold

the button until the display flashes.

RAND: Press this button to hear tracks

in random order. Press the button again

to stop.

>> Press and hold this button to

advance quickly within a track.

<< Press and hold this button to reverse

quickly within a track.

NEXT: Press this button to go to the

next track.

PREV: Press this button to go to the

start of the current track. Press the but-

ton again to go to the previous track.

AM-FM: Press this button to play the

radio when a CD is in the player.

SOURCE: Press this button to change

to the CD, radio, or cassette function.

EJECT: Press this button to remove the

disc.

See Section 3 of your Owner Manual.

Getting to Know Your Park Avenue

REAR: Press this button to defog the

rear window. At speeds above 03 mph

(48 km/h), the defogger will stay on until

you press the button again. At speeds

below 30 mph (48 km/h), the defogger

will turn off automatically.

RECIRC: Pressing this button limits

the amount of outside air entering the

vehicle.

OFF: Press this button once to turn off

the passenger comfort control system.

Press the button twice to turn off the

main system.

Personal Choice Comfort Controls

(optional)

This feature allows two different

drivers to recall their own climate control

settings.

The settings that are recalled are the

last choices of the driver prior to exiting

the vehicle, and are recalled by pressing

the key fob/transmitter UNLOCK button

or by pressing one of the memory

buttons on the driver’s door panel.

(See p. 15 for more information).

Passenger Climate Control

Slide the lever to WARM to increase,

or COOL to decrease, the interior air

temperature on the passenger side. You

can adjust the temperature up to 5˚F

cooler or warmer than the primary

setting.

See Section 3 of your Owner Manual.

Climate Controls

Dual Automatic ComforTemp

Climate Control

AUTO: Press this button to make the

system automatically adjust to changes

in temperature inside the vehicle.

TEMP: Press this button’s up or down

arrow to increase or decrease interior

temperature.

FAN: Press this button’s up or down

arrow to increase or decrease blower

fan speed.

AIR FLOW: Press this button’s up or

down arrow to select airflow direction to

the FLOOR, MID-FLOOR, MID and

WINDSHIELD-FLOOR.

DISPLAY: The display shows the

outside temperature, your interior

temperature setting, current airflow

direction settings and fan speed.

VENT: Pressing this button allows out-

side air to flow through the vehicle.

Pressing the button again turns the vent

off.

FRONT: Press this button to defrost the

windshield.

Power Seat Controls Heated Seats (optional)

Adjust Seat Height and Cushion

Position

Push the horizontal control (“A” above)

forward or rearward to move the entire

seat forward or rearward. Move the

entire horizontal control up or down to

move the entire seat up or down. Move

the front of the horizontal control up or

down to adjust the front portion of the

seat cushion up or down. Move the rear

of the horizontal control up or down to

adjust the rear portion of the seat cush-

ion up or down.

Reclining Front Seatbacks

Move the vertical control (“B” above)

forward or rearward to move the

seatback forward or rearward.

4-Way Power Lumbar Control

(optional)

Press the round control knob

(“C” above) forward or rearward to

increase or decrease support. Press the

control up or down to move the lumbar

support up or down.

See Section 1 of your Owner Manual.

The heated seat controls are located

on the instrument panel next to the

climate controls.

Press the button to turn the heated

seat to the HIGH setting. The button

will illuminate. Press it again to select

the LO setting.

Pressing the button again turns the

heated seat off.

See Section 1 of your Owner Manual.

ABC

Getting to Know Your Park Avenue

Door Locks and Child Security

Power Door Locks

Press UNLOCK or LOCK on the door

switch to unlock or lock all the doors.

Rear Door Child Security Locks

To prevent opening a rear door from

the inside:

1. Open one of the rear doors. Move

the lever on the door side to the

ENGAGED position.

2. Close the door.

3. Repeat for the other door.

To open a rear door when the child

security lock is on:

Unlock the door from the inside and

open the door from the outside.

To cancel the security feature:

1. Open the door from the outside and

move the lever all the way down.

2. Repeat for the other door.

Child Restraints

Your vehicle has top strap anchors

installed behind the rear seatback to

secure child safety seats.

See Section 2 of your Owner Manual.

Rearview Mirrors

Outside Mirrors

Your vehicle’s power mirror controls are

located on the driver’s door armrest. To

operate the left or right mirror, press L or

R on the selector switch located below

the control pad. If the switch is placed in

the center position, no mirror movement

will occur. To adjust the mirror position,

use the arrows located on the control

pad.

Inside Mirror

Electrochromic Day/Night Rearview

Mirror with Compass (optional)

• Press to turn the automatic

dimming feature and compass on/off.

•The green light will illuminate when

the automatic dimming feature is on.

See Section 2 of your Owner Manual.

Window Controls

Express-Down Window

Press the AUTO switch rearward and

release to express open the window.

Press the switch again to stop a window

in express.

Window Lock

Press the WINDOW LOCK switch to dis-

able the passenger window switches.

The switch will illuminate to indicate the

lock is active. Press the switch again to

enable the passenger window switches.

See Section 2 of your Owner Manual.

Note: Window Lockout is a programma-

ble feature. See the DIC Programming

section in this booklet for more

information.

Sunroof (optional)

The ignition must be in the ON position

or the Retained Accessory Power (RAP)

must be active to operate the sunroof.

Opening the Sunroof

The sunroof switch is located on the

headliner between the sun visors. Press

the switch rearward and release to

express open the glass panel and sun-

shade. The sunroof will open automati-

cally to the full-open position.

Press the switch again at the desired

point to stop the panel in a partially open

position.

Closing the Sunroof

Press and hold the switch forward to

close the glass panel. The sunshade

must be manually closed.

Vent

Once the sunroof is closed, it can be

opened to a vent position. The vent

position raises the rear portion of the

sunroof. (The sunshade must be

opened and closed manually for vent

operation.)

• Push the switch upward to vent.

•Pull the switch downward to close.

See Section 2 of your Owner Manual.

Getting to Know Your Park Avenue

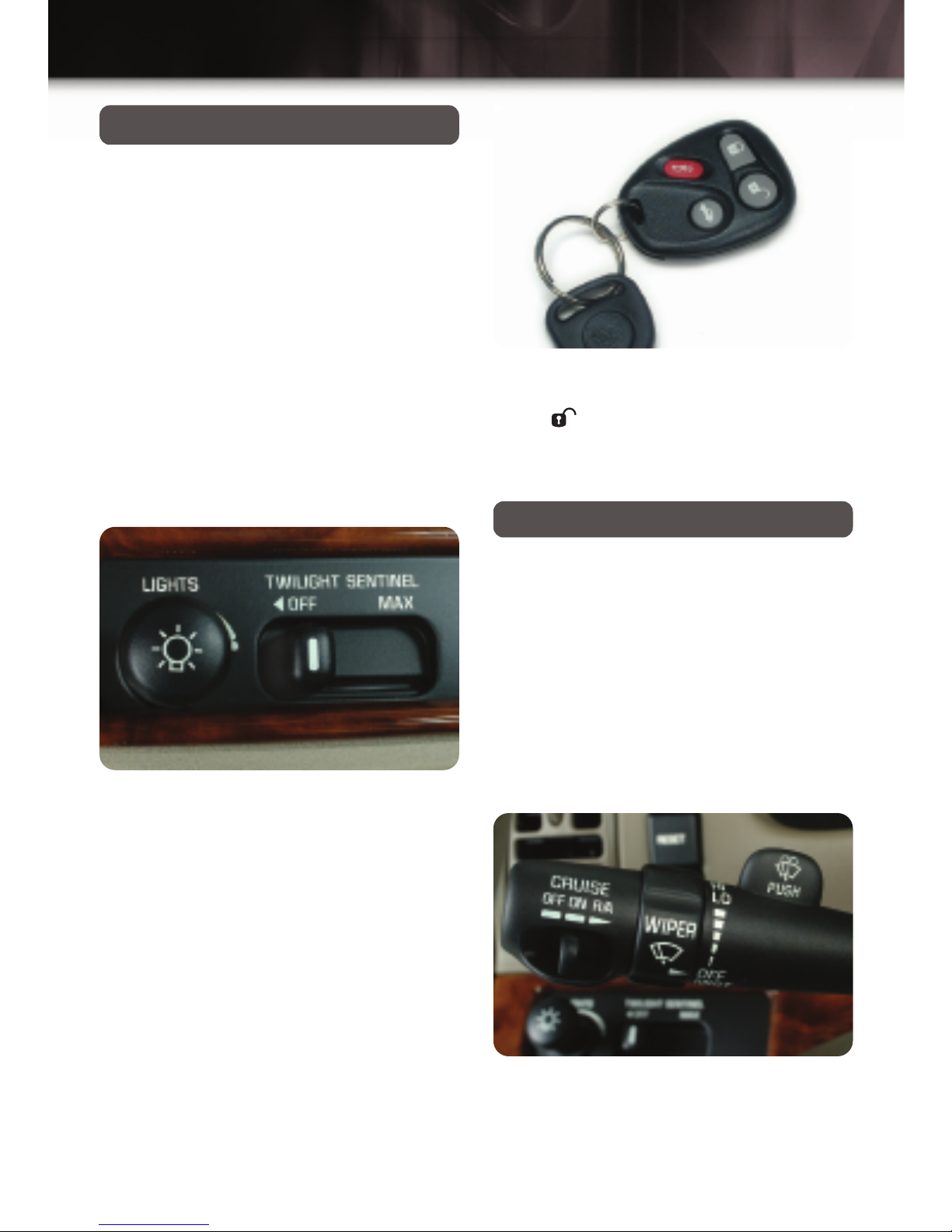

Lamp Controls

Interior Lamps

See Section 3 of your Owner Manual for

interior lamp operating instructions.

Daytime Running Lamps

The Daytime Running Lamps will come

on when the ignition is ON, the head-

lamp switch is OFF, and the transaxle is

not in Park (P).

Twilight Sentinel

This feature automatically switches the

headlamps on and off by sensing how

dark it is outside. You should not have to

manually turn the headlamps on or off.

To use Twilight Sentinel, slide the

control from OFF to MAX to adjust the

headlamps’ ON time from a few seconds

to 3 minutes, after the ignition has been

turned OFF.

Perimeter Lighting

Notice: Driver #1 and Driver #2 key

fob settings are unique. Refer to DIC

Programming on p.17.

The headlamps, parking lamps and

backup lamps will illuminate when you

press on the keyfob transmitter.

See Section 3 of your Owner Manual.

Turn Signal/Multifunction Lever

Windshield Wiper Controls

MIST

Turn the WIPER band toward you and

release it for a single wipe cycle. For

more cycles, hold the band on MIST

longer.

WASH

Push the washer PUSH tab to spray

washer solvent on the windshield.

Table des matières

Autres manuels Buick Automobile

Buick

Buick 2005 Century Manuel utilisateur

Buick

Buick 2002 Century Manuel utilisateur

Buick

Buick CASCADA 2018 Instructions de montage

Buick

Buick 2014 Regal Infotainment System Manuel utilisateur

Buick

Buick LESABRE 1997 Manuel utilisateur

Buick

Buick 2000 Park Avenue Manuel utilisateur

Buick

Buick 2010 Enclave Manuel de la liste des pièces

Buick

Buick 2011 Lucerne Manuel utilisateur

Buick

Buick 2008 Lucerne Manuel utilisateur

Buick

Buick ENCORE 2018 Manuel utilisateur

Buick

Buick 2014 Encore Car Manuel utilisateur

Buick

Buick 2001 Park Avenue Manuel utilisateur

Buick

Buick 2012 LaCrosse Manuel utilisateur

Buick

Buick 2003 Rendezvous Manuel utilisateur

Buick

Buick Regal 2016 Instructions de montage

Buick

Buick 2002 LeSabre Manuel utilisateur

Buick

Buick VERANO 2014 Manuel utilisateur

Buick

Buick 2016 Enclave Instructions de montage

Buick

Buick 2005 Terraza Manuel utilisateur

Buick

Buick 2004 Rendezvous Manuel utilisateur

Buick

Buick 1997 Riviera Manuel utilisateur

Buick

Buick 1995 Century Manuel utilisateur

Buick

Buick 2010 Lucerne Manuel utilisateur

Buick

Buick 2016 Verano Manuel utilisateur

Manuels Automobile populaires d'autres marques

Toyota

Toyota 2000 Tundra Manuel utilisateur

CITROËN

CITROËN DS4 DSign Manuel utilisateur

Lexus

Lexus 2015 CT 200h Manuel utilisateur

Cadillac

Cadillac CTS 2008 Manuel utilisateur

Mercedes-Benz

Mercedes-Benz M-class ML 55 AMG Manuel utilisateur

Porsche

Porsche Boxster S Manuel utilisateur

GMC

GMC 2010 Savana 1500 Cargo Manuel utilisateur

KIAM

KIAM SPORTAGE 2014 Manuel de la liste des pièces

GMC

GMC 2013 Terrain Instructions de montage

GMC

GMC T-Series 1999 Manuel utilisateur

Mercury

Mercury 1998 Mystique Manuel utilisateur

Mercury

Mercury 2007 Mariner Manuel utilisateur

Mazda

Mazda 2007 Mazdaspeed 3 Mode d’emploi

Mazda

Mazda 2014 CX-5 Manuel utilisateur

GMC

GMC Chevrolet Express 2022 Manuel utilisateur

GMC

GMC 1997 Jimmy Manuel utilisateur

Chevrolet

Chevrolet 2012 Malibu Manuel utilisateur

Cadillac

Cadillac 2010 Escalade Manuel utilisateur
