PARTS REFERENCE LIST

MODEL: PT-9400 (For Europe)

NOTES FOR USING THIS PARTS REFERENCE LIST

1. In the case of ordering parts, it needs mentioning the following items:

(1) Code

(2) Q'ty

(3) Description

(4) Symbol (PCB No., Revision , and Parts location mounted on the PCB.)

Note : No orders without Parts Code or Tool No. can be accepted.

[ Example ]

(4) (1) (2) (3)

REF. NO. SYMBOL CODE Q’TY DESCRIPTION REMARKS

Revision No. : marked on the printed circuit board.

B48J300 - 101 A

Design change indication

Specification No.

Pattern alteration No.

Circuit board No.

2. Design-changed parts:

When the parts are changed, any one of the following symbols is indicated in the REMARKS column.

CHNG#A : compatible between old and new

CHNG#B : replaceable from old to new

CHNG#D : incompatible

ADD : newly established

3. The original of this list was made based on the information available in Nov., '98.

4. Parts are subject to change in design without prior notice.

CONTENTS

1.PRINT MECHANISM....................................................................1

2.COVERS......................................................................................3

3.KEYBOARD.................................................................................5

4.DETECTORS...............................................................................5

5.MAIN PCB ASSEMBLY................................................................7

6.POWER SUPPLY PCB................................................................9

7.INTERFACE PCB........................................................................9

8.LCD PCB....................................................................................11

9.ATTACHMENTS..........................................................................11

10.PRINTED MATTER......................................................................13

11.PACKING MATERIALS................................................................13

-1-

MODEL PT-9400 5V2-701-045

1 . PRINT MECHANISM PT99033

-2-

1 . PRINT MECHANISM PT2000026

REF.NO. CODE Q'TY DESCRIPTION REMARKS

LA2073001

FRAME PRO ASSY

Z26596001

TAPE FEED MOTOR, BP242516M12-PP (OLD : Refer to the T/I #. PT2000020)

Z26599001

TAPE FEED MOTOR, BP242516M12-PP (NEW : From APR. 2000. Refer to the T/I #.

PT2000020)

UB3848001

SCREW, PAN M2.6X3.5

LA0014001

ROLLER HOLDER ASSY (SP) (OLD : Refer to the T/I #. PT2000020)

LA2031001

ROLLER HOLDER ASSY (SP) (NEW : From APR. 2000. Refer to the T/I #. PT2000020)

UT0895001

ROLLER HOLDER SHAFT

048025346

RETAINING RING, E2.5

UT0591001

HEAD ASSY KSH384 BW (SP) (OLD : Refer to the T/I #. PT2000020)

LA2071001

HEAD ASSY KSH384 BW (SP) (NEW : From APR. 2000. Refer to the T/I #. PT2000020)

UT0901001

ROLLER HOLDER RELEASE SPRING

UT0239000

RELEASE LEVER

UT0240000

RELEASE ROD

UB5507000

RELEASE ROD ROLLER

048025346

RETAINING RING, E2.5

UT1549001

RELEASE LEVER SPRING PRO

0A4301005

SCREW, PAN (S/P WASHER) M3X10

UT0254000

CUTTER DOUBLE GEAR

UT1434001

CUTTER MOVING GEAR PRO

UB3733001

WASHER 2.6

UT1436001

FEEDING FORK SUB ASSY

048020346

RETAINING RING, E2

UT0256001

SPRING

UT1439001

ACTUATOR

UT1440001

HALF CUTTER FRAME PRO ASSY

060300516

SCREW, BIND M3X5

LA4064001

CUTTER ASSY (SP) CHNG#A

UT1449001

HALF CUTTER PRO ASSY

UT0932001

HALF SPACER

0A4401205

SCREW, PAN (S/P WASHER) M4X12

UT1452001

EJECT UNIT PRO ASSY

UT1461001

EJECT CONNECTING ROD

UT1462001

EJECT FIXED ROLLER

UT1463001

EJECT FIXED ROLLER HOLDER

060300516

SCREW, BIND M3X5

UT0961001

FULL CUTTER SENSOR ASSY

UT0855001

SCREW, PAN M1.7X6

UT1466001

FULL CUTTER SENSOR PRO ASSY

UT0855001

SCREW, PAN M1.7X6

UT1468001

HALF CUTTER MOTOR PRO ASSY

UB3848001

SCREW, PAN M2.6X3.5

UT1470001

FULL CUTTER MOTOR PRO ASSY

UB3848001

SCREW, PAN M2.6X3.5

UT1472001

SENSOR HOLDER PRO

060300516

SCREW, BIND M3X5

U62189000

PLATEN PROTECT PAD

048020346

RETAINING RING, E2

MODEL PT-9400 EUROPE 5V2-701-045

-3-

MODEL PT-9400 5V2-701-061

2 . COVERS PT99002

-4-

2 . COVERS PT2000049

REF.NO. SYMBOL CODE Q'TY DESCRIPTION REMARKS

1UT1473001 1BODY COVER PRO UK, GRAY1395

2UT1475001 1BOTTOM COVER PRO UK ASSY

3UT1477001 1CASSETTE COVER PRO UK

4UT1478001 1CASSETTE PRESSER PRO, GRAY1395

5UT1479001 1CASSETTE PRESSER SPRING

6UT1481001 1LCD PANEL PRO UK (GBR/IRL/NLD/CHE/DNK/SWE/BEL/FIN/NOR/ZAF/ESP) CHNG

6UT1482001 1LCD PANEL PRO GE (DEU)

6UT1483001 1LCD PANEL PRO FR (FRA)

7UT1226001 1LIGHT PLATE ASSY

8UT1484001 1LCD HOLDER

9085270815 4TAPTITE, BIND B M2.6X8

10 UT1485001 1LOCK ARM

11 UT1486001 1LOCK ARM RETURN SPRING

12 085270815 1TAPTITE, BIND B M2.6X8

13 UT1487001 1ARM GUIDE

14 UT1504001 1RELEASE BUTTON US, GRAY1395

15 UT1489001 1RELEASE BUTTON RETURN SPRING

16 UT1505001 1ON/OFF KEY US, ORANGE3159

17 085270815 2TAPTITE, BIND B M2.6X8

18 UT1506001 1PRINT KEY US, BLUE6189

(GBR/IRL/NLD/CHE/DNK/SWE/BEL/FIN/NOR/ZAF/ESP) CHNG

18 UT1490001 1PRINT KEY GE, BLUE6189 (DEU)

18 UT1491001 1PRINT KEY FR, BLUE6189 (FRA)

19 085270815 2TAPTITE, BIND B M2.6X8

20 UT1492001 1COVER FRAME

21 U05404003 2TAPTITE, BIND B M3X8

22 060300516 4SCREW, BIND M3X5

23 UT1493001 1POWER SUPPLY COVER

24 UT1494001 1SHIELD PLATE D

25 U05404003 2TAPTITE, BIND B M3X8

26 U05404003 4TAPTITE, BIND B M3X8

27 084311016 2SCREW, FLAT B M3X10

28 0A5400805 1SCREW, PAN (S/P WASHER) M4X8

29 0A5400805 1SCREW, PAN (S/P WASHER) M4X8

30 U05404003 4TAPTITE, BIND B M3X8

31 U05404003 8TAPTITE, BIND B M3X8

32 U05404003 2TAPTITE, BIND B M3X8

33 UT1495001 1SHEET A

34 UT0267001 1LETTERING STICK TZ36

35 UB4431001 2LOWER FOOT

36 A UT0578001 1TAPE CAUTION LABEL PP EC

37 UT0850000 1WIRE SADDLE WS-1NS

38 UN4594000 1GROUND PLATE 350

39 060300516 1SCREW, BIND M3X5

40 085270815 2TAPTITE, BIND B M2.6X8

41 LJ4421001 1MARKING LABEL N/S

42 UT0544001 1SHIELD SHEET

MODEL PT-9400 EU 5V2-701-061

-5-

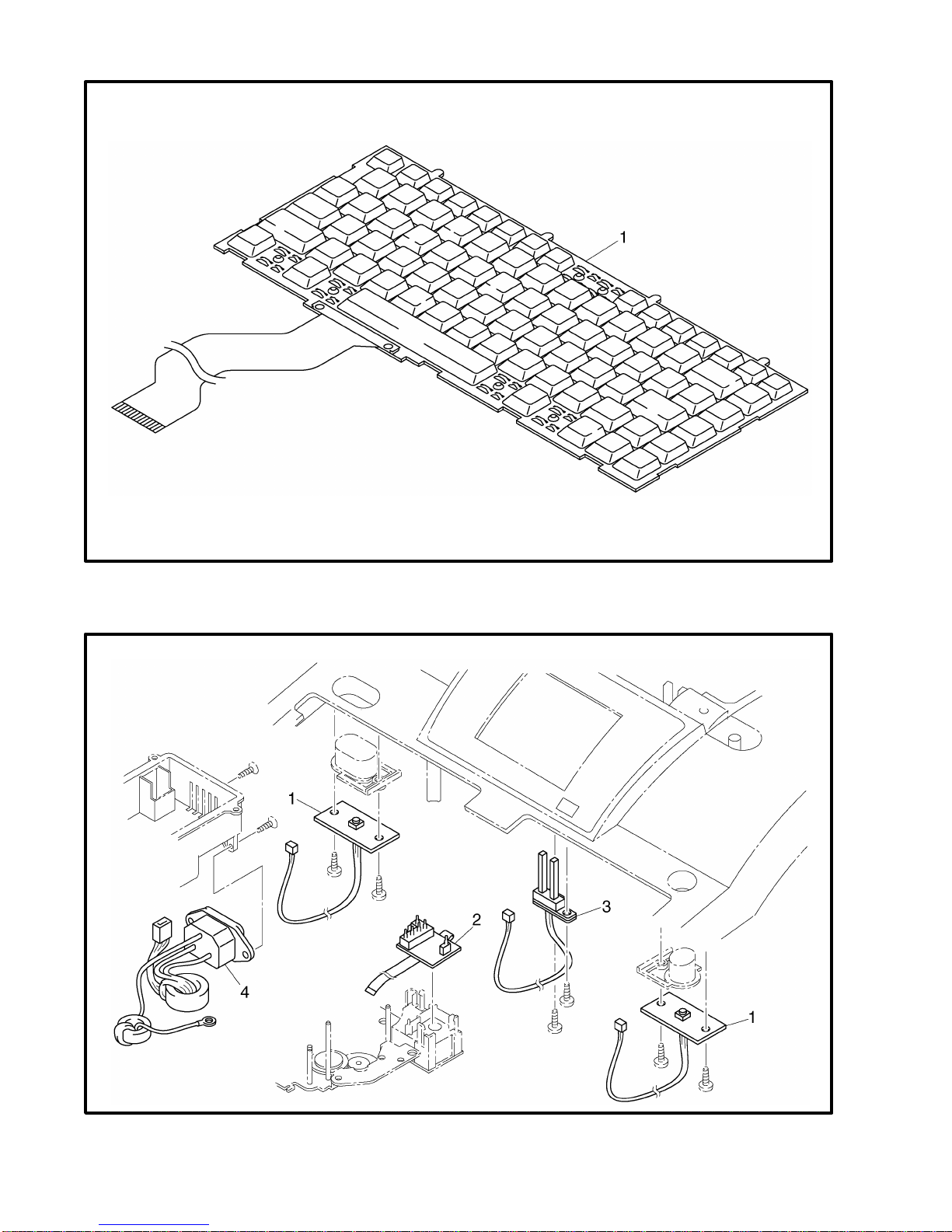

MODEL PT-9400 5V2-701-100

3 . KEYBOARD

MODEL PT-9400 5V2-701-003

4 . DETECTORS

-6-

3 . KEYBOARD

REF.NO. CODE Q'TY DESCRIPTION REMARKS

1UT1508001 1KB UNIT UK (GBR/IRL/NLD/CHE/DEK/SWE/FIN/NOR/ZAF)

1UT1509001 1KB UNIT GE (DEU)

1UT1510001 1KB UNIT FR (FRA)

1UT1511001 1KB UNIT BG (BEL)

MODEL PT-9400 5V2-701-003

4 . DETECTORS

REF.NO. SYMBOL CODE Q'TY DESCRIPTION REMARKS

1B55L038-1 UT1513001 2SW PCB ASSY PRO

2B55L026-1 UT0545001 1SENSOR PCB ASSY PROPC (SP)

3B55L028-1 UT0546001 1TAPE END SENSOR ASSY (SP)

4UT0830001 1INLET ASSY PP

MODEL PT-9400 5V2-701-100

-7-

MODEL PT-9400 5V2-701-101

5 . MAIN PCB ASSEMBLY PT2000020
