Brother P-touch PT-E110 Manuel utilisateur

ELECTRONIC LABELING SYSTEM

English

User’s Guide

E110

www.calcert.com [email protected]1.888.610.7664 0

ELECTRONIC LABELING SYSTEM

GETTING STARTED

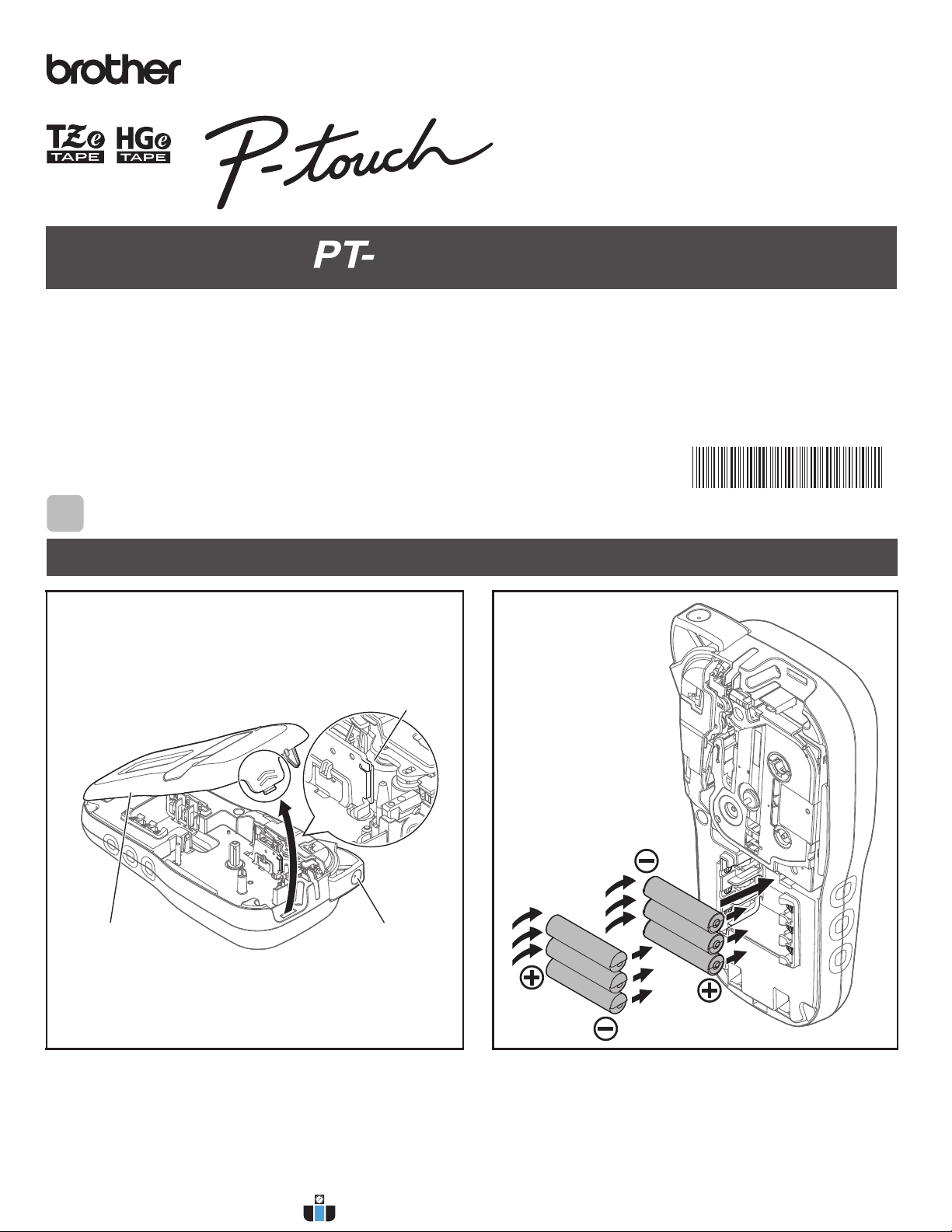

Installing Power Supply and Tape Cassette

With the LCD facing down, open the Cassette

Cover by pressing the grooved tab and

pushing in the direction of the arrow, as

illustrated.

When replacing batteries or tape cassettes,

make sure the power is turned off.

This P-touch labeling system requires six (6)

AAA alkaline batteries or six (6) fully-charged

Ni-MH batteries, not included.

Print Head

Tape Cutter LeverCassette Cover

Printed in China

D00PN3001

English

Thank you for purchasing a Brother P-touch labeling system!

Use your new Brother P-touch labeling system to create a wide variety of custom, self-adhesive labels.

This P-touch labeling system uses Brother TZe or HGe tapes. TZe and HGe tape cassettes are available in many color and sizes. For

acomplete list of tapes compatible with your P-touch labeling system

Please read this guide, and the included Product Safety Guide, before using this P-touch labeling system. After reading this guide, keep

it in a safe place.

User’s Guide

E110

www.calcert.com [email protected]1.888.610.7664 0

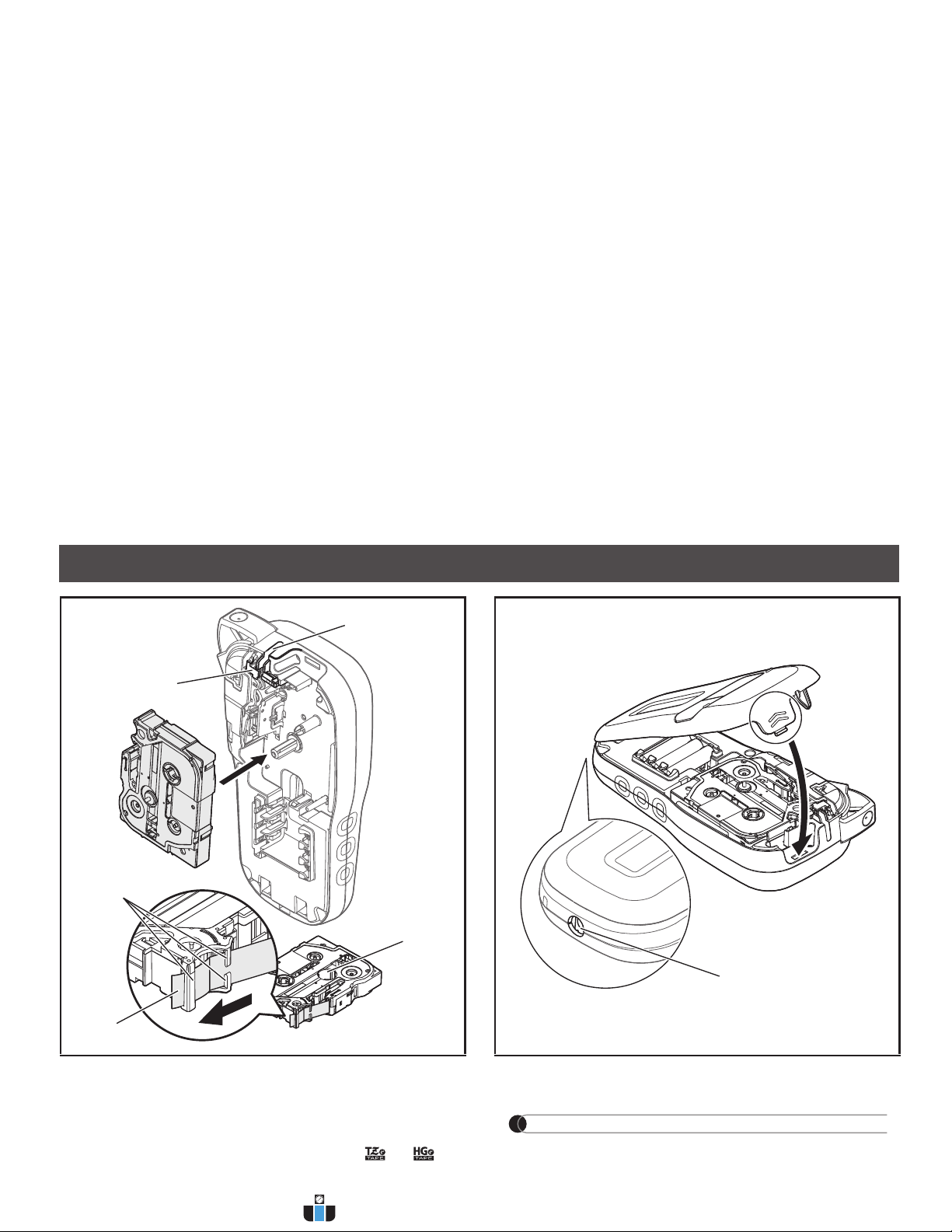

Insert the Tape Cassette following the

drawing marked inside the case. Gently

press the Cassette into the P-touch labeling

system until it clicks into place.

• Make sure your Tape Cassette is marked or .

• Use only Brother TZe or HGe tapes with this

machine.

Close the Cassette Cover and gently press

until it clicks into place.

NOTE

If you prefer to use the optional AC Adapter

(AD24) instead of using batteries:

1. Insert the Power Adapter cord into the AC

Adapter Jack on the side of the P-touch

labeling system.

2. Insert the Power Adapter into a grounded

AC electrical outlet.

Tape Exit Slot

Toothed Wheel

Cutter Edge

End of Tape

Tape Guides

AC Adapter Jack

www.calcert.com [email protected]1.888.610.7664 0

NOTE

• The LCD displays one row of 15 characters; however, the text you enter can be up to 80 characters in

length.

LCD

1. Size

2. Cursor

3. Shift

4. Caps

5. Cable Wrap

6. Cable Flag

7. Faceplate

8. Label Length

If a specific label length has

been selected, also appears.

• Label length displayed on LCD may differ slightly from the actual label length when printed.

www.calcert.com [email protected]1.888.610.7664 0

NOTE

• When selecting settings or lengths, press the Space key to return to the default value.

Keyboard

1. Menu key

2. Power key

Cursor key : Left (Use with Shift

key to go to top of the text.)

4. Escape key

5. OK key

6. Cable Wrap key

7. Text key

8. Character keys

9. Shift key

10. Caps key

11. Accent key

12. Tape Cutter lever

13. Clear key

14. Print key

15. Preview key

16.

Cursor key : Right (Use with

Shift key to go to end of the text.)

17. Cable Flag key

18. Faceplate key

19. Serialize key

20. Backspace key

21. Enter key

22. Symbols key

23. Space key

• Pressing the Preview key displays a generated image of the label, and may differ from the actual label

when printed.

www.calcert.com [email protected]1.888.610.7664 0

1Turn on your P-touch labeling system.

Supply power using six AAA batteries or the optional AC Adapter (AD24), and then press to turn

on the power.

2Set the language.

The default setting is [English].

3Set the unit of measurement.

The default setting is [inch].

NOTE

• The P-touch labeling system automatically turns off if it is inactive for five minutes.

• To cancel any operation, press .

• To return to the default setting, press the Space key.

Use this function to set LCD brightness. There are five levels from [-2] (darkest) to [+2] (brightest). The

default setting is [0].

NOTE

• To return to the default setting, press the Space key.

Initial Settings

/[Language] /[English/Español/Français/Hrvatski/

Italiano/Magyar/Melayu/Nederlands/Norsk/Polski/Português/Portug. (BR)/Românã/

Slovenski/Slovenský/Suomi/Svenska/Türkçe/ýeština/Dansk/Deutsch] .

/[Unit] /[inch/mm] .

Contrast

/[LCD contrast]/[-2 / -1 / 0/ +1 / +2]

www.calcert.com [email protected]1.888.610.7664 0

If the cutter blade becomes blunt after repetitive use

and the tape cannot be cut cleanly, turn the cutter

board as shown in the illustration 1.

If you still have difficulties, replace with new cutter

unit (stock no. TC-4) from an authorized Brother

reseller.

XReplacing the Cutter Unit

1. Remove the two sections of the Cutter Unit

(green) in the direction of the arrows as

illustrated below 2.

2. Install a new Cutter Unit. Push it in gently until

it snaps into place.

Supplies and Accessories

Cassettes: See the included Supplies and

Accessories Guide.

AC Adapter: AD24

Cutter Unit: TC-4 (replacement)

WARNING

Do not touch the cutter blade directly with your

fingers.

Specifications

Dimensions:

(W x D x H)

4.3" X 8.0" X 2.2"

(Approx. 109(W) X 202(D) X 55(H)mm)

Weight: Approx. 0.9 lb. (Approx. 400 g)

(without batteries and tape cassette)

Power supply: Six AAA alkaline batteries (LR03)

Six AAA Ni-MH batteries (HR03)*1

Optional AC Adapter (AD24)

Tape cassette: Brother P-touch TZe tape widths:

0.13" (3.5mm), 0.23" (6mm),

0.35" (9mm), 0.47" (12mm)

Brother HGe tape widths:

0.23" (6mm), 0.35" (9mm),

0.47" (12mm)

Cutter Board

www.calcert.com [email protected]1.888.610.7664 0

BASIC USAGE

You can enter a maximum of 80 characters and

spaces for a text label.

To cancel any operation, press .

XSwitching Upper Case / Lower Case

XCreating Two-Line Tapes

Move the cursor to where you want to start the

next line and press . Use either 0.35" (9mm)

or 0.47" (12mm) tape for two-line printing.

NOTE

• The return symbol ( ) appears when you press

the Enter key .

XEntering Tabs

• The tab symbol appears when you insert a

tab in the text.

XChanging Tab Length

• To return to the default tab length, press the Space

key.

• Please note: the default length varies based on

your tape size.

XCursor Keys

To move to the end of your text:

To move to the beginning of your text:

XEntering Accented Characters

• Refer to the Accented Characters table in this

guide.

• The order of accented characters varies based

on the language you selected.

Entering Text

Upper case

( ON)

Lower case

( OFF)

Line 1 The image

Line 2

Caps

/ [Tab]

/ [Tab Length]

/ [Auto / 0.0"-4.0"

(0-100mm)]

- / /

www.calcert.com [email protected]1.888.610.7664 0

XChanging Label Length

NOTE

• The lock symbol appears when you set a

specific tape length.

• To return to the default length (Automatic,

based on text length), press the Space key.

XClearing Text and Settings

To delete individual letters and spaces, press .

To delete all text :

To delete all text and settings:

You can save and reuse the text and settings for

up to nine different labels. Each tape holds up to

80 characters (including spaces). Assign a

number (1-9) to each saved file so you can reuse

it, and edit or overwrite stored files as needed.

XSaving a new file

NOTE

• When saving a file, if you reuse a number that is

already assigned to another file, [Overwrite

OK?] appears on the LCD. To overwrite the

previously-saved file, press . To cancel

without saving, press .

XPrinting a saved file

XOpening a saved file

/ [Label Length]

/ [Auto / 1.2"-12.0"

(30-300mm)]

/ [Text Only]

/ [Text&Format]

Saving Tapes Files

(Enter text) / [File]

/ [Save] /

/ [File]

/ [Print] /

/ [File]

/ [Open] /

www.calcert.com [email protected]1.888.610.7664 0

1Press to select the settings to enter

the text.

2Press / to select the settings.

Emphasize text using underlines or a frame.

XEntering Symbols

• Refer to the Symbols table in this guide.

• To cancel operation, press .

• Select History to view up to seven recently-used

symbols.

• You can also insert Symbols by pressing the

shortcut keys, as shown below.

Text Key

(Select an item)

Size Large

Medium

Small

Style Normal

Bold

Outline

Shadow

Italic

I+Bold

I+Outline

I+Shadow

Vertical

V+Bold

Width Normal

× 2

× 1/2

Underline and Frame

/ [Undl/Frame]

/ (Select a frame type)

Symbols Key

(Select category)

(Select a symbol)

Punctuation Space

key Currency

History Greek

Brackets Electrical

Bullets Datacom

Super/

Subscript AV/Security

Mathematics Safety

Arrows

www.calcert.com [email protected]1.888.610.7664 0
