Broseley Canterbury Guide de l'utilisateur

Installation, Servicing and Operation Manual

This book contains fitting, servicing and operation instructions for the

Broseley Fires Canterbury and Lincoln slim line gas stoves.

Natural Gas and Propane instructions are included in this book.

PLEASE LEAVE THESE INSTRUCTIONS WITH THE

USER

Revision: GB08a

Introduction

THANK YOU FOR PURCHASING A GAS FIRED STOVE

Broseley Fires Ltd, a family run company, was founded as an appliance and

design development company in 1975.

Since then we have built up an enviable reputation for the quality, reliability and

fuel efficiency of our stoves.

The Canterbury and Lincoln Slim Line Gas Stoves have been designed

specifically to fit onto a 12” (300mm) deep hearth and a standard fireplace

opening.

These instructions have been carefully prepared to guide the installer and end-

user through the relevant methods and standards for installation of your new Gas

Stove.

Correctly installed and operated, your stove will give you many years of warmth

and reliability. Therefore, we would suggest that you read the whole instruction

manual prior to handing it to your installer. That way you will have a clearer

picture of what is involved.

General Installation Requirements

It is required by law that the complete assembly, installation and commissioning

of gas-fired stoves is carried out by a professionally qualified and accredited gas

fitter(C.O.R.G.I. registered)

THE INSTALLATION MUST BE IN ACCORDANCE WITH THE ‘GAS SAFETY

INSTALLATION AND USE REGULATIONS’ IN CONJUNCTION WITH THESE

INSTRUCTIONS AND THE RELEVANT ‘BRITISH STANDARDS CODES OF

PRACTICE’ REQUIREMENTS AND THE RELEVANT ‘LOCAL AND NATIONAL

BUILDING REGULATIONS’.

Technical Information

Natural Gas Propane

G20/I2H G31/I3P

Heat Input (Gross) 5.5Kw 4.3Kw

Supply Pressure 20 mbar 37mbar

Gas Rate 0.66 m3/Hr 0.25 m3/Hr

Injector Size C.A.T. 16/360 C.A.T. 10/150

Stove Dimensions

Canterbury Lincoln

Height 655mm 660mm

Height to centre of Spigot 470mm 460mm

Depth(not inc. Ash Lip) 270mm 280mm

Width 595mm 590mm

Flue Spigot Diameter 125mm 125mm

Weight 66Kg 64Kg

Sitting the Appliance

The gas supply connection to the appliance is in the centre underneath the stove.

The connection requires an 8mm-diameter semi-rigid pipe, not more than 1

meter in length.

The appliance can be installed in any adequate area suitable for solid fuel fires

and stoves. It can use a class 1, class 2 and pre-cast flue.

To ensure maximum and efficient use of the stove, we recommend the following

hearth specifications.

The hearth must be at least 300mm at any angle in front of the incandescent

heat source (the burner surface) and the burner surface requires a clearance of

150mm each side. The effect of this will mean the hearth must extend about

20mm in front of the legs of the stove. The hearth must be made of non-

combustible material at least 12 millimeters thick.

On all installations, no combustible material such as carpet should cover the

hearth. To prevent this from happening, the hearth should be at least 50mm

above the level of the floor. If this is not possible, a fender/kerb of a similar height

should be placed around the edge of the hearth.

If the appliance has to be located in an opening, there must be a clearance of a

minimum of 100mm each side of the stove. The rear of the appliance should

have a minimum 25mm air gap between the stove and the back wall. There must

be a minimum clearance of 610mm from any combustible surface. i.e. skirting

board or beams.

Closure

Plate

Lintel

Void

Dimensions

A = 250mm Min.

B= 50mm Min.

C = 50mm Min.

D = 25mm Min.

Figure 1

Stove Assembly

To flue the stove into an existing fireplace Figure 1 shows the critical dimensions

required. Please check that the following components are included before you

start on the assembly:

Stove Box – Canterbury and Lincoln

1 x cast iron stove body

1 x flue spigot

Burner Box - Natural Gas – Canterbury and Lincoln

1 x burner unit

1 x stainless reflector

2 x large coal matrix

4 x small front coals

14 x small loose coals

1 x instruction booklet

4 x burner fixing and screws (2 x Self Tapping to hold to the rear of the stove)

2 x Spacers for burner (Used on Lincoln only)

3 x Self Tapping Screws for the stainless reflector

Burner Box – Propane – Canterbury and Lincoln

1 x burner unit

1 x stainless reflector

2 x large coal matrix

4 x front coals

3 x loose coals

1 x instruction booklet

4 x burner fixing screws (2 x Self Tapping to hold to the rear of the stove)

2 x Spacers for burner (Used on Lincoln only)

3 x Self tapping screws for the stainless reflector

The stove assembly is the same on both stoves Canterbury and Lincoln the only

difference being the access to the stove.

The Canterbury Stove is accessed through the main door via a threaded

handle. This handle is removed by turning anticlockwise, this allows access to

the inside of the stove. After installation please replace the handle and lock using

the grub screw located on the handle.

The Lincoln Stove is accessed through the lid of the stove via 4 bolts located on

the left and right hand sides of the stove (2 each side). Once removed the lid

should lift off and access to the stove is available. All installation can take place

through the top of the stove there is no need to remove the glass from the stove.

It is important that the lid bolts are replaced before leaving the stove with the user

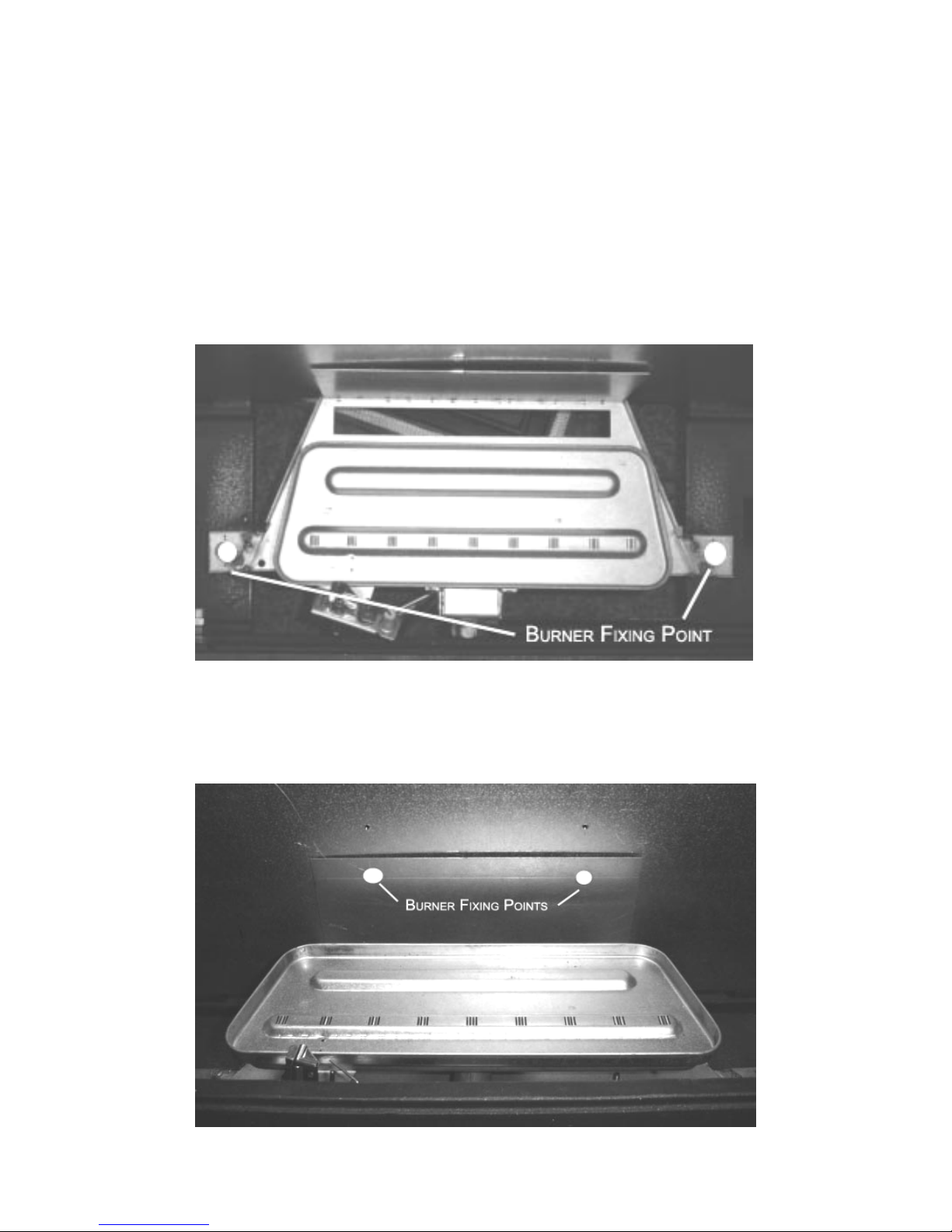

Fitting the Burner

1) Insert the burner into the stove locating the burner bracket on to the fixing

lugs provided. Insert the burner end with the control knob first followed by

the other end of the burner locating the burner bracket onto the up stands

provided.

Use the burner fixing screws to secure the burner in place.

2) Next fix the rear of the burner bracket to the rear of the stove (dilution box)

using the self tapping screws and washers provided.

Fitting the Stainless Reflector Plate

After fixing the burner in position fit the stainless reflector plate to the rear of the

stove (dilution box) using the holes and fixing screws supplied.

Remove the protective film once the plate has been fitted, this will insure no

damage to the plate incurs.

To insert the reflective plate into the stove insert the bottom of the plate first,

then give the plate a slight bend inwards on both sides (to clear the door) and

finally bring the top of the plate into place. When fitting the plate into the Lincoln

stove the plate simply drops down through the top of the stove.

Flue Connection

Firstly you will need to attach the flue spigot to the rear of the stove using the 4

screws supplied.

The stove must be installed in accordance with current gas and buildings

regulations BS5871: Part1.

Before you install the stove, make sure the chimney flue outlet is correctly

positioned to align with the flue outlet on the stove and that the chimney is in

good condition. If not, a chimney liner must be installed or a suitable class II gas

flue used. A draught is necessary to ensure the products of combustion are fully

evacuated. Due to the internal dilution/diversion system in the stove, it is not

obligatory to line the chimney but local conditions will apply. The flue will have to

be inspected by a CORGI registered installer and passed as suitable/sound.

The Gas Stove is suitable for both Class I & II and pre-cast flues (The Building

Regulations 2000).

Ideally it is recommended that a minimum height of 610mm from the stove

should be established before any significant changes of the direction of the flue.

Horizontal or negative gradients should be avoided. The flue must have a

minimum height of 3 metres to insure adequate draught.

Prior to installation, the installer should insure that the flue is free from

obstruction and any dampers must be fixed in a permanently open position.

Ensure the chimney is not closed and that it has been swept and subsequently

smoke tested.

Make sure that rain, birds or any foreign body cannot get into the chimney to

cause damage or blockage. This problem can normally be overcome by fitting an

approved gas cowl. It is essential for the effective running of your stove that the

chimney draws properly to allow the products of combustion to escape.

Ventilation (GB only)

The gas stove is rated at less than 7kw and therefore does not normally require

additional ventilation in the room (BS5871 – part II).

Gas Connection

A minimum 15mm-diameter gas supply pipe must be used to within 1 metre of

the installation with the final connection to the stove to be completed with the

suitable 8mm semi-rigid gas pipe. The 8mm pipe should be connected to the inlet

of the gas valve using the nut and 8mm olive provided. Support the control whilst

finally tightening the supply pipe.

Pressure Testing

Always make sure that there is adequate gas pressure and volume to the stove.

The relevant pressures are on the ID plate on the gas control knob.

1. For natural gas, this is 20mbar for LPG 37mbar measured at the inlet

connection to the stove with the appliance in the full rate position.

2. Ensure that the gas pressure to the stove is maintained when it is

operating at the same time as other appliances in the building and that a

suitable pressure gauge is used i.e. a manometer. Any service call as a

result of incorrect gas pressure will be chargeable.

Arranging the Layout of the Coals – Natural Gas

Only the ceramics supplied with this appliance should be used. The ceramics

should only be laid as described. Replacement ceramics are available from

your dealer.

Whilst arranging the ceramics, ensure that the pilot is not obstructed.

Broseley Fires Ltd accepts no responsibility for any injury sustained whilst

handling hot ceramics.

Before any ceramics are placed in position ensure that the burner is

operating correctly.

Ceramics which are found to be placed other than in accordance with

these instructions will result in a charge being made following any

service callout.

1. Position the two large coal matrixes on the burner as shown, and then

position the four separately packed coals in the corresponding

indentations on the front edge of the coal bed.

2. Position a coal on each of the platforms on the centre coal.

3. Place a coal on either side, resting on the coal bed and the loose coal

beside it. Next to this, bridge the gap between the front and the middle row

either side of he center. The central coal is then positioned resting on the

front coals and node on the centre coal.

4. Place the final layers of coals carefully as shown.
