Brook SOBK210EPOU Manuel utilisateur

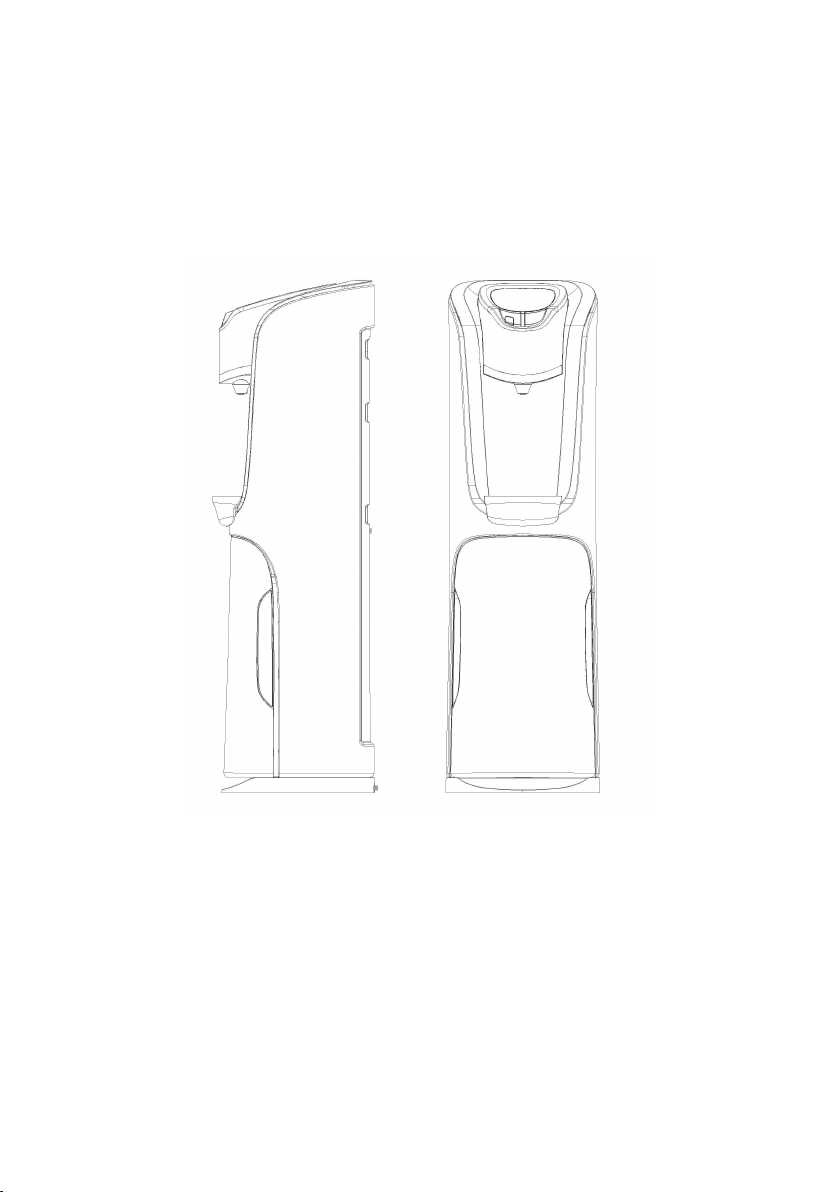

Brook POU Water Dispenser

User and Care Manual

Model No.: SOBK210EPOU

SOBK210MPOU

Please read the manual carefully before operating your water dispenser.

Retain it for future reference.

SAFETY PRECAUTIONS

To reduce risk of injury and property damage, user must read this entire

guide before assembling, installing & operating dispenser.

Failure to execute the instructions in this manual can cause personal

injury or property damage.

This product dispenses water at above 176℉. Failure to use properly

can cause personal injury.

When operating this dispenser, always exercise basic safety precautions,

including the following:

lPrior to use, this dispenser must be properly assembled and installed in

accordance with this manual.

lThis dispenser is intended for water dispensing only. Do NOT use other

liquids. Do NOT use for other purposes. Never use any other liquid in the

dispenser other than known and microbiologically safe bottled water.

lThis appliance is intended for use by adults. Direct adult supervision should

be maintained if this appliance is used by a child.

lFor indoor use only. Keep water dispenser in a dry place away from direct

sunlight. Do NOT use outdoors.

lInstall and use only on a hard, flat, and level surface that is substantial

enough to support the weight of the water cooler and the water coolers

contents.

lDo NOT place dispenser in an enclosed space or cabinet.

lDo NOT operate dispenser in the presence of explosive fumes. Do not

store flammable or explosive substances such as aerosol cans with a

flammable propellant in or near this appliance.

lUse only properly grounded outlets .Do not use an extension cord with your

water dispenser.

lAlways grasp plug and pull straight out from outlet. Never unplug by pulling

on the power cord.

lDo NOT use dispenser if cord becomes frayed or otherwise damaged.

lTo protect against electric shock, do NOT immerse cord, plug, or any other

part of dispenser in water or other liquids.

lEnsure dispenser is unplugged prior to cleaning.

lService should be performed only by a certified technician.

lNever turn the machine upside down or lean it more than 45 degree.

lThe machine should not be turned on until at least 3 minutes after turning

off the power switch

Warning: Do not strike, bend or otherwise damage the exposed refrigerant

coils on the rear of the cooler. This can cause failure of the refrigeration

system.

PARTS NAME

No.

Parts Name

No.

Parts Name

Hot water push button with

safety lock (only available for

SOST210MPOU)

Filter bracket

Cold water push button (only

available for SOST210MPOU)

Water inlet

LED display

Leak detector

Nozzle

Drain valve

Lower door

Hot switch

Drip tray

Lower door latch

OPERATION INTERFACE

lDispense hot water: touch safety lock icon until a beep is heard, then

release the safety lock icon and touch the hot water icon within 3 seconds

(model # SOBK210EPOU), or ( for model # SOBK210MPOU) unlock safety

lock, then depress hot water push button to dispense hot water.

Note: Not following hot water start up instructions, located on page 6

of this manual, will cause serious damage to this appliance.

lDispense cold water: touch safety lock icon until a beep is heard, then

release the safety lock icon and touch the cold water icon within 3 seconds

(model no.: SOBK210EPOU), or depress cold water push button to

dispense cold water (model no.: SOBK210MPOU).

lSet hot temperature: touch and hold SET icon about 5 seconds till the hot

temperature icon flashes, release the SET icon, then touch the LEAKING

icon. The hot temperature will flash from 176℉,185℉to 194℉. Each

number will flash for about 2 seconds. Release the LEAKING icon when

your desired temperature appears.

lSet cold temperature: touch and hold the SET icon about 5 seconds until

the cold temperature icon flashes. Release the SET icon, then touch the

LEAKING icon. The cold temperature will be flash from 52℉, 46℉to 41℉.

Each number will flash for about 2 seconds. Release the LEAKING icon

when your desired temperature appears.

lSet clock: touch and hold the SET icon until the hour icon flashes. Release

the SET icon, then touch the LEAKING icon. The hour digits will scroll until

the icon is released when the desired hour is displayed. Repeat this step

for the minutes. The cooler will automatically return to standard display

after 10 seconds without input.

lNight light: The night light can be turned off or on by touching the light icon.

lEnergy Save: Touch LIGHT icon for about 2 seconds, then touch LIGHT

icon again for about 10 seconds till three bee are heard, all icons turn off for

energy save. Touch LIGHT icon again for about 2 seconds, then touch

LIGHT icon for about 10 seconds till three bee are heard, all icons turn on,

the cooler returns to standard display.

lLeaking: the cooler is designed with a built in detector. If a leak is detected,

the leaking icon will light up, the pumps, cooling, heating and dispensing

icons will be disabled until the leak is corrected. At the same time a warning

beep will sound 10 times.

START UP

1. Install drip tray below faucet.

2. Install filter system as per manufacturer’s instructions.

3. Connect the water supply to the cooler using the inlet provided. (see #9 in

diagram on page 3).

4. Connect cooler to a 120 volt electrical outlet.

5. Depress safety lock and hot faucet push button (model no.:

SOBK210MPOU) or touch safety and hot water icon (SOBK210EPOU) until

water flow is continuous and clear.

6. Power on hot switch located at the back of the cooler top left side.

lTurn ‘ON’ the switch after installation is complete for hot water.

l- Turn ‘OFF’ the switch if hot water is not required.

7. To set various water temperature following instructions on page 5.

8. To set the time following instructions on page 5.

CAUTION:

lHot tank must be filled with water before turning on hot switch. To

prevent injury children should not operate this appliance without direct

adult supervision.

lInlet water supply pressure should not exceed 65 PSI

CLEANING

To avoid accidents, unplug the appliance from the power supply

before cleaning.

ALL PLASTIC PARTS ARE DISHWASHER SAFE.

Bottle ring, drip tray and cabinet can be cleaned with most mild on-abrasive

household cleaners. To prevent damage to plastic parts, avoid abrasive

cleaning aids such as steel wool etc.

MAINTENANCE

. . .

lCondenser: To ensure optimum cooler performance, condenser must be

maintained free of dust and lint. Condenser must be regularly inspected

and cleaned with soft brush.

lDrip Tray: The drip tray should be emptied and cleaned regularly. To

remove, pull tray straightforward from the cabinet.

lStorage / Return Shipment: If the cooler is removed from service, the water

must be completely drained from the system using the drain located on the

back of the cooler.

Caution: allow cooler to set, unplugged, for at least 5 hours prior to

draining. This will allow the hot water to cooler and prevent injury.

LIMITED WARRANTY

TERMS AND CONDITIONS – This warranty is “limited” to a dispenser installed

in non-restricted locations, such as residences or offices. This warranty does

not provide any allowances for labor reimbursement. This limited warranty does

not offer coverage for components that are not factory installed such as dealer

installed accessories not originally sold by this manufacturer. If paint or other

appearance imperfections are noted at time of installation, the owner must

advise the installer or the supplier without delay.

INSTALLATION AND OPERATION – The foregoing Limited Warranty applies

only when the dispenser is installed and operated in accordance with the

Manufacturer’s written instructions included with each unit. It does not apply to

dispensers, which on examination by the Manufacturer or his agent, are found

to have been subjected to accident, modifications, abuse, misuse,

misapplications, corrosive type atmospheres, or abnormal use.

Warranty-The Manufacturer warrants the complete water dispenser including

compressor, hermetically sealed refrigeration system, water system faucets,

and electrical components to be free from defects in material and workmanship

under normal use for twenty four (24) months from Invoice date.

OWNER’S OBLIGATIONS – Owner to provide proof of installation date when

repair is required. The owner has the obligation and responsibility to diagnose

and/or make minor adjustments and to reimburse the authorized service center

or the Manufacturer for any other repair not covered by the terms of this Limited

Warranty. The owner also has the obligation and responsibility to return the

complete unit to the owners place of business, closest authorized distributor,

service center or to the factory repair department if the compressor, refrigeration

or water system is found to be defective during the warranty period.

MANUFACTURER’S OBLIGATIONS – The Manufacturer warrants the

complete water dispenser including compressor, hermetically sealed

refrigeration system, water system faucets, and electrical components to be free

from defects in material under normal use for 2 years from date of installation or

twenty - seven months from date of shipment from Manufacturer, whichever

occurs first. Coverage is limited to replacing a defective cooler with a similar

cooler, crediting the customer the amount paid for the defective cooler,

reimbursing the customer the amount paid for the defective cooler, or providing

parts to repair or replace any part of the water dispenser which is expressly

covered by this Limited Warranty at the manufacturer’s option. In any case, the

value of the Warranty shall not exceed the original purchase price paid for the

water dispenser.

PERSONS ENTITLED TO BENEFIT WARRANTY – This Limited Warranty is

applicable only to (i) purchasers who purchase the water dispenser for resale in

the ordinary course of business, and (ii) the first person who purchases the

water dispenser other than for resale.

THIS LIMITED WARRANTY IS IN LIEU OF ALL OTHER EXPRESS

WARRANTIES. ALL IMPLIED WARRANTIES, ARISING BY LAW OR

OTHERWISE, INCLUDING WITHOUT LIMITATION, THE IMPLIED

WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR

PURPOSE, ARE LIMITED TO THE SAME PERIOD OF TIME AS THIS

LIMITED WARRANTY. Some states of the United States do not allow limitations

on how long an implied warranty lasts, so the above limitation may not apply.

This Limited Warranty gives specific legal rights, and in some states of the

United States there may also be other rights, which vary from state to state.

EXCEPT AS OTHERWISE EXPRESSLY PROVIDED ABOVE, THE

MANUFACTURER MAKES NO WARRANTIES, EXPRESS OR IMPLIED,

ARISING BY LAW OR OTHERWISE, INCLUDING WITHOUT LIMITATION

THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A

PARTICULAR PURPOSE, TO ANY PERSON.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Brook Distributeur d'eau

Brook

Brook SOBK210EBL Manuel utilisateur

Manuels Distributeur d'eau populaires d'autres marques

Monarch Water

Monarch Water ULTIMATE MINI AQUA HE Manuel utilisateur

Haier

Haier HLM-109B Manuel utilisateur

abc

abc Fleck 5600SXT Manuel utilisateur

GE GXOF18G Mode d'emploi

Kenmore

Kenmore 625.385560 UltraFilter 650 Manuel utilisateur

Innova

Innova CEV+ Guide de démarrage rapide

Aries

Aries Hydra DI Manuel

GE GNCF02H Manuel utilisateur

ProFlo

ProFlo PFB Series Manuel utilisateur

Hydrotech

Hydrotech 89DF HIM Manuel utilisateur

A.O. Smith

A.O. Smith FREZYA 300S Manuel utilisateur

Frakco

Frakco Travelsoft RV 2400HD Manuel utilisateur

GE GXSF30V Mode d'emploi

Avanti

Avanti WD31EC Manuel utilisateur

Avanti

Avanti WD360 Manuel utilisateur

BRIO

BRIO CLCTTL520 Guide de l'utilisateur

3M HCD-1 Manuel utilisateur

Elkay

Elkay EFHFA8_2CJO Manuel d'installation
