Fresh salmon fillets are reason enough. But that’s really just a start. Because

cooking smoke and greasy build-up are more than unpleasant.They’re unhealthy.

In fact, cooking churns out airborne contaminants like nothing else in the home

can. This concentration of contaminants requires effective ventilation.That’s

where Broan comes in. As the residential ventilation leader, Broan offers more

range hood kitchen ventilating solutions than anyone.

From high-performance ducted models, to the most effective non-ducted

units ever made. And they’re all built to Broan’s demanding quality standards.

So you can count on them to help keep your kitchen cleaner for years to

come. Built-in lighting means you can count on your Broan range hood to keep

your kitchen brighter. Some units even include a convenient nightlight feature.

There really is a difference with Broan. It’s in the details.

Choosing the Right Range Hood 4–5

Chimney Hoods 6–15

Downdrafts 16–17

Power Packs and Power Modules 18–21

High Performance Hoods 22–25

Under Cabinet Hoods 26–37

Accessories 38–41

Blowers/Installation Guidelines 42–43

Specifications 44–47

Problem.

Your over-the-range microwave doesn’t

effectively capture smoke and odors. Your children can’t reach

it without climbing on the counter, not to mention trying to

use it while someone else is cooking.

Solution. Improve the ventilation in your kitchen by

replacing your over-the-range microwave with a handsome

Broan range hood. Move your microwave to a shelf next to

the refrigerator and improve not only the safety of your

kitchen, but its efficiency as well.

Broan

Elite (Rangemaster

our premier range

hoods, offer high performance and unique style to

define your kitchen. See pages 7–16 and 22–23.

Chimney and High Performance Hoods

Do you have an open

concept kitchen?

Consider a chimney

style range hood.

Distinguish your

kitchen with a

centerpiece that provides

function and high style.

Be sure your blower

matches the BTU

output of your range.

Thinking of designing

custom cabinetry?

Power packs allow you

to conceal your range

hood under a cabinet

for a clean look. Insert

a power pack and

achieve all the benefits

of a Broan range hood.

Looking for a range

hood that’s there

when you need it

and hidden when you

don’t? Downdraft range

hoods are perfect for

island or peninsula

installations. You receive

the right amount of

ventilation literally at

the push of a button.

Downdrafts

Power Packs

How do you cook?

Broan has styles and accessories to suit every need.

What do you expect your range hood to do?

Looking for

convenience in a

high performance

range hood? Under

cabinet range hoods

provide homeowners

with high style and

modern convenience.

Sleek designs fit

snugly under cabinets

and stainless steel

bottoms make cleaning

easy. Be sure your blower

matches the BTU output

of your range.

Protect your cabinetry

with custom liners.

They protect your

cabinetry from steam

and grease while

providing a custom

fit all the

way around.

An optional remote control

button puts you in charge

from anywhere in the kitchen.

Selection

Broan has styles and accessories to suit every need.

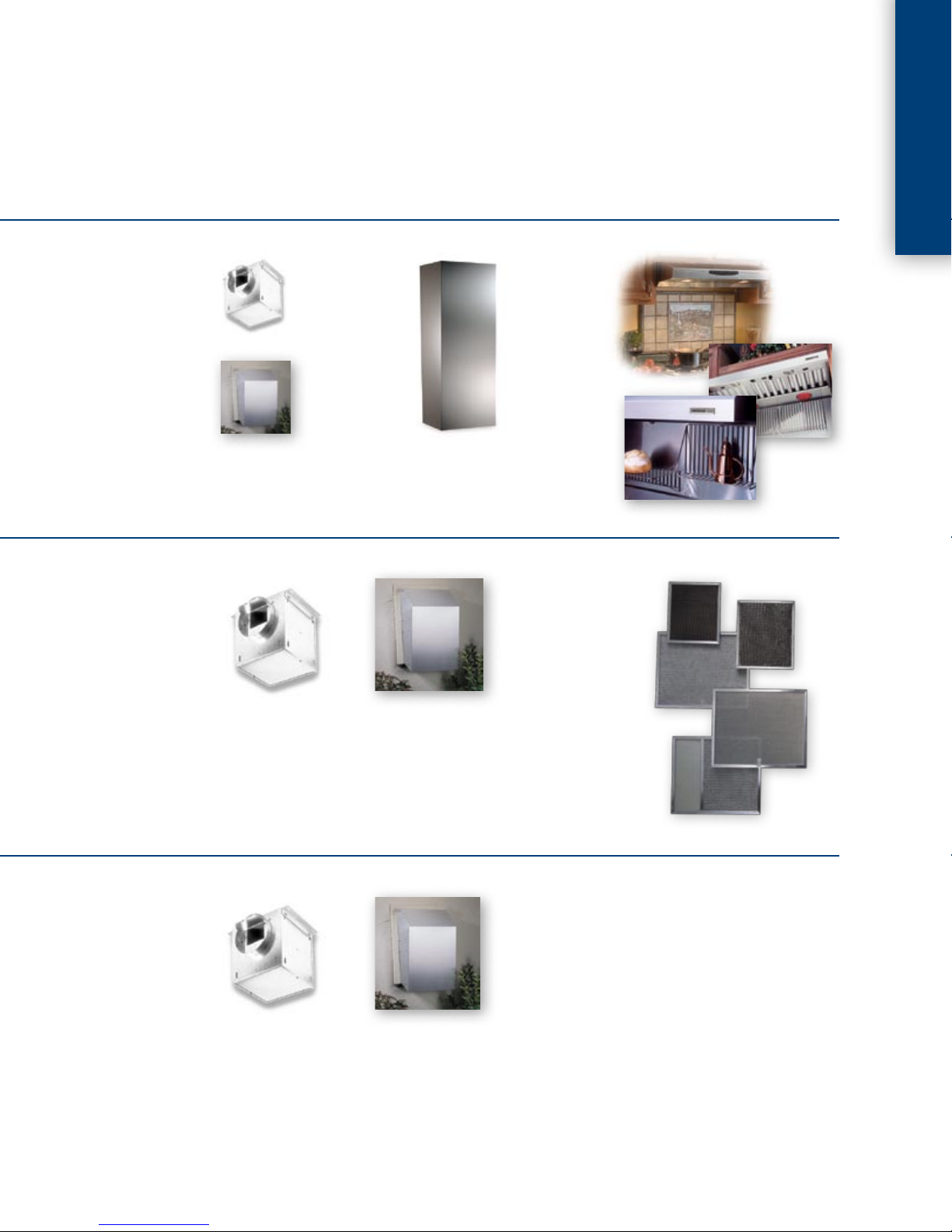

In-Line Exterior

Going for a

professional or

decorator look?

Consider adding

stainless steel

baffle filters,

warming racks

or a decorative

backsplash. These

durable accessories

are functional and

easy to clean.

Select an In-Line or

Exterior blower.*

If desired, choose an

In-Line or Exterior

blower option. Exterior

blowers can be roof-

or wall-mounted,

depending on your

appearance preferences,

or to best suit your

ducting requirements.

In-Line blowers perform

quietly and mount in a

remote location.

Select an In-Line or

Exterior blower.*

If desired, choose an

In-Line or Exterior

blower option. Exterior

blowers can be roof-

or wall-mounted,

depending on your

appearance preferences,

or to best suit your

ducting requirements.

In-Line blowers perform

quietly and mount in the

attic space.

Select an In-Line or

External blower.*

If desired, choose an

In-Line or Exterior

blower option. Exterior

blowers can be roof-

or wall-mounted,

depending on your

appearance preferences,

or to best suit your

ducting requirements.

In-Line blowers perform

quietly and mount in the

attic space.

Replacement and odor

absorbing filters.

Recirculate fresh filtered

air back into the kitchen.

They are made from the

highest quality materials

to provide the longest

life possible.

Do you have

tall ceilings and

a chimney hood?

You’ll need a flue

extension if your

ceiling height is

greater than 9'.

Flue extensions

are matched to

the shape, style

and color of the

range hood you

select. Extensions

for ceiling heights

over 10' feet have a

14-week lead time.

Exterior

In-Line

* Broan Blowers are designed and UL Certified for use with Broan products only.

Selection

Sophisticated tastes deserve sophisticated styling. That’s why we created the Broan Elite Series.

These range hoods are unique works of art that flawlessly blend style, power and durability. Choosing

between them won’t be easy. One thing, however, is certain: you’re sure to be completely satisfied with

the combination of style and power you select. Our commercial-style range hoods feature serious

ventilating performance for the serious home chef. They’re specifically designed for use with high

BTU, commercial-style ranges. They also accommodate the high-capacity demands of residential

woks and cooktop grills. And, since true satisfaction and exquisite taste go hand-in-hand, we offer

an extensive selection and a wide array of options and colors.

Chimney Hoods

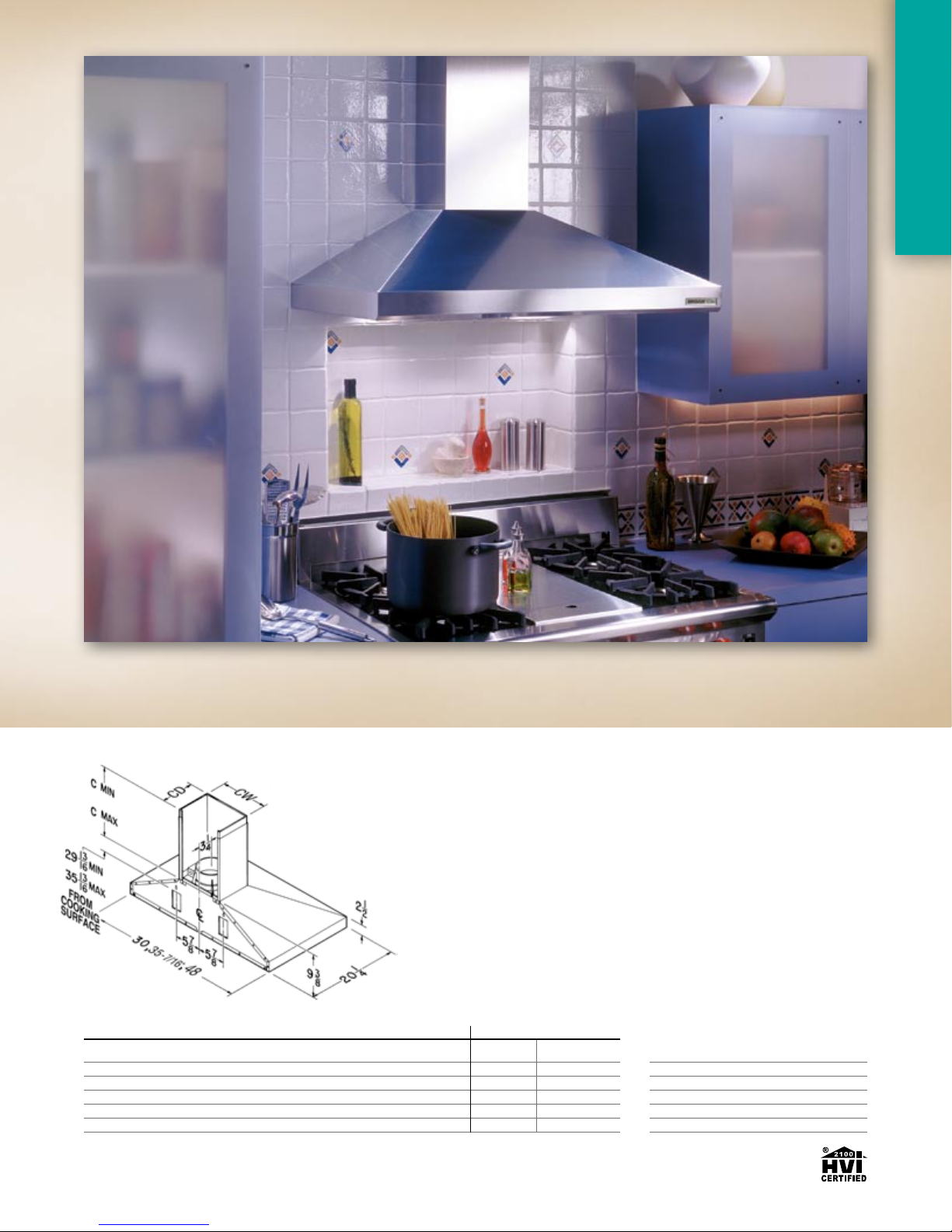

Broan Elite 61000/61000EX

A flawless look. A lasting impression.

Beautiful stainless steel construction in a wall mounted design.

• Seamless corners for easy cleaning.

• Concealed three-speed slide control.

• Heat Sentry™detects excessive heat

and adjusts blower speed to high

automatically.

• The 61000EX models are designed to

operate with the Broan Elite External

blowers, providing a choice of four

Exterior models: 600, 900, 1200 or 1500

CFM, or four In-Line models: 280, 600,

800 or 1100 CFM.

• Two 20-watt (four in 48") halogen

lamps included (one level).

• Available in 30", 357⁄16" (90 cm)

or 48" sizes.

• Ducted/non-ducted telescopic flues fit

8' to 9' ceilings.

• Convertible to ducted or non-ducted

operation.** (excludes 48" model)

• Easily removable, dishwasher-safe,

stainless steel grease filters.

• Optional ducted flue extension for

up to 10' ceilings.

Chimney Hoods

NOTE: Units using ﬂue

extensions are for ducted

applications only.

C MIN C MAX CD CW

613004 25

5⁄8

" 45

1⁄2

" 6

5⁄8

" 9

1⁄4

619004 25

5⁄8

" 45

1⁄2

" 6

5⁄8

" 9

1⁄4

619004EX 22" 37" 10

3⁄8

" 12

3⁄4

614804 22" 37" 10

3⁄8

" 12

3⁄4

614804EX 22" 37" 10

3⁄8

" 12

3⁄4

Range Hood Specifications Options & Accessories

DUCT FLUE NON-DUCTED

WIDTH INTERNAL EXTERNAL BLOWER VOLTS AMPS CFM CONNECTION EXTENSION* FILTER

30" 613004 Internal 120 3.1 450 6" RD RFX6104 ROUNDFILTER

357⁄16" 619004 Internal 120 3.1 450 6" RD RFX6104 ROUNDFILTER

48" 614804 Internal 120 6.3 900 8" RD RFX6104EX

357⁄16" 619004EX External† 120 0.5*** † 8" RD RFX6104EX

48" 614804EX External† 120 0.8*** † 8" RD RFX6104EX

* Optional ducted ﬂue extension for 10' ceiling—extensions over 10' have up to a 14-week order time.

** Requires a non-ducted ﬁlter kit, purchase separately. Round ﬁlter or SB08999736.

*** Hood amps w/o blower, for total system amps, combine hood w/ External blower amps.

†External blowers sold separately.

Rangemaster

Range Hood Specifications

STAINLESS

WIDTH STEEL VOLTS AMPS CFM DUCT*

357⁄16" 629004 120 3.1 450 6" RD

* Duct extensions over 10' have up to a 14-week order time.

Chimney Hoods

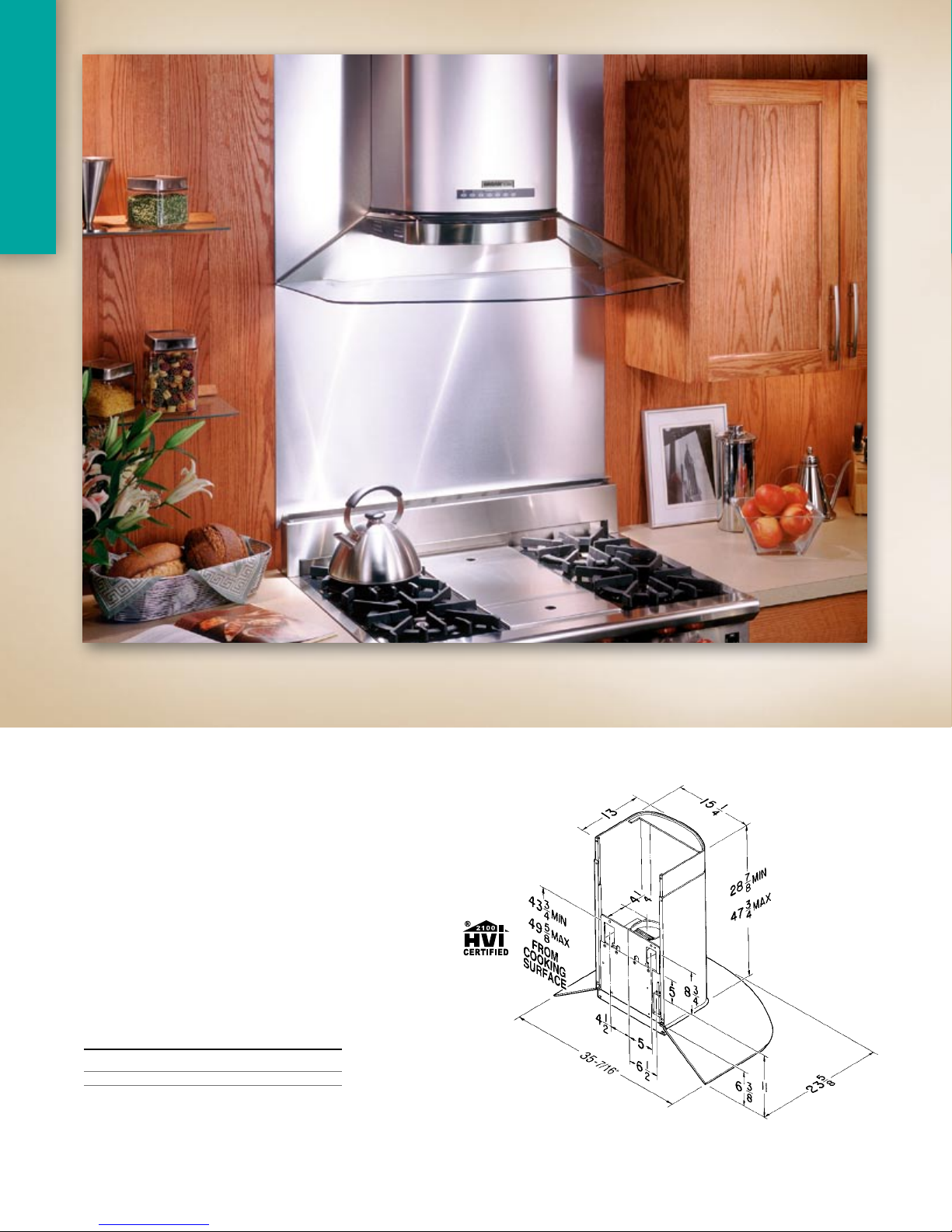

Broan Elite 62000

Where practical meets beautiful.

A dramatic pairing of stainless steel and hand-blown glass in a wall mounted design.

• Seamless underside featuring

recessed lighting.

• Easy cleaning, seamless corner design.

• Variable speed, electronic touch

control with delay off and filter

maintenance indicator.

• Heat Sentry™detects excessive heat

and adjusts blower speed to high

automatically.

• Impactful 357⁄16" (90 cm) size.

• Two 20-watt halogen lamps included

(one level).

• Telescopic flue fits 8' to 10' ceilings.

• Stylish stainless steel grease filter is

dishwasher-safe.

Rangemaster

Chimney Hoods

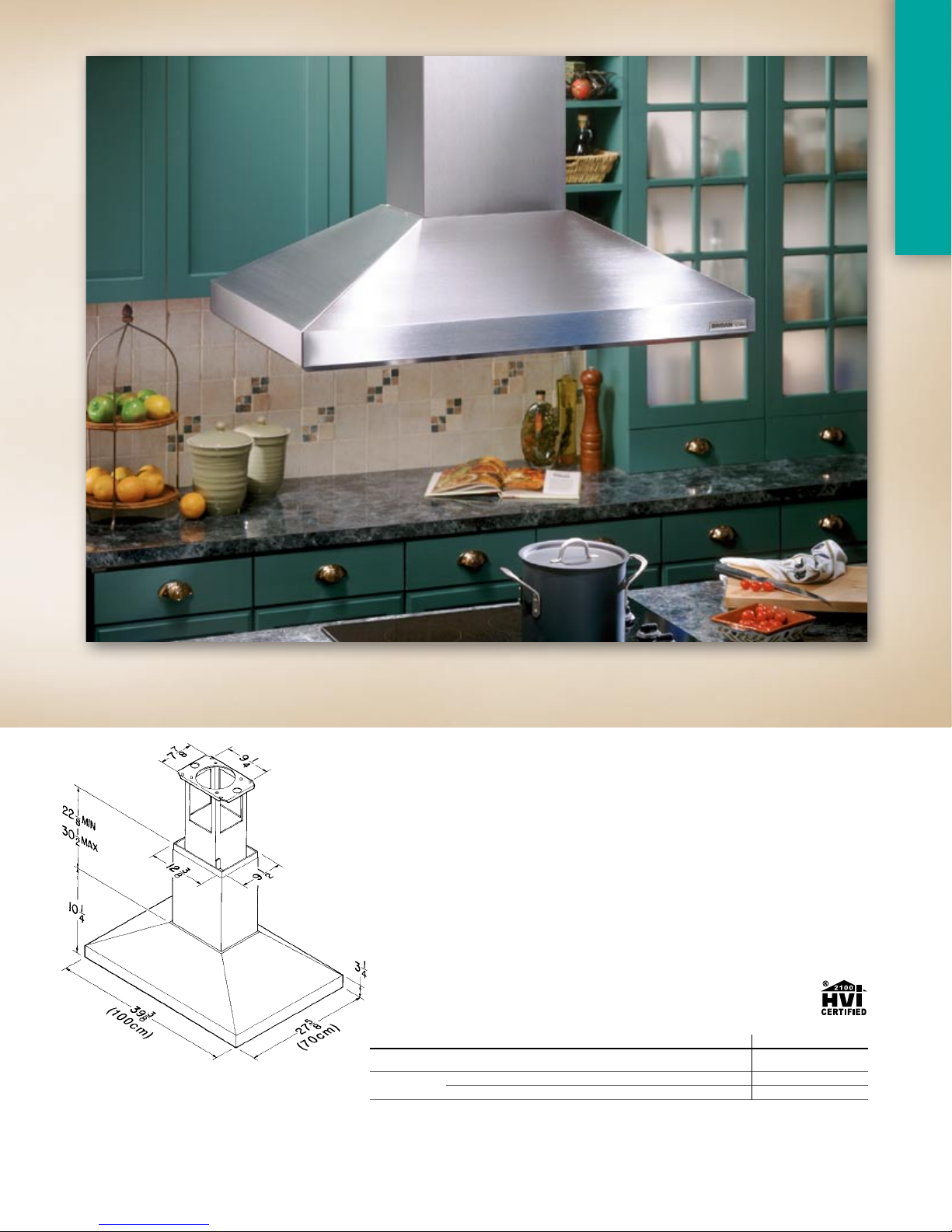

Broan Elite 63000/63000EX

Perfection – any way you look at it.

This free-hanging island hood will draw the eye from every vantage point.

• Enduring style, stainless

steel construction.

• Seamless corners for easy cleaning.

• Concealed three-speed control.

• Heat Sentry™detects excessive heat

and adjusts blower speed to high

automatically.

• 275⁄8" x 393⁄8" (70 cm x 100 cm) size.

• Superior lighting from four 20-watt

Halogen lamps included (one level).

• The 63000EX models are designed

to operate with Broan Elite External

blowers, providing a choice of four

Exterior models: 600, 900, 1200 or

1500 CFM or four In-Line models:

280, 600, 800 or 1100 CFM.

• Telescopic flue fits 8' to 9' ceilings.

• Easily removable, dishwasher-safe

stainless steel grease filter.

Rangemaster

Range Hood Specifications Optional Accessory

STAINLESS FLUE

WIDTH STEEL BLOWER VOLTS AMPS CFM DUCT EXTENSION*

275⁄8" x 393⁄8"637004 Internal 120 5.5 900 8" RD RFX6304EX

(70 x 100cm) 637004EX External† 120 0.8** † 8" RD RFX6304EX

† External and In-Line blowers sold separately.

** Hood amps without blower. For total system amps, combine hood with external blower amps.

* Optional ﬂue extension for 10' ceiling—extensions over 10' have up to a 14-week order time.

Chimney Hoods

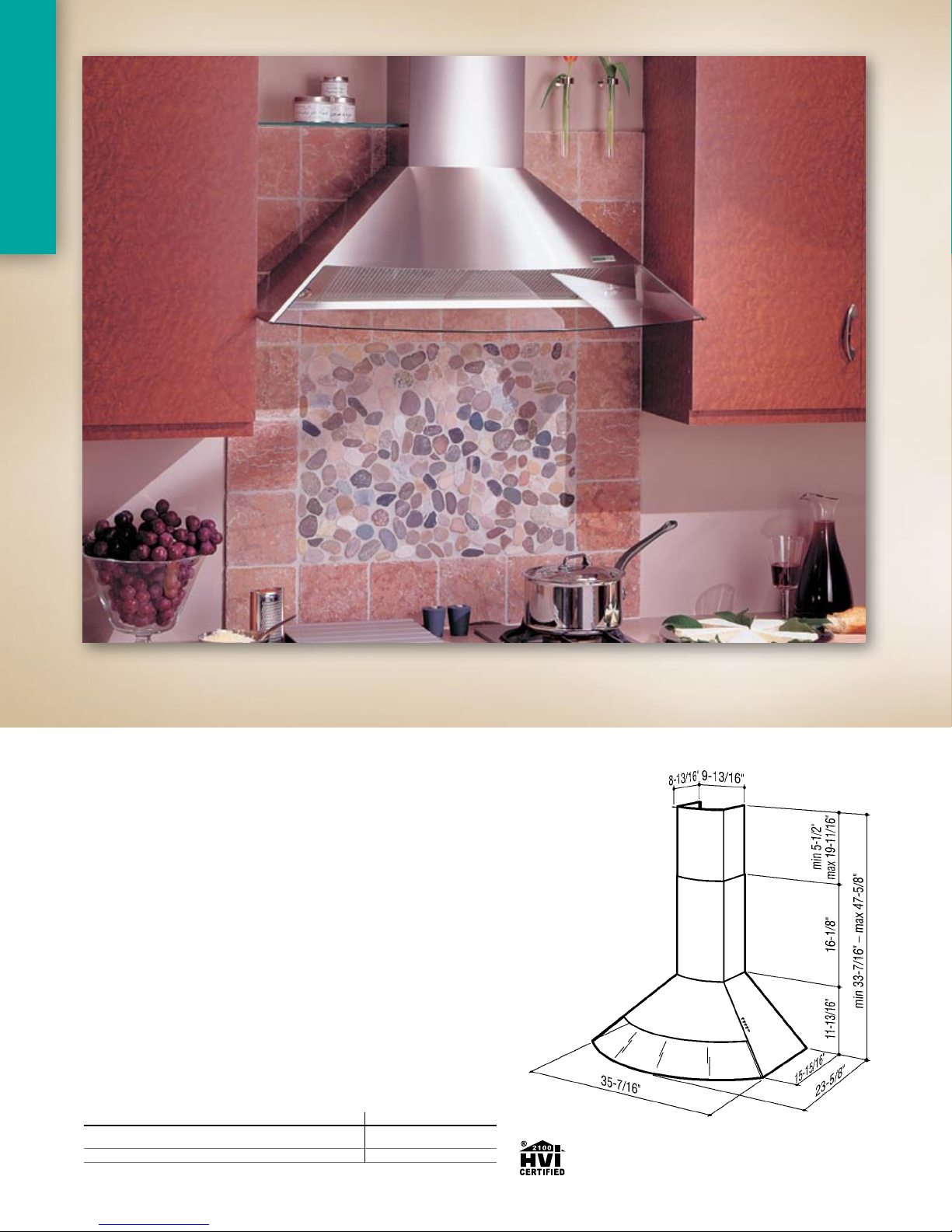

Broan Elite RM65000

Sensational high-design appearance. This delightful, hand-crafted design

blends curved and angular surfaces to form a stunning union of stainless steel and glass.

• Multi-speed, electronic push-button

control features stylish, rounded buttons

with individual speed indicators.

• Delay timer automatically shuts off unit

after 10 minutes.

• Control light flashes when it’s time

to clean the filter.

• Heat Sentry™detects excessive heat

and adjusts blower speed to high

automatically.

• Two-level lighting provides bright

cooktop illumination and a low

nighttime setting.

• Two 20-watt halogen lamps included

(one level).

• Dishwasher-safe aluminum filters

feature a quick-release latch and

professional-style appearance.

• Ducted telescopic flue accommodates

ceiling heights from 8 to 9 feet.

Extension flues for higher ceilings are

also available for ducted applications.*

• Install hood so that the bottom of the

unit is 24 to 30 inches above the

cooking surface. Mounting height is

determined by ceiling height.

Rangemaster

Range Hood Specifications Optional Accessory

STAINLESS FLUE

WIDTH STEEL VOLTS AMPS CFM DUCT EXTENSION*

357⁄16" RM659004 120 3.1 450 6" RD RFX6504

* Optional ﬂue extension for 10' ceiling—extensions over 10' have up to a 14-week order time.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Broan hotte de ventilation

Broan

Broan Elite EI5936SS Manuel utilisateur

Broan

Broan ALLURE QS1 Series Manuel utilisateur

Broan

Broan TEN1 Series Manuel d'instructions et de sécurité

Broan

Broan AP1 Series Manuel utilisateur

Broan

Broan Best IS102 Series Manuel utilisateur

Broan

Broan QDE30WW Manuel utilisateur

Broan

Broan 637004EX Manuel utilisateur

Broan

Broan QSE130WW Manuel utilisateur

Broan

Broan 357NDK Manuel utilisateur

Broan

Broan EC62 SERIES Manuel utilisateur

Broan

Broan BDF SERIES Manuel utilisateur

Broan

Broan ALLURE QS2 Series Manuel utilisateur

Broan

Broan BU2 SERIES Manuel utilisateur

Broan

Broan BNSC1 Series Manuel d'instructions et de sécurité

Broan

Broan rangemaster 64000 series Manuel utilisateur

Broan

Broan Best K34 Manuel utilisateur

Broan

Broan Best PK22 Manuel utilisateur

Broan

Broan Elite EW4824SS Manuel d'instructions et de sécurité

Broan

Broan EPLEC1 Manuel d'instructions et de sécurité

Broan

Broan QS130WW Manuel utilisateur

Broan

Broan E60000 SERIES Manuel utilisateur

Broan

Broan Elite EW5830SS Manuel utilisateur

Broan

Broan 88000 series microtek Manuel utilisateur

Broan

Broan Best KER222 Series Manuel utilisateur

Manuels hotte de ventilation populaires d'autres marques

emmeti

emmeti RECUPA MED A-140 Mode d’emploi

Nibe

Nibe F135 Manuel utilisateur

Kuppersberg

Kuppersberg INTRO 60 Instructions d'installation et d'entretien

Zephyr

Zephyr Spruce AK9834BS Guide d'installation

Hisense

Hisense MH6INBG Manuel utilisateur

Miele

Miele DA 1255 Manuel utilisateur

GE Profile PV977 Instructions originales

FALMEC

FALMEC FFRIA24W5FS Manuel utilisateur

Whirlpool

Whirlpool RH2600XL-1 SERIES Manuel utilisateur

Küppersbusch

Küppersbusch DX ISLA Manuel utilisateur

ETNA

ETNA AV360RVS Manuel utilisateur

JUNO

JUNO JDF603E6 Manuel utilisateur

Miele

Miele DA 6708 D Manuel utilisateur

Tricity Bendix

Tricity Bendix LE 150 Manuel

AEG

AEG X68163BV1 Manuel utilisateur

AEG

AEG 125 D Manuel utilisateur

Smeg

Smeg KSEV97X Manuel utilisateur

Nibe

Nibe S Series Guide de l'utilisateur
