SPECIFICATION SHEET

BEST BY BROAN P.O. BOX 140 HARTFORD, WISCONSIN 53027

REFERENCE QTY. REMARKS Project

Location

Architect

Engineer

Contractor

Submitted by Date

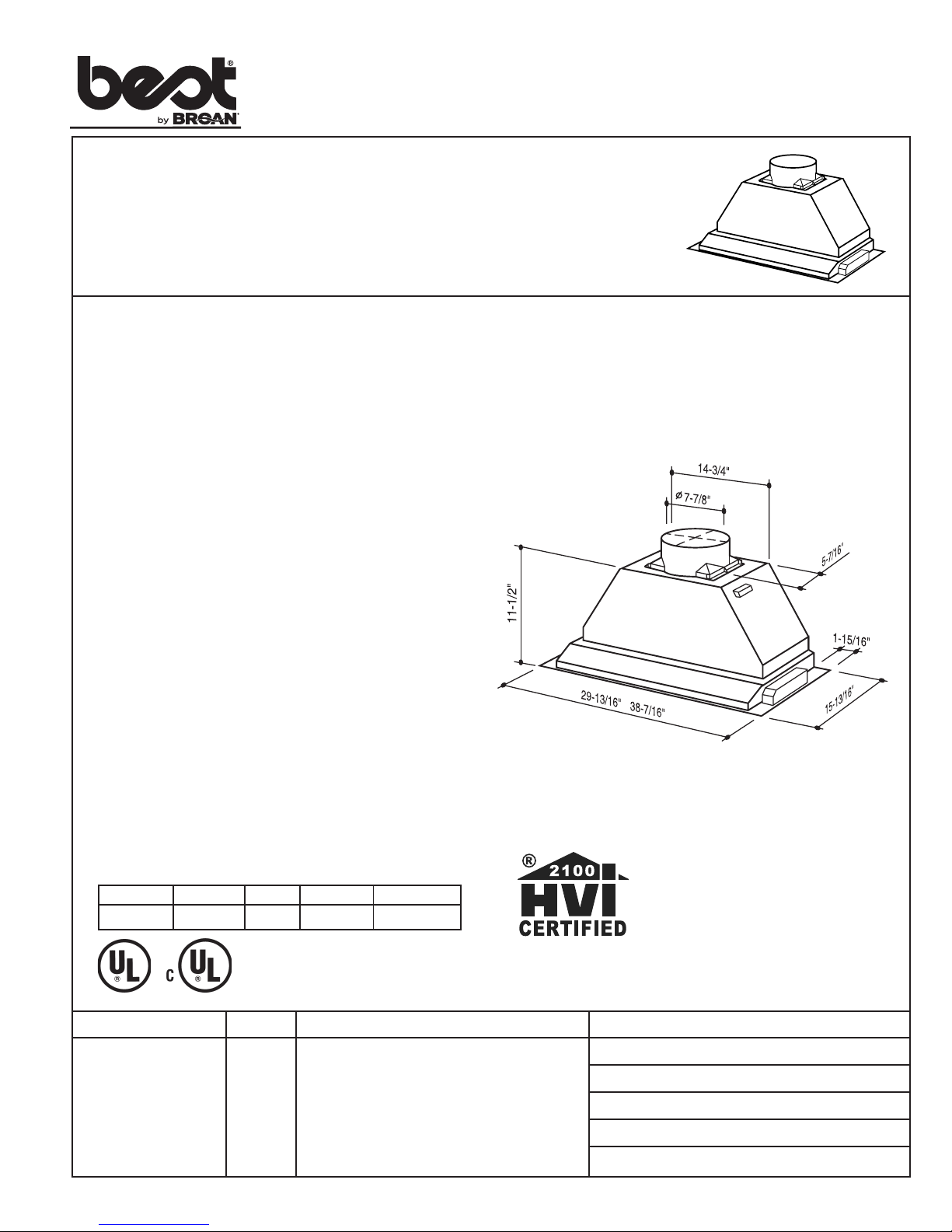

PK22

RANGE HOOD

SPECIFICATIONS

60H 99042853H

Specially designed to be installed in custom canopy

hoods for use over residential commercial-style

cooking surfaces.

FEATURES

•Italian design

•Cabinet mount – custom application

•Finish: 304 Stainless Steel #3 Brushed

•Widths: 29-13/16”, 38-7/16”

•8” round duct connector/backdraft damper

•Halogen lighting (2 bulbs included on 29-13/16” hood or 4

bulbs on 38-7/16” hood; Type GU10, MR16 shielded, 120

volt, 50 watts max.)

•Slide controls: on-off, 3-speed

•Quiet, dual centrifugal blowers with two high-efficiency

motors produce 1000 CFM

•Easily accessible, dishwasher-safe aluminum/stainless

steel filters

•Heat SentryTM - automatically turns blower to high speed

when excess cooking heat is detected

OPTIONS

•Stainless liner (Model Nos. L2936, L2942, L3848, L3854,

L3860)

•Ambient light panel (Model Nos. ALP36, ALP42, ALP48,

ALP54, ALP60)

•Exterior blower version (PKEX22) available, providing

600, 900, 1200, or 1500 CFM exhaust

VOLTS AMPS CFM SONES DUCT

120 6.23/7.06 1000 10.5 8” round

HVI-2100 CERTIFIED RATINGS comply with new

testing technologies and procedures prescribed by

the Home Ventilating Institute, for off-the-shelf

products, as they are available to consumers. Product

performance is rated at 0.1 in. static pressure, based

on tests conducted in AMCA’s state-of-the-art test

laboratory. Sones are a measure of humanly-

perceived loudness, based on laboratory

measurements.

Mount range hood so bottom of hood is

24” to 30” above cooking surface.

BEST BY BROAN P.O. BOX 140 HARTFORD, WISCONSIN 53027

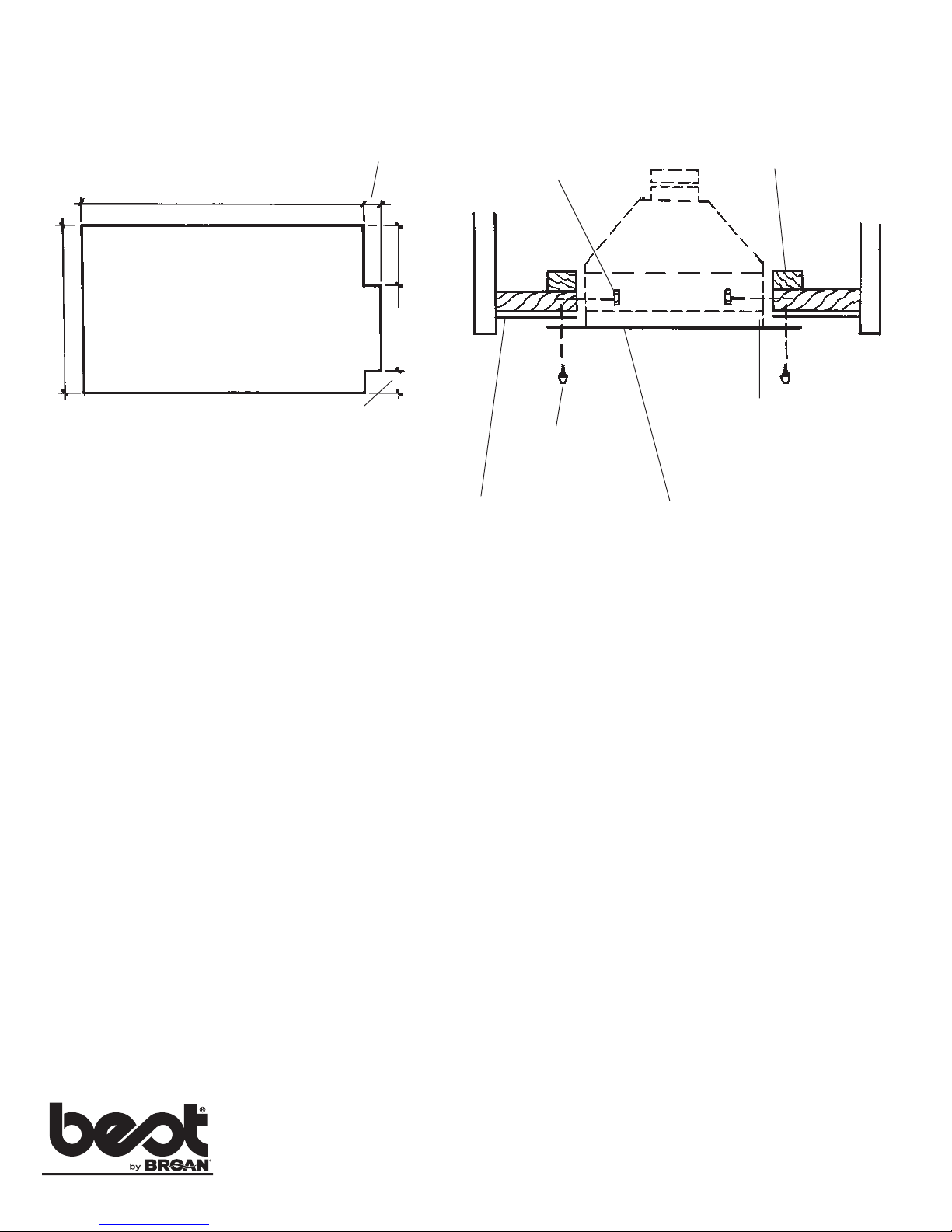

PK22 MOUNTING

26" - 34-11/16"

14-3/4"

1-9/16"

SIZE OF THE CUT OUT

(TOP VIEW)

1-9/16

4-1/2"

8-11/16"

WOOD OR METAL FLANGE

TO SECURE SIDES OF UNIT

(2) METAL

SCREWS

SEE

CUTOUT

DIMENSIONS

4 SCREWS

(Typical)

METAL OR

OTHER NON-

COMBUSTIBLE

MATERIAL

(Build to Measure)

FLUSH UNIT

TO BOTTOM

OF HOOD
