Brita Redi-Twist USS-301 Manuel utilisateur

USS - 301

Installation

Instructions

Step 1

Step 2

Step 3

As Easy As...

LOCK

1/4 turn

Align Arrow

DIRECT CONNECT TO

KITCHEN FAUCET

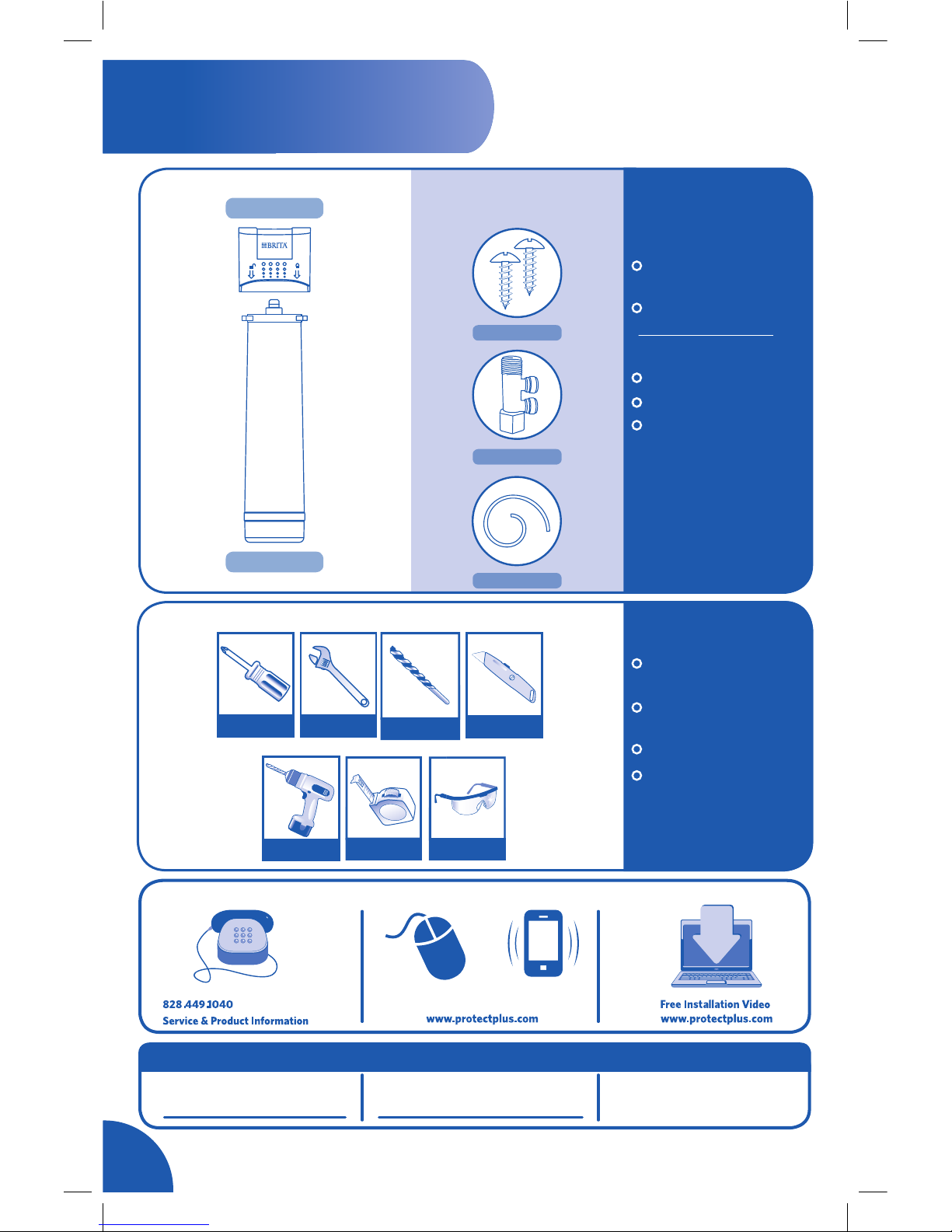

Tools & Materials Required

ﬁlter system head

with built-in bracket

Redi-Twist™ ﬁlter

ﬁlter system head

Redi-Twistﬁlter

main components secondary

components

main:

tools needed for installation

mounting screws

kitchen faucet adapter

3/8” plastic tubing

secondary:

kitchen faucet adapter

drill with 1/4" and

9/16" or 5/8" drill bits

hollow-wall anchor

bolts or toggle bolts

hacksaw

plumber's tape

info & assistance

package contents

optional items

3/8" plastic tubing

phillips

screwdriver adjustable

wrench utility knife

1 2 3

30’

tape measure safety glasses

drill

System Model No. Date Purchased / Date to Replace For FREE Filter Replacement

Reminder, go to

www.protectplus.com

Internet & Mobile

1/8” drill bit

My BritaRedi-Twist™ Filter System (Replace system every 5 years)

Version 1.0EUSS-301 installation instructions

Before You Begin

Please wear safety glasses to protect eyes when drilling.

CAUTION

WARNING: Be sure that all electrical appliances and outlets are turned o at the circuit breaker before working in the cabinet area.

WARNING

Operation / Maintenance Data

These units are intended for non-commercial use. They should be used only in ambient air temperature of between 35 degrees F /

2 degrees C and 100 degrees F / 38 degrees C. Placement of these units in direct sunlight or use of electrical heating equipment on

these units must be avoided. Replace ﬁlter cartridge when and as directed in the installation / operation instructions included with

each cartridge. Replacement ﬁlter cartridges are available at retail outlets.

• These ﬁlters are not water puriﬁers. Do not use with water that is microbiologically unsafe or of unknown quality without

adequate disinfection before or after the system. Systems certiﬁed for Cyst reduction may be used on disinfected water that

may contain ﬁlterable Cysts.

•This unit is not designed to ﬁlter sulfur odor (rotten egg odor) caused by hydrogen sulﬁde. Use of carbon ﬁlters to treat sulfur odor

may intensify taste/odor problems.

•Please comply with all state and local regulations regarding the installation of water treatment devices.

•The contaminants or other substances reduced by the water ﬁlter device are not necessarily in your water.

Filtration Facts

Please read all instructions, speciﬁcations, and precautions before

installing and using your water ﬁlter system.

Because of the product’s limited service life and to prevent costly repairs or possible water damage, we strongly recommend that

the head of the ﬁlter be replaced every ﬁve years. If the head of the ﬁlter has been in use for longer than this period, it should be

replaced immediately. Date the top of any new head to indicate the next recommended replacement date.

DO NOT DRILL THROUGH AN ALL-PORCELAIN OR CAST IRON SINK. If installing on an all-porcelain or cast iron sink, the faucet

must be mounted in a pre-drilled sprayer hole or through the countertop next to the sink. If the countertop must be drilled, make

certain that the area below the drilling location is free of wiring and pipes. Also, make sure that there is sucient room to make the

proper connections to the bottom of the faucet mount. DO NOT DRILL THROUGH COUNTER TOPS MORE THAN 1” IN THICKNESS

OR COUNTERTOPS MADE OF TILE, MARBLE, GRANITE, OR SIMILAR SUBSTANCE. Consult with a plumber or the countertop

manufacturer for assistance.

NOTICE

This ﬁlter must be protected from freezing, which can cause cracking of the ﬁlter and water leakage.

Precautions: for cold water use only.

Consult your local plumbing codes and install accordingly.

Helpful Hints

• Locate space in your cabinet to

secure water ﬁlter system.

• Check under the sink to locate a solid

wall surface to mount the ﬁlter system.

**FILTER SYSTEM MUST BE

MOUNTED IN A VERTICAL

POSITION**

• Position on cabinet wall to provide

easy access for future cartridge

change-outs.

• If you have anything other than

ﬂexible hose under your sink, check

to see if you need to purchase

special ﬁttings.

• Turn o cold water shut-o valve to

kitchen sink.

• Turn on cold water faucet on kitchen

sink to release water pressure.

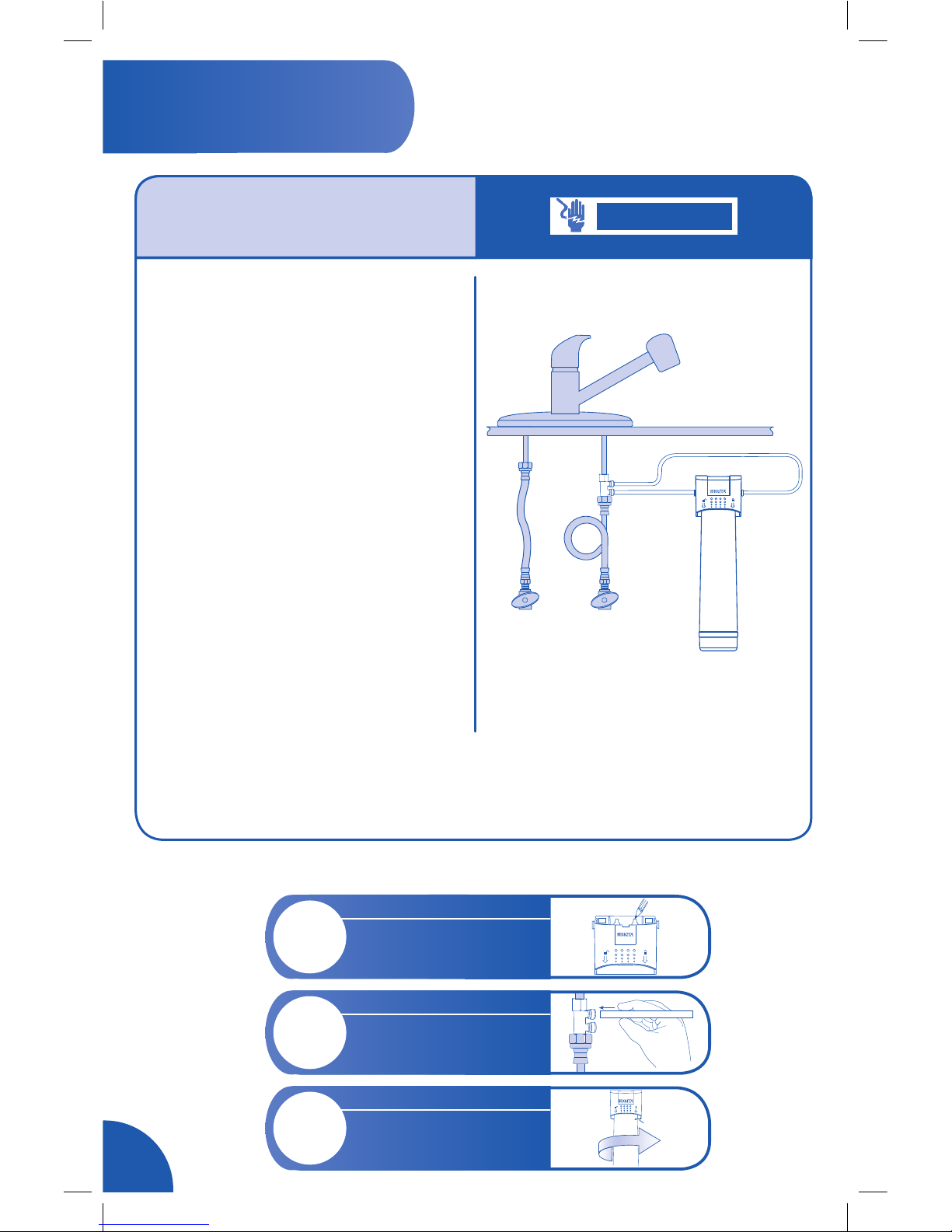

KITCHEN FAUCET

FLEXIBLE TUBING INSTALLATION

INLET OUTLET

HOT WATER

VALVE

COLD WATER

VALVE

WARNING

Before You Start

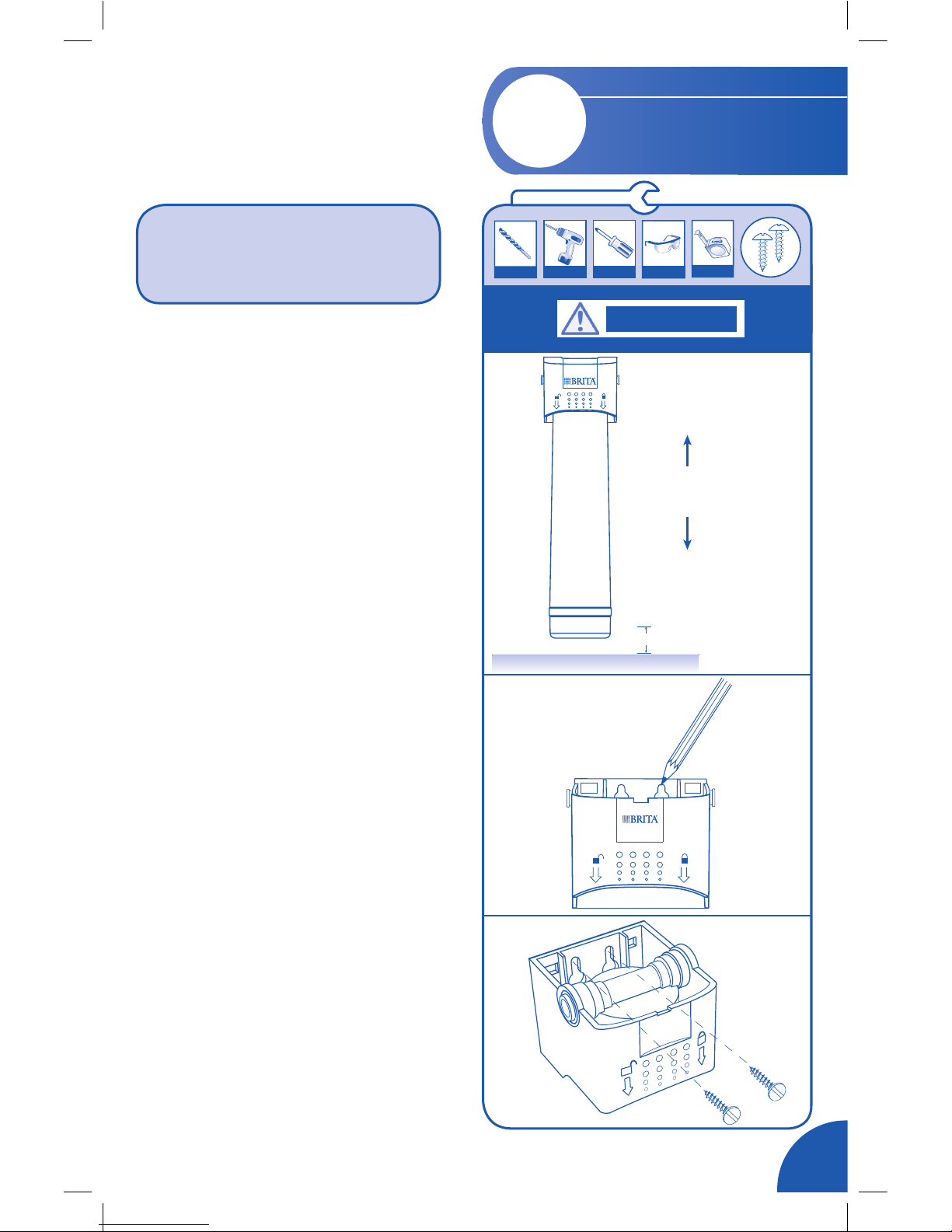

Step 1 Attach Head to Inside

of Cabinet Wall

direct connect to kitchen faucet

Attach tubing/ﬁttings

to the water line/head

direct connect to kitchen faucet

Step 2

Install Redi-Twist™Filter

and Test for Leaks

direct connect to kitchen faucet

Step 3

As Easy As...

These directions are for direct connect to your kitchen faucet. If you already have an

auxiliary faucet, visit us online at www.protectplus.com to download instructions

to connect to auxiliary faucet. To learn more about the beneﬁts of using an auxiliary

faucet with your system, see page 10.

LOCK

1/4 turn

Align Arrow

Version 1.0EUSS-301 installation instructions

Step 1 Attach Head to Inside

of Cabinet Wall

direct connect to kitchen faucet

• Locate an easy access area to mount

the ﬁlter.

• Remove cap from system head.

• Measure and mark location of

mounting holes.

• Mount system head to wall of cabinet.

Note: Mount the ﬁlter system to a solid cabinet wall

or wall. If a solid surface is not available, use hollow-

wall anchor bolts or toggle bolts (not included) to

secure to the wall.

materials and tools needed

INLET OUTLET

4-6" FROM BOTTOM

Mount to cabinet

in vertical position

phillips

screwdriver safety

glasses

1 2 3

30’

tape measure

drill

1/8” drill bit safety glasses

CAUTION

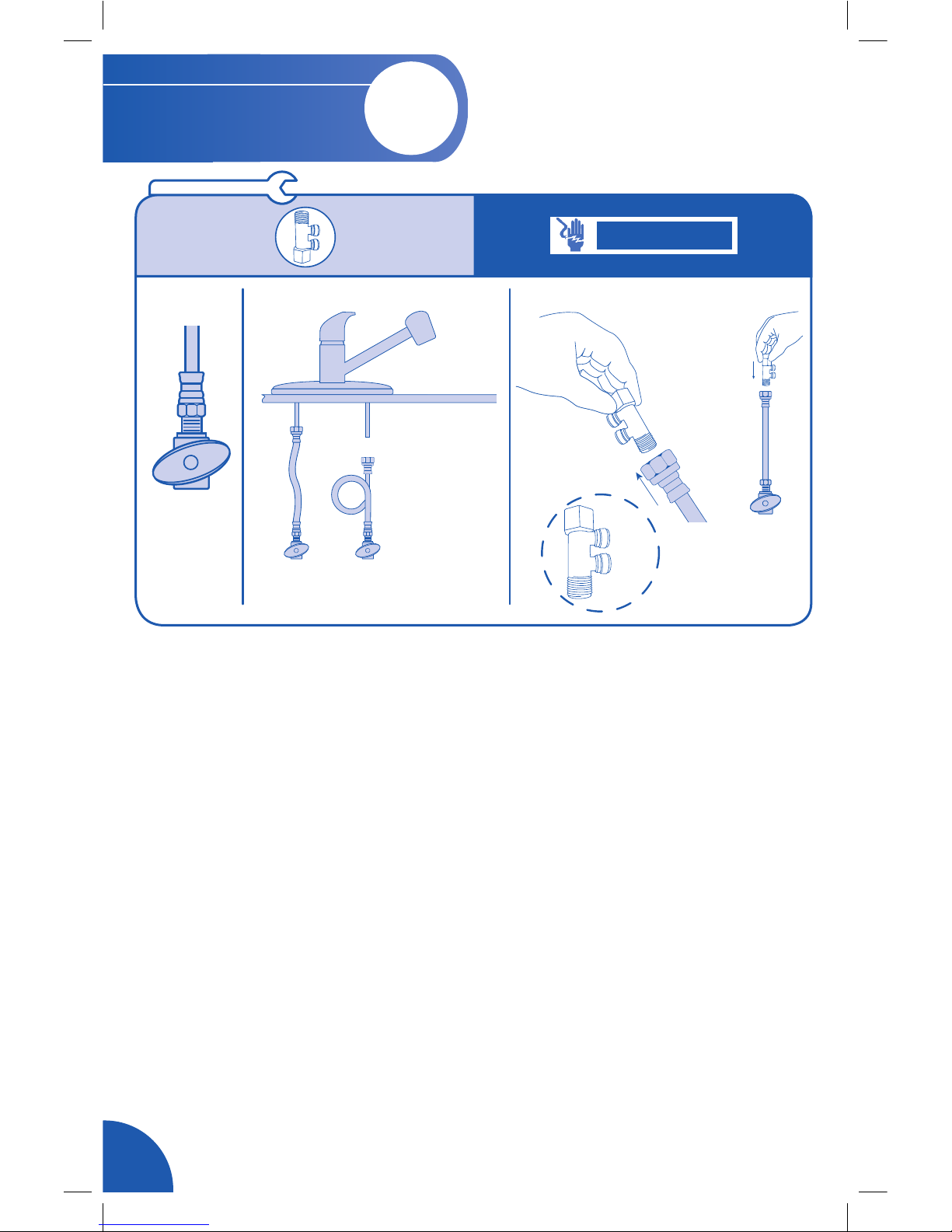

Step 2

Attach tubing/ﬁttings

to the water line/head

direct connect to kitchen faucet

• Disconnect the top of the cold water plumbing line from the faucet shank. Ensure

cold water shut-o valve is closed, and turn on cold water on faucet.

• Screw the Kitchen Faucet Adapter onto the lower end of the faucet shank and

upper end of cold water line.

• Note position of Kitchen Faucet Adapter as attached to cold water line.

materials and tools needed

Step 2 continued on next page >>

Outlet Port

Inlet Port

COLD

WATER

VALVE

WARNING

COLD

WATER

VALVE

HOT WATER

VALVE

COLD WATER

VALVE

Version 1.0EUSS-301 installation instructions

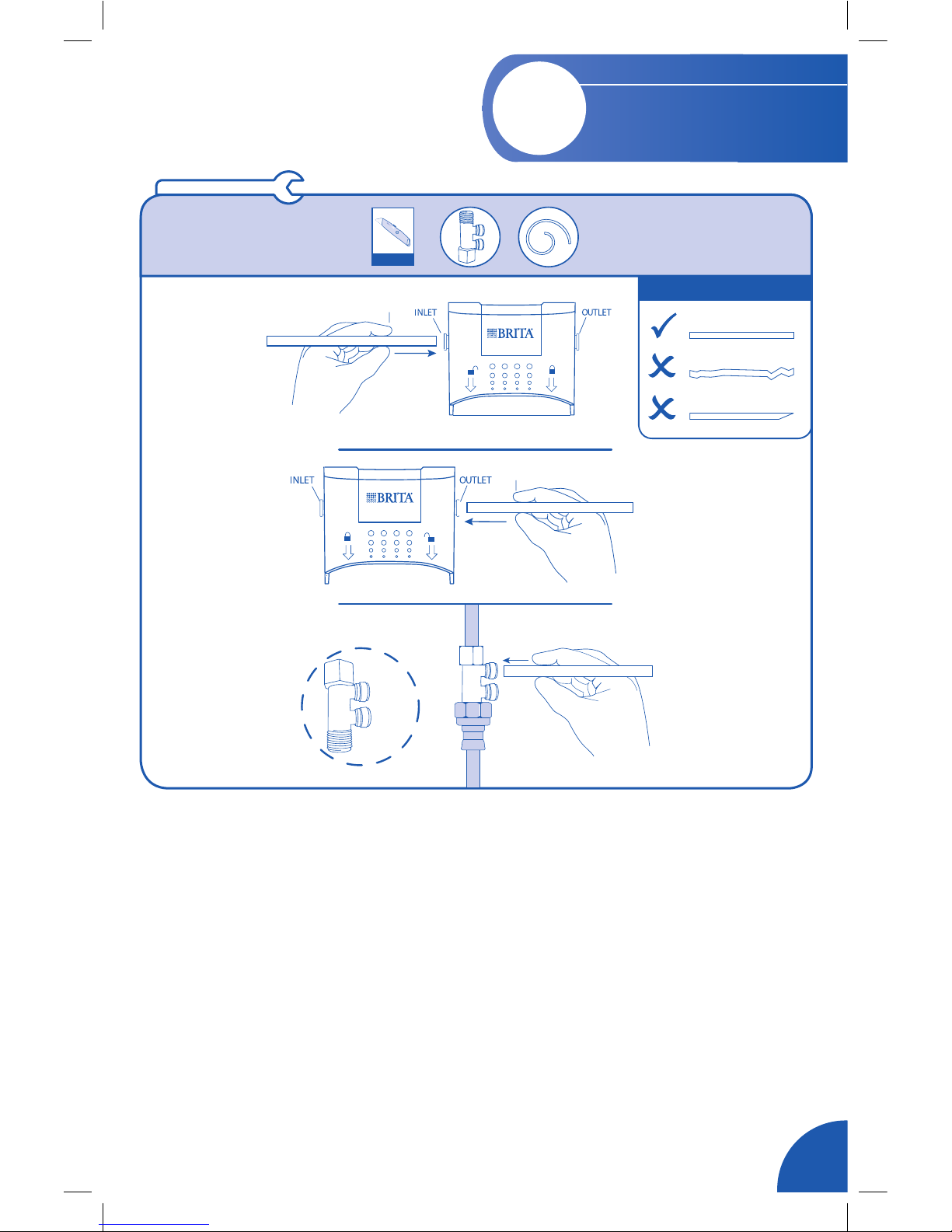

do not bend or crimp

cut squarely on both ends

do not cut at an angle

wet ends of tubing before inserting

3/8" PLASTIC TUBING

• Determine lengths of 3/8" plastic tubing needed to connect to both inlet port and

outlet port of Kitchen Faucet Adapter.

• Cut 3/8" plastic tubing squarely on both ends to length.

• Avoid extra long lengths that may create kinks in the line.

materials and tools needed

<< Step continued from previous page

Attach tubing/ﬁttings

to the water line/head

direct connect to kitchen faucet

Step 2

Outlet Port

Inlet Port

utility knife

3/8" PLASTIC TUBING

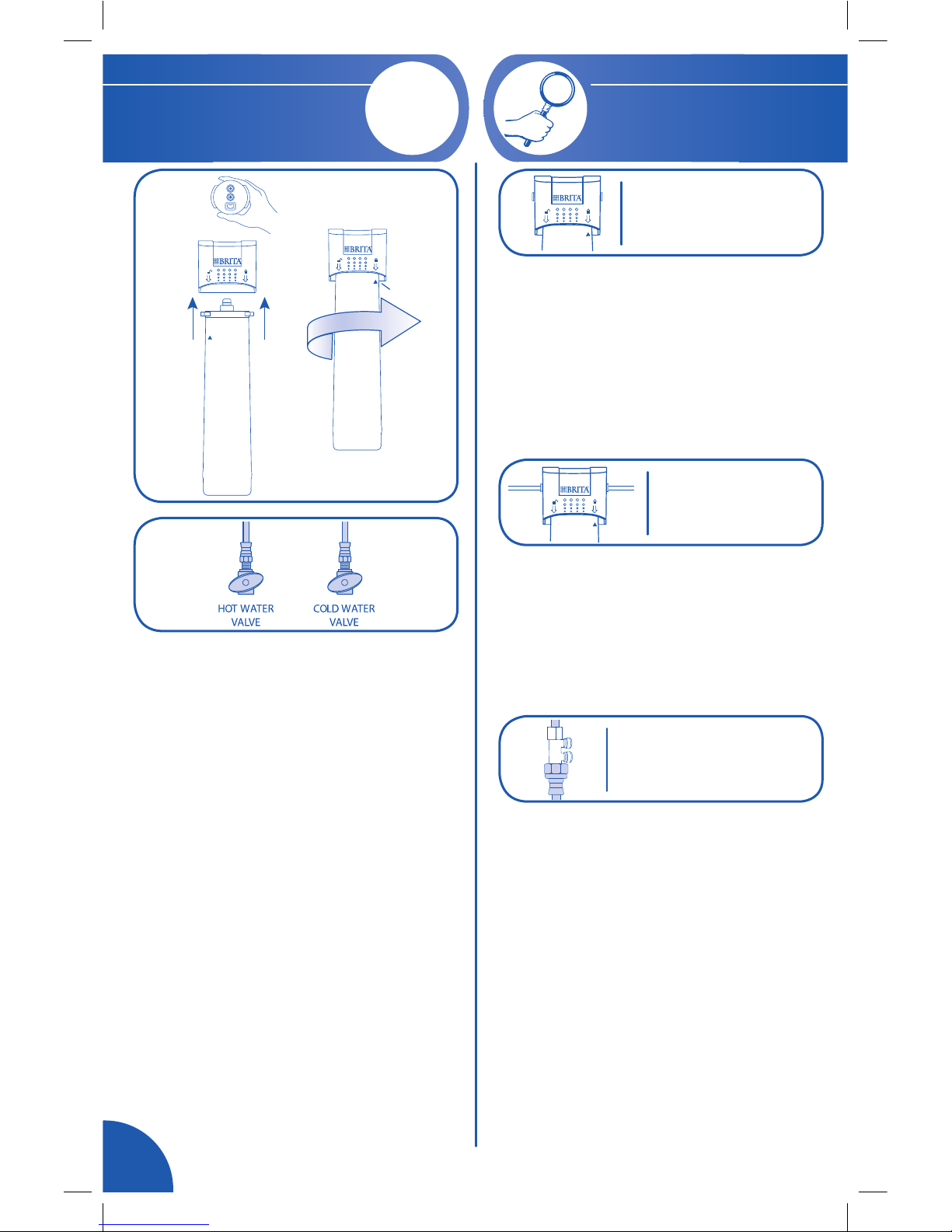

Install Redi-TwistFilter

and Test for Leaks Step 3

direct connect to kitchen faucet

• Hold the Redi-Twist™ ﬁlter with the

label facing you.

• Insert ﬁlter up into the system head

until the two nozzles seat into the ports.

• Turn the Redi-Twist™ ﬁlter from left

to right (as you face it) until it stops.

• Turn on the cold water shut-o valve.

• Turn on the new ﬁlter and faucet.

Allow the water to run for

approximately 10 minutes.

• Check for any leaks.

• If system is leaking, turn o cold

water shut-o valve and refer to

troubleshooting guide.

direct connect to kitchen faucet

» If leaks continue, turn o the water supply and call

Customer Service or your local plumber.

Leaks between system

head assembly and

Redi-Twist™ ﬁlter

* Remove the Redi-Twist™ ﬁlter and inspect the

o-rings. Make sure they are in place and free

from dirt and particles.

* Install the Redi-Twist™ ﬁlter.

* Turn on the cold water supply valve and

turn on the ﬁlter faucet.

* Make sure Redi-Twist™ ﬁlter is fully into the

lock position.

* Turn o the cold water shut-o valve to the

ﬁlter system.

* Locate the kitchen faucet adapter.

- If the 3/8” plastic tubing is leaking,

follow the previous steps.

- If the thread between the kitchen

faucet adapter and the kitchen faucet

stem is leaking, tighten more securely. If

leaking continues, disconnect the 3/8”

plastic tubing and remove the kitchen

faucet adapter. Wrap the kitchen

faucet adapter and the cold water supply

line with plumber’s tape and re-install.

- Turn the cold water shut-o valve back

on and turn on the faucet for ﬁltered

water.

Leaks on Kitchen

Faucet Adapter

connection

Troubleshooting

Guide

LOCK

1/4 turn

Align Arrow

LOCK

* Turn o the cold water shut-o valve. Press

in the gray collar on the Inlet and/or Outlet

ﬁttings. Remove tube and inspect. Repair/

replace tubing. Reconnect tubing. Ensure it

hasn't been crimped.

* Turn the cold water shut-o valve back on and

turn on the faucet for ﬁltered water.

Leaks around ﬁttings

LOCK

Version 1.0EUSS-301 installation instructions

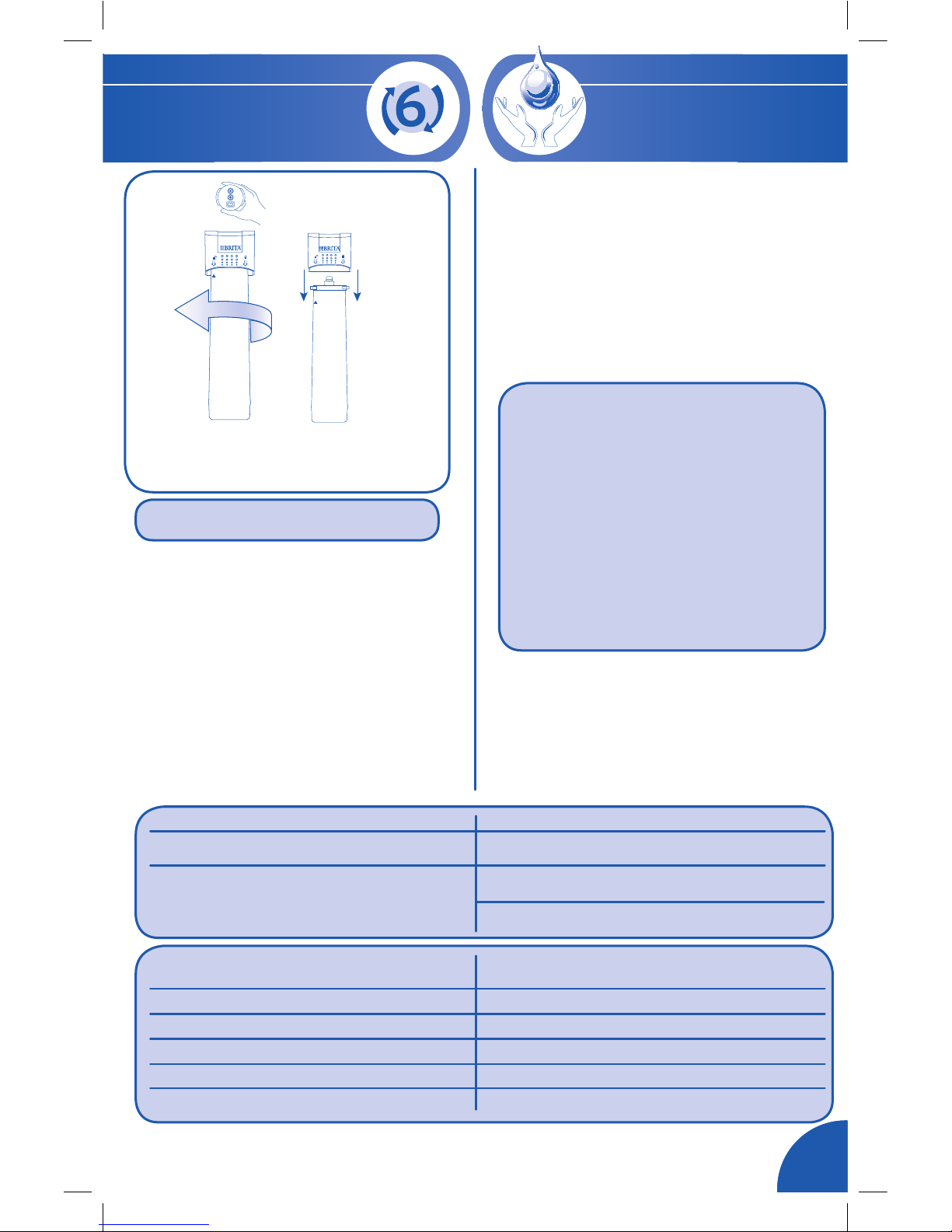

Filter Replacement

(every 6 months)

direct connect to kitchen faucet

Use and Care

direct connect to kitchen faucet

BritaRedi-Twist™Filtration System USS-301

Usage and quality of water in your incoming

water line aect the life of ﬁlter cartridges.

Cartridges should be replaced sooner if

water pressure at the faucet begins to drop

noticeably or if the ﬁlter fails to perform

satisfactorily.

Please see the Performance Data Sheet

for the certiﬁed performance of speciﬁc

systems with stated cartridges.

After prolonged periods of non-use, it

is recommended that the ﬁlter system

be ﬂushed thoroughly. Let water run

for 10 minutes before using.

The Redi-TwistTM ﬁlter used with this

ﬁlter system has a limited service

life. Changes in taste, odor, and/or ﬂow

of the water being ﬁltered indicate that

the ﬁlter should be replaced.

9USS-301 installation instructions

Note: Place paper towels or rag under the ﬁlter

system to catch any water drips.

• Turn the Redi-Twist™ ﬁlter right to

left (as you face it) until it releases.

Remove and discard used Redi-

Twist™ ﬁlter.

• See page 8 for inserting new ﬁlter.

• Changing water ﬁlter on a regular

basis ensures optimum performance

of the water ﬁltration system.

• Note date ﬁlter is installed on

cartridge tank label.

LOCK

1/4 turn

LOCK

For FREE Filter Replacement

Reminder, go to

www.protectplus.com

System Filter Model Numbers

USS-301 Redi-Twist™

Drinking Water Filtration System USF-201 - Level 1 ﬁlter (included with system)

USF-202 - Level 2 ﬁlter (not available in CA)

Part Number Description

BRTAS-300 Mounting Screws (Package of 2)

BRTAA-600 Dual Port Kitchen Faucet Adapter

BRTAT-500 3/8" Plastic Tubing

BRTAH-100 Redi-Twist™ System Head

Replacement Parts

BRTAF-102 Filtered Water Faucet - Chrome

USF-202Y - Level 2 ﬁlter (CA Residents Only)

Replace ﬁlters every six months or sooner.

PERFORMANCE

Filter Life

USF - 201

CARTRIDGE

USF - 202

CARTRIDGE

USF - 201

CARTRIDGE

USF - 202

CARTRIDGE

2,000 gal / 6 mos. 1,000 gal / 6 mos.1,000 gal / 6 mos.500 gal / 6 mos.

Chlorine, Taste, Odor 

Particulate III

Atrazine

Lindane

Cysts



BRITA

Redi-Twist™

Performance

Comparison

with and without

Auxiliary Faucet

Flow Rate (gal. per min.) 0.5 gpm 0.5 gpm 1.8 gpm 1.1 gpm

Certiﬁed Claims to

Auxiliary Faucet



Certiﬁed Claims to

Auxiliary Faucet Manufacturer's Claims to

Kitchen Faucet Manufacturer's Claims to

Kitchen Faucet

Particulate I  

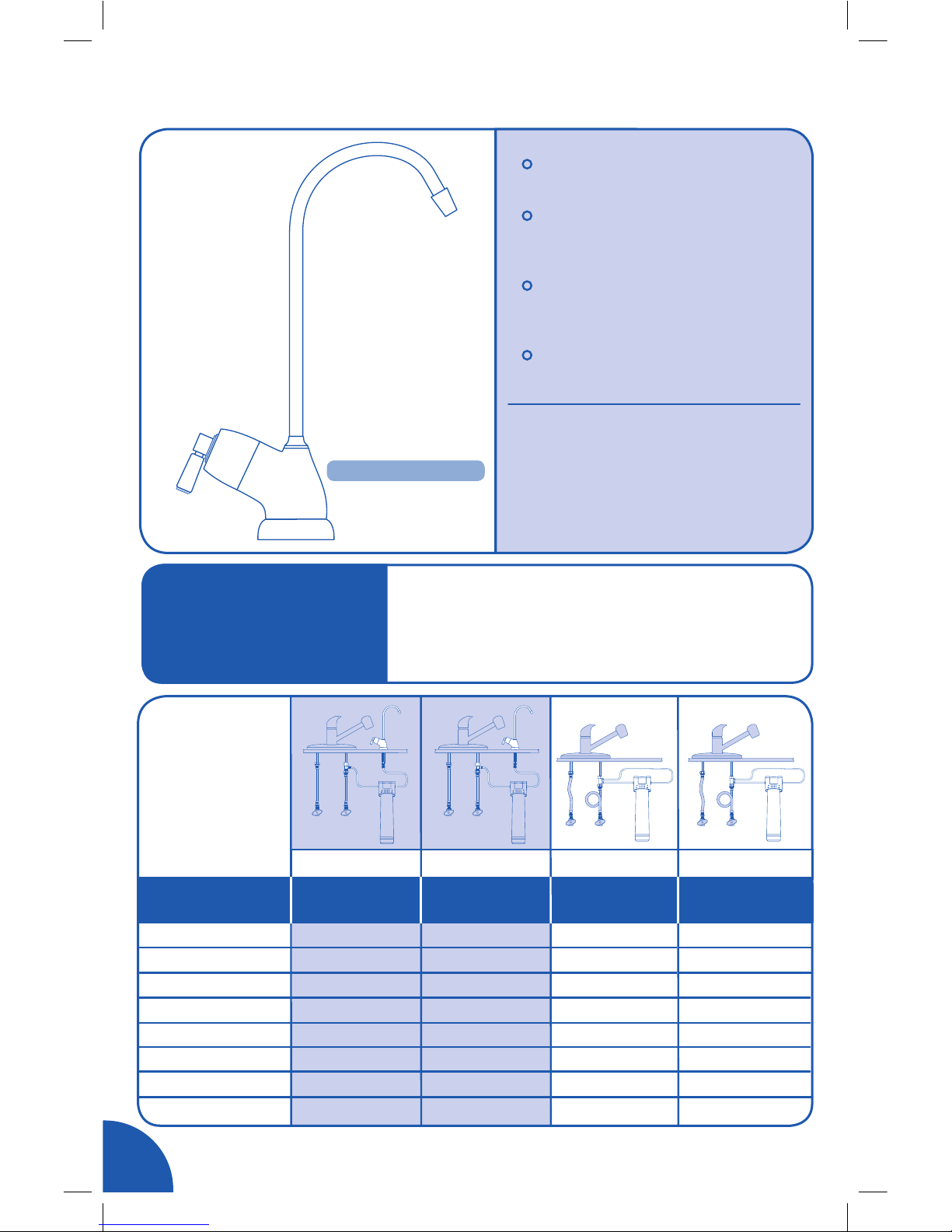

The Beneﬁts of Using an Auxiliary Faucet

with your BRITARedi-Twist™System

MODEL # BRTAF-102 Chrome

Instructions and hardware

included.

Only ﬁlters the water you want to ﬁlter.

Optimizes ﬁlter life by only ﬁltering

water for drinking and cooking.

Improves ﬁlter performance depending

upon the ﬁlter you use.

See enclosed Performance Data Sheet

for claims.

The Redi-Twist™ Filtration System is one of

the few undersink ﬁltration systems on the market

today that gives users the option to connect

their system directly to their kitchen faucet or an

auxiliary faucet. Both methods oer beneﬁts to the

end user.

$10

OFF RETAIL

Auxiliary Faucet Purchase

Call 828.449.1040

or visit us at www.protectplus.com

USE PROMO CODE BRT882

OFFER VALID THROUGH DECEMBER 31ST 2013 THROUGH WEBSITE

Table des matières

Langues :

Autres manuels Brita Système de filtration d'eau

Brita

Brita PURITYHEADPLV Manuel utilisateur

Brita

Brita On Line Active Manuel utilisateur

Brita

Brita Active Manuel utilisateur

Brita

Brita RI9113/36 Manuel utilisateur

Brita

Brita WHS-201 Manuel utilisateur

Brita

Brita RF-103 Manuel utilisateur

Brita

Brita C150 DIRECT FINEST Manuel utilisateur

Brita

Brita MAXTRA PRO Manuel utilisateur

Brita

Brita C150 FINEST Manuel utilisateur

Brita

Brita PURITY 1200 Clean Extra Manuel utilisateur

Brita

Brita PURITY 450 Steam Manuel utilisateur

Brita

Brita Redi-Twist USS-334 Manuel utilisateur

Brita

Brita LONGLAST Manuel utilisateur

Brita

Brita SHS-102 Manuel utilisateur

Brita

Brita Redi-Twist USS-334 Manuel utilisateur

Brita

Brita PURITY Finest 600 Mode d’emploi

Brita

Brita PROGUARD Gastronomy 200 Manuel utilisateur

Brita

Brita On Tap 1046183 Manuel utilisateur

Brita

Brita MAXTRA PRO Manuel utilisateur

Brita

Brita Purity C Series Manuel utilisateur

Brita

Brita PROGUARD Coffee Manuel utilisateur

Brita

Brita PROGUARD Coffee Manuel utilisateur

Brita

Brita FF-100 Manuel utilisateur

Brita

Brita mypure P1 Manuel utilisateur

Manuels Système de filtration d'eau populaires d'autres marques

Wisy

Wisy LineAir 100 Manuel utilisateur

Schaffner

Schaffner Ecosine FN3446 Series Manuel d'utilisation

Pentair

Pentair FLECK 4600 SXT Guide de l'utilisateur

H2O International

H2O International H20-500 Manuel utilisateur

Renkforce

Renkforce 2306241 Manuel utilisateur

Neo-Pure

Neo-Pure TL3-A502 Manuel utilisateur

FLTR

FLTR OBF Manuel utilisateur

STA-RITE

STA-RITE VERTICAL GRID DE FILTERS S7D75 Manuel utilisateur

Applied Membranes

Applied Membranes W-G844EM Manuel utilisateur

BEGA

BEGA 116 Manuel utilisateur

WATA

WATA Standard Manuel utilisateur

Price

Price FFU series Manuel

Gaggenau

Gaggenau BRITA INTENZA 467873 Manuel utilisateur

HEISSNER

HEISSNER FPU24000-00 Manuel utilisateur

BGS technic

BGS technic 1518 Manuel utilisateur

Reverse Osmosis

Reverse Osmosis RF Series Manuel utilisateur

ubbink

ubbink Filtramax Series Manuel utilisateur

Renfert

Renfert 2940-0000 Manuel utilisateur
