Briggs & Stratton 20272 Guide de configuration

Model No. 020272 (2200 PSI (151.7 BARS) Pressure Washer) Manual No. 206227B Revision - (03/10/2008)

BRIGGS & STRATTON POWER PRODUCTS GROUP, LLC

JEFFERSON, WISCONSIN, U.S.A.

Questions? Help is just a moment away!

Call: Pressure Washer Helpline

1-800-743-4115 M-F 8-5 CT

Illustrated Parts List

2BRIGGSandSTRATTON.COM

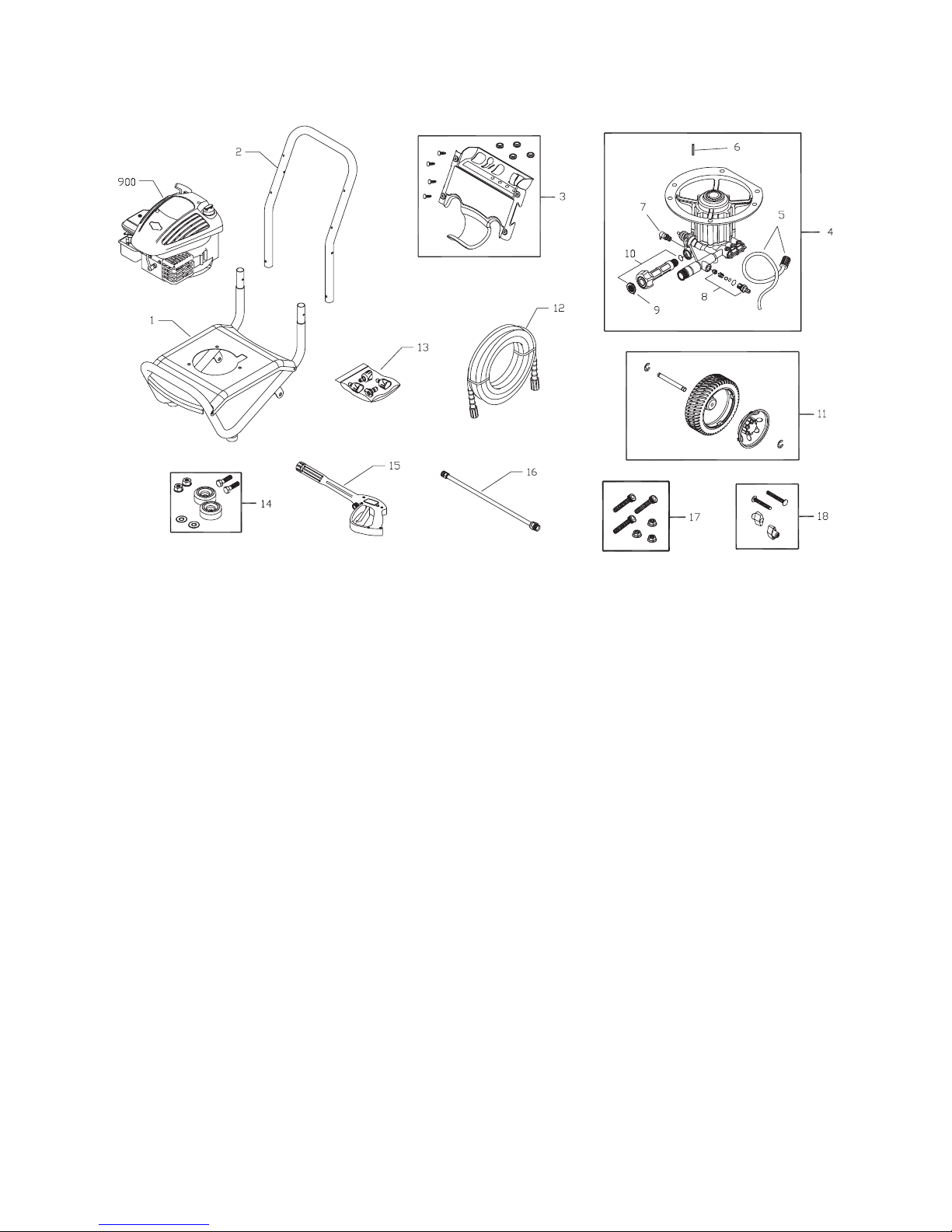

Exploded View and Parts list — Main Unit

Item Part # Description

1 202791GS BASE, w/Mounts

2 Y199110GS HANDLE

3 202792GS KIT, Billboard Assy w/Decal & Clips

195964GS Clips, Tree

30809GS Grommet

4 206383GS ASSY, Pump

5 189971GS Kit, Chemical Hose

6 23139GS Key

7 194298GS Valve, Thermal Relief

8 200279GS Kit, Chemical Injection

9 B2384GS Filter, Inlet

10 200278GS Kit, Water Inlet

11 202483GS KIT, Wheel

203872GS Axle

200520GS Cap, Hub

192050GS E-Ring

12 202017GS HOSE

13 202181GS KIT, Nozzles

198841GS Nozzle, Soap

201580AEGS Nozzle, QC, Project Pro, Red

201580XGS Nozzle, QC, Project Pro, Orange

201580RGS Nozzle, QC, Project Pro, Yellow

Item Part # Description

14 192310GS KIT, Vibration Mount

15 204627GS GUN

16 200595GS EXTENSION, QC

17 192649GS KIT, Pump Mounting Hardware

18 B2203GS KIT, Handle Connector

900 § ENGINE

Items Not Illustrated:

206227GS MANUAL, Operator’s

194256GS KIT, Tag/Warning Service

BB3061BGS OIL BOTTLE

793973 ASSY, Shroud/Label

794693 LABEL, Warning

202442GS DECAL, Shroud

87815GS GOGGLES

Optional Accessories

6048 KIT, O-Ring Maintenance

6039 PUMP SAVER

§ - Contact Engine Manufacturer

Copyright © 2008 Briggs & Stratton Power Products Group, LLC. All rights reserved. No part of this material may be

reproduced or transmitted in any form by any means without the express written permission of Briggs & Stratton Power

Products Group, LLC.
