Briggs & Stratton 20223 Guide de configuration

Model No. 020223 (2400 PSI (165 BARS) Pressure Washer) Manual No. 203761A Revision - (06/26/2007)

BRIGGS & STRATTON POWER PRODUCTS GROUP, LLC

JEFFERSON, WISCONSIN, U.S.A.

Questions? Help is just a moment away!

Call: Pressure Washer Helpline

1-800-743-4115 M-F 8-5 CT

Illustrated Parts List

2BRIGGSandSTRATTON.COM

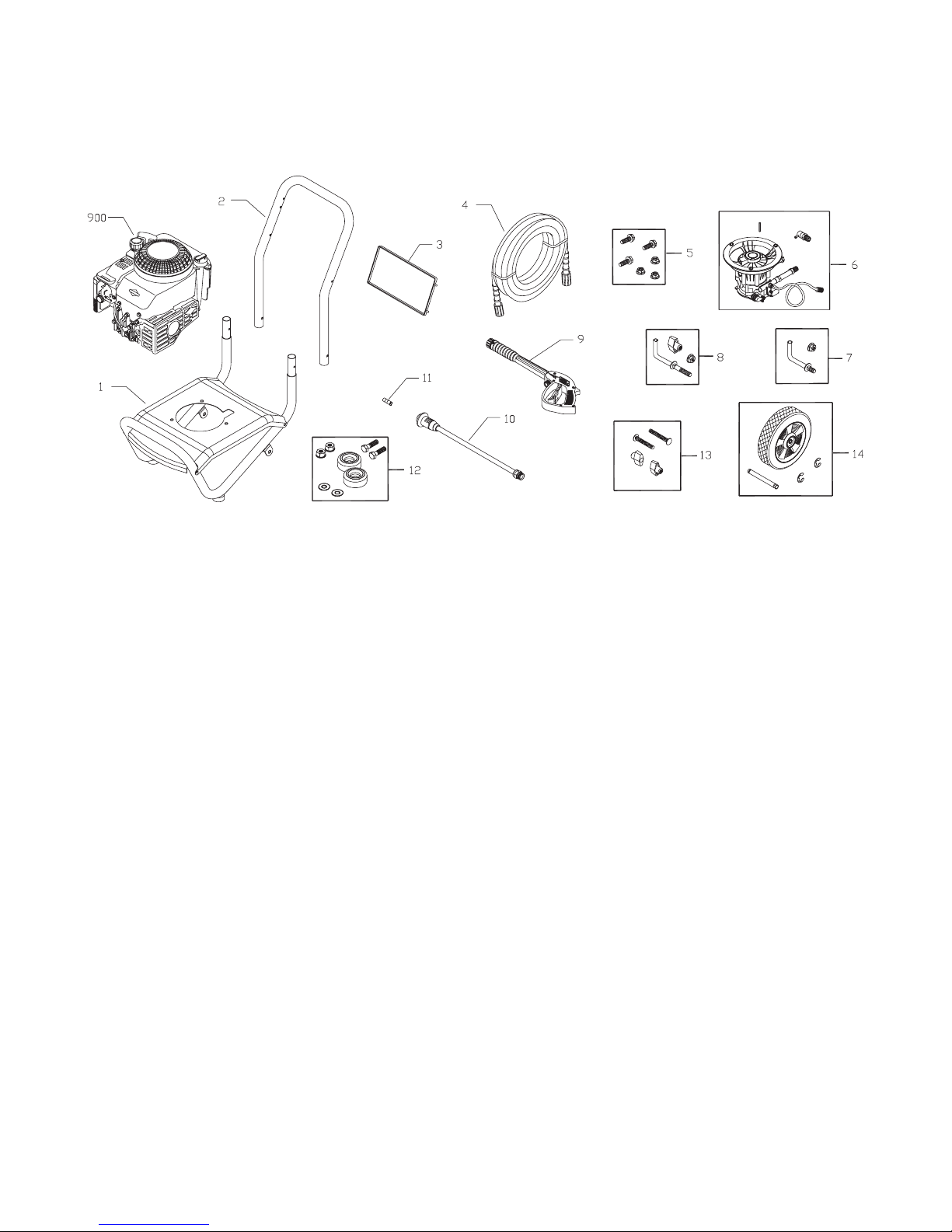

Exploded View and Parts List — Main Unit

Item Part # Description

1 195339GS BASE

2 B194718GS HANDLE

3 195052GS ASSY, Billboard w/Decal

4 196006GS HOSE

5 192529GS KIT, Pump Mounting Hardware

6 199735GS ASSY, Pump

194298GS Valve, Thermal Relief

23139GS Key

7 192309GS KIT, Hook, Base

8 194264GS KIT, Hook, Handle

9 193482GS GUN

10 188792HGS WAND, Adjustable Nozzle

11 21760GS ORIFICE

12 192310GS KIT, Vibration Mount

13 B2203GS KIT, Handle Connector

14 194255GS KIT, Wheel

192006GS Axle

192050GS E-Ring

900 § ENGINE

Items Not Illustrated:

203761GS MANUAL, Operator’s

MS6847 MANUAL, Engine

95456GS QUICK CONNECT, Male

96016GS QUICK CONNECT, Female

195347GS KIT, Tag, Warning with Clip

192014GS FITTING, Hose, 1/2

192015GS FITTING, Hose, 3/4

6048 KIT, O-Ring Maintenance

Optional Accessories

6039 PUMP SAVER

§ - Contact Engine Manufacturer

reproduced or transmitted in any form by any means without the express written permission of Briggs & Stratton Power

Products Group, LLC.

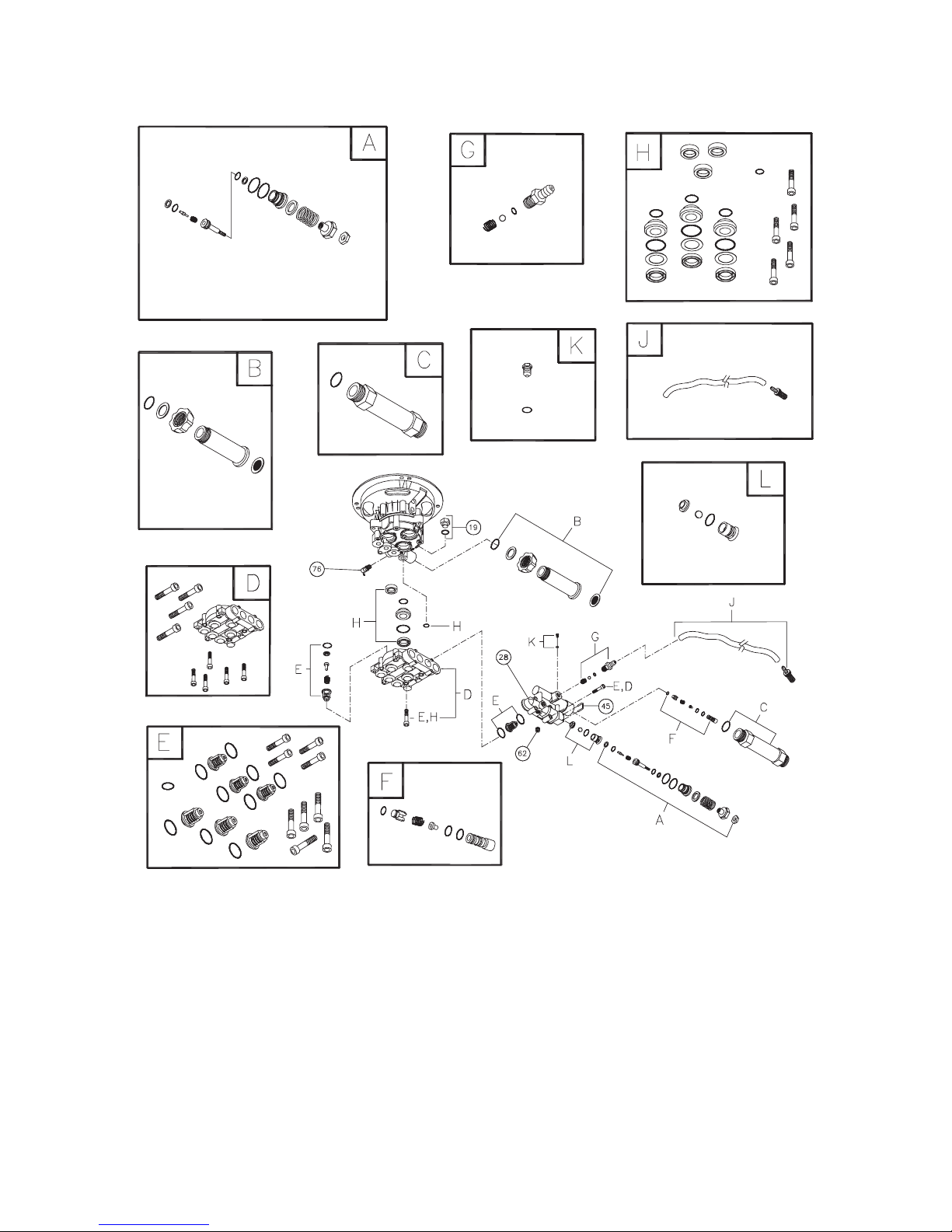

Exploded View and Parts List — Pump

Item Part # Description

19 190571GS CAP, Oil

28 190627GS MANIFOLD

45 190578GS PIN

62 190581GS CAP, 1/8

76 194298GS THERMO RELIEF

A 190594GS KIT, UNLOADER STEM

B 190632GS KIT, WATER INLET, ALUM

C 190634GS KIT, OUTLET, ALUM

D 199708GS KIT, HEAD ALUM

E 193806GS KIT, CHECK VALVES

F 190592GS KIT, INLET CHECK

Item Part # Description

G 190593GS KIT, CHEMICAL INJECTION

H 193807GS KIT, SEAL SET

J 189971GS KIT, CHEMICAL HOSE

K 193971GS KIT, PIPE FITTING

L 193972GS KIT, UNLOADER SEAT

Parts Not Illustrated

B2384GS FILTER, Inlet

NOTE: Item letters A - L are service kits and include all parts

shown within the box.
