Briggs & Stratton 20363 Guide de configuration

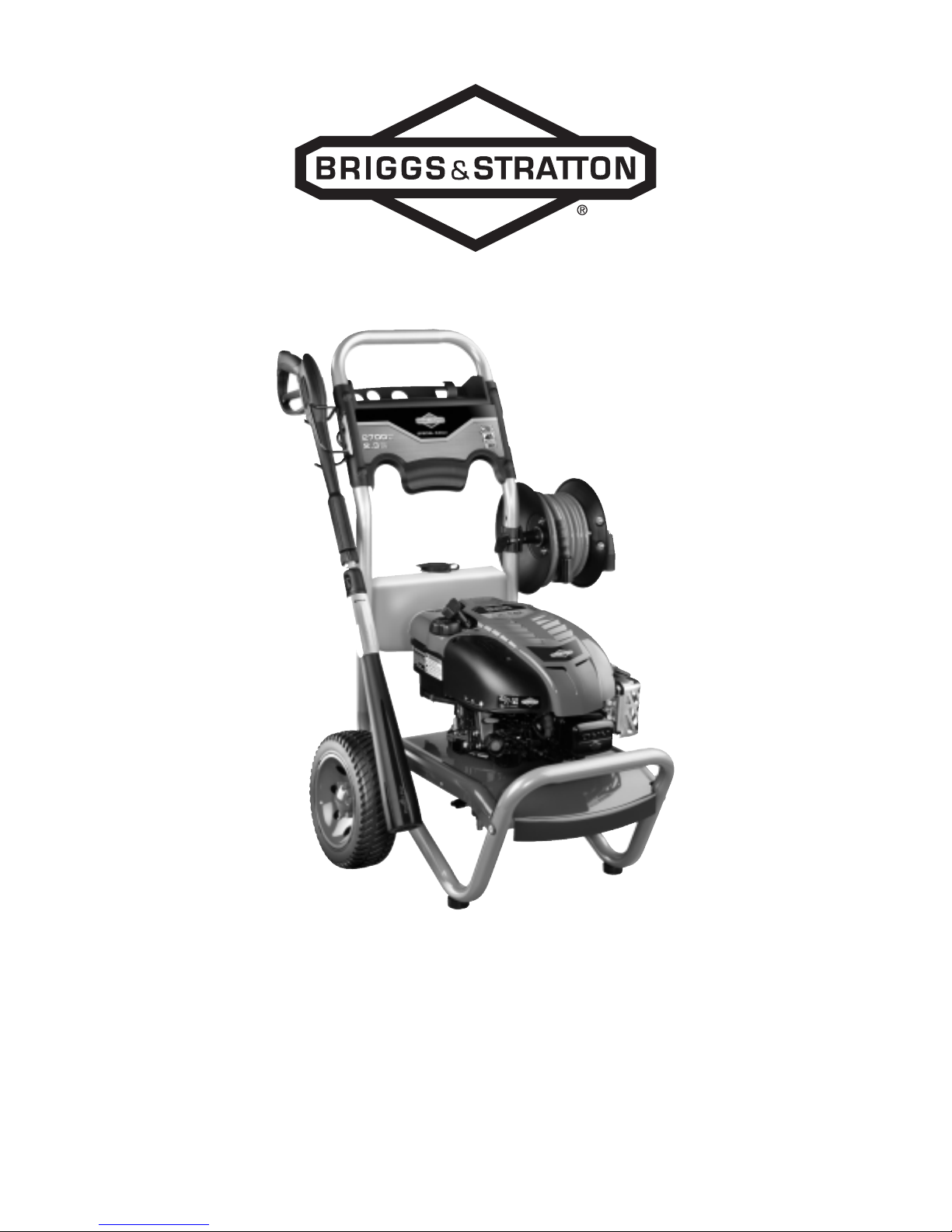

Model No. 020363 (2700 PSI (186.1 BARS) Pressure Washer) Manual No. 205770A Revision - (04/09/2008)

BRIGGS & STRATTON POWER PRODUCTS GROUP, LLC

JEFFERSON, WISCONSIN, U.S.A.

Questions? Help is just a moment away!

Call: Pressure Washer Helpline

1-800-743-4115 M-F 8-5 CT

Illustrated Parts List

This pressure washer is rated in accordance to the Pressure Washer Manufacture Association

(PWMA) standard PW101 (Testing and Rating Performance of Pressure Washers).

2BRIGGSandSTRATTON.COM

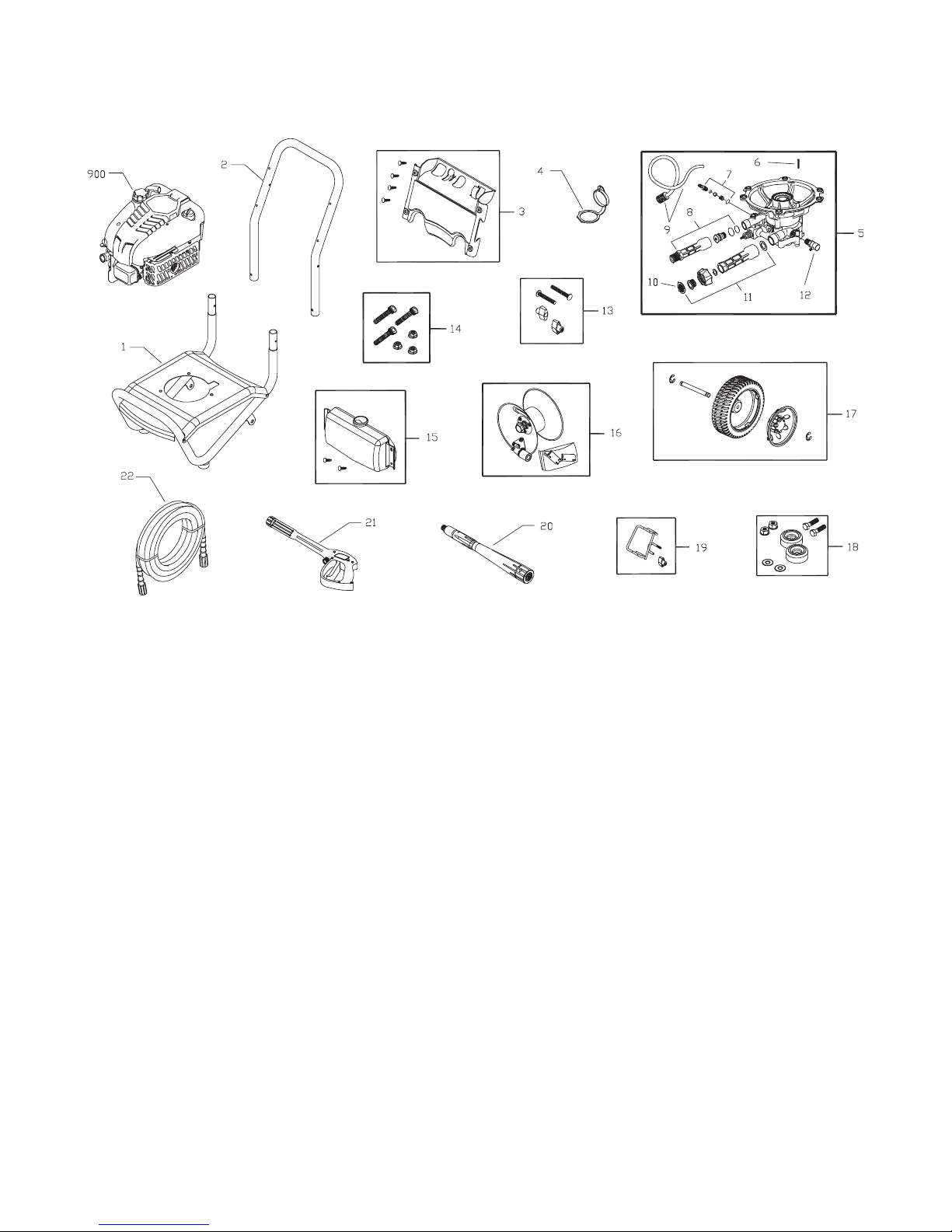

Exploded View and Parts List — Main Unit

Item Part # Description

1 202791GS BASE, w/Mounts

2 Y199110GS HANDLE

3 206974GS ASSY, Billboard w/Decals & Clips

195964GS Clip

4 B3222EGS CAP, Chemical Tank

5 205816GS ASSY, Pump

6 23139GS Key

7 190593GS Kit, Chemical Injection

8 206375GS Kit, Water Outlet

9 189971GS KIT, Chemical Hose/Filter

10 B2384GS Filter, Inlet

11 206374GS Kit, Water Inlet

12 194298GS Valve, Thermal Relief

13 B2203GS KIT, Handle Connector

14 203526GS KIT, Pump Mounting Hardware

15 205369GS KIT, Tank, Chemical w/Clips

192980GS Valve

16 192648GS ASSY, Hose Reel

17 202483GS KIT, Wheel

201313GS Axle

200520GS Hubcap

192050GS E-Ring

18 192310GS KIT, Vibration Mount

Item Part # Description

19 201661GS KIT, Gun Weldment

20 201202GS ASSY, Selection Wand

21 204627GS GUN

22 202017GS HOSE

900 § ENGINE

Items Not Illustrated

205770GS MANUAL, Operator’s

BB3061BGS OIL BOTTLE

87815GS GOGGLES

794693 DECAL, Warning

205793GS COVER, Static

202712GS DECAL, Recoil

205795GS LABEL

194256GS KIT, Tag Warning

Optional Accessories

6048 KIT, O-Ring Maintenance

6039 PUMP SAVER

§ - Contact Engine Manufacturer

Copyright © 2008 Briggs & Stratton Power Products Group, LLC. All rights reserved. No part of this material may be

reproduced or transmitted in any form by any means without the express written permission of Briggs & Stratton Power

Products Group, LLC.
