BREIL CHRONO 251.471 Manuel utilisateur
Instruction book pag. 1 • Mode d'emploi pag. 11
Gebrauchsanleitung pag. 21 • Manuale di funzionamento pag. 31
Manual de instrucciones pag. 41
CHRONO
251.471
ETA 251-471_COP 26-09-2003 15:18 Pagina 3
12
3
9
6
40 20
60
20 10
30
22
(1) (2) (3)
ETA 251-471_COP 26-09-2003 15:18 Pagina 1

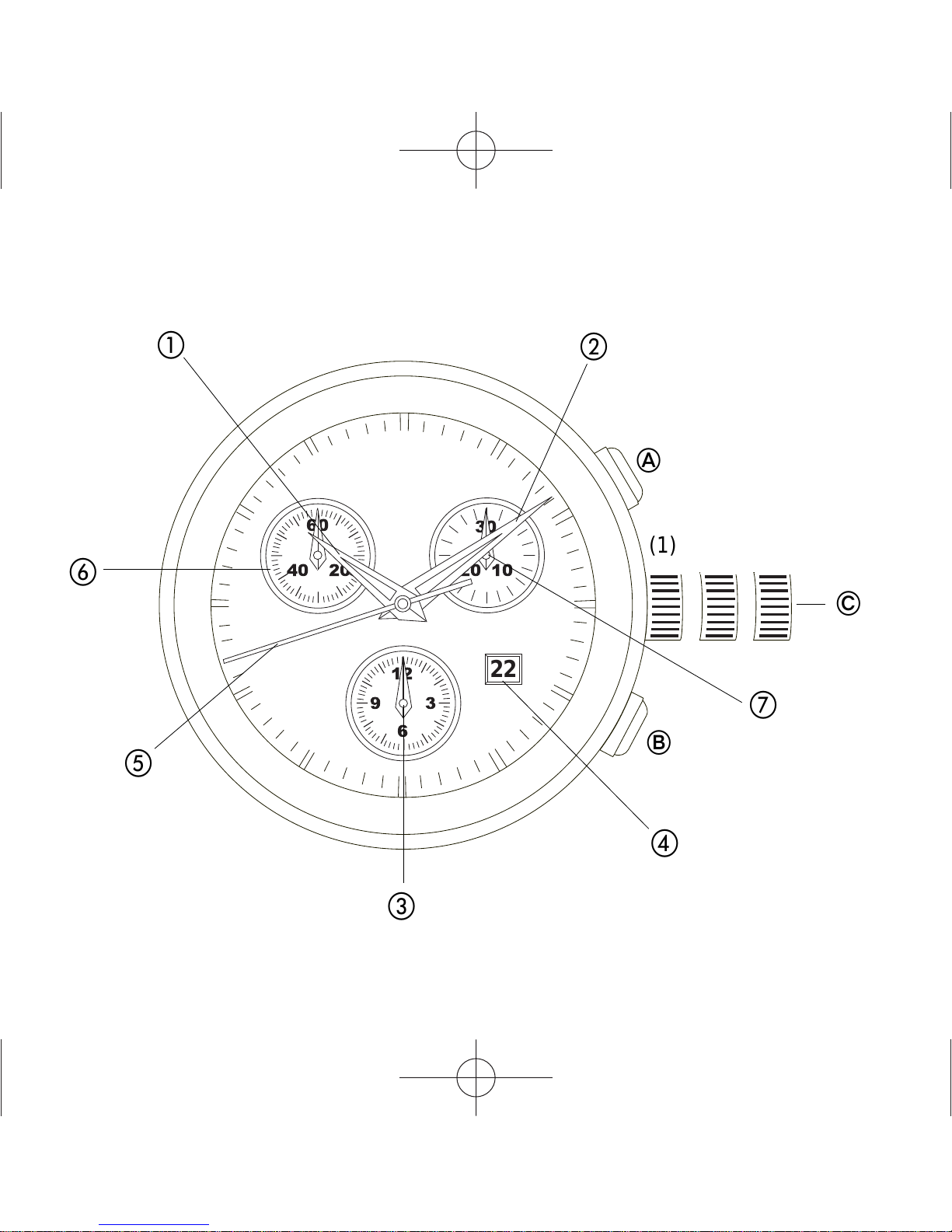

When reading this instruction booklet, keep the watch diagram on the left
unfolded and in full view. The symbols (A, B, etc.) on the diagram are
those referred to in the section describing the operating instructions.
Pendant la lecture de ce mode d'emploi, gardez le schéma d'illustration
de la montre ci-contre ouvert et bien en vue. Les symboles (A, B, etc.)
utilisés dans les différents chapitres du mode d'emploi correspondent à
ceux indiqués sur ce schéma.
Zur Lektüre dieser Gebrauchsanleitung sollten Sie die nebenstehend
gezeigte Übersichtsdarstellung der Uhr ausklappen und im Blick
behalten. Die in den einzelnen Abschnitten der Gebrauchsanleitung
verwendeten Zeichen (A, B, usw.) entsprechen den Kennzeichnungen in
dieser Übersicht.
Durante la lettura di questo manuale di istruzioni, tenere lo schema
illustrativo dell’orologio a sinistra aperto e in vista. I simboli (A, B, ecc.)
usati nelle sezioni delle istruzioni sul funzionamento corrispondono a
quelli indicati in questo schema.
Mientras lee este manual de instrucciones, mantenga el esquema
ilustrativo del reloj aquí presentado al lado izquierdo, abierto y bien
visible. Los símbolos (A, B, etc.) utilizados en las secciones de
instrucciones sobre el funcionamiento, corresponden a los que se
utilizan en este esquema.
ETA 251-471_COP 26-09-2003 15:18 Pagina 2
Thank you very much for purchasing a BREIL WATCH. To ensure its correct use, please
read these instructions carefully.
In order to be able to make full use of the guarantee service (subject to the guarantee
terms), please ensure that the Breil international guarantee card is supplied with the
watch at the time of purchase.
Nous vous remercions de la préférence que vous nous avez accordée en achetant une
montre BREIL. En vue d'une utilisation correcte de celle-ci, lire attentivement les
instructions contenues dans ce livret.
Lors de l'achat, contrôlez que la montre soit accompagnée de la garantie qui devra être
présentée pour obtenir les prestations qui y sont décrites.
Wir danken Ihnen für das Vertrauen, daß Sie uns mit dem Kauf einer BREIL Uhr
erwiesen haben. Damit Sie Ihre Uhr immer einwandfrei gebrauchen können, möchten wir
Sie bitten, die in dieser Gebrauchsanleitung enthaltenen Anweisungen gewissenhaft zu
lesen.
Beim Kauf sollten Sie kontrollieren, ob Ihnen zusammen mit der Uhr auch die
Garantiekarte ausgehändigt wurde, denn diese Karte müssen Sie vorlegen, um die darin
genannten Leistungen in Anspruch nehmen zu können.
Vi ringraziamo per la preferenza accordataci con l’acquisto di un orologio BREIL.
Per un corretto uso dello stesso, Vi preghiamo leggere attentamente le istruzioni
contenute in questo libretto.
Al momento dell’acquisto controllate che insieme all’orologio Vi venga fornita anche la
garanzia, da presentare per ottenere le prestazioni in essa descritte.
Le agradecemos su preferencia por un reloj BREIL. Para poder utilizar correctamente el
reloj, le rogamos leer atentamente las instrucciones contenidas en este folleto.
Al comprarlo, controle que junto al reloj le sea entregada la garantía que debe ser
presentada para obtener los servicios que en la misma se describen.
ETA 251-471_COP 26-09-2003 15:18 Pagina 4
INDEX
MAIN COMPONENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
SETTING THE TIME AND DATE . . . . . . . . . . . . . . . . . . . . . . . . . .3
CHRONOGRAPH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
CHRONOGRAPH RESET . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
PRECAUTIONS AND USEFUL INFORMATION . . . . . . . . . . . . . . .6
TECHNICAL DATA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
A
B
C
D
E
F
GB
1035_GB new 26-09-2003 15:19 Pagina 1
2
MAIN COMPONENTS
Hour hand Button
Minute hand Button
Continuous second hand Crown
Date
Chronograph hour hand
Chronograph minute hand
Chronograph second hand
<Caratteristiche>
• Analogue quartz watch 251.471.
• Date.
• Chronograph: measures minutes, seconds, tenths of seconds; split times.
• Battery duration: about 3 years.
A
1035_GB new 26-09-2003 15:19 Pagina 2
SETTING THE TIME AND DATE
• Pull the crown all the way out (3).
• Turn the crown clockwise to set the desired time.
• Push the crown back into position (2).
• Turn the crown clockwise to set the desired date : the date is set automatically
every time the hour hand passes the midnight.
• Push the crown back into position (1) and close it by applying a light pressure on
the case.
Note:
Do not set the date between 9.00 p.m. and 3.00 a.m. to avoid damaging the
mechanism.
For an optimum accuracy, mechanical watches must be recharged every day and worn
in the correct way, i.e. making sure that they fit the wrist snugly.
B
3
1035_GB new 26-09-2003 15:19 Pagina 3
4
CHRONOGRAPH
• Press to start the chronograph.
• Press to stop the chronograph measurement.
• Press to reset the chronograph.
To use the chronograph in sequence without including the intervals between the events,
adding the times together:
• Press to start the chronograph.
• Press once more to stop the chronograph and register the measurement.
• Proceed in the same way for all subsequent measurements.
• When finished, the chronograph will display the total time for all events (without the
interruptions between them) and the individual times measured.
• Press to reset the chronograph.
To measure the times of a single event and simultaneously display intermediate times:
• Press to start the chronograph.
• Press to measure the first intermediate time. The chronograph continues the
measurement even during the display of intermediate times.
• Press once more. The chronograph hands will recover the lost time and continue
the measurements from the beginning of the previous one.
• Repeat the operation to obtain the next intermediate times.
• Press to display the total time.
• Press B to reset the chronograph.
C
1035_GB new 26-09-2003 15:19 Pagina 4
D
5
CHRONOGRAPH RESET
Before resetting the counters, make sure that the chronograph measurement is disabled
and in Stop position.
• Place the crown in position (2) and press to reset the minutes counter.
• Place the crown in position (3) and press to reset the seconds counter.
• Place the crown in position (3) and press to reset the tenths of second counter.
1035_GB new 26-09-2003 15:19 Pagina 5
6
PRECAUTIONS AND USEFUL INFORMATION
E
- In order to prevent water coming into contact with the internal mechanism, never
pull the crown out when the watch is wet.
- If any watches designed for sportswear or use in water come into contact with salt
water or heavy sweating, they should be rinsed in fresh water and dried
thoroughly.
Indication Use
“WATER RESISTANT” may sometimes be abbreviated to “WATER RESIST”
A
B
C
D
E
Dial
-
WATER RESISTANT
30M (3ATM)
WATER RESISTANT
50M (5ATM)
WATER RESISTANT
100M (10ATM)
WATER RESISTANT
200M (20ATM) or more
Case
-
WATER RESISTANT
WATER RESISTANT
WATER RESISTANT
WATER RESISTANT
Spray, sweat, light
rain, washing, etc.
NO
YES
YES
YES
YES
Swimming,
etc.
NO
NO
YES
YES
YES
Degree of
water
resistance
