Installation

215-1497 Rev. F; ECN 07-814

Page 1 of 14 12/11/07

SS-2N/IR/STD

SS-2N/IR/WH

Express® Lavatory System SS-Series

Table of Contents

Pre-Installation Information . . . . . . . . . . . . . . . . .2

Components. . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Supplies Required . . . . . . . . . . . . . . . . . . . . . . . .4

Dimensions............................... 4–5

Rough-Ins ...................................6

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . .7–10

Solenoid Valve Troubleshooting . . . . . . . . . . . . .11

Vernatherm Mixing Valve Troubleshooting . . . . .12

Stop/Check Valve Troubleshooting. . . . . . . . . . .13

Cleaning and Maintenance for Terreon® . . . . . .13

Soap Dispenser Maintenance . . . . . . . . . . . . . .14

Express Lavatory Systems are ADA and TAS compliant

U.S. Pat. Nos. 5,611,093, D447,224

Other Patents Pending

SS-2N/IR/STD/LSD-2

SS-2N/IR/WH/LSD-2

•

SS-2N/IR/STD, SS-2N/IR/WH Installation

212/11/07 Bradley Corporation • 215-1497 Rev. F; ECN 07-814

IMPORTANT!

Read this entire installation manual to ensure proper installation. When ﬁnished with the

installation, ﬁle this manual with the owner or maintenance department. Compliance and

conformity to local codes and ordinances is the responsibility of the installer.

Separate parts from packaging and make sure all parts are accounted for before discarding

any packaging material. If any parts are missing, do not begin installation until you obtain the

missing parts.

Make sure that all water supply lines have been ﬂushed and then completely turned off

before beginning installation. Debris in supply lines can cause valves to malfunction.

Turn OFF electrical power to the electrical outlets, then unplug all electrical units prior to

installation. Electrical power MUST remain off until unit and optional water heater have

been plumbed. After installation is complete, turn on the water supply ﬁrst, then turn on the

electrical power.

Hardware supplied by installer must be appropriate for wall construction. Wall anchors must

have a minimum pull-out rating of 1,000 lbs. Follow appropriate dimensions for standard or

juvenile height based on conﬁguration and required rim height. Overtightening fasteners can

damage the Terreon®material. Use caution when tightening bowl and sprayhead fasteners.

Product warranties may be found in the “Products” section on our Web site at www.

bradleycorp.com.

Installation

THIS

SIDE

Packing List

•

Installation SS-2N/IR/STD, SS-2N/IR/WH

Bradley Corporation • 215-1497 Rev. F; ECN 07-814 12/11/07 3

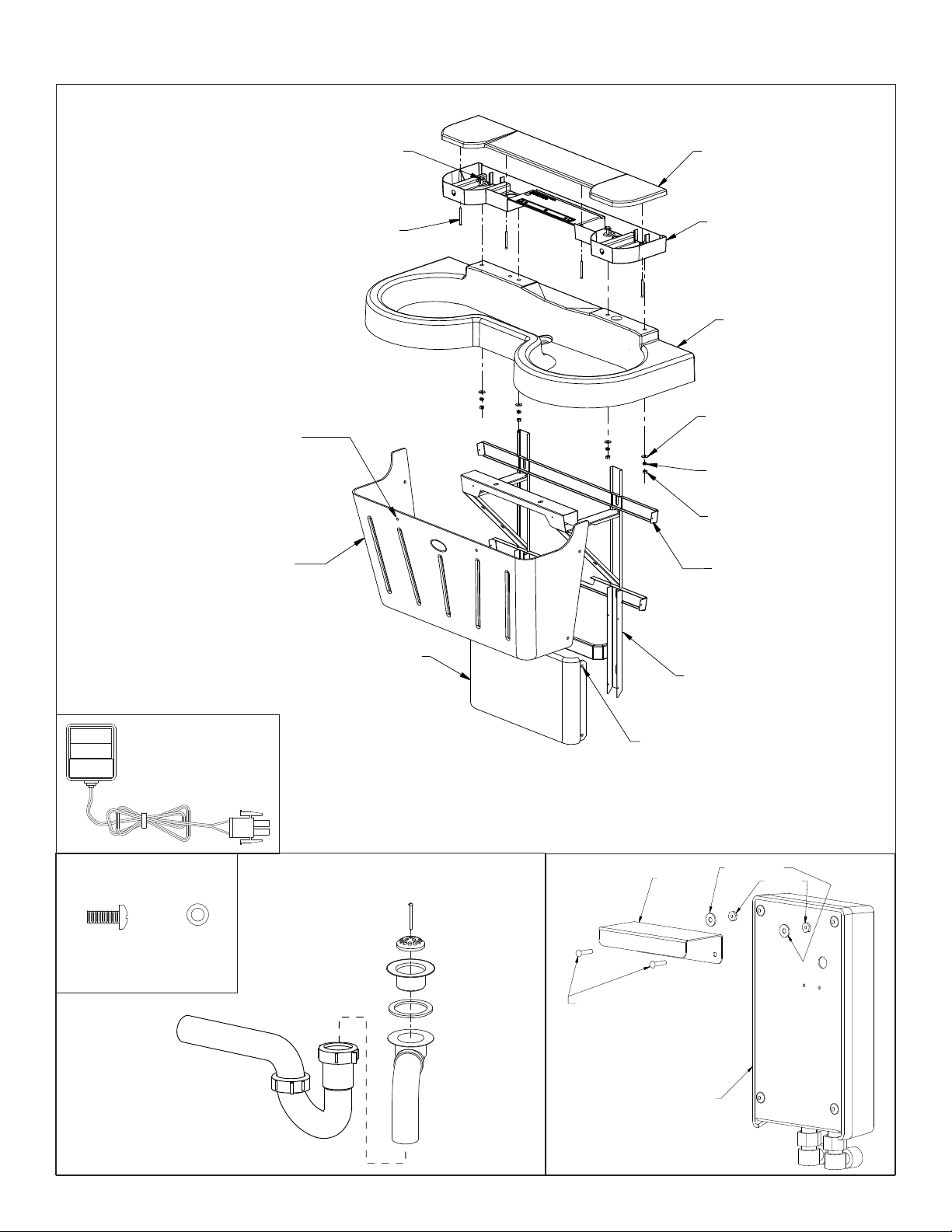

P-TRAP (POLYPROPYLENE)

(269-1697)

OPTIONAL P-TRAP

(CHROME-PLATED BRASS)

(S29-094)

#8-32 SCREW

(160-319)

STRAINER

(P16-075)

DRAIN PLUG

(P16-072)

1/8" RUBBER

WASHER

(125-001DP)

TAILPIECE

(129-056)

DRAIN

ASSEMBLY

BOLT 5/16-18

160-371

SCREW 10-24

160-386

WASHER

142-002BJ

LOCKWASHER

142-002BK

NUT 5/16-18

161-036

SCUFF BASE PANEL

GRAY (185-034)

PUTTY (185-034A)

COAL (185-034B)

SCUFF PANEL FASTENERS (160-450)

WASHERS (142-002CA)

(4) PLACES

SCUFF FRAME S17-326

USED WITH STANDARD

HEIGHT FRAME ONLY

MAIN FRAME

S17-325

PANEL

FASTENERS

(160-450)

WASHERS

(142-002CA)

(6) PLACES

ACCESS PANEL

GRAY (186-1455)

PUTTY (186-1455A)

COAL (186-1455B)

SPRAYHEAD COVER

(PART NUMBER VARIES WITH

COLOR OF UNIT. CONTACT

YOUR LOCAL BRADLEY REP.

FOR ASSISTANCE).

SPRAYHEAD BODY

(PART NUMBER VARIES WITH

COLOR OF UNIT. CONTACT

YOUR LOCAL BRADLEY REP.

FOR ASSISTANCE).

BOWL

(PART NUMBER VARIES

WITH COLOR OF UNIT.

CONTACT YOUR LOCAL

BRADLEY REP. FOR

ASSISTANCE).

Components

#8-32 x 3/4"

ROUND HEAD

MACHINE SCREW

(160-276)

BRACKET

(140-950)

#8 WASHER

OPTIONAL WATER HEATER

EX95TMLB, 240/208 volts

(269-1767)

EX100TMLB, 277 volts

(269-1768)

#8 NUT

110/24 VAC

CLASS II PLUG-IN

TRANSFORMER

S83-152

1/4"-20 x 1/2"

PAN HEAD

SCREW (qty. 2)

(160-389)

1/4"-20

WASHER

(qty. 2)

(142-002DB)

BOWL MOUNTING

HARDWARE

SS-2N/IR/STD, SS-2N/IR/WH Installation

412/11/07 Bradley Corporation • 215-1497 Rev. F; ECN 07-814

Supplies Required:

• (6) 3/8" wall anchors, bolts and 1" min. O.D. washers to mount main frame and bowl to wall (minimum pull-out rating of 1,000 lbs.)

• STD. HEIGHT ONLY: (2) 3/8" wall anchors, bolts and 1" min. O.D. washers to mount scuff base to wall

• 1/2" NPT hot/cold or tempered supply piping and 1-1/2" NPT drain piping

• (2) 1/2" NPT street elbows

• 110 volt GFCI protected electrical outlet for 1110/24 VAC plug-in transformer (supplied)

• OPTIONAL: 240/208-volt or 277-volt electrical box for electric tankless water heater

Dimensions - Front and Top Views

15"

(381MM)

8-5/8"

(219mm)

(203mm)

RADIUS

50"

(1270mm)

38-1/4"

(972mm)

21-1/4"

(540mm)

30"

(762mm)

36"

(914mm)

(178mm)

10"

(254mm)

RADIUS

15"

(381MM)

Installation SS-2N/IR/STD, SS-2N/IR/WH

Bradley Corporation • 215-1497 Rev. F; ECN 07-814 12/11/07 5

Dimensions - Side Views

34"

(864mm)

30"

(762mm)

31"

(787mm)

10-1/4"

(260mm)

27"

686mm)

WALL-HUNG

MOUNTED AT

JUVENILE HEIGHT

AGES 6 THROUGH 12

WALL-HUNG

MOUNTED AT

STANDARD HEIGHT

32"

(813mm)

11-1/4"

(286mm)

28"

(711mm)

WALL-HUNG

MOUNTED AT

TAS HEIGHT

GRADES PRE-K

THROUGH 5 OR 6

WALL-HUNG

MOUNTED AT

TAS HEIGHT

GRADES 6

THROUGH 8 OR 9

26"

(660mm)

9-1/4"

235mm)

30"

(762mm)

8-5/8"

(219mm)

13-1/4"

(337mm)

21-1/8"

(537mm)

3" (76mm)

11-1/2"

(292mm)

34"

(864mm)

30"

(762mm)

STANDARD HEIGHT

SCUFF BASE

STANDARD

HEIGHT ONLY

8-5/8"

(219mm)

13-1/4"

(337mm)

21-1/8"

(537mm)

11-1/2"

(292mm)

8-5/8"

(219mm)

21-1/8"

(537mm)

11-1/2"

(292mm)

8-5/8"

(219mm)

21-1/8"

(537mm)

11-1/2"

(292mm)

8-5/8"

(219mm)

21-1/8"

(537mm)

11-1/2"

(292mm)

38-1/2"

(978mm)

35-1/2"

(902mm)

34-1/2"

(876mm) 36-1/2"

(927mm)

38-1/2"

(978mm)

TAS TA S

SS-2N/IR/STD, SS-2N/IR/WH Installation

612/11/07 Bradley Corporation • 215-1497 Rev. F; ECN 07-814

1Rough-Ins

3-1/2"

(89mm)

20"

(508mm)

25-3/4"

(654mm)

32"

(813mm)

23-1/2"

(597mm)

9-3/8"

(238mm)

(102mm)

(76mm)

13-1/4"

(337mm)

15"

(381mm)

D1 D2

23-1/2"

(597mm)

9-3/8"

(238mm)

(102mm)

19"

(483mm)

FLOOR

2" (51mm)

13"

(330mm) 22"

(559mm)

28-3/4"

(730mm)

CODE DESCRIPTION QTY.

A 3/8" Wall Anchors with a minimum pull-out force of 1,000 lbs. for Bowl 2

B 3/8" Wall Anchors with a minimum pull-out force of 1,000 lbs. for Mainframe 4

C 3/8" Wall Anchors for Base Frame, Standard Frame option only, minimum pull-out force not required 2

D1 1/2" NPT Cold Supply, stub-out 2" from wall 1

D2 1/2" NPT Hot or Tempered Supply, stub-out 2" from wall 1

E 1-1/2" NPT Drain, stub-out 2" from wall 2

On the bowl back, measure the distance between the 3/4" bowl mounting holes. Divide this measurement

in half. Measure and mark this dimension on the wall to the left and the right of the centerline. Install two

3/8" wall anchors with a minimum pull-out rating of 1,000 lbs (supplied by installer) at locations marked.

GWater Heater Option #1: Rough-in appropriate electrical supply per local code (recommended location for

240/208v or 277v electrical box [4" long x 4" wide x 8" high] shown) 1

HWater Heater Option #2: Rough-in appropriate electrical supply per local code (recommended location for

240/208v or 277v electrical box [4" long x 4" wide x 4" high] shown) 1

J 110v GFI Protected Electrical Outlet 1

RIM HEIGHT VERTICAL HEIGHT ADJUSTMENTS FOR CODES

A–E, H, C and W FIXTURE STYLE

34" None Standard Height

34" None Wall-Hung

32" Subtract 2" TAS, Grades 6 through 8 or 9

31" Subtract 3" Juvenile Height

30" Subtract 4" TAS, Pre-K through Grades 5 or 6

Installation SS-2N/IR/STD, SS-2N/IR/WH

Bradley Corporation • 215-1497 Rev. F; ECN 07-814 12/11/07 7

SCUFF PANEL

STANDARD HEIGHT

FRAME ONLY

SCUFF BASE FRAME

STANDARD HEIGHT

FRAME ONLY

2Mount Frame to Wall

3Install Bowl

Anchoring the frame to a wall that is not

flat may cause the frame to bend, making

it difficult to reinstall the access panels. If

necessary, use shims to compensate for

wall distortion.

Once you have positioned the frame such that

it is level and flat against the wall or shimmed ,

mount the frame to the wall at four places using

3/8” bolts and 1” min. O.D. washers.

NOTE: When mounting the standard height frame,

mount the scuff base to the wall at the same time

using two additional 3/8” bolts and washers.

AUsing a T20 torx key, remove

the fasteners securing the

access panel to the main

frame, and remove the panel.

The sprayhead body has slotted holes for adjusting the fit-up with the bowl and wall.

The tailpiece on the waste tee has been rotated upward for shipping purposes. Turn

the tailpiece down to its proper position before installing the bowl.

Secure the bowl to the

wall anchors with 3/8”

bolts and 1” min. O.D.

washers, two places.

Do not overtighten.

Attach the bowl to the frame with

1/4”-20 x 1/2” pan-head screws

and washers. Do not tighten.

Tighten the pan-head screws

Do not overtighten.

SS-2N/IR/STD, SS-2N/IR/WH Installation

812/11/07 Bradley Corporation • 215-1497 Rev. F; ECN 07-814

4a Connect the Supply — Hot and Cold Supply

4b Connect the Supply — Single Tempered Supply

The letter “H” on the Vernatherm™ Mixing

Valve indicates hot water supply inlet.

Loosen but do not remove

the two mounting screws

holding the valve bracket

to the frame.

Slide the valve bracket up

and lift it from the frame.

Connect one end of each

hose to the Vernatherm™

valve (one on the hot side,

one on the cold side).

Connect the other swivel

end to the stop/check valves.

Using a thread sealer, thread

the stop/check valves onto the

hot and cold wall stub-outs.

Loosen but do not remove the two

mounting screws holding the valve

bracket to the frame.

Slide the valve bracket up and lift

it from the frame.

Connect one end of flexible hose

to the tempered line adapter.

Connect the other swivel end to

the stop/check valve.

Using a thread sealer,

thread the stop/check

valve onto the tempered

wall stub-out.

Installation SS-2N/IR/STD, SS-2N/IR/WH

Bradley Corporation • 215-1497 Rev. F; ECN 07-814 12/11/07 9

6Optional Electric Tankless Water Heater

5Install the Drain

240/208 or 277 voltage is required for hot water heater.

Refer to the installation manual provided with the hot

water heater for further installation information.

Connect the 1/2" flexible

hose from the cold water

supply stub-out to the hot

water heater inlet.

Connect the 1/2" flexible

hose from the hot water

heater outlet to the supply

inlet on the solenoid valve

assembly.

Hang the water heater

on the right side frame

member.

To Drain

Stub-Out

SS-2N/IR/STD, SS-2N/IR/WH Installation

10 12/11/07 Bradley Corporation • 215-1497 Rev. F; ECN 07-814

7Connect Electrical and Sprayhead Supplies

Sprayhead

Components

INFRARED SENSOR

269-1608HP

Snap the transformer's

circuit plug into the female

transformer circuit plug.

Connect the sensor circuit

plug from the sprayhead to

the solenoid circuit plug.

WARNING: The Express® control must be connected with the 24 VAC Class II transformer provided. Connections

to 110 VAC can cause personal injury and will result in damage to the electronics. Connection of leads other than

shown may cause permanent damage to the sensor.

Loosen the compression nuts.

Push the sprayhead supply tubes firmly into

the tube connectors until they are fully seated.

Tighten the compression nuts by hand.

Reinstall the valve bracket. Turn on the water supply and check for leaks. Turn on the electrical power to the electrical outlet

and pass your hand in front of each station’s sensor until all the air is purged from the lines and water is flowing smoothly.

Reinstall the access panel.

START-UP NOTE: Wait two full minutes after making the power connection before using the lav. The sensors will take up to eight

full minutes (while not in use) to adapt to the bowl if another object is detected during the two-minute start-up period.

Sensor assembly and solenoid valve access

• To access sensors: Remove the Phillips-head screws located in the bottom of the sprayhead body and lift the Terreon

cover/shelf off.

•To reinstall sprayhead cover/shelf: Position the cover/shelf on the sprayhead body and secure it to the sprayhead body

using the screws provided.

Window

(269-1241)

O-Ring

(125-157)

Aerator Assembly

(S05-180)

Nut, 1/2"-14 NSPM

(110-115)

Green Supply Tube

(from Sprayhead)

Red Supply Tube

(from Sprayhead)

Red Spade Terminal

Green Spade Terminal

White Spade Terminal

Autres manuels pour Express SS Series

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Bradley Appareil de salle de bains

Bradley

Bradley S19-125BF Manuel utilisateur

Bradley

Bradley WS-3WMT Manuel utilisateur

Bradley

Bradley 400 Series Manuel utilisateur

Bradley

Bradley HSR20 Manuel utilisateur

Bradley

Bradley LUCENT Series Manuel utilisateur

Bradley

Bradley 5600 Series Manuel utilisateur

Bradley

Bradley Bradmar 700 Series Manuel utilisateur

Bradley

Bradley s19314 series Manuel utilisateur

Bradley

Bradley HN-200 Manuel utilisateur

Bradley

Bradley S19274HWR Manuel utilisateur

Bradley

Bradley Bradmar 400 Series Manuel utilisateur

Bradley

Bradley s19314 series Manuel utilisateur

Bradley

Bradley S19-315FPBF Manuel utilisateur

Bradley

Bradley S19-110BF Manuel utilisateur

Bradley

Bradley Vernatherm S59-4004 Manuel utilisateur

Bradley

Bradley Verge LVA Series Manuel utilisateur

Bradley

Bradley OmniDeck 3000 Series Manuel utilisateur

Bradley

Bradley Terreon Classic WF2500 Series Manuel utilisateur

Bradley

Bradley Express SS Series Manuel utilisateur

Bradley

Bradley Express SS Series Manuel utilisateur

Bradley

Bradley SN2005/IR Manuel utilisateur

Bradley

Bradley CBSHWR9000 Manuel utilisateur

Bradley

Bradley MF2904/AST4 Manuel utilisateur

Bradley

Bradley Advocate AV Series Manuel utilisateur

Manuels Appareil de salle de bains populaires d'autres marques

DURAVIT

DURAVIT C.1 C15240 0090 Manuel

Heatstore

Heatstore HSTRL500WTN Manuel utilisateur

Sunshower

Sunshower PURE SOLO Manuel utilisateur

Delabie

Delabie Delabie Sporting 714700 Manuel utilisateur

Kohler

Kohler K-13056 Instructions de montage

ESS

ESS Container TCL-11 Manuel utilisateur

Mustee

Mustee 22C Manuel utilisateur

VITRA

VITRA V-Flow Manuel utilisateur

baliv

baliv DUK-80.30 T Manuel utilisateur

Malmet

Malmet B105BT Manuel utilisateur

bathstore

bathstore Transition H1690MM Mode d’emploi

BELLOSTA

BELLOSTA Edward 0800/M Manuel utilisateur

baliv

baliv DU-5160 Manuel utilisateur

Franke

Franke PRTR0006 Manuel utilisateur

Gessi

Gessi RILIEVO 59011 Manuel utilisateur

noken

noken VITAE 100188525-N299998810 Manuel utilisateur

Allen + Roth

Allen + Roth 1142VA-30-201 Manuel utilisateur

Britex

Britex HBDA Manuel utilisateur
