Express®Lavatory System SS-Series

Table of Contents

Pre-Installation Information .................2

Components.............................3

Supplies Required ........................4

Dimensions............................... 4–5

Rough-Ins ...................................6

Installation ...........................7–11

Solenoid Valve Troubleshooting .............12

Navigator®Mixing Valve Troubleshooting ......13

Stop Valve Troubleshooting ................14

Cleaning and Maintenance for Terreon®. . . . . . .14

Soap Dispenser Maintenance ..............15

Express Lavatory Systems are ADA and TAS compliant

U.S. Pat. Nos. 5,611,093, D447,224

Other Patents Pending

SS-2N/ndt/STD/LSD-2

SS-2N/ndt/WH/LSD-2

DISCONTINUED

SS-2N/ndt/STD, SS-2N/ndt/WH Installation

25/15/2018 Bradley • 215-1576 Rev. K; ECN 17-08-026

IMPORTANT!

Read this entire installation manual to ensure proper installation. When ﬁnished with the

installation, ﬁle this manual with the owner or maintenance department. Compliance and

conformity to local codes and ordinances is the responsibility of the installer.

Separate parts from packaging and make sure all parts are accounted for before discarding

any packaging material. If any parts are missing, do not begin installation until you obtain the

missing parts.

Make sure that all water supply lines have been ﬂushed and then completely turned off

before beginning installation. Debris in supply lines can cause valves to malfunction.

Turn OFF electrical power to the electrical outlets, then unplug all electrical units prior to

installation. Electrical power MUST remain off until unit and optional water heater have

been plumbed. After installation is complete, turn on the water supply ﬁrst, then turn on the

electrical power.

Hardware supplied by installer must be appropriate for wall construction. Wall anchors must

have a minimum pull-out rating of 1,000 lbs. Follow appropriate dimensions for standard or

juvenile height based on conﬁguration and required rim height. Overtightening fasteners can

damage the Terreon®material. Use caution when tightening bowl and sprayhead fasteners.

Product warranties may be found in the “Products” section on our Web site at www.

bradleycorp.com.

Installation

THIS

SIDE

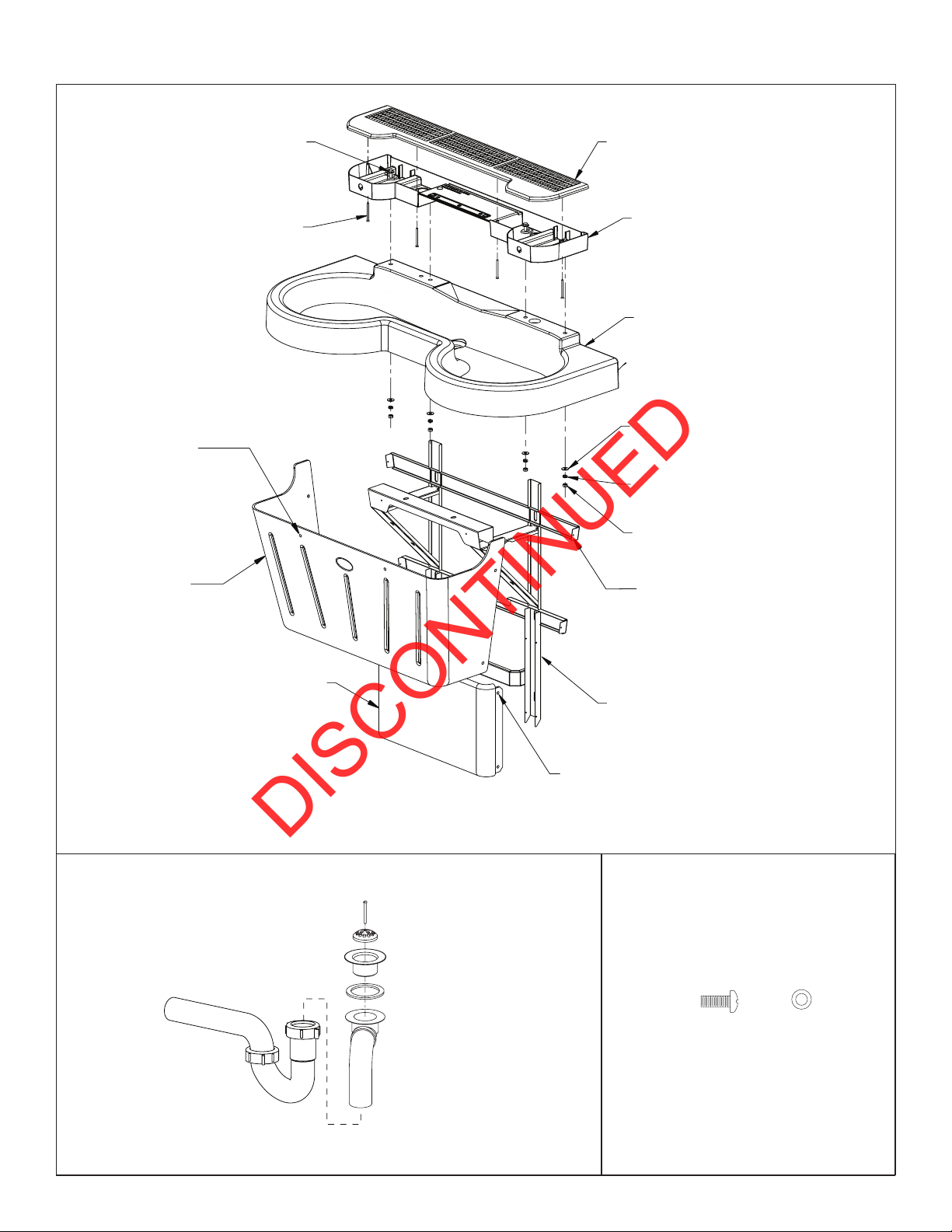

Packing List

•

DISCONTINUED

Installation SS-2N/ndt/STD, SS-2N/ndt/WH

Bradley • 215-1576 Rev. K; ECN 17-08-026 5/15/2018 3

P-TRAP (POLYPROPYLENE)

(269-1697)

OPTIONAL P-TRAP

(CHROME-PLATED BRASS)

(S29-094)

#8-32 SCREW

(160-319)

STRAINER

(P16-075)

DRAIN PLUG

(P16-072)

1/8" RUBBER

WASHER

(125-001DP)

TAILPIECE

(129-056)

DRAIN

ASSEMBLY

Components

1/4"-20 x 1/2"

PAN HEAD

SCREW (qty. 2)

(160-389)

1/4"-20

WASHER

(qty. 2)

(142-002DB)

BOWL MOUNTING

HARDWARE

BOLT 5/16-18

160-371

SCREW 10-24

160-386

WASHER

142-002BJ

LOCKWASHER

142-002BK

NUT 5/16-18

161-036

SCUFF BASE PANEL

GRAY (185-034)

PUTTY (185-034A)

COAL (185-034B)

SCUFF PANEL FASTENERS (160-450)

WASHERS (142-002CA)

(4) PLACES

SCUFF FRAME S17-326

USED WITH STANDARD

HEIGHT FRAME ONLY

MAIN FRAME

S17-325

PANEL

FASTENERS

(160-450)

WASHERS

(142-002CA)

(6) PLACES

ACCESS PANEL

GRAY (186-1455)

PUTTY (186-1455A)

COAL (186-1455B)

SPRAYHEAD COVER ndite

(PART NUMBER VARIES WITH

COLOR OF UNIT. CONTACT

YOUR LOCAL BRADLEY REP.

FOR ASSISTANCE).

SPRAYHEAD BODY

(PART NUMBER VARIES WITH

COLOR OF UNIT. CONTACT

YOUR LOCAL BRADLEY REP.

FOR ASSISTANCE).

BOWL

(PART NUMBER VARIES WITH

COLOR OF UNIT. CONTACT

YOUR LOCAL BRADLEY REP.

FOR ASSISTANCE).

DISCONTINUED

SS-2N/ndt/STD, SS-2N/ndt/WH Installation

45/15/2018 Bradley • 215-1576 Rev. K; ECN 17-08-026

Supplies Required:

• (8) ³⁄₈" wall anchors, bolts and 1" min. O.D. washers to mount main frame and bowl to wall (minimum pull-out rating of 1,000 lbs.)

• STD. HEIGHT ONLY: (2) ³⁄₈" wall anchors, bolts and 1" min. O.D. washers to mount scuff base to wall

• ½" nominal copper tubing for hot and cold supplies and 1½" NPT drain piping

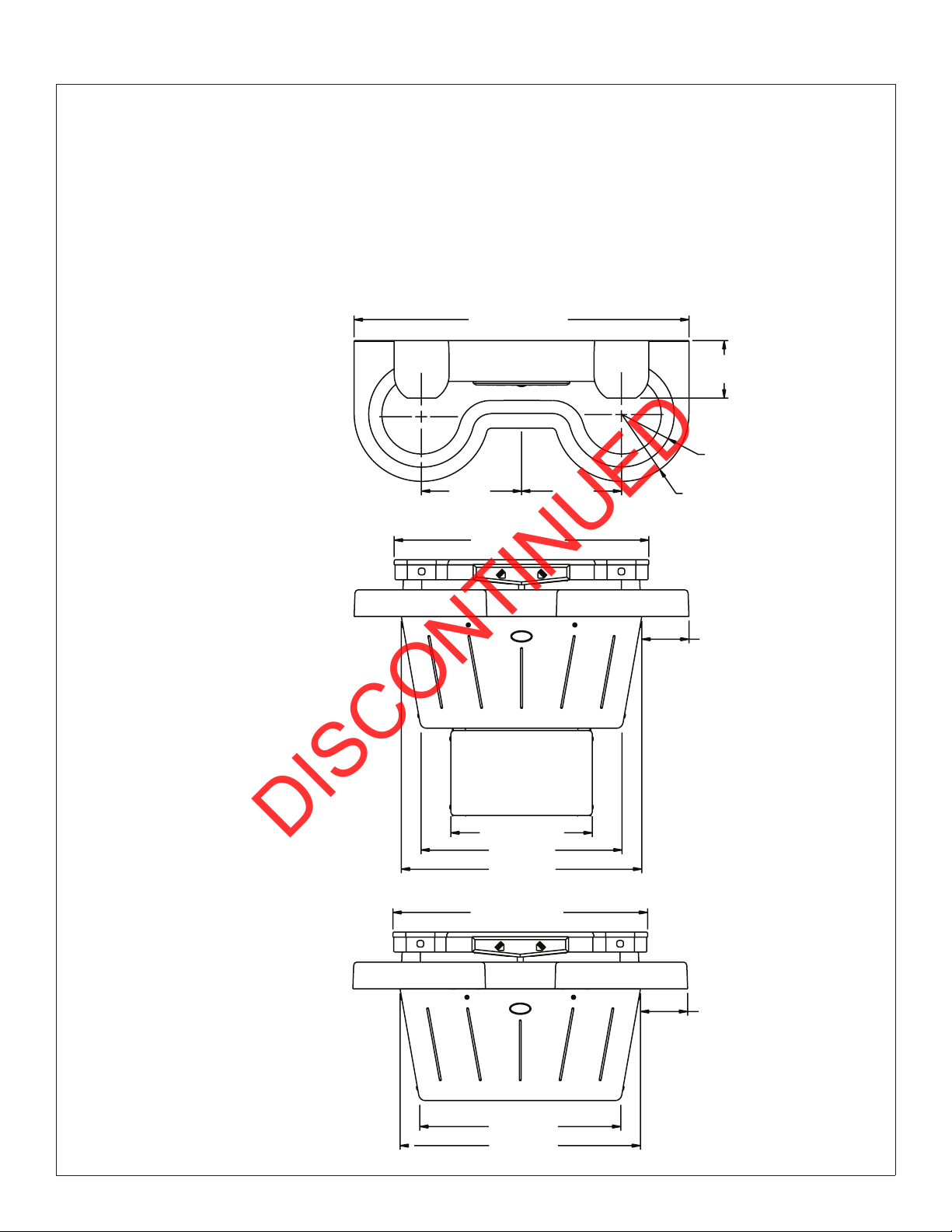

Dimensions - Front and Top Views

Top View

50" (1270mm)

Front View

Standard Frame

Front View

Wall-Hung Frame

5⁄8

" (219mm)

10" (254mm) Radius

8" (203mm) Radius

15"

(381mm)

15"

(381mm)

7" (178mm)

21¼" (540mm)

30" (762mm)

36" (914mm)

38¼" (972mm)

7" (178mm)

38¼" (972mm)

30" (762mm)

36" (914mm)

DISCONTINUED

Installation SS-2N/ndt/STD, SS-2N/ndt/WH

Bradley • 215-1576 Rev. K; ECN 17-08-026 5/15/2018 5

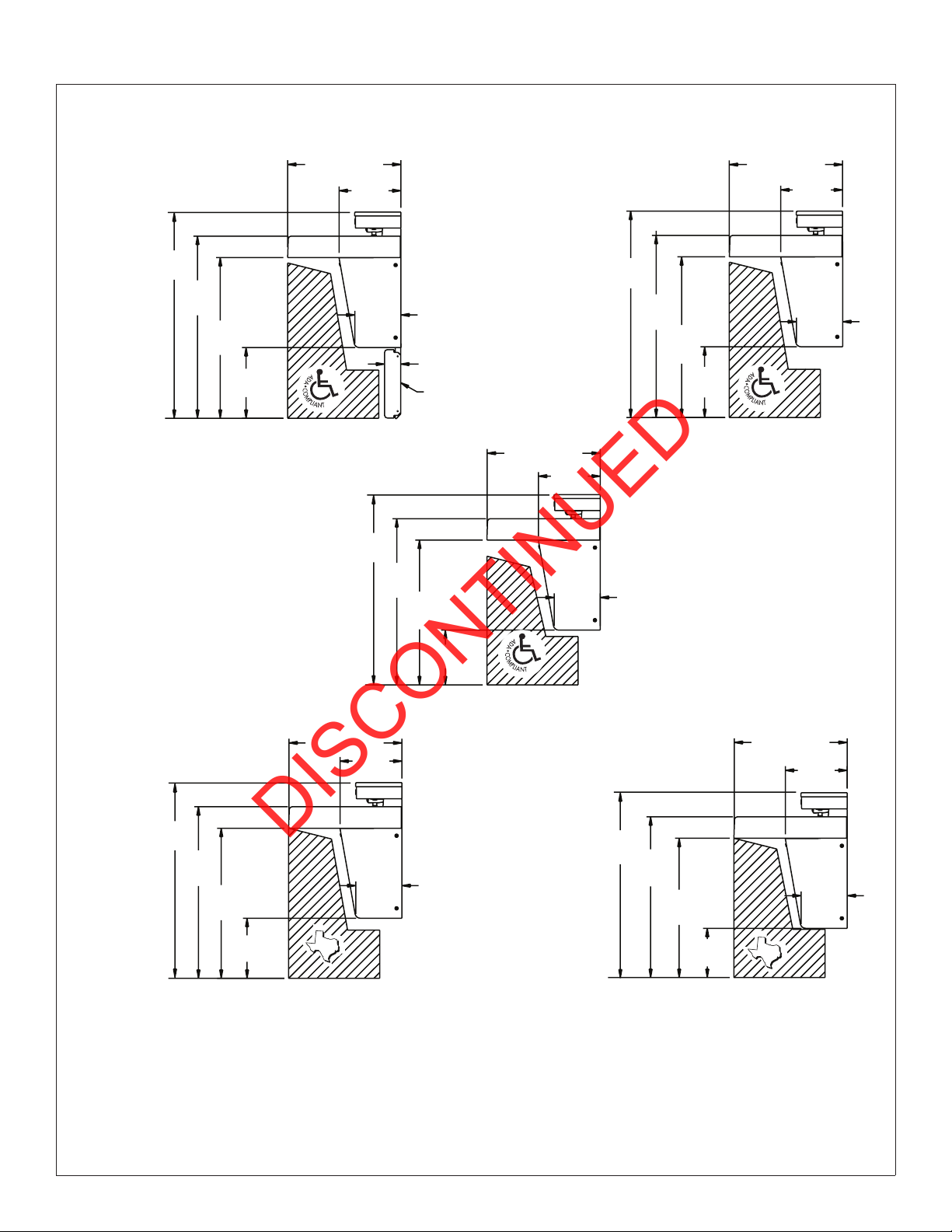

Dimensions - Side Views

TAS

Wall Hung Mounted

at Standard Height

Standard

Height

Wall Hung Mounted

at Juvenile Height

Ages: 6 through 12

Wall Hung Mounted

at TAS Height

Grades: 6

through

8 or 9

Wall Hung Mounted

at TAS Height

Grades: Pre-K

through 5 or 6

211⁄8" (537mm)

38½"

(978mm)

34"

(864mm)

30"

(762mm)

13¼"

(311mm)

11½"

(292mm)

Scuff Base on

Standard Height Only

3" (76mm)

85⁄8"

(219mm)

38½"

(978mm)

34"

(864mm)

30"

(762mm)

85⁄8"

(219mm)

211⁄8" (537mm)

11½"

(292mm)

13¼"

(311mm)

85⁄8"

(219mm)

211⁄8" (537mm)

11½"

(292mm)

85⁄8"

(219mm)

211⁄8" (537mm)

11½"

(292mm)

85⁄8"

(219mm)

211⁄8" (537mm)

11½"

(292mm)

36½"

(927mm)

32"

(813mm)

28"

(711mm)

11¼"

(286mm)

35½"

(902mm)

31"

(787mm)

27"

(686mm)

10¼"

(260mm)

34½"

(876mm) 30"

(762mm)

26"

(660mm)

9¼"

(235mm)

DISCONTINUED

SS-2N/ndt/STD, SS-2N/ndt/WH Installation

65/15/2018 Bradley • 215-1576 Rev. K; ECN 17-08-026

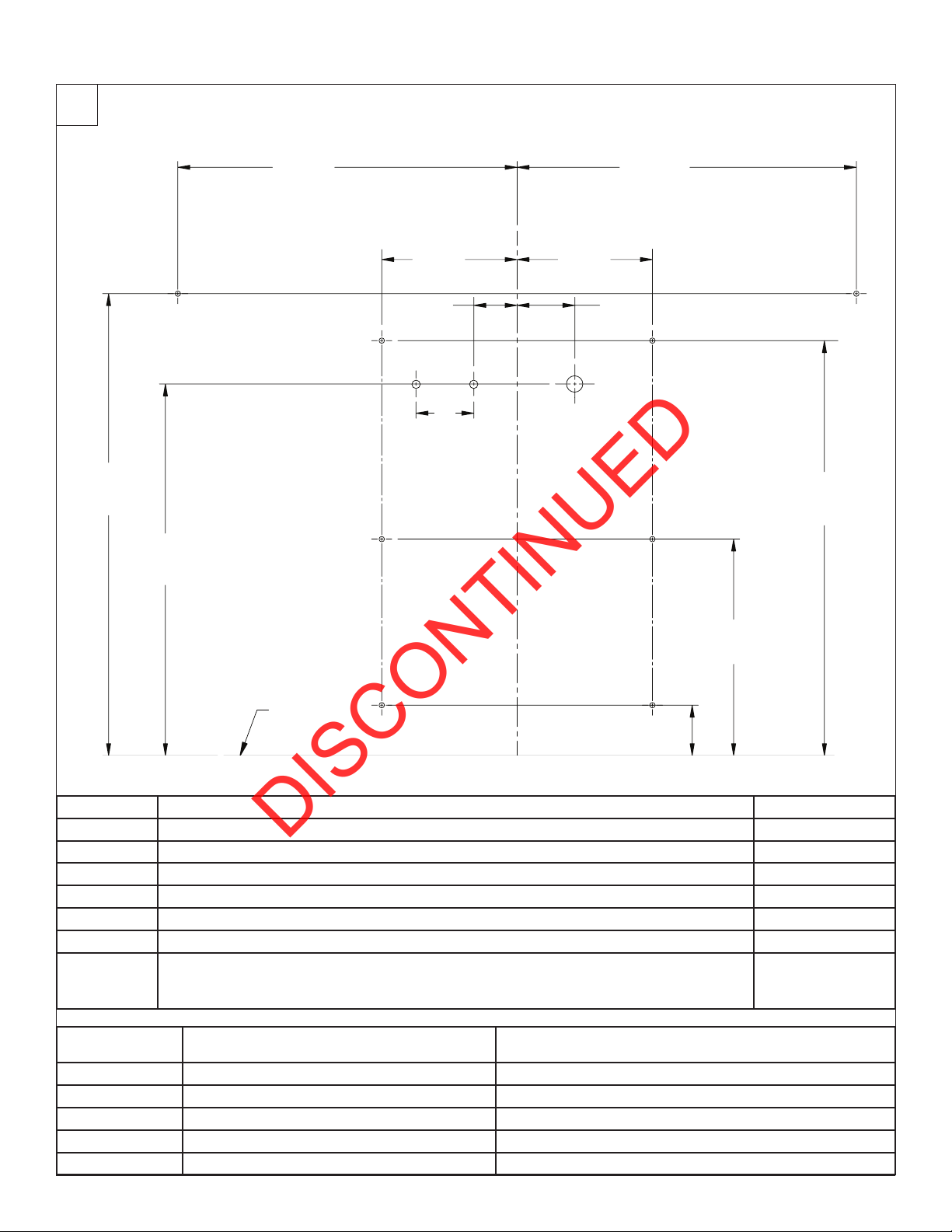

1Rough-Ins

CODE DESCRIPTION QTY.

A³⁄₈" Wall Anchors with a minimum pull-out force of 1,000 lbs. for Bowl 2

B³⁄₈" Wall Anchors with a minimum pull-out force of 1,000 lbs. for Mainframe 4

C³⁄₈" Wall Anchors for Base Frame, Standard Frame option only, minimum pull-out force not required 2

D1 ½" nominal copper tubing for Hot Supply, stub-out 2" from wall 1

D2 ½" nominal copper tubing for Cold or Tempered Supply, stub-out 2" from wall 1

E 1½" NPT Drain, stub-out 2" from wall 2

On the bowl back, measure the distance between the ¾" bowl mounting holes. Divide this measurement

in half. Measure and mark this dimension on the wall to the left and the right of the centerline. Install two

³⁄₈" wall anchors with a minimum pull-out rating of 1,000 lbs (supplied by installer) at locations marked.

RIM HEIGHT VERTICAL HEIGHT ADJUSTMENTS FOR CODES

A–E, H, C and W FIXTURE STYLE

34" None Standard Height

34" None Wall-Hung

32" Subtract 2" TAS, Grades 6 through 8 or 9

31" Subtract 3" Juvenile Height

30" Subtract 4" TAS, Pre-K through Grades 5 or 6

3-1/2"

(89mm)

25-3/4"

(654mm)

32"

(813mm)

23-1/2"

(597mm)

9-3/8"

(238mm)

(102mm)

(76mm)

15"

(381mm)

D1 D2

23-1/2"

(597mm)

9-3/8"

(238mm)

(102mm)

FLOOR

28-3/4"

(730mm)

DISCONTINUED

Installation SS-2N/ndt/STD, SS-2N/ndt/WH

Bradley • 215-1576 Rev. K; ECN 17-08-026 5/15/2018 7

SCUFF PANEL

STANDARD HEIGHT

FRAME ONLY

SCUFF BASE FRAME

STANDARD HEIGHT

FRAME ONLY

2Mount Frame to Wall Anchoring the frame to a wall that is not

flat may cause the frame to bend, making

it difficult to reinstall the access panels. If

necessary, use shims to compensate for

wall distortion.

Once you have positioned the frame such that

it is level and flat against the wall or shimmed ,

mount the frame to the wall at four places using

³⁄₈" bolts and 1” min. O.D. washers.

NOTE: When mounting the standard height frame,

mount the scuff base to the wall at the same time

using two additional ³⁄₈" bolts and washers.

AUsing a T20 torx key, remove

the fasteners securing the

access panel to the main

frame, and remove the panel.

SCUFF BASE FRAME

AND DRAIN ASSEMBLY

NOT SHOWN FOR CLARITY

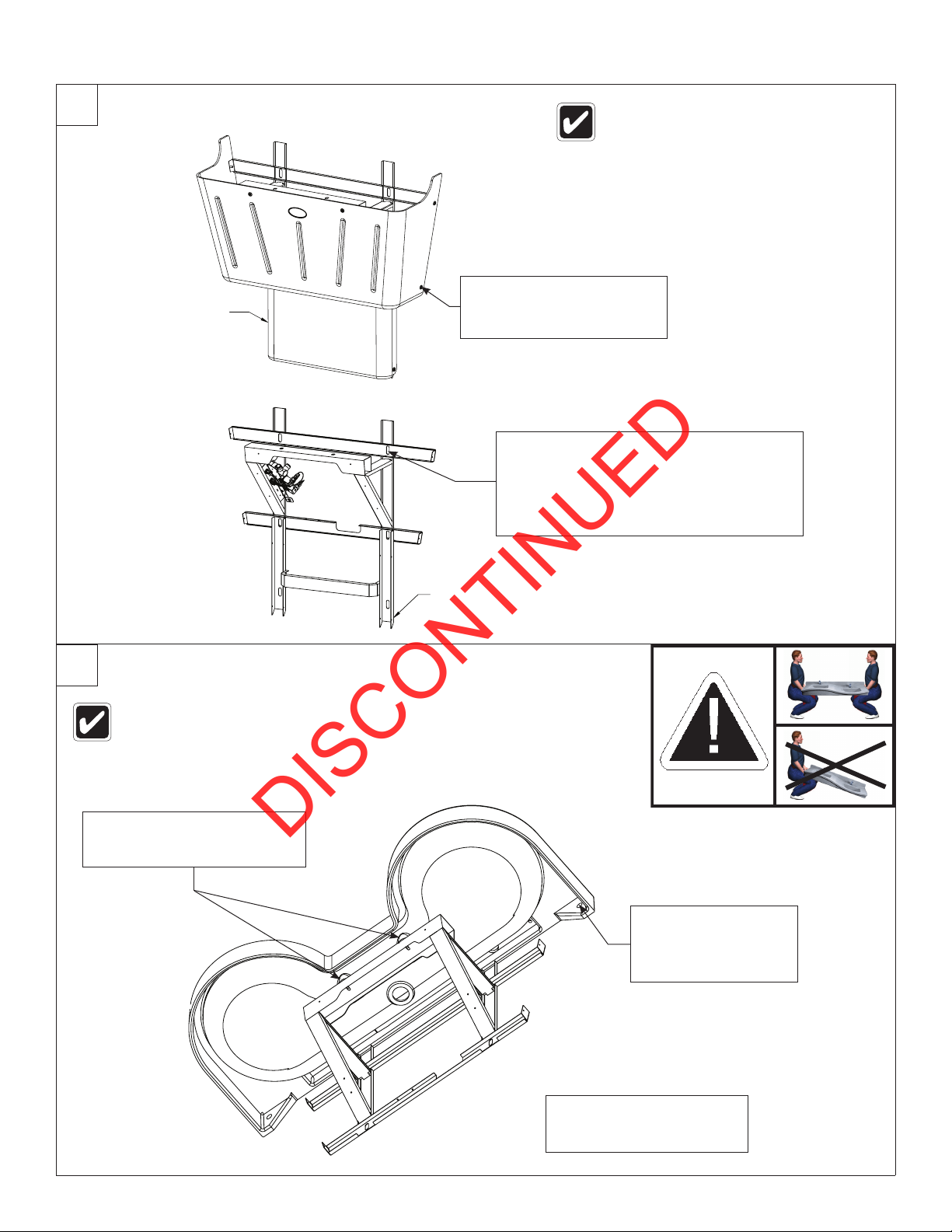

3Install Bowl

The sprayhead body has slotted holes for adjusting the fit-up with the bowl and wall.

The tailpiece on the waste tee has been rotated upward for shipping purposes. Turn

the tailpiece down to its proper position before installing the bowl.

Secure the bowl to the

wall anchors with ³⁄₈"

bolts and 1" min. O.D.

washers, two places.

Do not overtighten.

Attach the bowl to the frame with

¼"-20 x ½" pan-head screws and

washers. Do not tighten.

Tighten the pan-head screws

Do not overtighten.

DISCONTINUED

SS-2N/ndt/STD, SS-2N/ndt/WH Installation

85/15/2018 Bradley • 215-1576 Rev. K; ECN 17-08-026

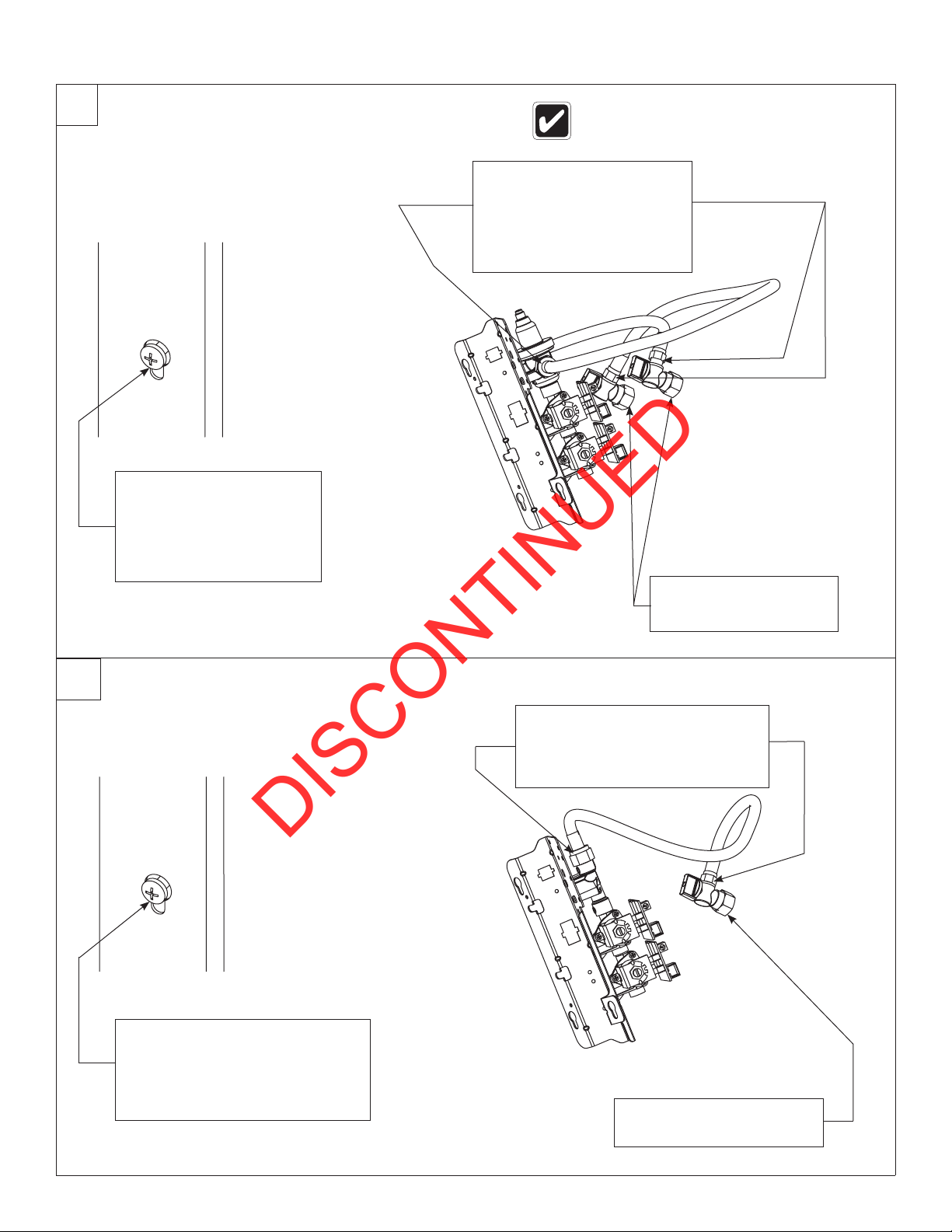

4a Connect the Supply — Hot and Cold Supply

4b Connect the Supply — Single Tempered Supply

The letter “H” on the Navigator Mixing

Valve indicates hot water supply inlet.

Loosen but do not remove

the two mounting screws

holding the valve bracket

to the frame.

Slide the valve bracket up

and lift it from the frame.

Connect one end of each

hose to the Navigator valve

(one on the hot side, one on

the cold side).

Connect the other swivel

end to the stop valves.

Attach the stops to the

hot and cold water wall

stub-outs.

Loosen but do not remove the two

mounting screws holding the valve

bracket to the frame.

Slide the valve bracket up and lift

it from the frame.

Connect one end of flexible hose

to the tempered line adapter.

Connect the other swivel end to

the stop valve.

Attach the stop to the

tempered wall stub-out.

DISCONTINUED

Installation SS-2N/ndt/STD, SS-2N/ndt/WH

Bradley • 215-1576 Rev. K; ECN 17-08-026 5/15/2018 9

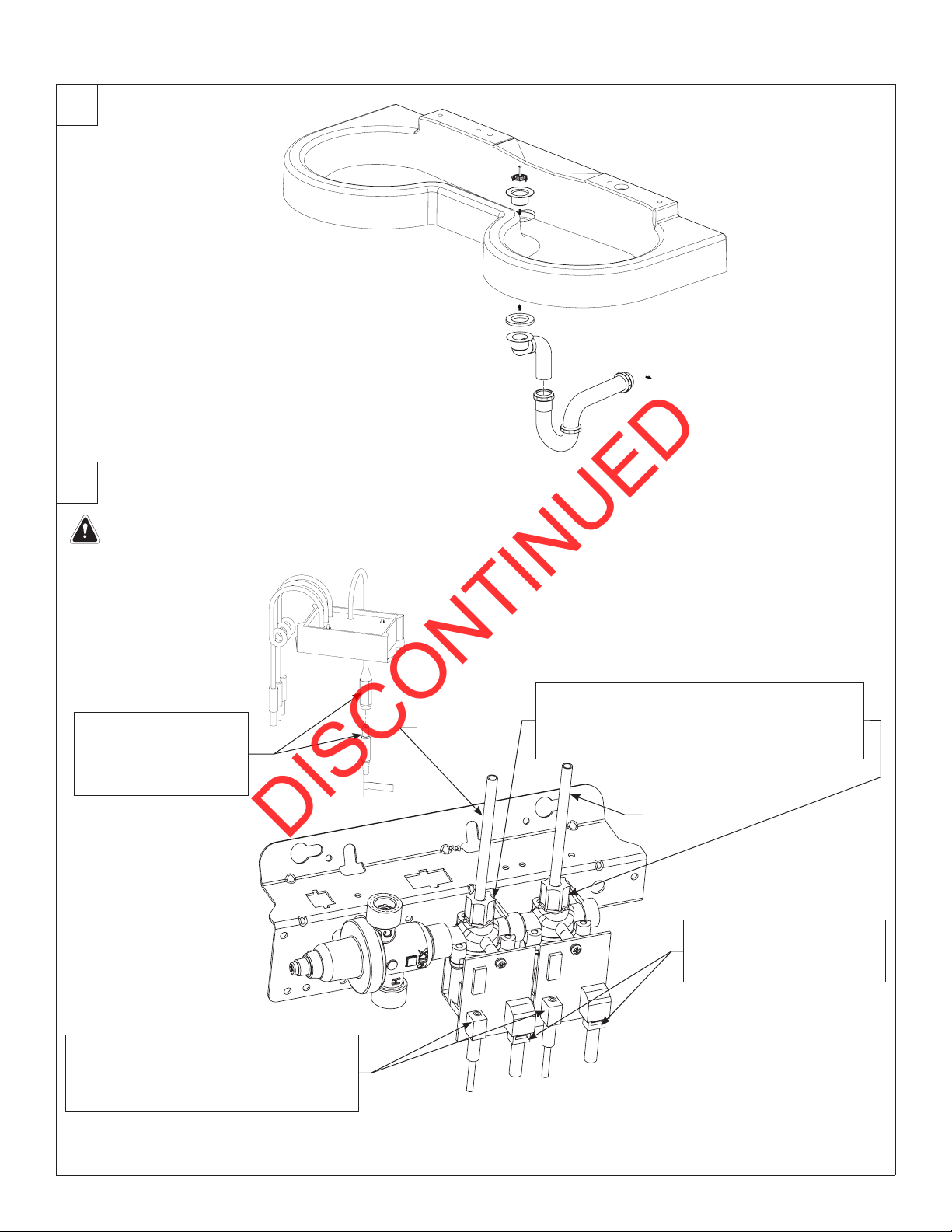

6Connect Electrical and Sprayhead Supplies

Connect the solar

cell plug from the

solar cover to the

power-in cable on the

power management

module.

WARNING: The SS-2N/NDT Express®must be connected to the NDITE®power management module.

Connection to 110 VAC can cause personal injury and will result in damage to the electronics.

Reinstall the valve bracket. Connect the

power supply cables from the power

management module into the gang valve

circuit board plugs (any connection

order will work properly).

5Install the Drain

To Drain

Stub-Out

Snap the sensor cable

plugs from the sprayhead

into the proper valve’s

circuit board.

Loosen the compression nuts.

Push the sprayhead supply tubes firmly into

the tube connectors until they are fully seated.

Tighten the compression nuts by hand.

Green Tube

Supply

Red Tube

Supply

DISCONTINUED

SS-2N/ndt/STD, SS-2N/ndt/WH Installation

10 5/15/2018 Bradley • 215-1576 Rev. K; ECN 17-08-026

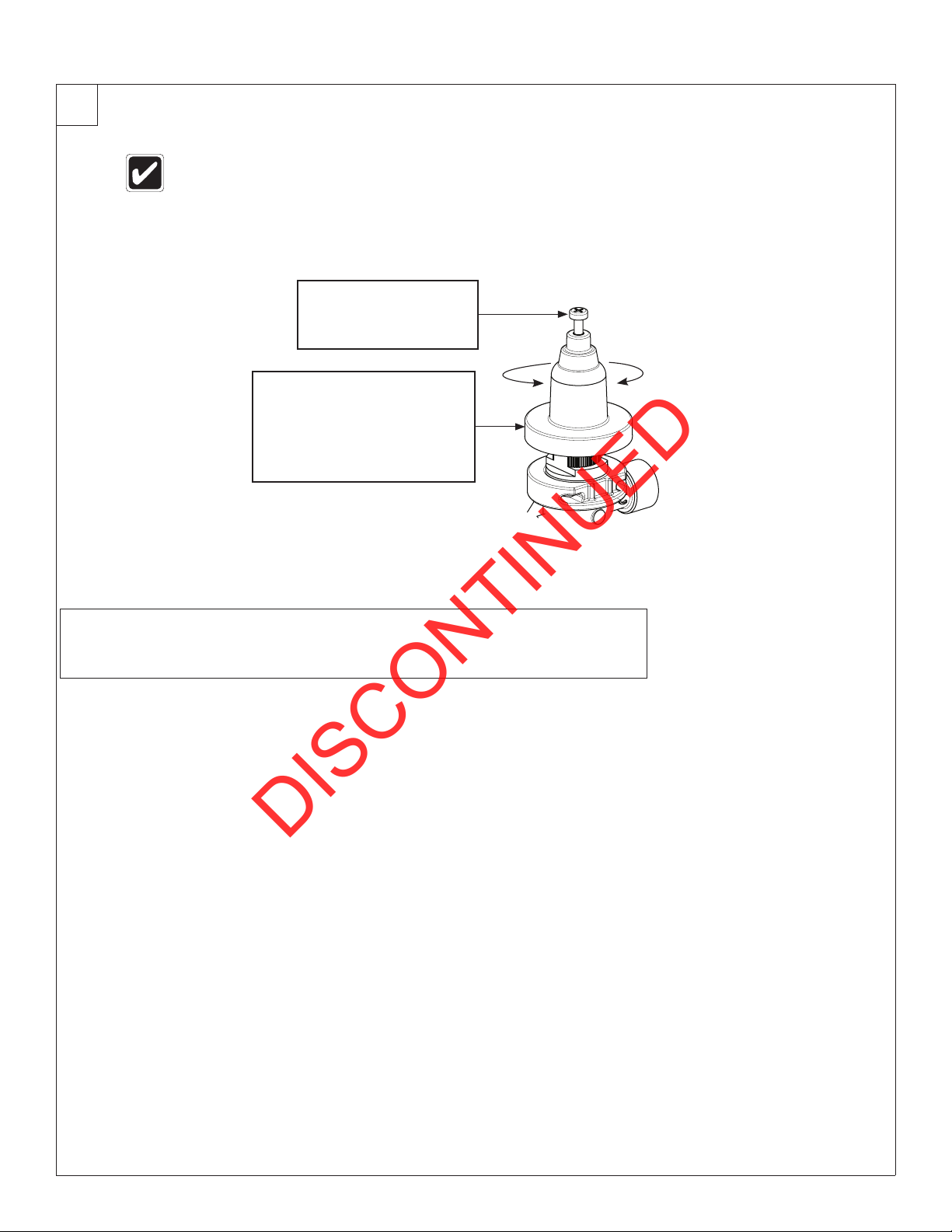

ALoosen the cap screw

about ¼" (4–6 turns)

and lift up the cover

(do not remove).

Using the cover, turn the

cartridge gently until

desired water temperature

is reached. Do not turn past

stops as this may damage

the unit. Push the cover

down and tighten the screw.

This valve is NOT factory preset. Upon installation, the temperature of this

valve must be checked and adjusted to ensure delivery of a safe water

temperature. Water in excess of 110°F (43°C) may cause scalding.

Turn on the water supply and check for leaks. After 60 minutes at 700 LUX, the system

should be ready to operate. Pass your hand in front of each station’s sensor until all the

air is purged from the lines and water is flowing smoothly. Reinstall the access panel.

7Adjust the Temperature

DISCONTINUED

Autres manuels pour Express SS Series

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Bradley Appareil de salle de bains

Bradley

Bradley S19-110BF Manuel utilisateur

Bradley

Bradley 600 Series Manuel utilisateur

Bradley

Bradley Express EXD Series Manuel utilisateur

Bradley

Bradley Terreon Classic WF2500 Series Manuel utilisateur

Bradley

Bradley SXWS9148FM Manuel utilisateur

Bradley

Bradley LC700 Manuel utilisateur

Bradley

Bradley WS-1X-HN Manuel utilisateur

Bradley

Bradley 400 Series Manuel utilisateur

Bradley

Bradley S19-304C2 Manuel utilisateur

Bradley

Bradley Express MG Series Manuel utilisateur

Bradley

Bradley S19-310AC Manuel utilisateur

Bradley

Bradley Terreon Classic WF2500 Series Manuel utilisateur

Bradley

Bradley Advocate AV Series Manuel utilisateur

Bradley

Bradley S19-120 Manuel utilisateur

Bradley

Bradley S19-120T Manuel utilisateur

Bradley

Bradley S19-300T Manuel utilisateur

Bradley

Bradley LUCENT Series Manuel utilisateur

Bradley

Bradley SXWS9151 Manuel utilisateur

Bradley

Bradley Terrazzo WF2613 Manuel utilisateur

Bradley

Bradley S19345HXB Manuel utilisateur

Bradley

Bradley OmniDeck with WashBar 5000 Series Manuel utilisateur

Bradley

Bradley SA70 Series Manuel utilisateur

Bradley

Bradley E19-130 Manuel utilisateur

Bradley

Bradley CBSHWR9000 Manuel utilisateur

Manuels Appareil de salle de bains populaires d'autres marques

DURAVIT

DURAVIT C.1 C15240 0090 Manuel

Heatstore

Heatstore HSTRL500WTN Manuel utilisateur

Sunshower

Sunshower PURE SOLO Manuel utilisateur

Delabie

Delabie Delabie Sporting 714700 Manuel utilisateur

Kohler

Kohler K-13056 Instructions de montage

ESS

ESS Container TCL-11 Manuel utilisateur

Mustee

Mustee 22C Manuel utilisateur

VITRA

VITRA V-Flow Manuel utilisateur

baliv

baliv DUK-80.30 T Manuel utilisateur

Malmet

Malmet B105BT Manuel utilisateur

bathstore

bathstore Transition H1690MM Mode d’emploi

BELLOSTA

BELLOSTA Edward 0800/M Manuel utilisateur

baliv

baliv DU-5160 Manuel utilisateur

Franke

Franke PRTR0006 Manuel utilisateur

Gessi

Gessi RILIEVO 59011 Manuel utilisateur

noken

noken VITAE 100188525-N299998810 Manuel utilisateur

Allen + Roth

Allen + Roth 1142VA-30-201 Manuel utilisateur

Britex

Britex HBDA Manuel utilisateur
