BOSER Technology RC-741 Manuel utilisateur

RC-741

19” 4U High, Full-size Rackmount Chassis

•19” 4U High, Full-size Rackmount Chassis•

•14-slot Backplane•

•250W ATX Power Supply•

•Eight HDD Spaces•

The accuracy of contents in this manual has passed thorough checking and review

before publishing. BOSER Technology Co., Ltd., the manufacturer and publisher, is

not liable for any infringements of patents or other rights resulting from its use. The

manufacturer will not be responsible for any direct, indirect, special, incidental

or consequential damages arising from the use of this product or

documentation, even if advised of the possibility of such damage(s).

This manual is copyrighted and BOSER Technology Co., Ltd. reserves all

documentation rights. Unauthorized reproduction, transmission, translation,

and storage of any form and means (i.e., electronic, mechanical, photocopying,

recording) of this document, in whole or partly, is prohibited, unless granted

permission by BOSER Technology Co., Ltd.

BOSER Technology Co., Ltd. reserves the right to change or improve the

contents of this document without due notice. BOSER Technology Co., Ltd.

assumes no responsibility for any errors or omissions that may appear in this

manual, nor does it make any commitment to update the information contained

herein.

BOSER is a registered trademark of BOSER Technology Co., Ltd.

ISB is a registered trademark of BOSER Technology Co., Ltd.

Intel is a registered trademark of Intel Corporation.

Award is a registered trademark of Award Software, Inc.

AMI is a registered trademark of AMI Software, Inc.

All other trademarks, products and or product names mentioned herein are

mentioned for identification purposes only, and may be trademarks and/or

registered trademarks of their respective companies or owners.

Edition 1.0, August 02, 2004

Table of Contents

Chapter 1 Introduction ..............................................1

1.1 General Description .............................................................. 1

1.2 Features.................................................................................. 2

1.3 Specifications ........................................................................ 2

1.4 Backplane............................................................................... 3

1.5 Chassis Dimensions ............................................................. 4

Chapter 2 Unpacking .................................................5

2.1 Delivery Package................................................................... 5

2.2 Front Sides............................................................................. 6

2.3 Rear Sides .............................................................................. 8

Chapter 3 Assembly, Disassembly...........................11

3.1 Removing the Top Cover.................................................... 11

3.2 Assembly Backplane & Power Supply.............................. 12

3.2.1 Backplane Installation ..............................................................................12

3.2.2 Power Supply Installation........................................................................13

3.2.3 SBC and Extension Cards Installation................................................14

3.2.4 Installation Disk Drives .............................................................................15

Chapter 4 250W ATX Power Supply ......................17

4.1 Specifications ...................................................................... 17

4.2 Dimensions .......................................................................... 18

Safety Instructions

Please read this section carefully and observe the instructions for you

own safety and correct use of the device. It also contains information on

approval and interference suppression of your machine.

Observe the warnings and instructions on the device and in the

manual.

In order to maintain this condition and ensure safe operation, the user

must observe the instructions and warnings contained in this manual.

 The device must be used in accordance with the instruction for use.

 The electrical installations in the room must correspond to the

requirements of the respective regulations.

 Take care that there are no cables, particularly mains cables, in areas

where persons can trip over them.

 DO NOT use a mains connection in sockets shared by a number of other

power consumers. DO NOT use an extension cable.

 Only use the mains cable supplied.

 The unit is complete disconnected from the power source, only when the

power cord is disconnected from the power source. Therefore the power

cord and its connectors must always remain easily accessible.

 DO NOT set up the device in the proximity of heat sources or in a damp

location. Make sure the device has adequate ventilation.

 All plugs on the connection cables must be screwed or locked to the

housing.

NOTE: DO NOT TOUCH THE BOARD OR ANY OTHER SENSITIVE

COMPONENTS WITHOUT ALL NECESSARY ANTI-STATIC

PROTECTION.

Electrostatic Discharge (ESD)

A sudden discharge of electrostatic electricity can destroy

static-sensitive devices or micro-circuitry. Proper packaging and

grounding techniques are necessary precautions to prevent damage.

Always take the following precautions:

 Transport boards in static-safe containers such as boxes or bags.

 Keep electrostatic sensitive parts in their containers until they arrive at

static-free stations.

 Always be properly grounded when touching a sensitive board,

component, or assembly.

 Store electrostatic-sensitive boards in protective packaging or on

conductive foam.

 Grounding Methods

Guard against electrostatic damage by following these steps:

1. Cover place with approved anti-static material. Provide a

wrist strap connected to a work surface and properly

grounded tools and equipment.

2. Use anti-static mats, heel straps, or air ionizes to give added

protection.

3. Handle electrostatic-sensitive components, boards, and

assemblies by the case or the PCB edge.

4. Avoid contact with pins, leads, or circuitry.

5. Turn off power and input signals before inserting and

removing connectors or test equipment.

6. Keep work area free of non-conductive materials such as

ordinary plastic assembly aids and Styrofoam.

7. Use field service tools, such as cutters, screwdrivers, and

vacuums that are conductive.

8. Always place drives and boards PCB-assembly-side down on

the foam.

FCC Statement

This equipment has been tested and found to comply with the limits for

a Class A digital device, pursuant to Part 15 of the FCC Rules. These

limits are designed to provide reasonable protection against harmful

interference when the equipment is operated in commercial

environment. This equipment generates, uses, and can radiate radio

frequency energy and, if not installed and used in accordance with the

instruction manual, may cause harmful interference to radio

communications. Operation of this equipment in residential area is

likely to cause harmful interference in with case the user will be

required to correct the interference at his expense.

Instructions for the CMOS Battery

The SBC is equipped with a CMOS battery. For the replacing of this

battery please observe the instructions described in the SBC board

user’s manual. The SBC user’s manual is included in the delivery or

contact with your supplier.

Chapter 1

Introduction

1.1 General Description

Designed with the Internet application in mind, the rugged and stylish

outlook of the RC-741 chassis delivers bountiful features for various

network and/or storage requirements. Surface-coated with an

exceptional treatment, the heavy-duty steel construction of this chassis

complies with the industry standards for 19-inch rack installation.

Its front panel consists of two lockable latch doors with a removable air

filter at the back of each. Right at the center of the front panel are the

reset button, power switch, and keylock of the system. The unique

frame mechanism on the front doors renders tight and waterproof

capabilities for the system. Two rack brackets and two handlebars are

likewise accessible on both sides of the front panel for easy rack

mounting and maintenance. The chassis also accommodates and

Industrial ATX motherboard, rendering convenient upgrade tasks for

existing ATX platforms.

Offering users with adequate drive expandability, the RC-741 can

support eight 3.5-inch drives and one 5.25-inch drive while a 12cm and

two 8cm ball bearing cooling fans inside the chassis guarantees

sufficient cabin airflow. Powered by a 250W/300W/400W ATX power

supply. All these features indeed make the RC-741 a very competitive

and robust candidate to high density and/or high capacity network

storage needs.

1.2 Features

 19” 4U high, rackmount chassis compliant to EIA RS-310C standard

 Detachable card cage for easy installation and maintenance

 250W/300W/400W ATX power supply

 Supports 14-slot backplane or industrial ATX motherboard

 One 5.25” and eight 3.5” drive spaces

 One 12cm and two 8cm ball bearing cooling fans

 Dual lockable latch doors

 FCC/CE industrial Class A approval

 System environmental monitor (optional)

1.3 Specifications

 Chassis: Meet EIA RS-310C 19” 4U high, rackmount standard;

heavy-duty steel, SECC 1.2t (Japan)

 Drive Space: One 5.25” and eight 3.5” drive spaces

 Front Panel: Power on/off, reset switch and USB or PS/2 keyboard

connectors; power and HDD active LED

 Thermal Solution: One 12cm and two 8cm ball bearing cooling fans;

system environmental monitor (optional) and removable air filter

 Altitude: 15,000 feet

 Power Supply: 250W/300W/400W ATX power supply

 Temperature: 0~50°C (operating); 0~70°C (storage)

 Humidity: 5~95%; non-condensing

 Safety Standard: FCC/CE on chassis and FCC/CE/UL/TUV on power

supply

 Dimensions: 48.0 x 17.68 x 42.7 cm

 Weight: 15 kgs.

1.4 Backplane

On your system is integrated a 32-bit PCI butterfly backplane.

The backplane is provided for the standard version with:

 PICMG slot x 2, PCI slot x 4, ISA slot x 8

 AT/ATX power, fan power connectors

HPCI-14S2 v6.1

NO. Description NO. Description

1 PCI Extension Slot 4 ISA Extension Slot

2 PICMG SBC Slot 5 AT Power Connector

3 Fan Power Connector 6 ATX Power Connector

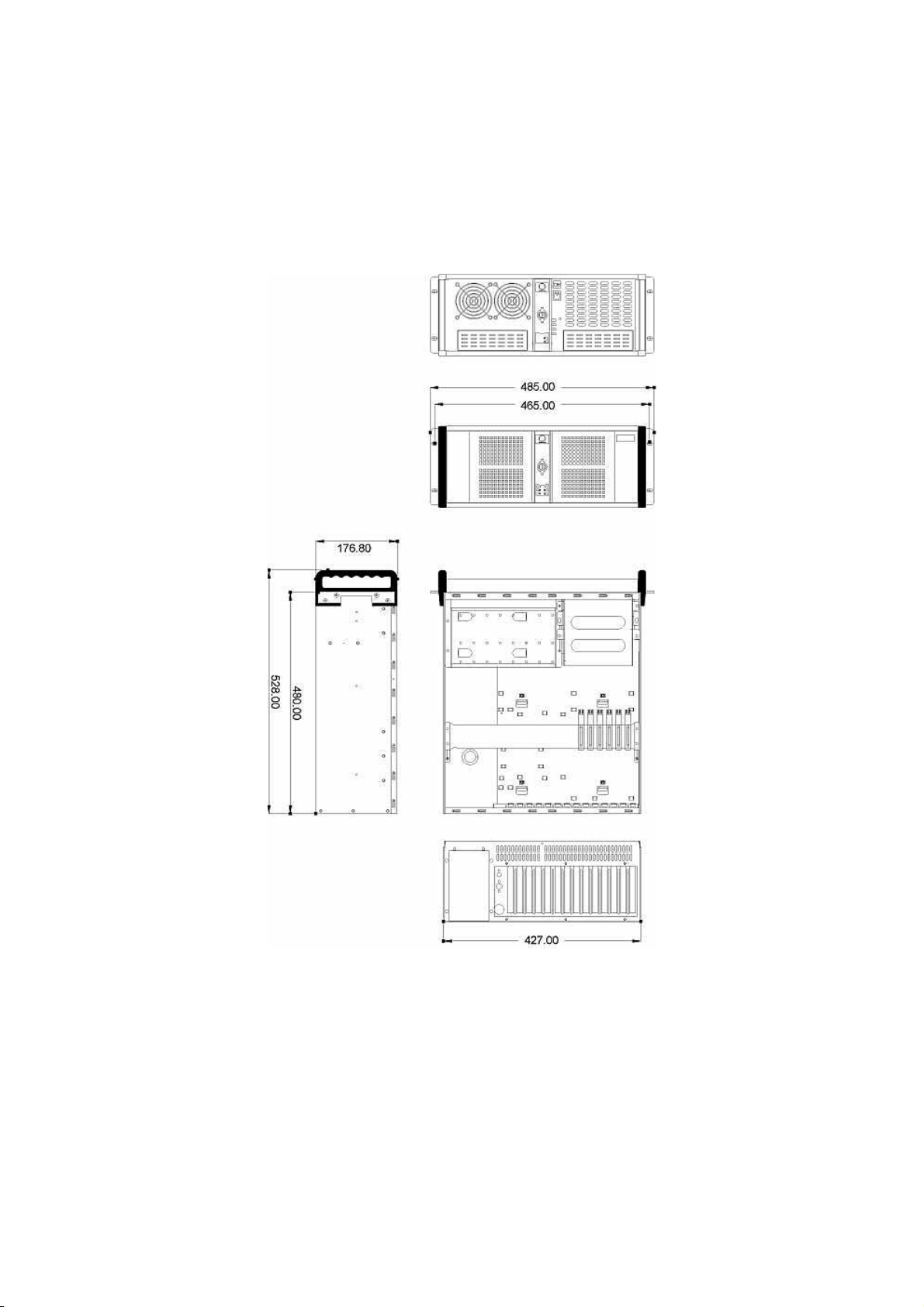

1.5 Chassis Dimensions
