Communications Systems | LB1‑UW06‑Fx‑US Unidirectional Cabinet Loudspeaker

The LB1‑UW06‑Fx‑US is a 6 W, general-purpose, cost-

effective loudspeaker for indoor use. Two brackets, fixed to

the rear panel, are provided for quick and easy mounting on

a wall or ceiling. The cabinet is available in black or white.

Functions

The robust, solid MDF (medium density fiberboard)

enclosure is covered with a durable, easy-to-clean vinyl in a

choice of black or white. The ABS front is covered with fine

woven cloth in matching color.

Certifications and Approvals

All Bosch loudspeakers are designed to withstand operating

at their rated power for 100 continuous hours in

accordance with IEC 268-5 Power Handling Capacity (PHC)

standards. Bosch has also developed the Simulated

Acoustical Feedback Exposure (SAFE) test to demonstrate

that they can withstand two times their rated power for

short durations. This ensures improved reliability under

extreme conditions, leading to higher customer

satisfaction, longer operating life, and lessens the chance

of failure or performance deterioration.

Safety according to EN 60065

Installation/Configuration Notes

Two rear panel mounting brackets provide easy and quick

wall or ceiling mounting. If not desired, they can be

removed, and the unit can be wall mounted using the three

keyholes in the rear panel.

A convenient, easy-to-use, 4-pole push-in terminal block is

mounted on the rear panel for on-site wiring. This terminal

block provides for power tapping on the 70‑volt matching

transformer in the cabinet. It allows selection of nominal

full-power, half-power or quarter-power radiation (in 3 dB

steps).

LB1‑UW06‑Fx‑US Unidirectional Cabinet

Loudspeaker

▶Excellent speech intelligibility and music reproduction

▶Finished in black or white

▶MDF construction

▶Mounting brackets for wall or ceiling mounting

▶Complies with international installation and safety

regulations

www.boschsecurity.com

2 | LB1‑UW06‑Fx‑US Unidirectional Cabinet Loudspeaker

1.57 in

5.9 in

5.5 in

4.6 in

0.08 in

0.16 in

0.59 in0.75 in

0.16 in

1.98 in

/ 10.4 in

0.94 in

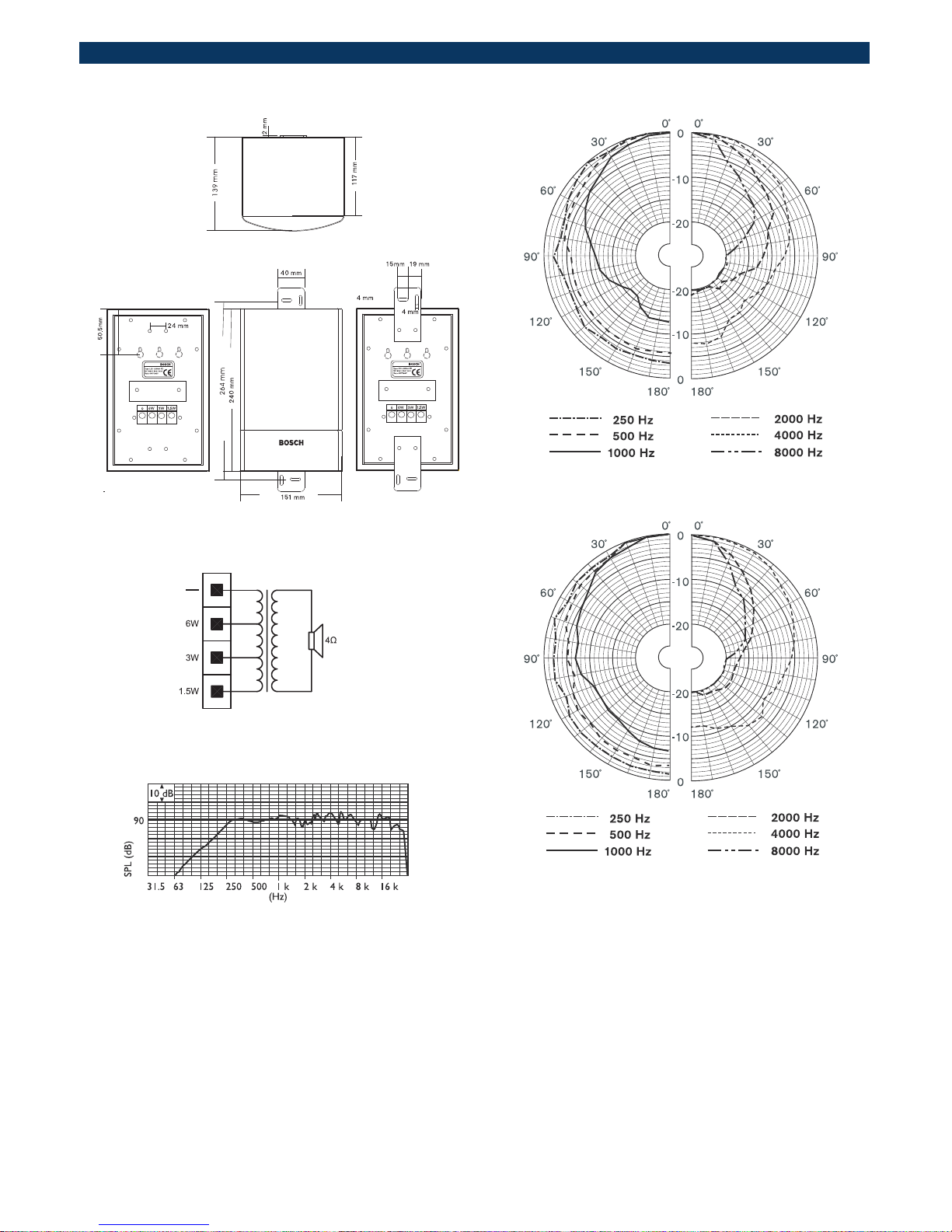

Dimensions in mm / in

Circuit diagram

Frequency response

Polar diagram horizontal (measured with pink noise)

Polar diagram vertical (measured with pink noise)

LB1‑UW06‑Fx‑US Unidirectional Cabinet Loudspeaker | 3

Technical Specifications

Electrical*

Maximum power 9 W

Rated power 6 / 3 / 1.5 W

Sound pressure level

at 6 W / 1 W (1 kHz, 1 m)

99 dB / 91 dB (SPL)

Effective frequency range (-10

dB)

180 Hz to 20 kHz

Opening angle 1 kHz / 4 kHz (-6 dB)

horizontal 165° / 95°

vertical 158° / 73°

Rated input voltage 70 V

Rated impedance 835 ohm

Connector 4‑pole push‑in terminal block

* Technical performance data according to IEC 60268-5

Mechanical

Dimensions (H x W x D) 240 x 151 x 139 mm

(9.4 x 5.9 x 5.5 in)

Weight 1.5 kg (3.3 lb)

Color Black (D) or white (L)

cabinet / cloth (D) Matches RAL 9004 / RAL 9004

cabinet / cloth (L) Matches RAL 9010 / RAL 7044

Environmental

Operating temperature -25 ºC to +55 ºC (-13 ºF to +131 ºF)

Storage temperature -40 ºC to +70 ºC (-40 ºF to +158 ºF)

Relative humidity <95%

Ordering Information

LB1‑UW06‑FD‑US Unidirectional Cabinet

Loudspeaker

6 W, black

LB1-UW06-FD-US

LB1‑UW06‑FL‑US Unidirectional Cabinet

Loudspeaker

6 W, white

LB1-UW06-FL-US

www.boschsecurity.com

4 | LB1‑UW06‑Fx‑US Unidirectional Cabinet Loudspeaker

Americas:

Bosch Communications Systems

12000 Portland Avenue South

Burnsville, Minnesota, 55337, USA

Phone: +1-800-392-3497

Fax: +1-800-955-6831

[email protected]

www.boschcommunications.us

Europe, Middle East, Africa:

Bosch Security Systems B.V.

P.O. Box 80002

5600 JB Eindhoven, The Netherlands

Phone: + 31 40 2577 284

Fax: +31 40 2577 330

[email protected]

www.boschsecurity.com

Asia-Pacific:

Bosch Security Systems Pte Ltd

38C Jalan Pemimpin

Singapore 577180

Phone: +65 6319 3450

Fax: +65 6319 3499

[email protected]

www.boschsecurity.com

Represented by

T4769404555 | Cur: en-US, V2, 12 Jun 2008
