Installing and

Operating Instructions

HBN 97 . .

Internet: http://www.bosch-hausgeraete.de

Bosch Info-Team: de Tel. 01 80/5 30 40 50 (E0,12/Min. DTAG)

°C°C

min sec

hmin

Table of Contents

Page

Grilling 17

Cooking Tips and Helpful Hints 18

Defrosting and Cooking – Main oven 19

Cleaning and Care

❑Important cleaning basics 20

❑Enamel and glass 20

❑Stainless steel front 20

❑Oven interior 20

❑Removing/installing the oven door 21

❑Removing shelf railings 21

Service and Repair Information 22

Trouble-shooting Guide 23

Assembly Instructions

❑For the installer and kitchen expert 24

❑Installation of the built-in oven 25

Page

Important Information

❑Notes on disposal 3

❑Before connecting your

new appliance 3

❑Appliance safety considerations 4

Before Using Your Appliance for the

First Time

❑Preliminary cleaning 4

❑Initial burn-in 4

Introducing: Your New Oven

❑Control panel overview 5

❑Accessories 6

❑Shelf positions 6

Electronic Timer

❑Time of day 7

❑Alarm function 8

❑Automatic OFF 9

❑Automatic ON and OFF 10

Baking, Roasting and Grilling

❑Definition of Oven Features 11+12

❑Switching the oven ON and OFF 13

❑Baking – Main oven 14

❑Roasting – Main oven 15

❑Roasting – Mini oven 16

Notes on disposal

❑Old appliances still have some residual

value. An environment-friendly method

of disposal will ensure that valuable raw

materials can be recovered and used

again.

Before you dispose of your old

appliance, make sure that it has been

rendered inoperable.

❑Your new appliance was protected by

suitable packaging while it was on its

way to you. All materials used for this

purpose are environment-friendly and

suitable for recycling. Please make a

contribution to protecting the

environment by disposing of the

packaging appropriately.

Up-to-date information concerning

options for disposing of your old

appliance and the packaging from the

new one can be obtained from your

retailer or local government office.

Before connecting your new

appliance

❑Before using your new appliance, please

read these Instructions for use carefully.

They contain important information

concerning your personal safety as well

as on use and care of the appliance.

❑The Instructions for Use apply to several

versions of this appliance. Accordingly,

you may find descriptions of individual

features that do not apply to your

specific appliance.

❑Please keep the operating and

installation instructions in a safe place;

this important documentation may also

be of use to a possible subsequent

owner.

❑Do not use the appliance if it is

damaged in any way.

❑Installation and connection of the

appliance should be performed

according to the instructions and

connection diagram provided, and

should be entrusted to a competent

electrician. In the event of a damage

that occurs as a result of improper

connection, the warranty will be void.

❑Our appliances meet the applicable

safety regulations for electrical

appliances. Repairs must only be

performed by service engineers trained

by the manufacturer. Repairs carried out

by incompetent service agents can

make the appliance unsafe.

Important Information

Appliance safety

considerations

❑The appliance should only be used for

the preparation of food.

❑The surfaces of heating and cooking

appliances get hot during operation.

The interior oven walls and the heating

elements get extremely hot. Always

keep children away from the appliance.

❑Never leave the appliance unattended

when cooking with fat or oil. They can

catch fire if overheated.

❑Clean the oven regularly.

Fatty or oily remants could ignite when

the oven is switched on.

❑Make sure that the power cord does not

get caught in the hot oven door. The

plastic insulation could melt.

❑In the case of a defect, switch off at the

mains.

❑Do not store combustible items in the

oven. They could ignite if the oven is

switched on accidentally.

❑Do not clean the oven with steam or

high-pressure cleaners.

❑If using hot air ‰, do not place

greaseproof paper loosely in the oven

(e.g. when heating the oven).

The hot-air fan could draw in the paper

which may damage the heater and fan.

❑Do not insert a baking sheet at the

bottom of the oven, or cover it with

aluminium foil, because a heat build-up

would result. Roasting and baking times

would change, and the enamel would

be damaged.

❑Never pour water directly into the hot

oven. Damage to the enamel could

result.

❑Dripping juices may leave spots on the

oven lining. Always place a baking tray

below to prevent this form happening.

❑Never stand or sit on the open oven

door.

❑The oven door must close properly.

Keep the door sealing surfaces clean.

Before Using Your Appliance for the First Time

Preliminary cleaning:

1. Clean the appliance exterior with a soft

damp cloth.

2. Clean the oven interior and the

accessories with a hot detergent

solution.

Initial burn-in

1. Heat the empty oven for approx.

30 minutes.

Select conventional heat at a setting of

240 °C.

During the initial burn-in phase, please

open the kitchen windows to dissipate

unpleasant odours.

Introducing: Your new Oven

The control panel:

❑The switches are retractable. To engage

and disengage, depress the switch,

making sure that it is in OFF position.

❑The control panel is illuminated.

As soon as you set a function,

ilumination is switched on.

Main oven functions:

0Oven light

k”Defrost” setting

tConventional (top and bottom heat)

‰Hot air

ˆHot air grilling

xRadiant grill-centre

element only,

for small amounts of food

\Radiant grill-full element

Mini oven functions:

0Oven light

tConventional (top and bottom heat)

xRadiant grill-centre

element only,

for small amounts of food

\Radiant grill-full element

sBottom heat

°C°C

min sec

hmin

Electronic timer

controls

Temperature

selector

Temperature

selector

Function selector

Main oven Mini oven

Function

selector

Introducing: Your new Oven

Accessories

Your oven comes with the following

accessories:

Universal baking pan / shelf wire shelf

Additional accessories are available from your dealer.

Main oven

Shelf positions

Your oven features 3 shelf positions.

The shelf positions are counted from

bottom to top. The numbers are marked in

the oven.

Your oven features 4 shelf positions.

The shelf positions are counted from

bottom to top. The numbers are marked in

the oven.

When using hot air do not use shelf »2«,

in order not to block air circulation.

Mini oven

Electronic timer

Notes:

❑If you keep the button –or +pressed

down, you can set the time in steps of

10 minutes.

Hinweise:

❑The time of day is not displayed if you

have already set the timer, a duration or

an end. Should you wish to know the

time, simply press the clock button 6.

The time appears in the display for a few

seconds.

Time of day

❑Before you use your appliance for the

first time, it is necessary to set the

current time on the electronic timer.

❑After connecting to the mains, or after a

power failure, the display {.{{ will blink.

Setting the time of day:

1. Press the clock button 6.

2. Set the current time with the –or +

button. The time will automatically be

taken over after a few seconds.

Changing the time (e.g. transition from

summer to winter time):

Caution! The time of day cannot be

changed whilst a duration or an end is set.

1. Press the clock button 6.

2. Set the current time with the –or +

button.

Set time

min sec

h min

Dauer Ende Wecker

Minute timer

Cooking time

Off time

Time

min sec

hmin

Dauer Ende Wecker

The alarm

❑The alarm (timer) can be set at any time.

This applies even if a duration or an end has already

been set.

❑The alarm time always counts down visibly in the

display.

The alarm also features a special acoustic signal.

This enables you to hear when the alarm time or a

selected duration has expired.

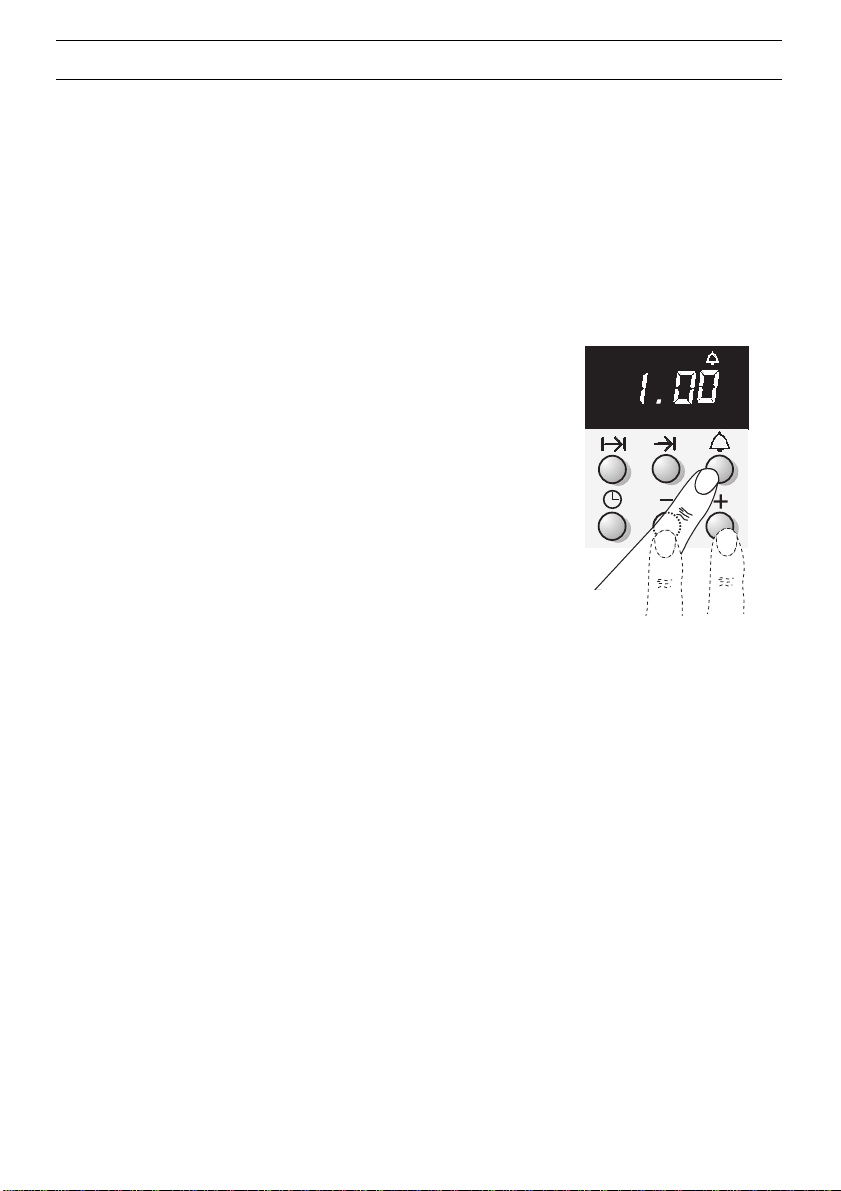

Setting procedure:

1. Press the alarm button 8.

2. Set the desired alarm time with the –or +button.

❑The selected time is automatically registered after a

few seconds. The alarm time begins to count down in

the clock display.

❑On completion of the selected time, an acoustic

signal sounds and the alarm symbol flashes. It is

possible to switch off the signal prematurely by

pressing the alarm button 8.

Correction:

❑Press the alarm button 8.

Change the time with the –or +button.

Cancelling:

❑Press the alarm button 8twice in quick succession.

Setting:

Electronic timer

min sec

h min

Dauer Ende Wecker

Automatic timer for the main oven

❑You can switch the oven on and off via the

electronic clock.

Automatic switch off:

❑If you wish to bake or roast food immediately, it is

only necessary to set the cooking time.

1. Select the heating system and the oven

temperature.

2. Press the time button ?.

3. Change the recommended cooking time with the

–or +button.

The oven starts after a few seconds.

❑An acoustic signal sounds when the time expires.

The oven switches off. You may switch off the

signal prematurely by pressing the time button ?.

❑If the meal is not yet ready, make a new time

setting using the knob.

❑Switch off the function selector when your meal is

ready.

Correction:

❑The duration can be changed at any time. Press

the cooking time button ?and correct the

duration of cooking time with the –or +button.

Cancel:

❑Switch off the function selector.

Notes:

❑The alarm time counts down in the clock display. If

you want to know how much longer the meal in the

oven will take, simply press the time button ?. The

time remaining is then displayed for a few seconds.

❑You can set any time between 1 minute and 23

hours, 59 minutes.

Electronic timer

min sec

hmin

Dauer Ende Wecker

min sec

hmin

Dauer Ende Wecker

Electronic timer

Automatic switch on and switch off:

Please remember that easily spoiled foods

must not be allowed to remain in the oven for

too long.

Need to be somewhere else – quickly? Don’t

worry, the food will still be ready at the right time.

That’s because the oven switches on and off

automatically at the desired times.

1. Select the heating system and the oven

temperature.

2. Press the time button ?.

3. Change the recommended cooking time with

the –or +button.

4. Press the end button !. The end time appears

in the display. This represents the time when

the oven will switch off. Change this to a later

time.

5. Set the new end time with the +button.

❑The oven switches on and off automatically. The

clock display contains the time remaining until

the oven switches on. The duration then begins

to count down.

❑An acoustic signal sounds when the time

expires. The oven switches off. You may switch

off the signal prematurely by pressing the time

button ?.

❑If the meal is not yet ready, make a new time

setting using the knob.

❑Switch off the function selector when your

meal is ready.

Correction:

❑Before starting the oven, you may change the

end time at any juncture. To do this, press the

end button !. Change the end time with the

–or +button.

Cancel:

❑Switch off the function selector.

Note:

❑The end time will appear for a few seconds if

you press the end button !.

min sec

hmin

Dauer Ende Wecker

min sec

hmin

Dauer Ende Wecker

min sec

hmin

Dauer Ende Wecker

min sec

hmin

Dauer Ende Wecker

Table des matières

Autres manuels Bosch Four

Bosch

Bosch HSG656R.1 Manuel utilisateur

Bosch

Bosch HRS 34B B Series Manuel utilisateur

Bosch

Bosch CMG9241 1 Series Manuel utilisateur

Bosch

Bosch CSG656B 7B Series Manuel utilisateur

Bosch

Bosch HBG7741 2 Series Manuel utilisateur

Bosch

Bosch HRG776M 1A Series Manuel utilisateur

Bosch

Bosch HBG8764.1 Manuel utilisateur

Bosch

Bosch CMG633B 1 Series Manuel utilisateur

Bosch

Bosch HNG6764W6 Manuel utilisateur

Bosch

Bosch HBM13B2 2B Series Manuel utilisateur

Bosch

Bosch HBG675B 1B Series Manuel utilisateur

Bosch

Bosch MBS533B*0B Manuel utilisateur

Bosch

Bosch CBG675B 1I Series Manuel utilisateur

Bosch

Bosch HBG633B 1B Series Manuel utilisateur

Bosch

Bosch HRA.74 A Series Manuel utilisateur

Bosch

Bosch CSG656R 2 Series Manuel utilisateur

Bosch

Bosch MBA5785 6B Series Manuel utilisateur

Bosch

Bosch HSG856X 7 Series Manuel utilisateur

Bosch

Bosch HBN311 1J Series Manuel utilisateur

Bosch

Bosch HBM43B250B Manuel utilisateur

Bosch

Bosch HRG6769.2A Manuel utilisateur

Bosch

Bosch HB 78 6 Series Manuel utilisateur

Bosch

Bosch HBA534BB0A Manuel utilisateur

Bosch

Bosch CMG633B 1A Series Manuel utilisateur

Manuels Four populaires d'autres marques

Electrolux

Electrolux EOF6P46X Manuel utilisateur

NEFF

NEFF B44S32 5GB Series Manuel utilisateur

Combi

Combi BLODGETT BC142GDS Manuel utilisateur

AEG

AEG COMPETENCE 311704300 Manuel utilisateur

Falcon

Falcon DOMINATOR PLUS G3106 Series Guide de l'utilisateur

Rational

Rational SCC WE 61G Manuel utilisateur

Smeg

Smeg DOSPA38X Manuel d'installation et d'exploitation

Electrolux

Electrolux air-o-convect 20 GN 2/1 Manuel utilisateur

Miele

Miele HR 1954-2 Manuel utilisateur

KHIND

KHIND OT50 Manuel utilisateur

Henny Penny

Henny Penny Smoker Box Manuel utilisateur

Lang

Lang ECOD-AP Manuel utilisateur

AEG

AEG BEK455310M Manuel utilisateur

Frigidaire

Frigidaire FNGE90JGR Manuel utilisateur

Hotpoint

Hotpoint FE9 S831 JSH IX Manuel utilisateur

GE Advantium SCB2000 Manuel utilisateur

AEG

AEG DE401301DM Manuel utilisateur

DeLonghi

DeLonghi XA660 Manuel
