8 | English
English
Safety Instructions
All instructions must be read and observed in order for
the measuring tool to function safely. The safeguards
integrated into the measuring tool may be comprom-
ised if the measuring tool is not used in accordance with
these instructions. Never make warning signs on the
measuring tool unrecognisable. SAVE THESE INSTRUCTIONS FOR FU-
TURE REFERENCE AND INCLUDE THEM WITH THE MEASURING TOOL
WHEN TRANSFERRING IT TO A THIRD PARTY.
uWarning! If operating or adjustment devices other than those spe-
cified here are used or other procedures are carried out, this can lead
to dangerous exposure to radiation.

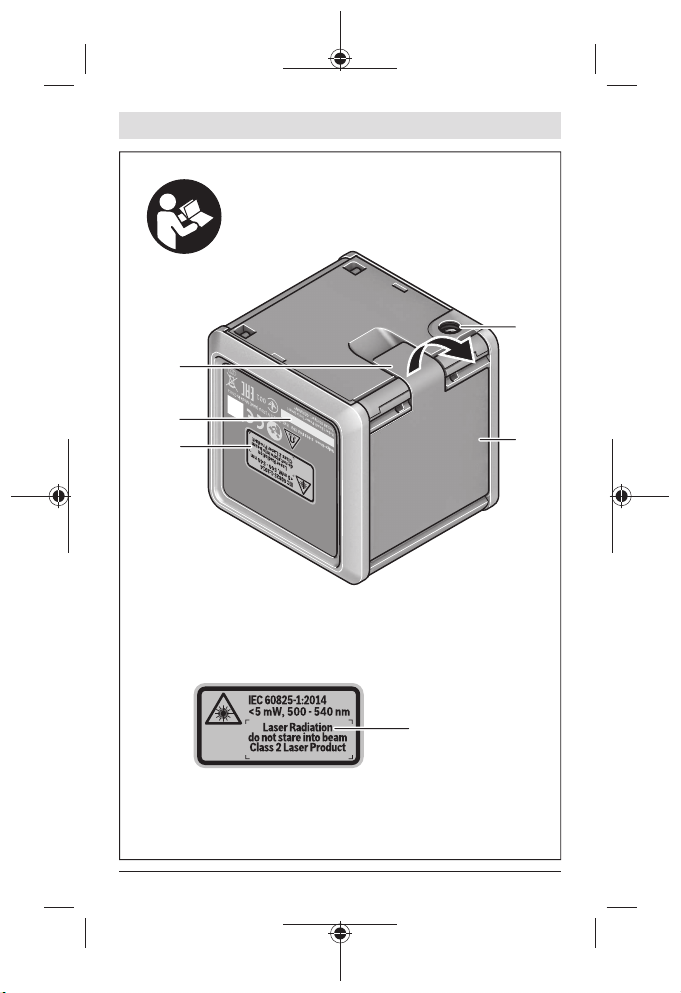

uThe measuring tool is delivered with a laser warning sign (marked in
the illustration of the measuring tool on the graphics page).
uIf the text of the laser warning label is not in your national language,
stick the provided warning label in your national language over it be-
fore operating for the first time.
Do not direct the laser beam at persons or animals and
do not stare into the direct or reflected laser beam your-
self. You could blind somebody, cause accidents or damage
your eyes.
uIf laser radiation hits your eye, you must close your eyes and immedi-
ately turn your head away from the beam.
uDo not make any modifications to the laser equipment.
uDo not use the laser goggles (accessory) as protective goggles. The
laser goggles make the laser beam easier to see; they do not protect you
against laser radiation.
uDo not use the laser goggles (accessory) as sunglasses or while driv-
ing. The laser goggles do not provide full UV protection and impair your
ability to see colours.
1 609 92A 6GR | (02.02.2021) Bosch Power Tools
English | 9
uHave the measuring tool serviced only by a qualified specialist using
only original replacement parts. This will ensure that the safety of the
measuring tool is maintained.
uDo not let children use the laser measuring tool unsupervised. They
could unintentionally blind themselves or other persons.
uDo not use the measuring tool in explosive atmospheres which con-
tain flammable liquids, gases or dust. Sparks may be produced inside
the measuring tool, which can ignite dust or fumes.
Keep the magnet away from implants and other medical
devices, e.g. pacemakers or insulin pumps. The mag-
netgenerates a field that can impair the function of implants
and medical devices.
uKeep the measuring tool away from magnetic storage media and
magnetically-sensitive devices. The effect of the magnets can lead to ir-
reversible data loss.
Product Description and Specifications
Please observe the illustrations at the beginning of this operating manual.
Intended Use

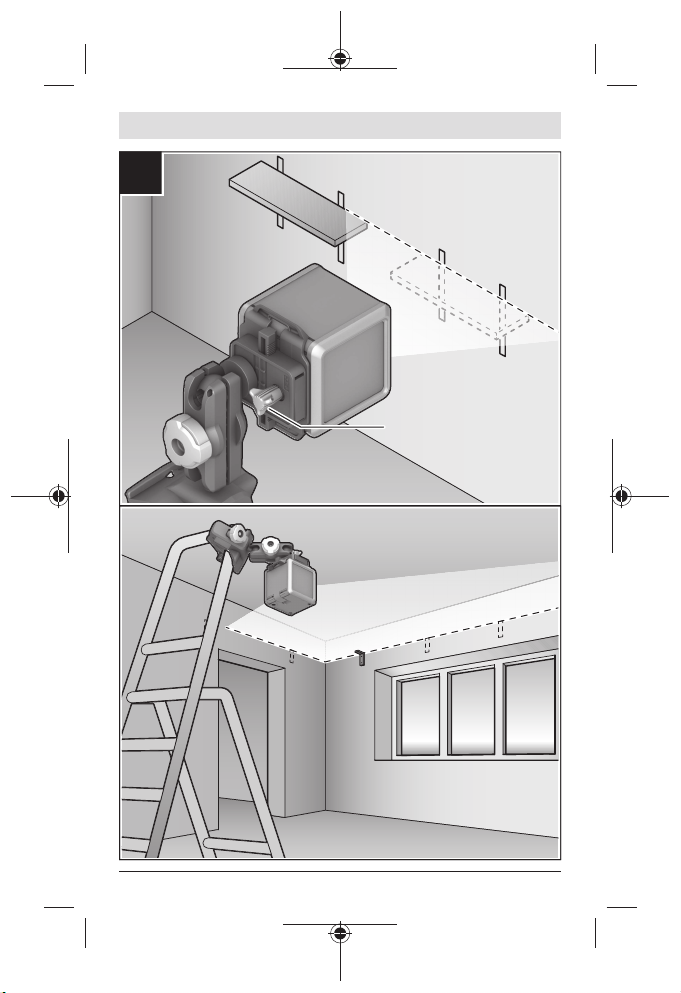

The measuring tool is intended for determining and checking horizontal and
vertical lines.
The measuring tool is suitable for indoor use.

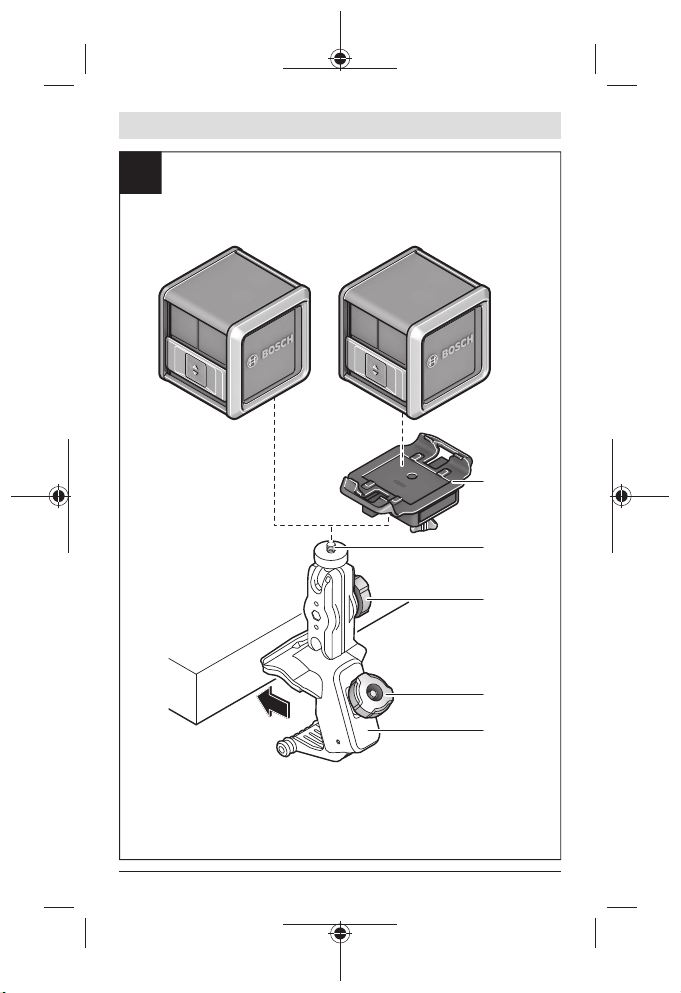

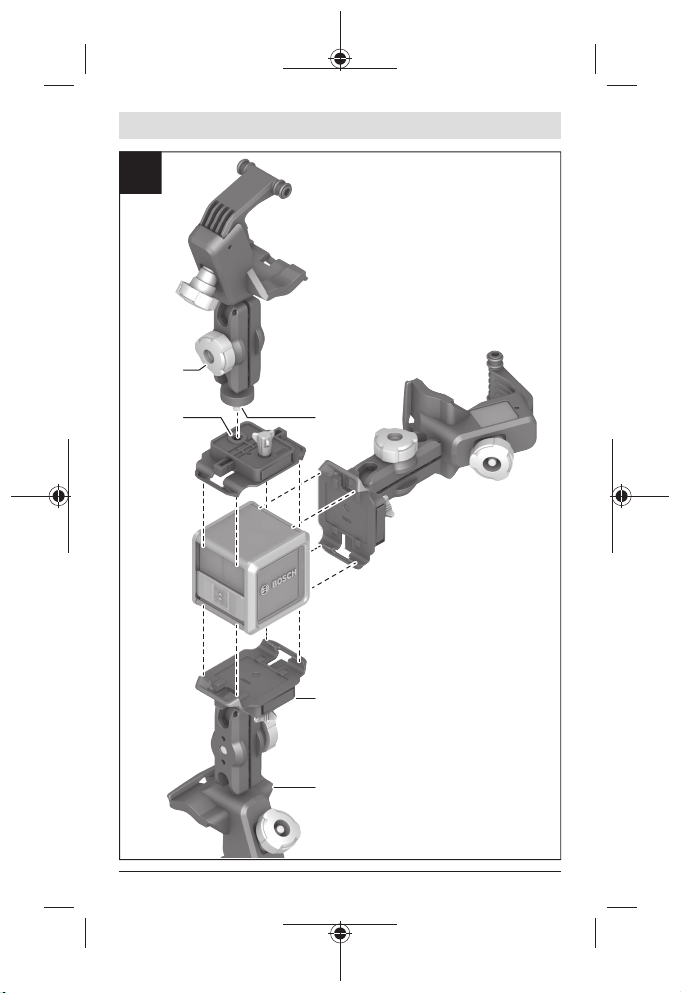

Product features

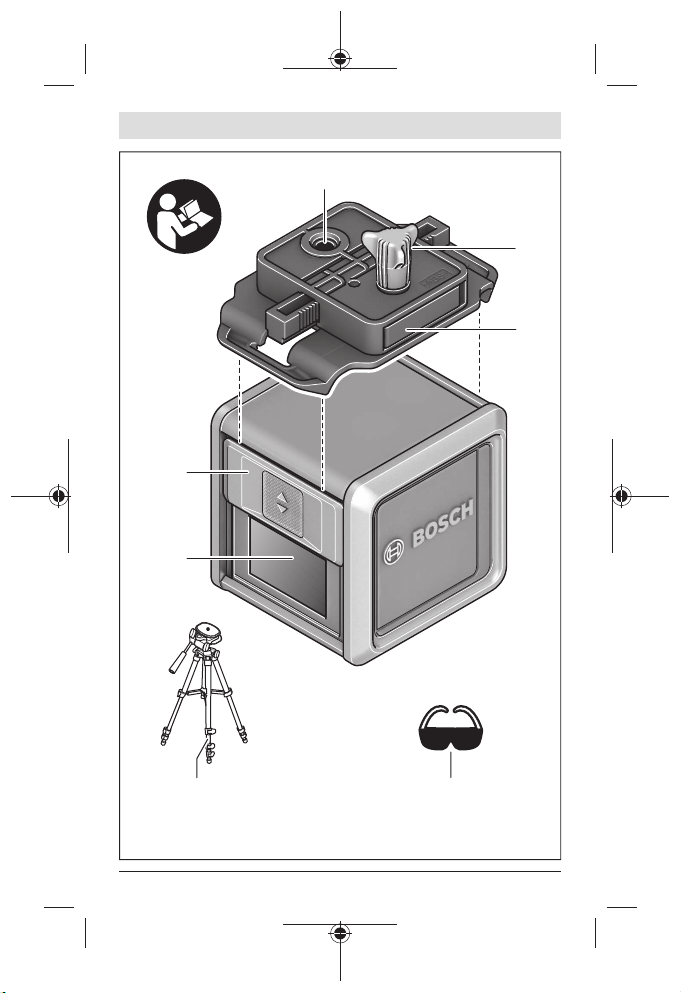

The numbering of the product features shown refers to the illustration of the
measuring tool on the graphic page.
(1) 1/4" mount of the adapter plate
(2) Fine adjustment screw of the adapter plate
(3) Adapter plate
(4) On/off switch
(5) Laser beam outlet aperture
(6) Tripoda)
(7) Laser viewing glassesa)
Bosch Power Tools 1 609 92A 6GR | (02.02.2021)
10 | English
(8) 1/4" tripod mount
(9) Battery compartment cover
(10) Laser warning label
(11) Serial number
(12) Battery compartment cover locking mechanism
(13) 1/4" screw of the holder
(14) Locking screw of the holder
(15) Fastening screw of the holder
(16) Holder
a) Accessories shown or described are not included with the product as stand-
ard. You can find the complete selection of accessories in our accessories
range.
Technical data
Cross line laser Quigo Green
Article number 3 603 F63 C02
Working range at leastA) 12m
Levelling accuracyB)C) ±0.6mm/m
Self-levelling range ±4°
Levelling time ≤6s
Operating temperature –5°C to +40°C
Storage temperature –20°Cto+70°C
Max. altitude 2000m
Relative air humidity max. 90%
Pollution degree according to IEC61010-1 2D)
Laser class 2
Laser type 500–540nm, <5mW
C65
Divergence 25×5mrad (full angle)
Tripod mount 1/4"
Batteries 2×1.5V LR3(AAA)
1 609 92A 6GR | (02.02.2021) Bosch Power Tools
