Reading Bosch Security Systems, Inc. Product Date Codes
For Product Date Code information, refer to the Bosch Security Systems, Inc. Web site at: http://www.boschsecurity.com/datecodes/.
en Installation Guide
Universal Enclosure
AE20
© 2019 Bosch Security Systems B.V, Torenallee 49 5617 BA Eindhoven, Netherlands
Dimensions (HxWxD) 5 in x 6 in x 1.5 in (12 cm x 16 cm x 4 cm)
3 | Specifications
Install the AE20 using the three-point configuration. The surface mount and octagonal box
installs are the only opyions in the three-point install. Refer to the following illustration.
Install the cover tamper screw. Refer to illustration below.
NOTICE!
Refer to the control panel or module installtion instructions for connecting to the
control panel.
Copyright
This document is the intellectual property of Bosch Security Systems, Inc. and is protected by copyright. All rights reserved.
Trademarks
All hardware and software product names used in this document are likely to be registered trademarks and must be treated accordingly.
Bosch Security Systems, Inc. product manufacturing dates
Use the serial number located on the product label and refer to the Bosch Security Systems, Inc. website at
http://www.boschsecurity.com/datecodes/.
CAUTION!
All modules used with this enclosure should be power limited. The total
power within the enclosure should be no more that 15 W.
Bosch Security Systems, B.V.
Torenallee 49
5617 BA Eindhoven
Netherlands
www.boschsecurity.com
For documentation in your specific language, go to your regional Bosch Security website.
© 2019 Bosch Security Systems B.V, Torenallee 49 5617 BA Eindhoven, Netherlands F.01U.035.922 | 03 | 2019.05 | 2
Callout Description Callout Description
1 4 in (10 cm) square 3 Double-gang box
2 Single-gang box 4 3.5 in (9 cm) octagon
This enclosure holds several Bosch and EDM input, output, and receiver modules.
1 | Overview
2 | Installation
NOTICE!
Failure to follow the mounting instructions can damage the enclosure
.
1. Open by inserting a screwdriver into the two slots.
2. Use the mounting holes when installing to an elecrical box.
UP
3
1
4
NOTICE!
The wall tamper does not function when you install to an electrical box
.
3. Install a 3-point module before installing the enclosure to the wall.
+AUX-
OUTPUT TMPR R B G Y
OPTION
1 2 3 4 5 6 7 8COM COM COM COM
4 2 18
1
Callout Description
1 Three-point mounting slots
4. Attach to the surface. Refer to the following illustration.
UP
1
1
Callout Description Callout Description
1 Surface install holes 2 Wall tamper screw location
NOTICE!
Inserting a screw into the tamper bracket keeps the bracket and AE20 separate
when the screw is tightened, or when the AE20 is removed. For proper align-
ment, insert this screw last.
3 | Attaching
Install a module into the AE20. Refer to the following illustration.
Autres manuels Bosch Enceinte
Bosch

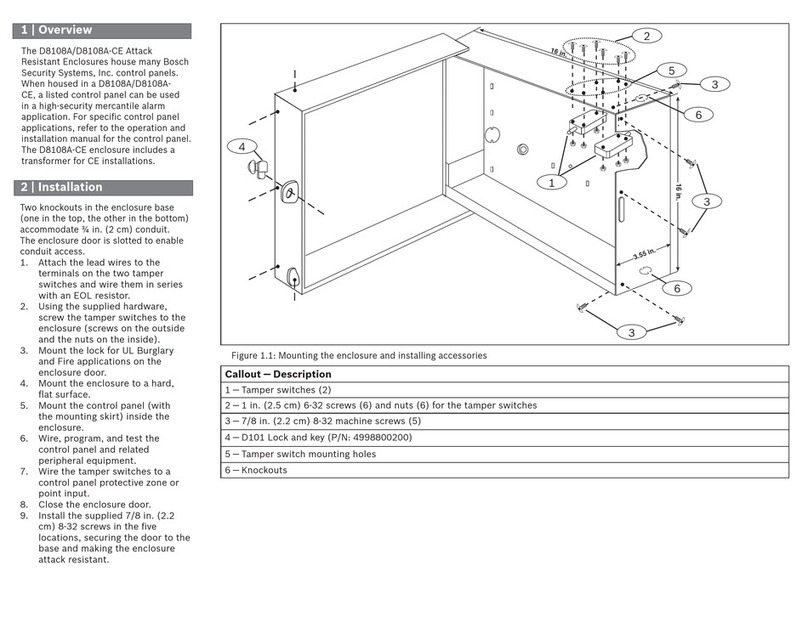

Bosch D8108A Manuel utilisateur
