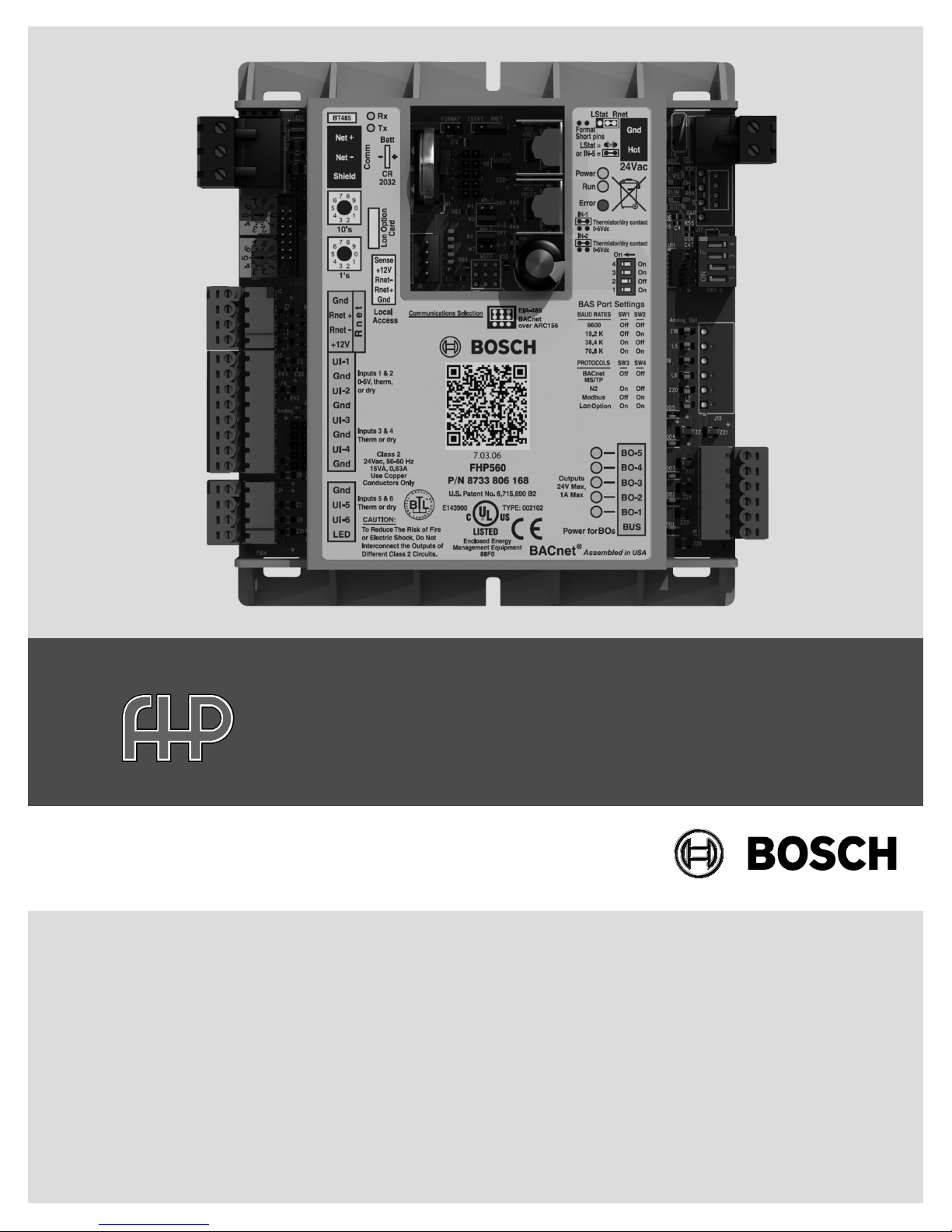

Bosch 560 DDC Manuel utilisateur

Quick Start Guide

560/583 DDC

Please refer to the included Hardware User’s Guide and BACview Installation and

Operation Manual for more detailed information on setting up and using the controllers.

8733914716(2014/02)

2 |

8733914716 DDC (2014/02) Subject to change without prior notice Quick Start Guide

Quick Start Guide

| 3

Quick Start Guide Subject to change without prior notice 8733914716 DDC (2014/02)

Quick Start Guide

CONTENTS

Quick Start Guide – Hardware Setup .................4

Controller Features.............................4

Getting Started...................................5

Jumper Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

DIP Switch Settings ...............................6

Rotary Dial Settings...............................7

Power Up .......................................7

Quick Start Guide – Software Setup..................8

Software Conguration Tools ....................8

Handheld BACview Module Features ..............8

Virtual BACview Module Features .................9

Getting Connected...............................10

Conguring Application Parameters using BACview...11

Modifying Parameter Values Using BACview .........11

Customizing Program Features Using BACview ......12

Useful Shortcuts for Tweaking Program Features

Using BACview...............................12

Congurable I/O Port Assignments (SW 7.03.06) ......13

Wiring Diagram .................................14

Typical FHP560 Wiring Diagram ...................14

Table of Contents

4 |

8733914716 DDC (2014/02) Subject to change without prior notice Quick Start Guide

Quick Start Guide

Quick Start Guide – Hardware Setup

Controller Features

Battery

Network

LON Connector

Rotary Switch

Jumper Bank

RNET

Connector

Universal

Inputs

IN-1 to IN-6

Local Access Port

(see page 10)

24VAC

DIP Switch

Bank

Analog

Outputs

(583 only)

Digital

Outputs

Part Number

Hardware Setup

FHP 560 Controller

| 5

Quick Start Guide Subject to change without prior notice 8733914716 DDC (2014/02)

Quick Start Guide

GETTING STARTED

Perform a quick visual inspection to ensure the

controller has no external damage and all connectors

are intact. Ensure wiring is per desired application

(see sample FHP 560 wiring diagram on page 14).

Refer to I/O port conguration (page 13) for further

details on wiring inputs and outputs.

JUMPER SETTINGS

Verify that hardware conguration for jumpers

match corresponding Heat Pump system

application. If the controller is networked, ensure

communications jumper is set to EIA-485, unless

the network protocol is BACnet over ARC156.

Getting Started

Input Selection Jumpers for IN-1 & IN-2

(e.g. for a 0-5V CO2 Sensor

connected to IN-1, the jumper

should be set in bottom position)

IN-1 & IN-2 Jumper

Settings Label

Communications Selection Jumper

(i.e. jumper in bottom position for

BACnet over ARC156, or, jumper in top

position for EIA-485 using BACnet over

MS/TP, LON, Modbus, or N2 protocols)

Communications Selection label

In the above diagram, IN-1 and IN-2 are set to Thermistor/Dry

Contact, and Communications is set to BACnet over ARC156.

6 |

8733914716 DDC (2014/02) Subject to change without prior notice Quick Start Guide

Quick Start Guide

DIP SWITCH SETTINGS

Verify that hardware conguration for DIP switches

match corresponding network application per the

BAS Port Settings.

BAUD RATES SW1 SW2

9600 Off Off

19.2K Off On

38.4K On Off

76.8K On On

PROTOCOLS SW3 SW4

BACnet® MS/TP Off Off

N2 On Off

Modbus Off On

LON Option On On

Sample DIP switch settings for a

LON Talk Application.

Caution

The LonTalk®card

must be installed

DIP Switch Settings

DIP

Switch

| 7

Quick Start Guide Subject to change without prior notice 8733914716 DDC (2014/02)

Quick Start Guide

ROTARY DIAL SETTINGS

Verify hardware conguration for rotary dials matches

corresponding application.

The rotary dials provide the controller address for

identication over a network.

The top dial represents the tens digit of the address,

and the bottom dial represents the ones digit for the

address. See example below:

In the example to the left,

the rotary dial is set to 69.

Rotary Dial Settings

POWER UP

Apply power to the unit and verify via the power LED

that the controller is receiving 24VAC.

8 |

8733914716 DDC (2014/02) Subject to change without prior notice Quick Start Guide

Quick Start Guide

Quick Start Guide – Software Setup

Software Conguration Tools

Handheld BACview Module Features

• Hot-keys: used for entering number values.

• Arrow keys: used for navigating the various

BACview screens.

• Soft- keys: four (4) buttons used to access

corresponding Soft-key Labels directly above them.

Software Setup

• Link: an arrow next to a menu item implies

additional screen(s) can be accessed through

that menu. To access a screen navigate to the

menu item and hit the ENTER button. (Note:

selected elds have a bracket [...] around them).

• Contrast screw: used to adjust screen contrast.

| 9

Quick Start Guide Subject to change without prior notice 8733914716 DDC (2014/02)

Quick Start Guide

Virtual BACview Features

Installation

• Download and install driver for USB cable (cable p/n

641-261 purchase required) from FHP website

(http://fhp-mfg.com/?p=controls_support).

• Verify device is installed in Device Manager and take

note of COM port.

• Download and install Virtual BACview from FHP

website (http://fhp-mfg.com/?p=controls_support).

Interface

• Use mouse to select keypad buttons (for

shortcut key combinations, FN = Ctrl on

keyboard e.g. FN+9 is Ctrl+9).

• Screen size (number of rows) can be adjusted

in Virtual BACview at startup.

Caution

All screen shots of BACview used in

this manual are from Virtual BACview

and may not represent the screen

viewed on an actual BACview module,

which is limited to four (4) rows of text.

Virtual BACview Features

10 |

8733914716 DDC (2014/02) Subject to change without prior notice Quick Start Guide

Quick Start Guide

Getting connected

Getting Connected

Connect the BACview module (or laptop if using

Virtual BACview) to the FHP controller, or to an RS

Sensor connected to the controller.
