Bosch B426 Manuel du propriétaire
Conettix Ethernet Communication
Module
B426
en Installation and Operation Guide
Conettix Ethernet Communication Module Table of contents | en 3
Bosch Security Systems, Inc. Installation and Operation Guide 2016.08 | 08 | F.01U.266.226
Table of contents
1Safety 4
2Introduction 5
2.1 About documentation 5
2.2 Bosch Security Systems, Inc. product manufacturing dates 5
2.3 Installation workflow 6
3System overview 7
3.1 Overview 8
3.2 Bus address settings 9
4Installation 10
4.1 Mount the module in the enclosure 10
4.2 Mount and wire the tamper switch (optional) 10
4.3 Wire to the control panel 10
5Configuration 13
5.1 Plug and Play configuration for SDI2 or option bus control panels 13
5.2 Plug and Play configuration for SDI or option bus control panels 13
5.3 Web-based configuration 13
5.3.1 Web-based configuration log in and use 14
5.3.2 Device Information (home) page 15
5.3.3 Change and save settings using the web 15
5.3.4 Basic Network Settings page 15
5.3.5 Advanced Network Settings page 20
5.3.6 Panel Address Settings page 21
5.3.7 Encryption and Security Settings page 23
5.3.8 Maintenance page 24
5.3.9 Factory Default page 26
5.3.10 Firmware Update page 27
5.3.11 Exiting the web-based configuration pages 28
6Maintenance and troubleshooting LEDs 30
6.1 Show the firmware version 31
7Specifications 33
7.1 Technical specifications 33
7.2 Compatibilities 33
8Appendix 35
8.1 Module hostname 35
8.2 Module IP address 35
8.2.1 Use DHCP to look up the IP address of a network-connected module 35
8.2.2 Use an SDI/SDI2 keypad to discover the IP address of a module 35
8.2.3 Use Auto IP with a directly connected module 36
4en | Safety Conettix Ethernet Communication Module
2016.08 | 08 | F.01U.266.226 Installation and Operation Guide Bosch Security Systems, Inc.
1 Safety
ESD Precaution
Please note that the B426 board comes without any case/box and all components are exposed
for finger touches - therefore extra attention must be paid to ESD (electrostatic discharge)
precaution. Make sure there is no static interference when using the board. Appropriate ESD
protections must be taken and wearing electrostatic equipment is recommended, such as anti-
static wrist strap.
ESD damage can range from subtle performance degradation to complete device failure.
Precision integrated circuits may be more susceptible to damage because very small
parametric changes could cause the device not to meet its published specifications.
!
Warning!
Failure to follow these instructions can result in a failure to initiate alarm conditions. Bosch
Security Systems, Inc. is not responsible for improperly installed, tested, or maintained
devices. Follow these instructions to avoid personal injury and damage to the equipment.
Notice!
Inform the operator and the local authority having jurisdiction (AHJ) before installing the
module in an existing system.
Disconnect all power to the control panel before installing the module.
Before installing a B426, refer to Technical specifications, page 33.
Conettix Ethernet Communication Module Introduction | en 5
Bosch Security Systems, Inc. Installation and Operation Guide 2016.08 | 08 | F.01U.266.226
2 Introduction
This section includes basic documentation information and an installation checklist.
2.1 About documentation
Copyright
This document is the intellectual property of Bosch Security Systems, Inc. and is protected by
copyright. All rights reserved.
Trademarks
All hardware and software product names used in this document are likely to be registered
trademarks and must be treated accordingly.
2.2 Bosch Security Systems, Inc. product manufacturing dates
Use the serial number located on the product label and refer to the Bosch Security Systems,
Inc. website at http://www.boschsecurity.com/datecodes/.

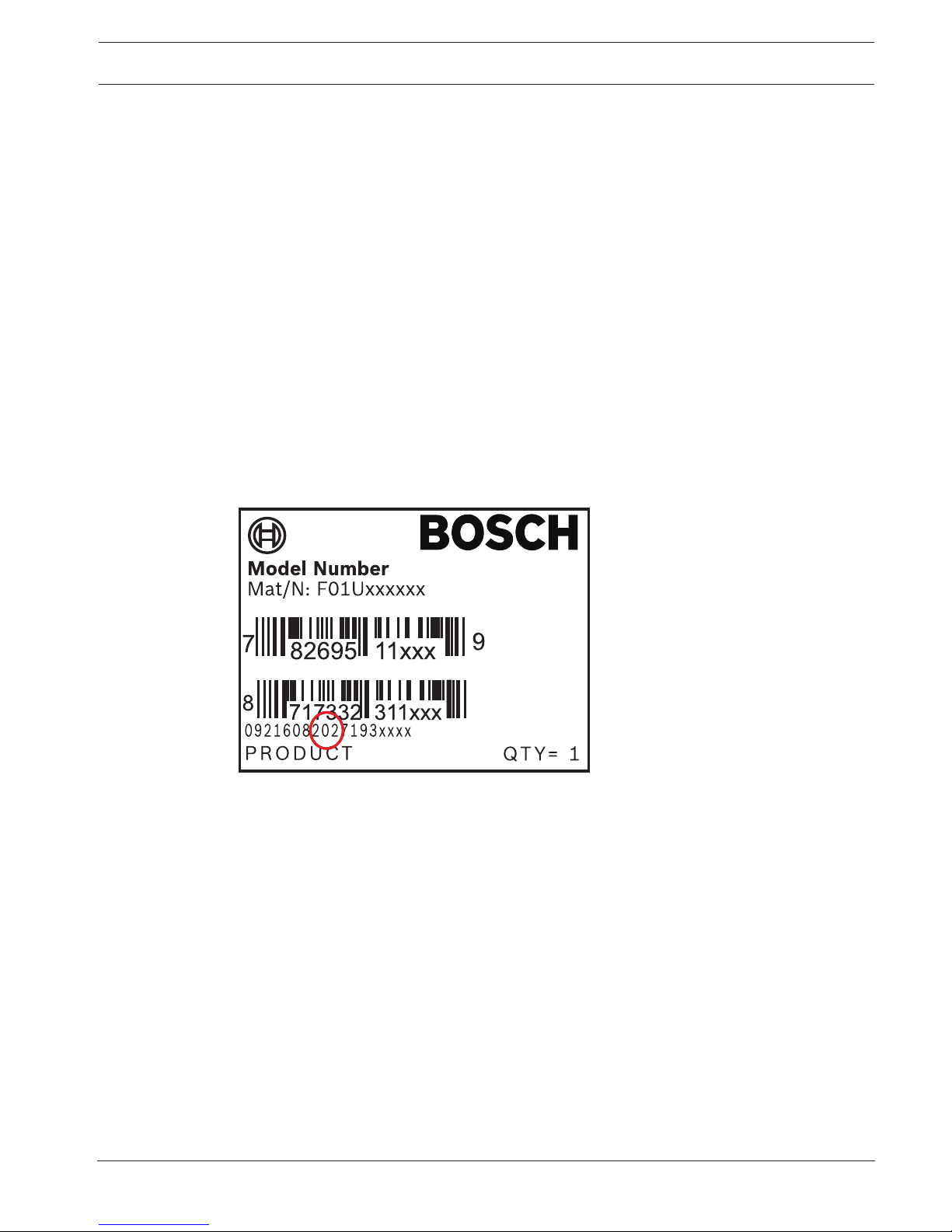

The following image shows an example of a product label and highlights where to find the
manufacturing date within the serial number.
6en | Introduction Conettix Ethernet Communication Module
2016.08 | 08 | F.01U.266.226 Installation and Operation Guide Bosch Security Systems, Inc.
2.3 Installation workflow
To install and configure the module, use the workflow below. Follow in sequential order from
top to bottom. Check off each box as you complete a step.
!
Caution!
Always power down the control panel when connecting a module. To power down the control
panel, unplug the transformer and disconnect the battery.
Plan the installation. Refer to System overview, page 7.
Set the address switch. Refer to Bus address settings, page 9.
Install the module. Refer to Mount the module in the enclosure, page 10, Mount and wire
the tamper switch (optional), page 10, and Wire to the control panel, page 10.
Configure the module. Refer to Plug and Play configuration for SDI2 or option bus control
panels, page 13, or Plug and Play configuration for SDI or option bus control panels, page 13,
or Web-based configuration, page 13.
Verify operation using the LEDs. Refer to Maintenance and troubleshooting LEDs, page 30.
Conettix Ethernet Communication Module System overview | en 7
Bosch Security Systems, Inc. Installation and Operation Guide 2016.08 | 08 | F.01U.266.226
3 System overview
Use the B426 for bi-directional communication over an Ethernet network.
1
4
5
6
3
2
7
8
9
11
10
12
Figure3.1: B426 system connections overview
Callout ᅳ Description Callout ᅳ Description
1 ᅳ Compatible Bosch control panel 7 ᅳ Conettix D6100i Communications Receiver/Gateway and/or
Conettix D6600 Communications Receiver/Gateway (Conettix
D6600 Communications Receiver/Gateway requires 8, 9, and 10)
2 ᅳ Data bus connection between the control
panel and the module
8 ᅳ Ethernet network connection to the Ethernet adapter
(D6680/ITS-D6682/ITS-D6686) (ITS-D6682 shown) Ethernet
Network Adapter
3 ᅳ B426 9 ᅳ Conettix Ethernet Network Adapter (ITS-D6682 shown)
4 ᅳ Ethernet connection between module and
Ethernet network
10 ᅳ Connection from ITS-D6682 to the COM4 Port on the
Conettix D6600 Communications Receiver/Gateway
5 ᅳ Ethernet network, Local Area Network
(LAN), Metropolitan AreaNetwork (MAN), Wide
Area Network (WAN), or Internet
11 ᅳ Ethernet network connection between the host computer
Ethernet network interface card (NIC) and the Ethernet network
6 ᅳ Ethernet network connection to the
D6100i Communications Receiver (D6100i/
D6100IPv6)
12 ᅳ Host PC running Remote Programming Software,
Automation, or the Conettix D6200 Programming/Administration
Software
8en | System overview Conettix Ethernet Communication Module
2016.08 | 08 | F.01U.266.226 Installation and Operation Guide Bosch Security Systems, Inc.
B426 module overview
Figure3.2: B426 Conettix Ethernet Communication Module
Callout ᅳ Description
1 ᅳ Ethernet RJ-45 port
2 ᅳ Yellow LINK LED
3 ᅳ Green 100MB LED
4 ᅳ Address switch
5 ᅳ Heartbeat LED
6 ᅳTX and RX LEDs
7 ᅳ Terminal strip (to control panel)
8 ᅳ Interconnect wiring connectors (to control panel or other compatible modules)
9 ᅳ Tamper switch connector
3.1 Overview
The B426 Conettix Ethernet Communication Module is a four-wire powered SDI, SDI2, or
option bus device that provides two-way communication with compatible control panels over
IPv6 or IPv4 Ethernet networks.
The B426 on-board switch determines the bus address of the device. Perform configuration of
the B426 through the B426 configuration web pages. Additional configuration options include:
– B9512G/B8512G, B6512/B5512/B4512/B3512, D9412GV4/D7412GV4 v2.xx. SDI2 keypad
and Remote Programming Software (RPS) configuration.
– AMAX 2000/2100/3000/4000 . A-Link configuration.
The B426 Conettix Ethernet Communication Module is compatible with IPv6.
For ULC-S559, the B426 can be used for either active or passive communication. For passive
communication, maximum check in is 24 hours. For active communication, maximum check in
(heartbeat) is 89 seconds. NIST encryption is required.
Conettix Ethernet Communication Module System overview | en 9
Bosch Security Systems, Inc. Installation and Operation Guide 2016.08 | 08 | F.01U.266.226
3.2 Bus address settings
The address switch determines the bus type and the module’s address on the bus. The control
panel uses the address for communications. Use a slotted screwdriver to set the address
switch.
Notice!
The module reads the address switch setting only during module power up. If you change the
setting after you apply power to the module, you must cycle the power to the module in order
for the new setting to take effect.

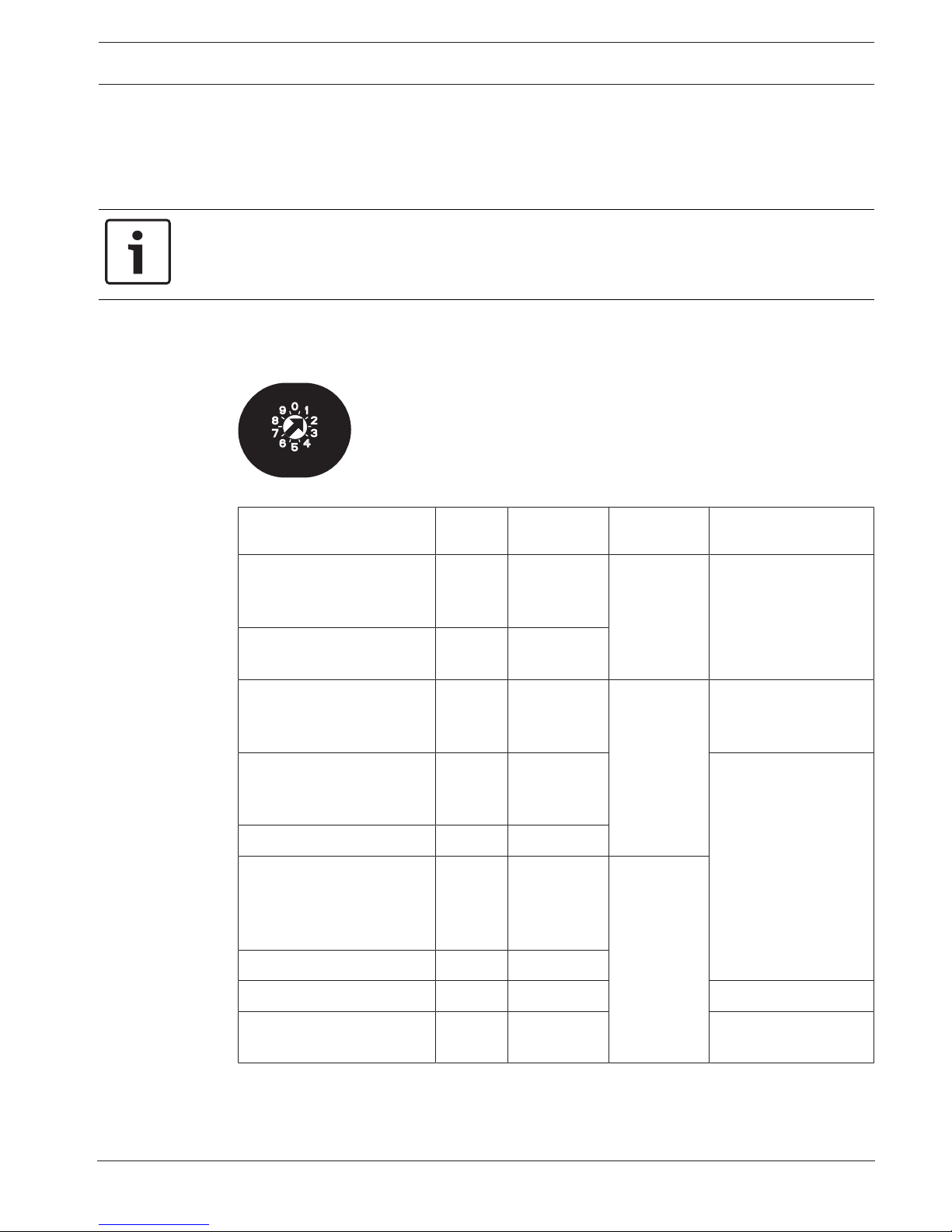

The B426 address switch provides the value for the module's address. The figure below shows
the address switch setting for address 1. Refer to the following table for panel-specific
settings.
Figure3.3: Address switch set to address 1
Control panels Switch
position
Control panel
address
Bus type Function
B9512G/B8512G, B6512/
B5512/B4512/B3512, GV4,
Solution 2000/3000
1 1 SDI2 Automation, Remote
Programming, or
Reporting
B9512G/B8512G, GV4,
Solution 2000/3000
2 2
GV4, GV3, GV2, D9412G/
D7412G/D7212G v6.3 or
higher
3 80 SDI Automation
GV4, GV3, GV2, D9412G/
D7412G/D7212G v6.3 or
higher
4 88 Reporting or Remote
Programming
GV4, GV3 5 92
FPD-7024 v1.06+,
DS7240V2, DS7220V2, Easy
Series V3+, AMAX Series,
CMS Series
6 134 Option
DS7400Xi 7 13
DS7400Xi 8 14 Reporting
FPD-7024, AMAX Series,
CMS Series
9 250 Reporting or Remote
Programming
Tab.3.1: B426 address switch settings
10 en | Installation Conettix Ethernet Communication Module
2016.08 | 08 | F.01U.266.226 Installation and Operation Guide Bosch Security Systems, Inc.
4 Installation
After you set the address switch for the proper address, install the module in the enclosure
and then wire the module to the control panel and to the Ethernet connection.
4.1 Mount the module in the enclosure
Mount the B426 into the enclosure’s 3-hole mounting pattern using the supplied mounting
screws and mounting bracket.
For UL certified systems, mount the module in the control panel enclosure or in a UL listed
enclosure (for example, the D8103 Universal Enclosure).
House all communicators in tampered enclosures, compliant with the following clauses within
Standard CAN/ULC-S304-06: 5.2.6; 5.2.9; 5.2.10 and 5.2.15.
3
12
Figure4.1: Mounting the module
Callout ᅳ Description
1 ᅳ B426 with mounting bracket installed
2 ᅳ Enclosure
3 ᅳ Mounting screws (3)
4.2 Mount and wire the tamper switch (optional)
For B9512G/B8512G, B6512/B5512/B4512/B3512, and GV4 v.2xx control panels, you can
connect an enclosure door tamper switch for one module in an enclosure.
Installing the optional tamper switch for use with a B426:
1. Mount the ICP-EZTS Cover and Wall Tamper Switch (P/N: F01U009269) into the
enclosure’s tamper switch mounting location. For complete instructions, refer to the
Cover and Wall Tamper Switch (ICP- EZTS) Installation Guide (P/N: F01U003734).
2. Plug the tamper switch wire onto the module’s tamper switch connector. For the tamper
switch connector location, refer to B426 module overview, page 8.
4.3 Wire to the control panel
When you wire a B426 to an SDI or SDI2 control panel, you can use either the module's
terminal strip labeled R, Y, G, B (PWR, A, B, COM) or the module's interconnect wiring
connectors (wire included). The figure below indicates the location of both the terminal strip
and the interconnect wiring connectors on the module.
Autres manuels pour B426
6
Table des matières
Autres manuels Bosch Unité de contrôle
Bosch
Bosch rexroth M1-16 Series Manuel utilisateur
Bosch
Bosch Security Systems Blue Line A1-CC Manuel utilisateur
Bosch
Bosch DS7400 Manuel utilisateur
Bosch
Bosch Rexroth DB 52 3X E Series Manuel utilisateur
Bosch
Bosch FLM-I 420-S Manuel utilisateur
Bosch
Bosch REXROTH EFC 610 Series Manuel utilisateur
Bosch
Bosch rexroth SB11 Manuel utilisateur
Bosch
Bosch B426 Manuel utilisateur
Bosch
Bosch Rexroth ctrlX CORE Manuel utilisateur
Bosch
Bosch Rexroth FMS Manuel utilisateur
Bosch
Bosch MU 100 EMS Manuel utilisateur
Bosch
Bosch Rextroth Indramat RECO R-IB IL CNT Instructions d'utilisation
Bosch
Bosch Rexroth IndraControl XM21 Manuel utilisateur
Bosch
Bosch Rexroth IndraControl VAC 30.2 Manuel utilisateur
Bosch
Bosch rexroth DB20K.1X E Series Manuel utilisateur
Bosch
Bosch IO-BOX32 Manuel utilisateur
Bosch
Bosch ETT 223 Manuel utilisateur
Bosch
Bosch D9127U Manuel utilisateur
Bosch
Bosch Rexroth IndraControl XFE 01.1 Series Manuel utilisateur
Bosch
Bosch GCY 30-4 Professional Instructions de montage
Manuels Unité de contrôle populaires d'autres marques
Festo
Festo Compact Performance CP-FB6-E Manuel de la liste des pièces
Elo TouchSystems
Elo TouchSystems DMS-SA19P-EXTME Manuel utilisateur
JS Automation
JS Automation MPC3034A Manuel utilisateur
JAUDT
JAUDT SW GII 6406 Series Guide rapide
Spektrum
Spektrum Air Module System Manuel utilisateur
BOC Edwards
BOC Edwards Q Series Manuel utilisateur
