Bosch D5370-USB Manuel utilisateur

RPS Security Block

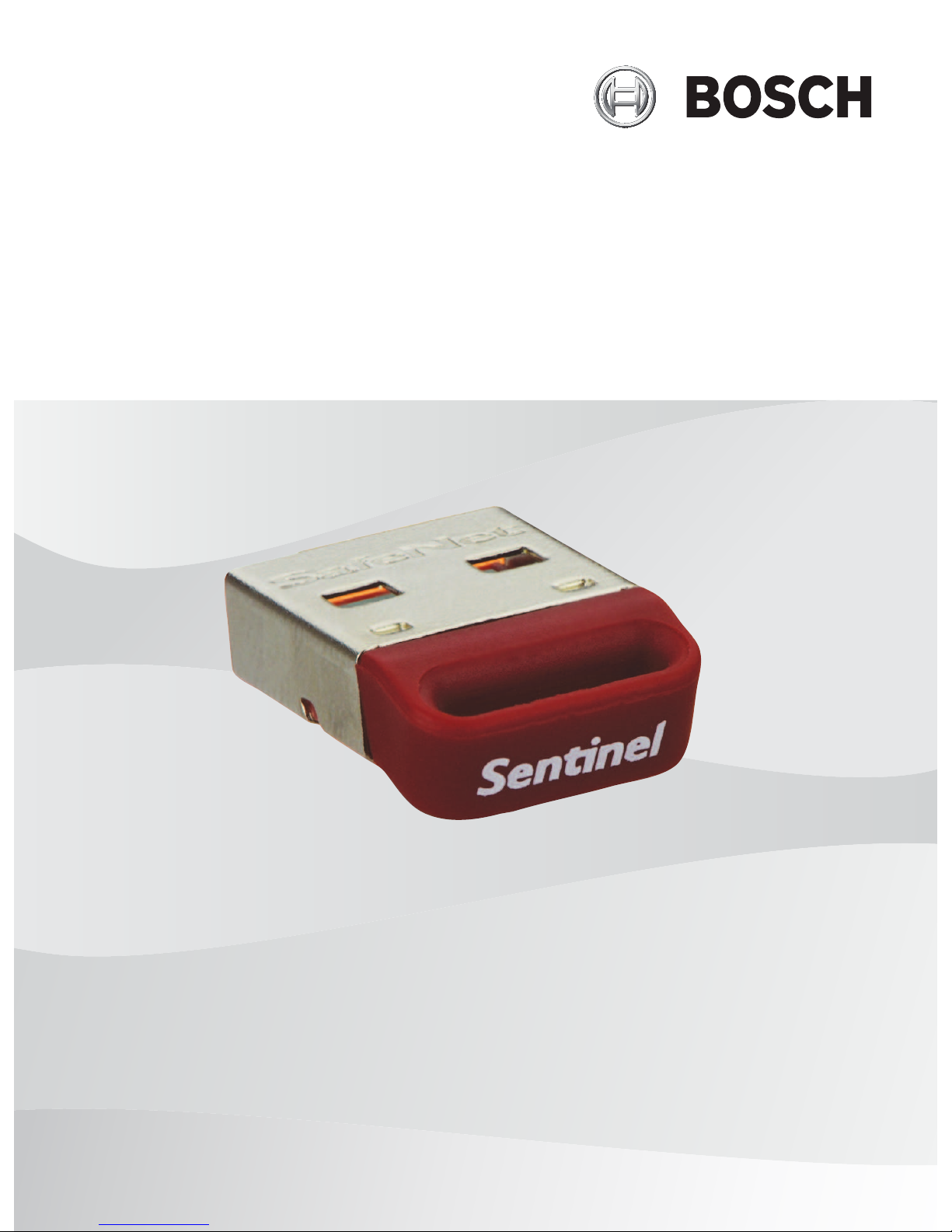

D5370‑USB

en Installation Manual

RPS Security Block Table of contents | en 3

Bosch Security Systems, Inc. Installation Manual 2015.03 | 01 | F.01U.310.788

Table of contents

1System overview 4

1.1 Typical RPS Network 4

1.2 General information 4

1.3 Supported platforms 4

2Installation 6

4en | System overview RPS Security Block

2015.03 | 01 | F.01U.310.788 Installation Manual Bosch Security Systems, Inc.

1 System overview

This section provides an example of a typical network configuration and general information to

assist with your Sentinel Protection Server installation.

1.1 Typical RPS Network

RPS (Remote Programming Software) takes advantage of the Sentinel Protection Server, a

feature available with the D5370 RPS Security Block dongles. This feature allows all RPS

workstations on a LAN to communicate with a control panel as long as one or more of the

workstations or Windows file servers on the LAN has an installed RPS Security Block.

1

2

3

4

5

Callout - Description

1 - D5370-USB RPS Security Block (USB port)

2 - RPS workstation with Sentinel Protection Server and RPS Security Block installed

3 - Network drive with RPS database

4 - RPS workstation using the networked RPS Security Block

5 - Common subnet networking equipment

Install the security key on any machine attached to the network, server or client.

1.2 General information

– When you run the setup program, it automatically updates your version of the Windows

Installer, if necessary. It does not prompt before doing this.

– Administrator privileges are required for installing and setting it up on any Windows OS.

1.3 Supported platforms

– Windows Server 2003 (32-bit and 64-bit)

RPS Security Block System overview | en 5

Bosch Security Systems, Inc. Installation Manual 2015.03 | 01 | F.01U.310.788

– Windows Server 2008 (32-bit and 64-bit)

– Windows Server 2008 R2 (64-bit)

– Windows 7 (32-bit and 64-bit), Windows 8 (32-bit and 64-bit), Windows Server 2012 (64-

bit)

– Windows 8.1 (32-bit and 64-bit)

6en | Installation RPS Security Block

2015.03 | 01 | F.01U.310.788 Installation Manual Bosch Security Systems, Inc.

2 Installation

Install on every workstation on the subnet where you might attach the Security Block. You do

not need a Security Block on more than one workstation on your network, but you might

choose to install additional Security Blocks to prevent a loss of communications in the event

of a workstation failure.

If necessary, Bosch has included the latest Sentinel Drivers in the folder \D5370-D5371

Dongle Hardware Key Drivers.

Bosch Security Systems, Inc.

130 Perinton Parkway

Fairport, NY 14450

USA

www.boschsecurity.com

© Bosch Security Systems, Inc., 2018

Bosch Sicherheitssysteme GmbH

Robert-Bosch-Ring 5

85630 Grasbrunn

Germany
