Bogen Nyquist NQ-S1810CT-G2 Feuille d'instructions
Nyquist Gen 2 VoIP Speakers
Configuration Manual
NQ-S1810CT-G2, NQ-S1810WT-G2
2019 Bogen Communications, Inc.
All rights reserved.
740-00121A
190909
i
Contents
Configuring Nyquist Gen2 VoIP Speakers ................................................................. 1
1 Using the Dashboard...............................................................................3
2 Updating Firmware...................................................................................5
3 Setting Network Tab Parameters........................................................6
4 Setting Configuration Tab Parameters .............................................9
5 Accessing Log Files................................................................................ 10
6 Setting DSP Parameters....................................................................... 13
ii
Configuring Nyquist
Gen2 VoIP
1
Configuring Nyquist Gen2
VoIP Speakers
The Nyquist VoIP Ceiling Speaker Gen 2 (NQ-S1810CT-G2) and
Nyquist VoIP Wall Baffle Speaker Gen 2 (NQ-S18110WT-G2) are VoIP
talkback speakers designed to work with the Nyquist Series IP net-
work based intercom and paging solution.
The ceiling talkback speaker assembly consists of an 8" cone speaker
and VoIP module pre-assembled onto a 13" steel ceiling grille
painted with bright white enamel.
The VoIP wall baffle talkback speaker assembly consists of an 8" cone
speaker and VoIP module pre-assembled onto a bright white injec-
tion molded wall baffle speaker enclosure.
Both types of speakers have a Form-C relay for controlling third-party
devices, are 802.3af compliant, and are designed to facilitate rapid
and efficient deployment using existing network Power over Ethernet
(PoE) ports. These VoIP speakers enable the ease of placement wher-
ever needed within a facility.
A short press of the appliance’s Reset button reboots the device. If
you press the Reset button for 10 seconds, the appliance returns to
the factory default configuration settings. Returning to the default
configuration settings does not change the appliance’s firmware.
You can let the Nyquist server automatically discover and configure
the Nyquist VoIP speakers, or you can manually configure the speak-
ers through their web-based user interface (web UI). The following
sections describe the process for manual configuration. For informa-
tion about using Nyquist’s automatic configuration process, refer to
the appropriate Nyquist System Administrator Manual.
2
To access the appliance’s UI:
Step 1 Access the appliance’s web UI by doing one of the fol-
lowing:
a On your web browser, enter the IP address for the
appliance as the URL.
b From the Nyquist web UI navigation bar, select Sta-
tions, select Stations Status, navigate to the device
that you want to configure, and then select the Link
icon.
Step 2 At the Nyquist Appliance - Login page, enter username
and password, and then select Login.|
The default username is admin; the default password is
bogen.
The dashboard for the selected appliance appears.
Figure 1, Nyquist Appliance Login
Note: Do not use third-party Chrome browser extensions with the
Nyquist user interface.
3
1 Using the Dashboard
The dashboard displays the following read-only fields:

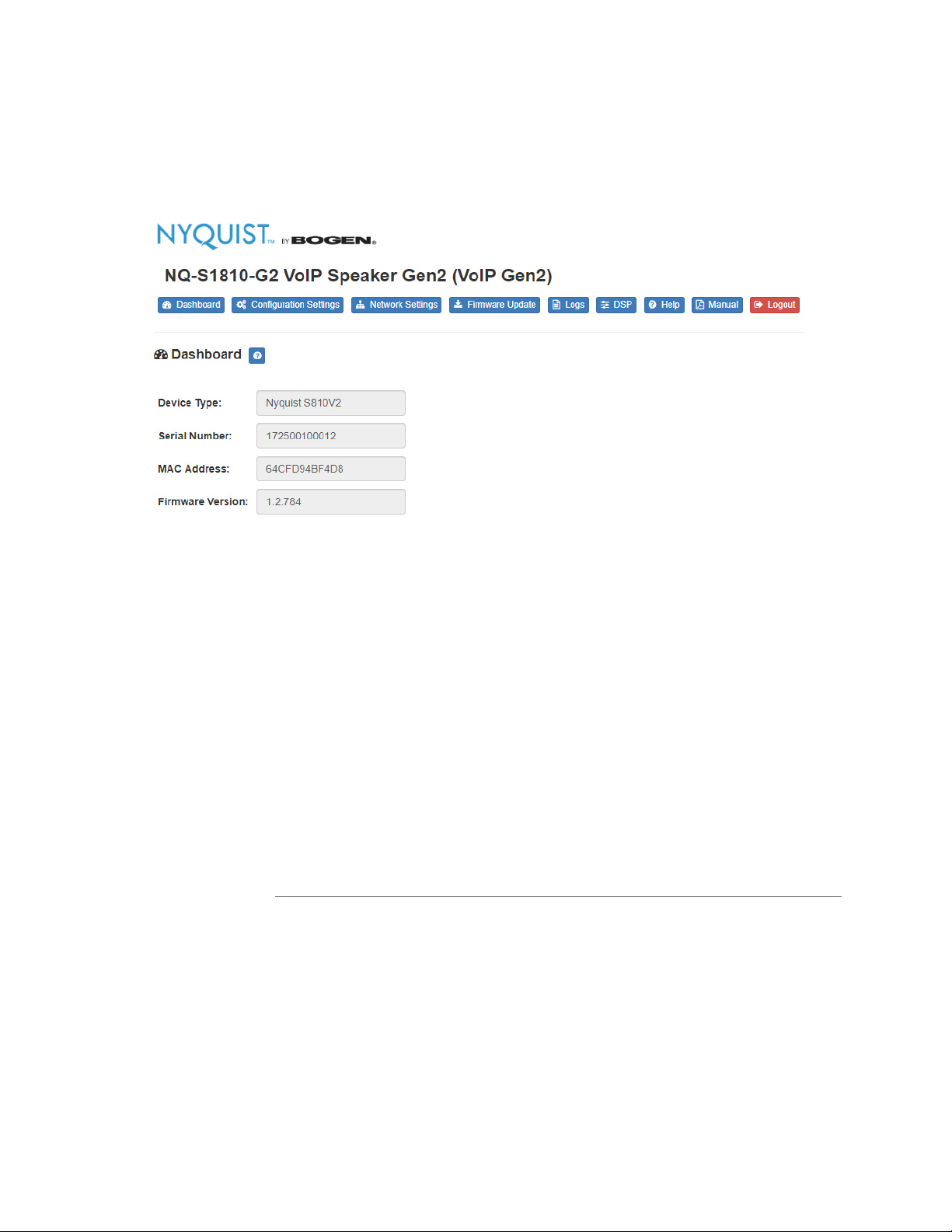

Figure 2,
Table 1, Appliance Dashboard Read-Only Fields
Device Type Identifies the physical device used by the
station.
Serial Number Identifies the serial number for the device.
MAC Address Specifies the Media Access Control (MAC)
address, which is a unique identifier
assigned to network interfaces for commu-
nications on the physical network segment.
Firmware Version Provides the firmware version installed on
the station.
4
The dashboard also contains the following buttons:
Table 2, Appliance Dashboard Buttons
Dashboard Refreshes the dashboard.
Configuration Set-
tings
Accesses the Configuration Settings page
where you can either manually set various
options, such as the SIP Username, or
select to receive configuration settings
from the server.
Network Settings Accesses the Network Settings page where
you can view and set network settings,
such as the static IP address.
Firmware Update Accesses the Firmware Update page where
you can view the current Nyquist version,
check for updates, restore factory settings,
and reboot the appliance.
Logs Accesses log files, which record either
events or messages that occur when soft-
ware runs and are used when trouble-
shooting the appliance.
DSP Accesses the DSP page where you can view
and set parameters for Digital Signal Pro-
cessing (DSP).
Help Accesses the appliance’s online help.
Manual Displays the Nyquist VoIP Speaker Configu-
ration Manual.
Logout Logs out of the appliance’s dashboard.
5
2Updating Firmware
When you select Firmware Update from the appliance’s web UI, the
Firmware Update page appears. From this page you can determine
which Nyquist version the appliance is using and if an update is
required. You can also use this page to restore factory settings and to
reboot the appliance.
To use the Firmware Update page:
Step 1 On the appliance web UI’s main page, select Firmware
Update to ensure you have the latest firmware version.
Step 2 Select Upload Firmware to upload firmware from the
server to the appliance.
If you select this option, a popup screen appears that
Note: A Nyquist appliance connected to the Nyquist network receives a config-
uration file from the Nyquist server that includes the latest firmware available
from the server. If the firmware is later than the one installed on the appliance, an
automatic firmware update occurs unless the Firmware parameter for the sta-
tion is left blank. Refer to the Nyquist System Administrator Manual for more
information.
Figure 3, Firmware Update Page
6
allows you to select the file that you want to upload.
You can navigate to the file’s location. After you select
the file, select Upload. If Nyquist discovers a new firm-
ware version, the Firmware Update page displays an
Update Firmware button. Select this button if you
want to update the appliance’s firmware to the new
version.
Step 3 If you want to return your appliance to its original state
(undoing firmware updates), select Restore Factory
Settings.
Step 4 Select Reboot Appliance to restart your appliance.
3 Setting Network Tab Parameters
Network settings can be configured dynamically by the Nyquist
server or manually by using the appliance’s web UI.
To manually configure network settings:
Step 1 On the appliance web UI’s main page, select Network
Settings.
Step 2 Select your desired network settings.
Step 3 Select Save.
