Bodet Sigma C Manuel utilisateur

Master clock Sigma C

When receiving goods please check nothing is broken otherwise make a claim near shipping company.

SIGMA

Installation and operating instructions

BODET SA

1 rue du Général de Gaulle

49340 TREMENTINES

Tél: +33 2 41 71 72 99

Fax: +33 2 41 71 72 01

Réf : 607753 E

www.bodet-time.com

Table of contents

I - Initial Verification 5

1.1 General information..................................................................................................................5

1.2 Unpacking the master clock.....................................................................................................5

1.3 Cleaning...................................................................................................................................5

II - Safety rules 6

III - Identification - Sigma C 8

3.1 Wall Sigma C ..........................................................................................................................8

3.2 Rack 19’’ Sigma C ..................................................................................................................8

IV - Installation 9

4.1 Mechanical installation.............................................................................................................9

4.1.1 Wall mounted version.........................................................................................................9

4.1.2 Rack 19’’ version................................................................................................................9

4.2 Electrical connections.............................................................................................................10

4.2.1 Wall mounted version.......................................................................................................10

4.2.2 Rack 19’’ version..............................................................................................................10

4.2.3 Connecting a Melodys.....................................................................................................11

4.2.4 Connection of DHF transmitter.........................................................................................11

V - Examples of setting 12

5.1 Setting a DHF time distribution...............................................................................................12

5.2 Programming a RHF circuit....................................................................................................12

5.3 Install an option board............................................................................................................13

VI - Keypad: Key functions 14

6.1 Key functions..........................................................................................................................14

6.2 Synoptic diagram of the programming...................................................................................15

VII - Main menu programming 16

7.1 Standby state.........................................................................................................................16

7.2 User menu.............................................................................................................................16

7.2.1 USB transfer....................................................................................................................16

7.2.2 Add DHF receivers .......................................................................................................17

7.2.3 Bank holidays..................................................................................................................17

7.2.4 Access code....................................................................................................................18

7.2.5 Time and date.................................................................................................................18

7.2.6 Dynamic reception...........................................................................................................19

7.2.7 Language.........................................................................................................................19

7.2.8 Version.............................................................................................................................19

VIII - Programming the circuits 20

8.1 Prerequisite before programming circuits...............................................................................20

8.2 Presentation of the circuits.....................................................................................................22

8.3 Viewing the circuits.................................................................................................................21

8.4 Programming the circuits.......................................................................................................21

8.4.1 Add a program step.........................................................................................................22

8.4.2 Delete a program step.....................................................................................................23

8.4.3 Modify a program step....................................................................................................23

8.5 Deleting a program.................................................................................................................23

8.6 Viewing the status of a circuit.................................................................................................23

IX - Manual testing of circuits 24

X - Programming in Holidays and Special Day mode 25

10.1 Prerequisite before programming in holidays and special days..........................................25

10.2Programmedetails................................................................................................................25

XI - Technician menu programming 26

11.1 Time synchronisation menu.................................................................................................27

11.1.1 Programmable time changeover....................................................................................28

11.1.2 Setting the time base.....................................................................................................28

11.2 Time output management menu..........................................................................................29

11.3 IP configuration menu..........................................................................................................30

11.4 Relay setting menu..............................................................................................................31

11.5 RHF circuit function setting menu........................................................................................31

11.6 Function setting menu.........................................................................................................32

11.7 “Delete all programming” menu...........................................................................................33

11.8 CPU software download menu............................................................................................33

11.9 Factory setting restoration menu.........................................................................................34

XII - Priority of execution of programs 34

XIII - Alarm messages 35

XIV - Options 37

14.1 Mechanical installation.........................................................................................................37

14.1.1 Wall-mounted version ...................................................................................................37

14.1.2 Rack 19’’ version ..........................................................................................................37

14.2 Option board with 3 AFNOR outputs....................................................................................38

14.3 Three inputs option card......................................................................................................38

XV - Technical characteristics 40

XVI - What to do if ...? Check that … 41

Appendix I : NTP programming 42

IP function programming..............................................................................................................42

IP network configuration and protocols supported .....................................................................43

Appendix II : quick start guide 44

Enablinge/disablinge the circuit....................................................................................................44

Test circuits..................................................................................................................................44

Program a holiday or special day period......................................................................................44

I - Initial Verification

Thank you for choosing a BODET Sigma C master clock. This product has been carefully

designed for your satisfaction based on ISO9001 quality requirements.

We advise you to read this manual thoroughly before attempting to set up the product.

Please keep this booklet, so that you can refer to it when necessary.

Bodet accepts no responsibility for any issues resulting from any use not conforming

with the guidance in this document.

Any such modication to the product will invalidate the product warrantyee.

1.1 General information

The Sigma C is a master clock which can be used to control slave clocks and heating circuits,

lighting, bell ringing and access to the doors of the building.

The master clock has functions which can be programmed from the technician menu.

On rst installation, it is essential to program the technician menu (see page 26) before the

customer menu.

It is also essential when installing the master clock to program the technician functions in the

order in which they appear in the menu.

This product must be installed in a residential, commercial or light industry environment.

1.2 Unpacking the master clock

Checking the equipment :

■master clock Sigma C,

■ one USB ash drive,

■one CD containing the PC software,

■this manual.

With (option card) :

■ relay card (1 SPDT and 2 SPNO relays) (ref: 907 535).

■ 3 external inputs card (ref: 907 542).

1.3 Cleaning

Use an antistatic product identical to that supplied. Never use alcohol, acetone or other solvents

which may damage the product casing.

II - Safety rules

Installation and maintenance of this equipment should only be carried out by qualified personnel.

If the master clock is connected to the 230 V mains power supply, its installation must comply with

the European standard IEC 364 (NFC 15.100 for France).

Protection :

110-230V version: the mains supply for this device must include a neutral phase circuit breaker

of maximum 6 A C curve, rapidly accessible upstream from the supply.

For the relay circuits, add protections with circuit breakers of maximum 4 A. Indicate on the

labels the location of these protections.

The circuit breaker must be switched off during maintenance operation. Refer to labels in the product.

All cables must be attached either to the wall (wall-mounted version) or to the frame of

the cabinet (Rack version) before being connected to the various terminals strips, to

prevent any pulling on these terminal strips. In addition, the wires of each terminal strips

must be attached to each other to maintain the various isolations if an initial fault occurs.

The time distribution cables must not run alongside high power mains cables (to

avoid interference with communication between the master clock and the clocks).

The master clock must be attached (to the wall or rack) before being switched on.

The “RACK” models must be mounted in a 19” cabinet. These components will provide

mechanical, electrical and fire protection (only the front panel may remain accessible).

IMPORTANT: before any installation, refer to the “technical characteristics” paragraph.

Remember to make a backup of your programming on the USB flash drive. In case of incident

(such as breakdown or thunderstorm), you will have to restore the backup to start the time

distribution again.

Caution :

In case of replacement of the CR2032 battery, it is

IMPERATIVE to respect the polarity following the

opposite indications.

There is risk of explosion if the battery is replaced by an

incorrect battery.

Please dispose used batteries according to the instructions of

the manufacturer.

To check the model of the master clock,

click key.

SIGMA C

III - Identification - Sigma C

3.1 Wall Sigma C

3.2 Rack 19’’ Sigma C

USB connector

LCD screen

Alarm indicator light (red LED)

Keypad (see page 15)

Mains indicator light (green LED)

III - Identification - Sigma C

3.1 Wall Sigma C

3.2 Rack 19’’ Sigma C

USB connector

LCD screen

Alarm indicator light (red LED)

Keypad (see page 15)

Mains indicator light (green LED)

IV - Installation

4.1 Mechanical installation

Choose a room with low temperature variations away from any source of electrical interference

(contactors, motors, etc.).

4.1.1 Wall mounted version

1/ Loosen the 2 screws on the front.

2/ Remove the top cover: slide upward.

3/ Remove the cover bottom: Press the 2 clips (N) and slide upward.

4/ Disconnect the at cables (Q) (be careful to connect them the same way round on reassembly).

5/ Attach the master clock to the wall.

6/ When your unit is in place, remove the protective lm on the keypad.

4.1.2 Rack 19’’ version

1/ Install the rack in its slot in a cabinet.

4.2 Electrical connections

4.2.1 Wall mounted version

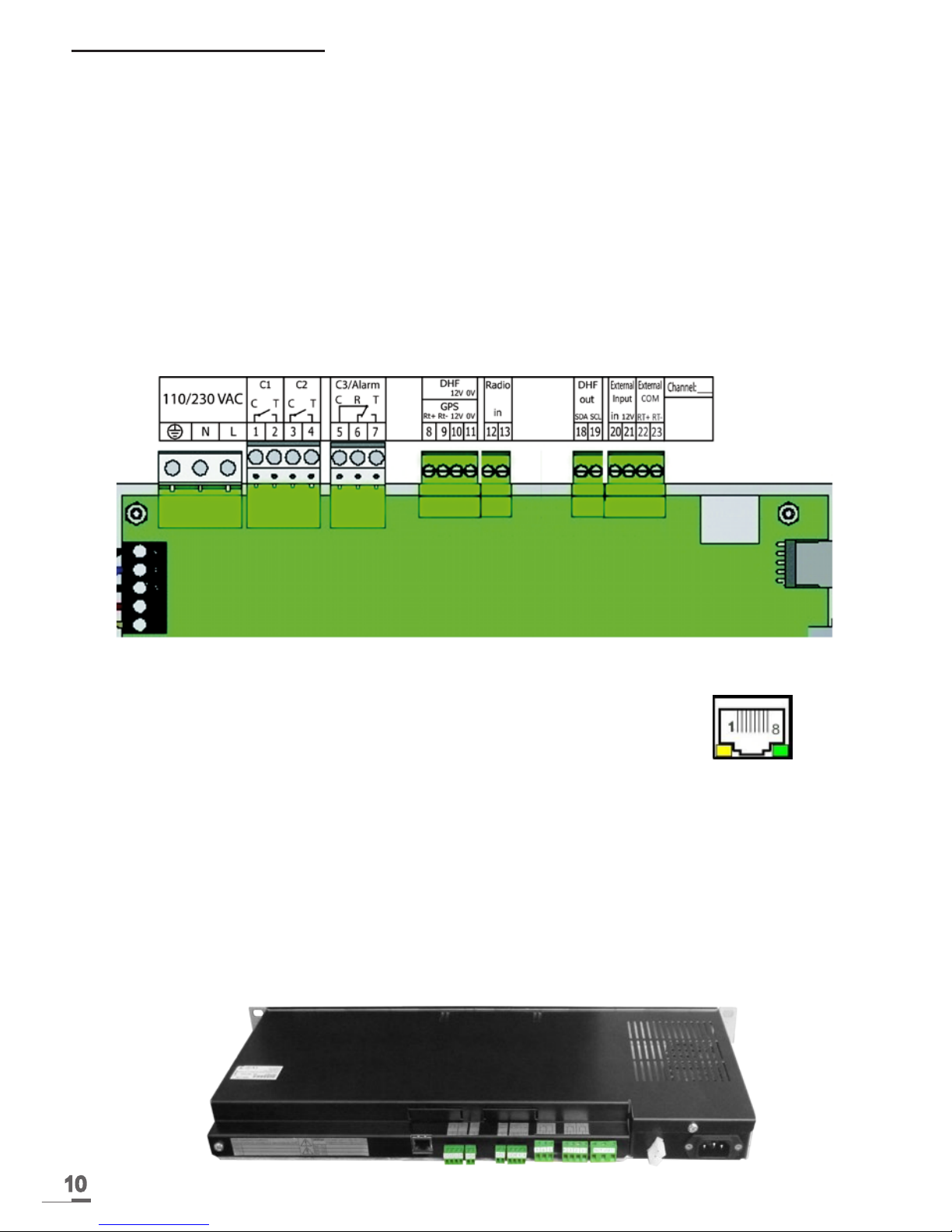

1/ Connect the cables to the corresponding terminal strips as shown in the gure below.

Meaning of status of LEDs on a RJ45 connector :

- The green LED reects network activity.

The yellow LED indicates the speed of the network:

off=10 Mbps on=100 Mbps.

4.2.2 Rack 19’’ version

The connectors are directly accessible at the rear of the Rack unit.

110-

230VAC

GPS input

DCF

radio input

External input

See the limit

characteristics of

these circuits on

page 40

Circuit C1

Circuit C2

Circuit C3

DHF output

Output communication

IP connection

RJ45 connector

Attach the wires to each other, near

the terminal strips.
