Boca Systems Wireless LAN PC Card 11Mbps Manuel utilisateur

11Mbps Wireless LAN PC Card

User’s Guide

Version 1.45

INFORMATION TO USER

Federal Communications Commission Statement

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates, uses and can

radiate radio frequency energy and, if not installed and used in accordance with the instructions,

may cause harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the interference by one of the following measures:

 Reorient or relocate the receiving antenna.

 Increase the separation between the equipment or device.

 Connect the equipment to an outlet other than receiver’s.

 Consult a dealer or an experienced radio/TV technician for assistance

FCC Caution: To assure continued compliance, (example - use only shielded interface cables

when connecting to computer or peripheral devices) any changes or modifications not expressly

approved by the party responsible for compliance could void the user’s authority to operate this

equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions: (1) This device may not cause harmful interference, and (2) this device must accept any

interference received, including interference that may cause undesired operation.

IMPORTANT NOTE: FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled

environment. End-users must follow the specific operating instructions for satisfying RF exposure

compliance.

This transmitter must not be co-located or operating in conjunction with any other antenna or

transmitter.

Regulatory

The wireless LAN PC Card must be installed and used in strict accordance with the manufacturer’s

instructions. This device complies with the following radio frequency and safety standards.

Europe - R&TTE Directive

This device complies with the specifications listed below:

⌧ ETS 300-826 General EMC requirements for Radio equipment.

⌧ ETS 300-328 Technical requirements for Radio equipment.

⌧ EN60950 Safety requirements for Radio equipment.

EU Countries not intended for use

The ETSI version of this device is intended for home and office use in Austria, Belgium, Denmark,

Finland, France (with Frequency channel restrictions). Germany, Greece, Ireland, Italy, Luxembourg,

Netherlands, Portugal, Spain, Sweden and United Kingdom.

The ETSI version of this device is also authorized for use in EFTA member states Iceland,

Liechtenstein, Norway and Switzerland.

Table of Contents

Chapter 1: Introduction.............................................................................................3

The 11Mbps Wireless LAN PC Card...................................................................3

Features..............................................................................................................3

Package Contents...............................................................................................4

System Requirements.........................................................................................4

Chapter 2: Network Configuration and Planning......................................................5

Wireless LAN Basic.............................................................................................5

Network Topology................................................................................................5

Roaming..............................................................................................................7

Chapter 3: Installing the Drivers and Configuration Utility for Windows 9X/ME/

2000..............................................................................................................8

Running the Auto Driver & Utility Installation.......................................................8

Inserting the adapter..........................................................................................10

Chapter 4: Configuration Utility...............................................................................12

Using the configuration utility.............................................................................12

Chapter 5: Installation Procedure Under Windows NT 4.0.....................................19

About Windows NT 4.0......................................................................................19

Installing the Driver............................................................................................19

Configuration / Uninstall....................................................................................22

Chapter 6: Installation Procedure Under WindowsXP............................................23

About Windows XP............................................................................................23

Installing the Driver / Utility................................................................................23

Configuration Under WinXP...............................................................................23

Uninstall Procedure Under WinXP.....................................................................24

Appendix A: Troubleshooting..................................................................................25

Appendix B: Glossary.............................................................................................26

Appendix C: Specifications.....................................................................................28

Chapter 1: Introduction

The 11Mbps Wireless LAN PC Card

The 11Mbps Wireless LAN PC Card now has a new , higher-powered antenna that provides a

greater range than ever. The increased sensitivity helps filter out interference and notice to keep

your signal clear. Improved error correction in the chipset keeps you operating at higher transmission

rates for longer distances. And since you only need one Type II or III PCMCIA slot, you’re free to use

your other slots for additional accessories.

Plug-and-Play device, Windows 98/ME/2000/XP will automatically recognize the wireless LAN

card and initiate the installation process. Upon successful installation, the wireless LAN card will

communicate seamlessly with other wireless home and office networking products.

Using radio frequency (RF) technology, WLANs transmit and receive data over the air,

minimizing the need for wired connections. Thus, WLANs combine data connectivity with user

mobility, and through simplified configuration, enable movable LANs. This wireless networking

solution has been designed for both large and small businesses, and it is scalable so that you can

easily add more users and new network features as your business grows.

This manual will assist you in the installing WLAN PC Card.

Features

 IEEE 802.11b Direct Sequence high rate compatible.

High data rate 11/5.5/2/1 Mbps.

Auto Rate fallback

IPX, NetBEUI, TCP/IP protocols supported.

Wired Equivalent Privacy Algorithm (WEP) (64 bits/128 bits)

802.11 Power save in infrastructure mode.

Passive/Active scan. Long/Short preamble.

RTS/CTS handshake.

Beacon and Probe response generation in an IBSS.

Plug-N-Play and easy setup

Package Contents

 One 11Mbps Wireless LAN PC Card.

One setup Utility CD-ROM (User Guide on CD).

Quick Installation Guide.

System Requirements

 One PCMCIA Type II or Type III slot.

PCMCIA revision 2.10 compliant card and socket services.

Operating System: Windows 98, ME, NT, 2000, or XP.

2M bytes free disk space for utility and driver installation.

Chapter 2: Network Configuration and

Planning

Network Topology

Wireless LAN Basic

An Ad-Hoc wireless LAN is a group of computers, each equipped with one WLAN adapter,

connected as an independent wireless LAN. Computers in a specific Ad-Hoc wireless LAN must be

configured to share the same radio channel.(Fig 2-1)

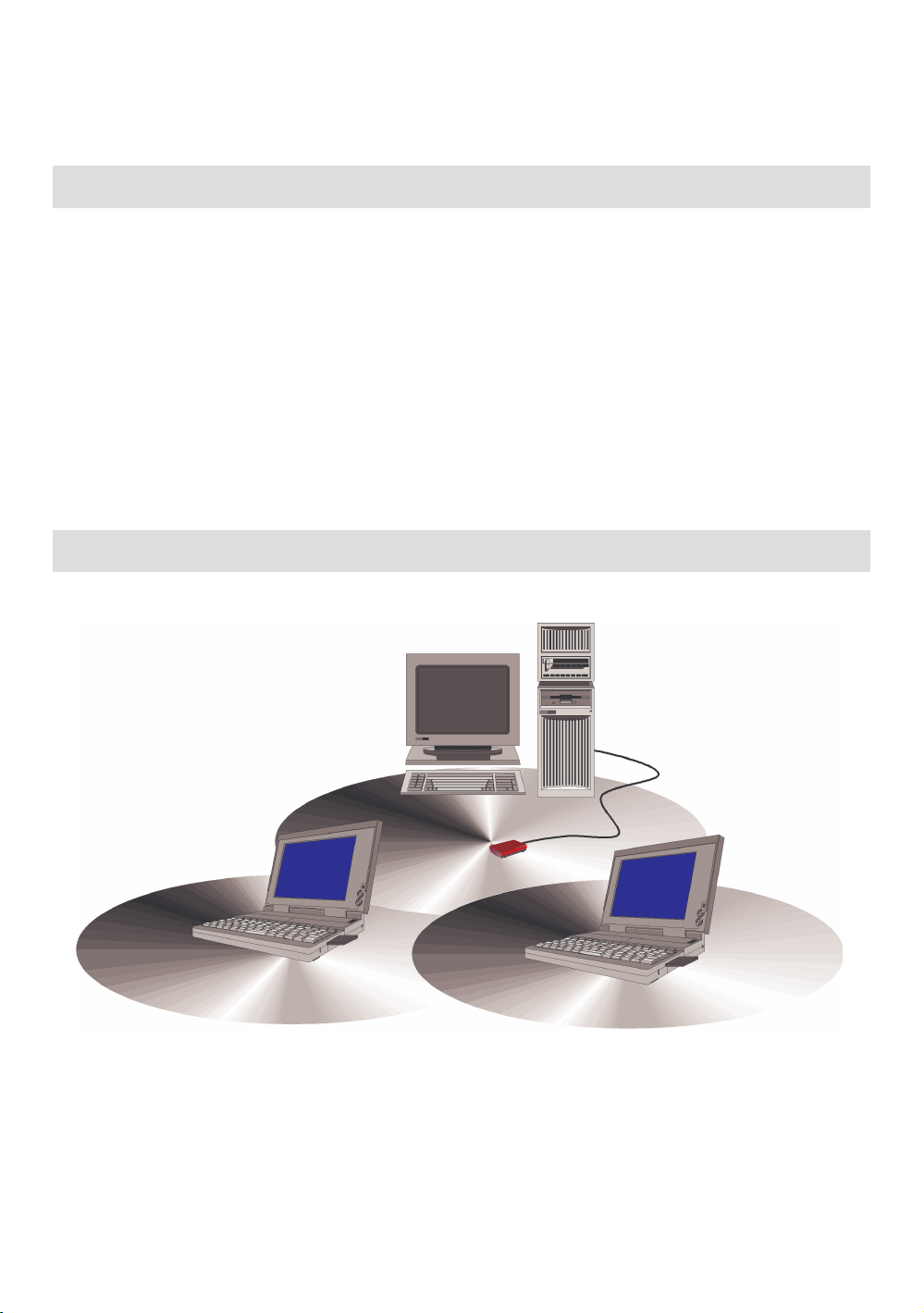

Fig 2-1 Ad-Hoc Wireless LAN

Notebook with PCMCIA WLAN Card

Desktop with USB WLAN Adapter

The WLANs supports legacy Ethernet LAN network configuration options as defined by the

IEEE 802.11b standards committee.

The WLAN Card can be configured as:

 Ad-Hoc for departmental or SOHO LANs.

Infrastructure for enterprise LANs.

LAN-Interconnection for point-to-point link as campus backbone.

The adapter provides access to a wired LAN for wireless workstations. An integrated wireless

and wired LAN is called an infrastructure configuration. A group of WLAN PC users and an Access

Point compose a Basic Service Set (BSS). Each WLAN PC in a BSS can talk to any computer in the

wired LAN infrastructure via the Access Point.(Fig 2-2)

An infrastructure configuration extends the accessibility of a WLAN equipped PC to a wired

LAN, and doubles the effective wireless transmission range for 2 WLANs PCs. Since the Access

Point is able to forward data within its BSS, the effective transmission range in an infrastructure LAN

is double.(Fig 2-3)

The use of a unique ID in a BSS is essential. All WLAN equipped PCs configured without

roaming options in independent BSS must be configured with a BSS ID corresponding to the Access

Point used in the BSS. Check your Access Point for its BSS ID or use the Access Point Browser

Utility program to determine the BSS ID.(Fig 2-4)

The infrastructure wireless LAN configuration is appropriate for enterprise-scale wireless

access to a central database, or as a wireless application for mobile users.

Fig 2-2 Infrastructure Wireless LAN

Notebook with PCMCIA WLAN Card

Desktop with USB WLAN Adapter

Access Point 1

Access Point 2

Server Desktop PC

Fig 2-3 The effective transmission range

Roaming

Infrastructure mode also supports roaming capabilities for mobile users. More than one BSS

can be configured as an Extended Service Set (ESS). The continuous network allows users to roam

freely within an ESS. All WLAN PCs and Access Point within one ESS must be configured with the

same ESS ID.

Before enabling an ESS with roaming capability, it is recommended to select a feasible radio

channel and optimum Access Point position. Proper Access Point positioning combined with a clear

radio signal will greatly enhance performance.

Fig 2-4 Roaming in an Extended Service Set (ESS)

Access Point 1

Access Point 2

Notebook I

BSS1 BSS2

ESS

USB WLAN Adapter

Server Desktop PC

Chapter 3: Installing the Drivers and Con-

figuration Utility for Windows 9X, ME,

2000

Running the Auto Driver & Utility Installation

1. Click “Windows 95/98/ME/2000/XP Driver & Utility - PCMCIA” to install driver/utility for

your PCMCIA WLAN Card. You will see Welcome to the InstallShield Wizard for 802.11 Wireless

LAN. Click “Next >” (Fig 3-2).

2. After clicking “Next >”, components’ version of package will be shown on this screen. (Fig 3-

3).

If this screen doesn’t appear automatically, you can access the installation by clicking the Start

button and choosing Run. In the drop-down box provided type D:\Setup.exe (where D: is the letter

of your CD-ROM drive). Alternately, double-click My Computer and double-click the Setup.exe icon

in the folder that appears.

Fig 3-1 Auto-run feature of Windows

Before installing your card, insert the Auto-Install CD into your CD-ROM driver. Unless you

have deactivated the auto-run feature of Windows, the screen shown in Fig 3-1 should appear

automatically.

NOTE: You must install this software before installation of the hardware

3. The installation provides you to install package Custom or Typical. (Fig 3-4)

4. If “Custom” be chosen, you can select package individually. If you choose “Typical”, The

3 packages will be installed in your system. (Fig 3-5)

The 3 packages mean Application, PCMCIA card driver, and USB adapter driver. (Fig 3-6).

Fig 3-2 Install WLAN Driver / Utility Fig 3-3 Components Version

Fig 3-4 Setup Type

Fig 3-6 Custom Setup

Fig 3-5 Typical Setup
