BOB MOTION Manuel utilisateur
ENGLISH User Guide
FRANÇAIS Guide de l’utilisateur
ESPAÑOL Guia de usuario
MOTION STROLLER
POUSSETTE MOTION
COCHECITO MOTION
READ AND UNDERSTAND THESE
INSTRUCTIONS COMPLETELY!
If you are unclear on any point, contact your dealer or Britax Child
Safety, Inc. before use. For a list of dealers, visit www.bobgear.com or
call (800) 893-2447 or (704) 409-1700.
LIRE ET COMPRENDRE
CES INSTRUCTIONS!
Si vous n'êtes pas sûr sur n'importe quel point, contactez votre
revendeur ou Britax Child Safety, Inc. avant l'utilisation. Pour une
liste des revendeurs, rendez-vous au site www.bobgear.com ou composez
le (800) 893-2447 ou
(704) 409-1700
.
LEA Y COMPRENDA LAS
INSTRUCCIONES POR COMPLETO!
Si tiene dudas en cualquier momento, póngase en contacto con su
distribuidor o Britax Child Safety, Inc. antes de su uso. Para obtener
una lista de distribuidores autorizados, visite www.bobgear.com o
llame al (800) 893-2447 or
(704) 409-1700
.
BOB Gear
®
by Britax (800) 893-2447 or (704) 409-1700
13501 South Ridge Drive, Charlotte, North Carolina 28273
www.bobgear.com
Warnings .................................. 2
Features .................................. 4
In the Box ................................. 5
Assembly ................................. 6
Unfolding...................................6
Front Wheels................................6
Rear Wheels ................................6
Removing Front Wheels .......................7
Removing Rear Wheels........................7
Attaching the Canopy .........................7
Operating Instructions
Parking Brake ...............................8
Swivel Wheel Locks ..........................8
Seat Recline ................................8
Folding ....................................9
Securing Your Child ........................ 10
Infant Car Seat Mode
Attaching Infant Car Seat Receivers .............12
Removing Infant Car Seat Receivers ............12
Attaching a Britax Infant Car Seat...............13
Removing a Britax Infant Car Seat ..............13
Available Accessories ...................... 14
Care and Maintenance ...................... 15
Warranty ................................. 16
Instructions in English ....................... 2
Instructions en français ..................... 19
Instrucciones en español .................... 37
©2012 Britax Child Safety, Inc. All rights reserved. Printed in China. P531100_R1:08.12
This product and its components are subject to change without notice.
Table of Contents
2
•
Never leave child unattended.
•
Avoid serious injury from falling or sliding out. Always
use harness to secure child.
•
Appropriate from birth, however, Britax recommends
using an infant car seat until child has head and neck
control.
•
DO NOT use stroller with a child who weighs more
than 65 lbs (29.5 kg).
•
DO NOT use stroller with a child taller than 44 inches
(112 cm).
•
DO NOT overload basket – Maximum weight in
basket is 10 lbs (4.5 kg). Overloading the basket may
cause the stroller to become unstable.
•DONOToverloadthehoodstoragepocket.
Maximum weight in storage pocket is 1 lb (0.45 kg).
•
Always make certain that the stroller is fully open and
locked before use.
•
Assembly of this stroller must be performed only by
an adult.
•
DO NOT hang or place items on the stroller handle or
frame except for those approved by Britax. They may
cause the stroller to become unstable.
•
DO NOT allow children to climb on or play with the
stroller.
•
Never use stroller on stairs or escalators.
•
Care must be taken when folding or unfolding the
stroller to avoid finger entrapment or pinching.
•
Stroller is intended for walking speed only. Do not use
while jogging, skating, etc.
WARNING!
DEATH or SERIOUS INJURY can occur:
3
WARNING!
DEATH or SERIOUS INJURY can occur:
•
Always set the parking brake when stroller is not
moving.
•
Only use accessories and replacement parts
approved by Britax Child Safety, Inc.
•
Read and understand these instructions before using
this product. To ensure proper use, store this user
guide in a convenient place so it can be consulted
often. Failure to follow all warnings and instructions
could result in serious injury or death.
•Whenusinganinfantcarseatwiththisproduct,refer
to the product’s user guide for maximum weights and
other instructions.
•DONOTexceedthemanufacturer’smaximumweight
limit when using an infant car seat with this product.
•AllinfantcarseatsMUSTbeinstalledrearfacing.
4
• Actual product may vary from images.
Canopy
Handle
Frame
Lock
Button
Harness
& Buckle
Leg Rest
Swivel
Locks
Front
Wheels
Rear Wheels
Front
Wheel
Release
Button
Parking
Brake
Pedal
Frame
Release
Lever
Under-Seat
Storage
Basket
Features
Frame Release
Strap
5
BOB MOTION Stroller
Canopy
Infant Car Seat Receivers
Front Wheels
Rear Wheels
In the Box
6
•Push the frame release lever
on the chassis lock and open
the frame.
•Lift handle until frame locks
into upright position.
•Slide each front wheel
mounting pin into front
stroller housing. Listen for an
audible click.
•Pull wheel to ensure that it is
secure in housing.
Unfolding
Front Wheels
•Slide the rear wheel pin
into the rear axle mounting
bracket until it locks into
place. The wheels are
labeled left and right (child’s
left or right from the seated
position).
•Pull wheel to ensure that it is
secure.
Rear Wheels
Assembly
Ror L
7
•Pull and hold the release
lever on the rear axle bottom
while pulling the rear wheel
away from the stroller.
Removing Front Wheels
Removing Rear Wheels
•Press the front wheel release
button and pull wheel away
from the stroller.
Assembly
•Snap the support strap to the
frame just below the stroller
handle and connect them
using the hook and loop
fasteners on the inside of the
canopy.
Attaching the Canopy
•Slide the canopy stay
brackets into the canopy
mounts of the stroller frame
until they lock into place.
•Attach the hook and loop
fasteners located around the
outer edge of the canopy
and hood to the stroller.
8
Operating Instructions
Parking Brake
•Press the parking brake
pedal down to lock the
brake.
•Lift the brake pedal to
release the brake.
NOTE: Locking the brake locks
both back wheels.
•Press the swivel lock levers
down to lock the front
wheels.
•Lift the swivel lock levers up
to allow the wheels to swivel.
Swivel Wheel Locks
•To recline, pull the release
lever on the recline adjuster
and slide it away from the
seat.
•To raise, pull both straps
apart.
Seat Recline
•To ensure the brake is set
properly, attempt to roll
the stroller forward and
backward after setting the
brake. If the stroller will not
roll, the brake is set properly.
WARNING!
Never leave your child in the
stroller unattended with or without the parking
brake set.
Table des matières
Langues :
Autres manuels BOB Poussette
BOB
BOB Revolution Guide de configuration
BOB
BOB Revolution Duallie Guide de configuration
BOB
BOB REVOLUTION PRO Manuel utilisateur
BOB
BOB Revolution Manuel utilisateur
BOB
BOB SPORT UTILITY STROLLER Manuel utilisateur
BOB
BOB DUALLIE Manuel utilisateur
BOB
BOB Revolution Manuel utilisateur
BOB
BOB REVOLUTION PRO DUALLIE Manuel utilisateur
BOB

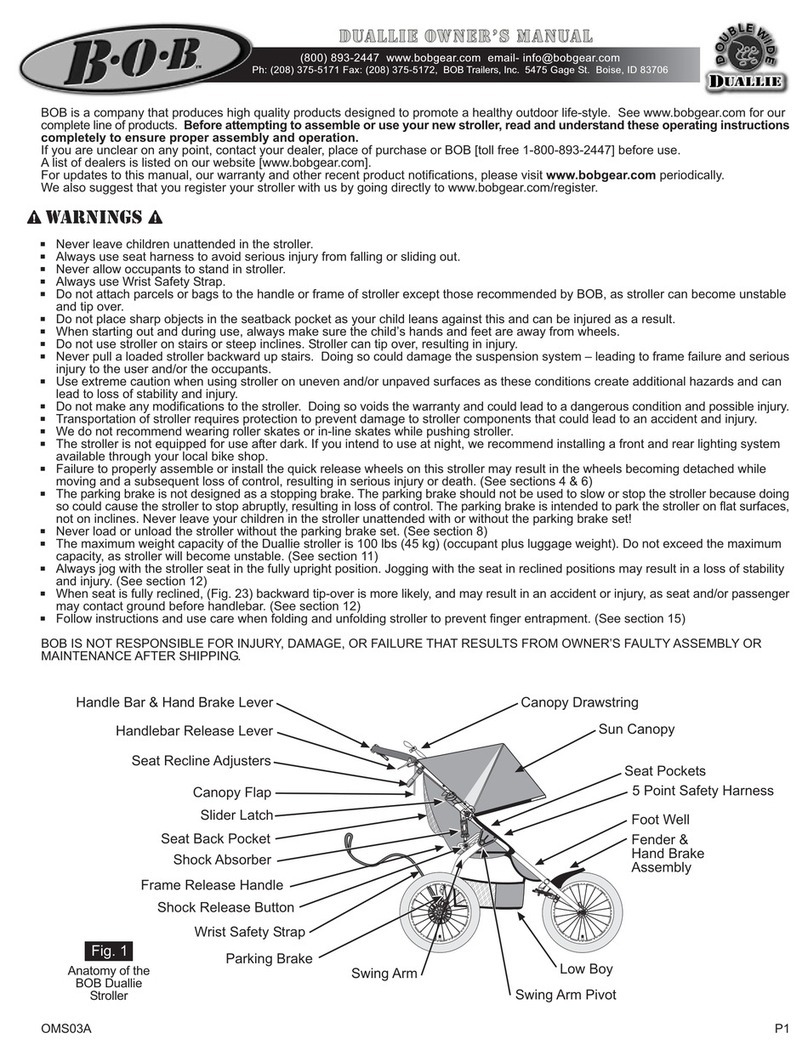

BOB DUALLIE Manuel utilisateur
