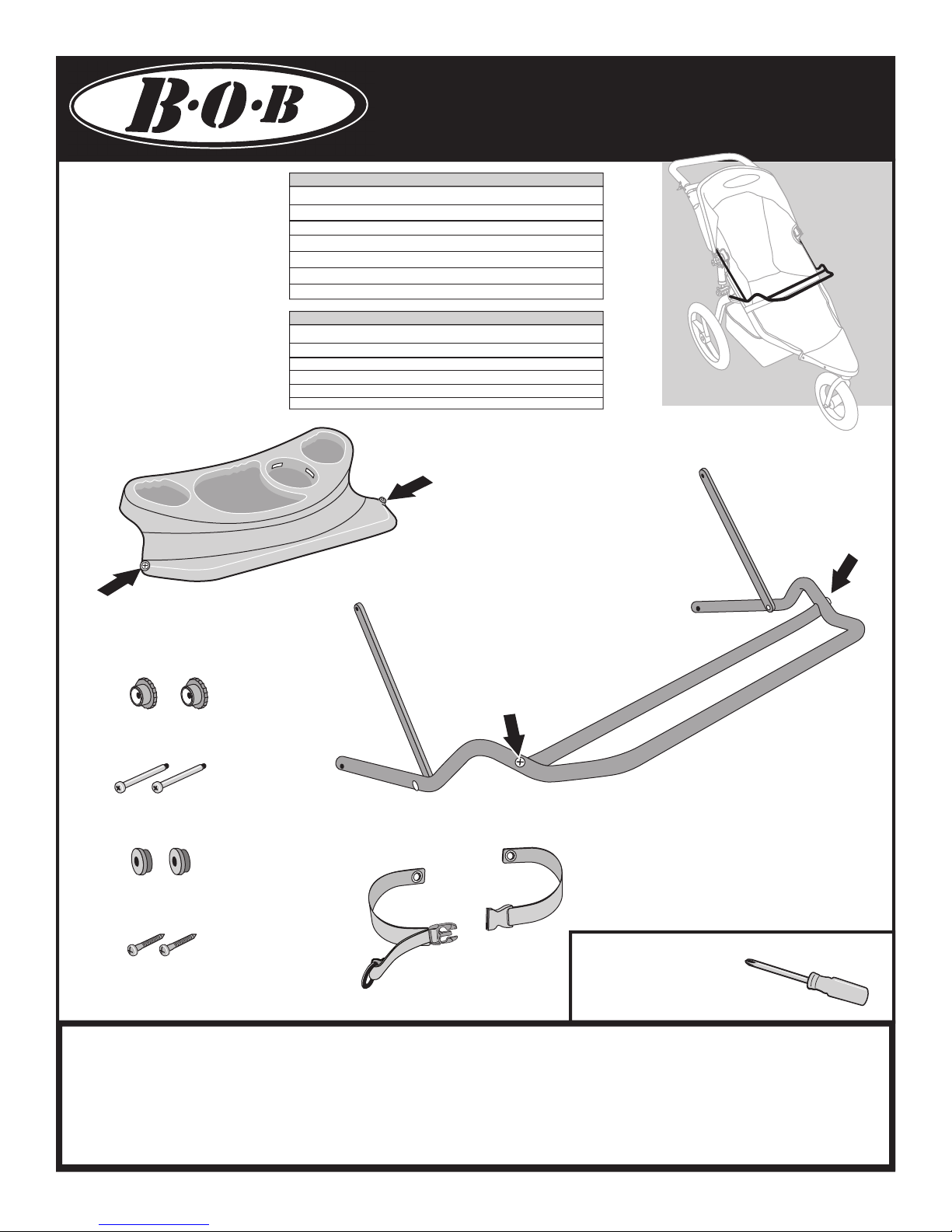

BOB INFANT CAR SEAT ADAPTER Manuel utilisateur
Tray
Sharp Screw 2x
Pivot Screw 2x
Pivot Plug 2x
Pivot Nut 2x
Restraint
Belt F
Restraint
Belt M
Arm
Accessory Bar
Accessory Bar
Short Screw
(installed)
Long Screw
(installed)
Long Screw (installed)
Short Screw
(installed)
Main Bar
Arm
Car Seat Compatibility
BOB Stroller Model Year Compatibility
Model Year(s) Model Serial Number
2005 and newer Sport Utility Stroller AA000001 and higher
2005 and newer Sport Utility Stroller D’Lux AB000001 and higher
2005 and newer Ironman AC000001 and higher
2005 and newer Revolution AF000001 and higher
2005 and newer Stroller Strides AG000001 and higher
2007 and newer Revolution 12” AK000001 and higher
TAKE TIME - READ AND UNDERSTAND INSTRUCTIONS COMPLETELY!
Before attempting to assemble or use your new ICSA, read and understand these assembly
instructions completely, as well as the warnings at the end of this document, to insure proper
assembly and safe operation.
If you are unclear on any point, contact your dealer or BOB before use.
Infant Car Seat
Adapter Instructions
TOOLS NEEDED:
Phillips screwdriver.
Congratulations on your
purchase of the BOB Infant
Car Seat Adapter (ICSA).
It is designed to allow the
attachment of an Infant
Car Seat to your BOB
Stroller. Please refer to the
tables at right for details
of compatible strollers and
car seats.
Brand Model Year(s)
Britax® Companion® 2003 and newer
Graco® Snug Ride® 2003 and newer
Graco® SafeSeat™ 2006 and newer
Peg Pérego® Primo Viaggio® 2003 and newer
Peg Pérego® Primo Viaggio SIP™ 2006 and newer
OMA09D P1
Pivot
Pivot
Bracket
Bracket

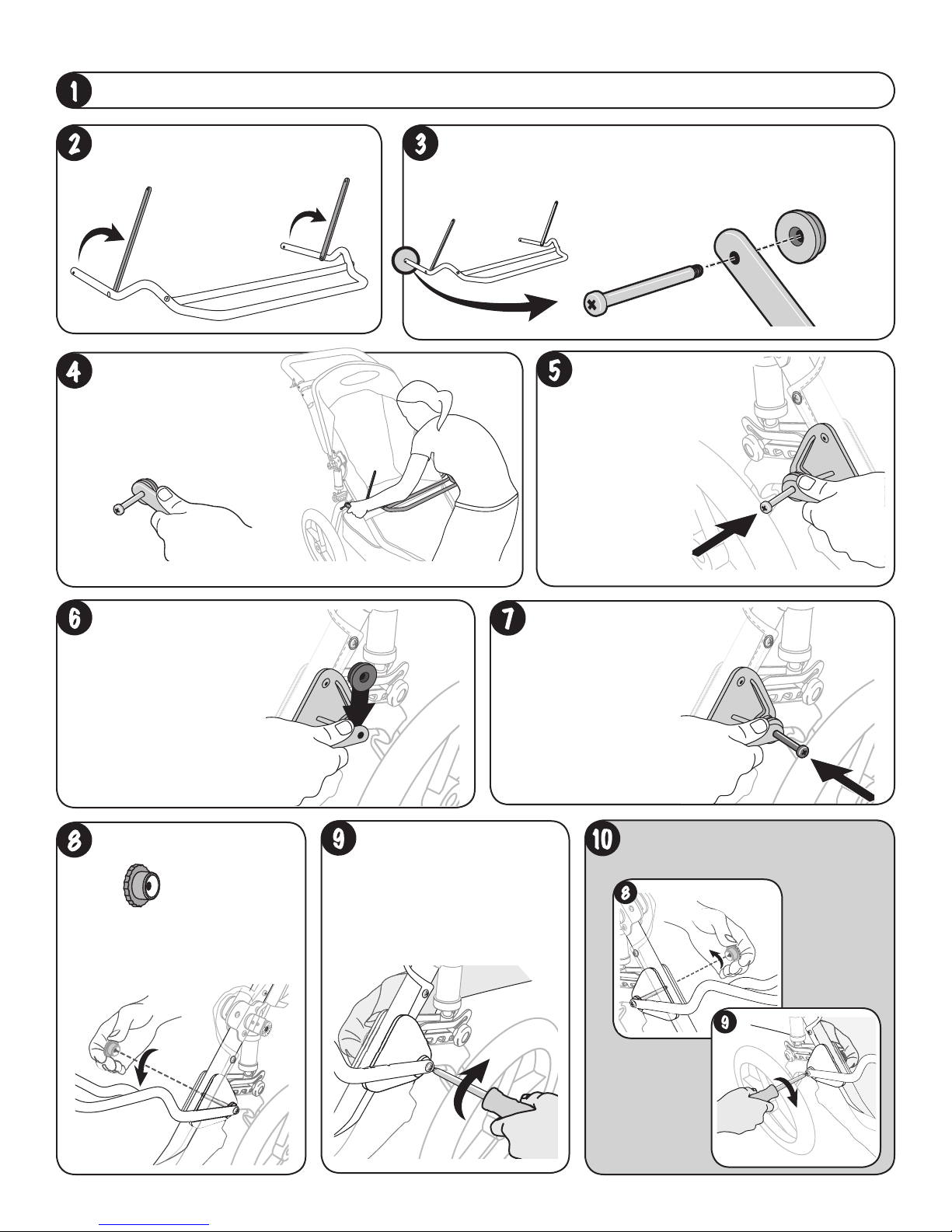

Rotate arms into an
upright position.
POSITION ARMS
ATTACH MAIN BAR
INSTALL PIVOT NUT TIGHTEN PIVOT NUT
Use a Phillips
screwdriver to tighten
pivot screw clockwise,
while holding pivot nut.
Reach under fabric seat.
Thread pivot nut onto
pivot screw as shown.
REPEAT STEPS 8 AND 9
FOR OTHER SIDE.
ASSEMBLE SCREW, PLUG AND BAR
Insert one pivot screw through one end of main bar
and into pivot plug.
POSITION ICSA
Slip pivot plug into
opening on pivot
bracket and push
pivot screw ush
against bar.
Holding pivot screw and
pivot plug in place with
hand, position ends of main
bar over pivot brackets.
INSERT PIVOT
PLUG AND SCREW
Pivot
Pivot
Bracket
Bracket
INSERT PIVOT PLUG
ON OPPOSITE SIDE
Slip pivot plug
under end of
main bar and
into opening on
pivot bracket.
Pivot
Pivot
Bracket
Bracket
INSERT PIVOT SCREW
Insert pivot screw
through main bar,
pivot plug and into
opening on pivot
bracket.
Pivot Plug
Pivot Screw
Main Bar
SET PARKING BRAKE. See the “Parking Brake” section of your stroller owner’s manual.
OMA09D P2

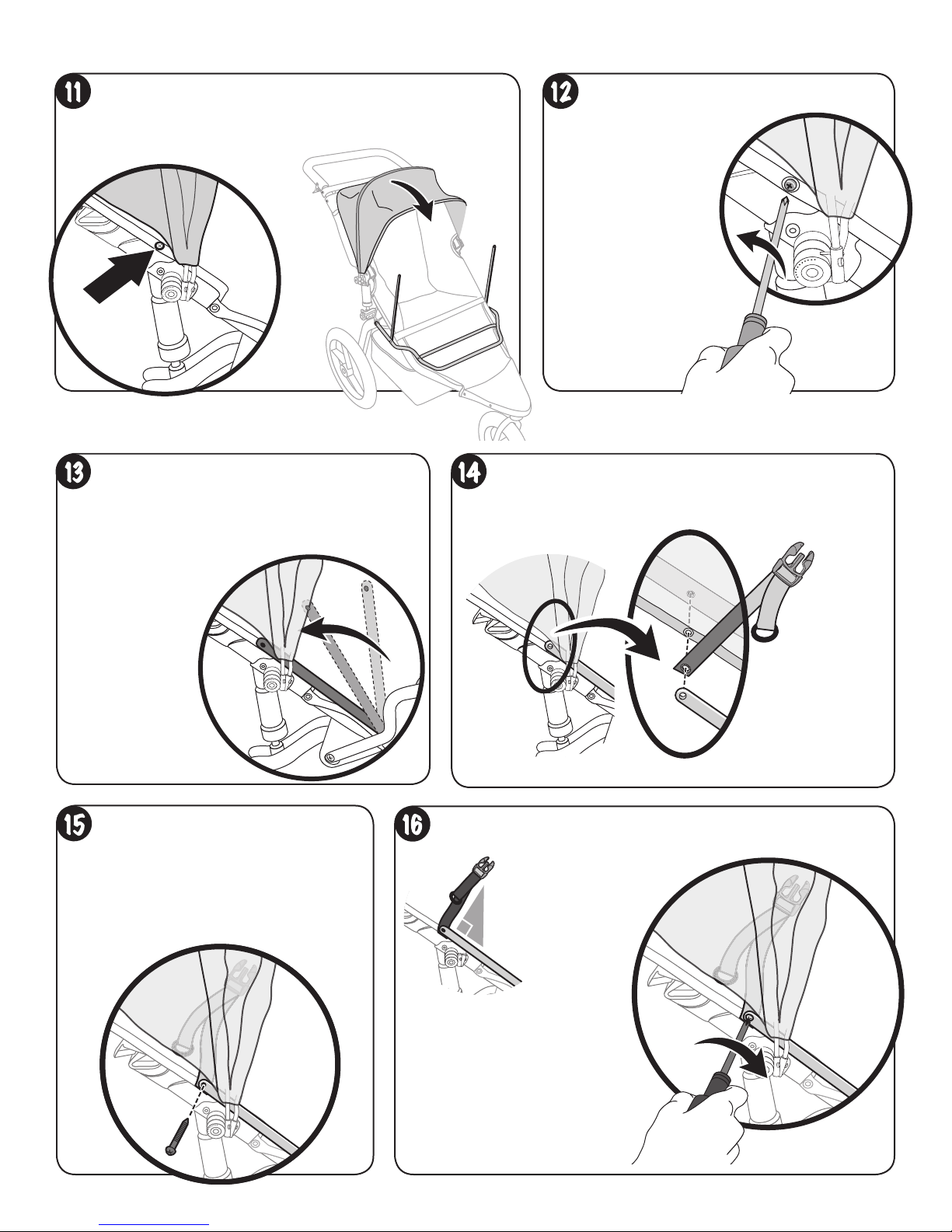

Extend canopy to expose
lower fabric screw. Remove screw with
Phillips screwdriver,
exposing fabric
grommet and
rivet nut.
Repeat on other side.
INSERT SHARP SCREW
ATTACH RESTRAINT BELT M/F AND ARMS
LOCATE FABRIC SCREWS REMOVE FABRIC SCREW
Insert sharp screw through end of
arm, restraint belt grommet, fabric
grommet and into rivet nut.
Note:
If screw does not turn easily,
unscrew and start again.
Position arm between canopy and frame.
POSITION ARM
TIGHTEN SHARP SCREW
Tighten rmly with
Phillips screwdriver.
Red pull ring
should face out.

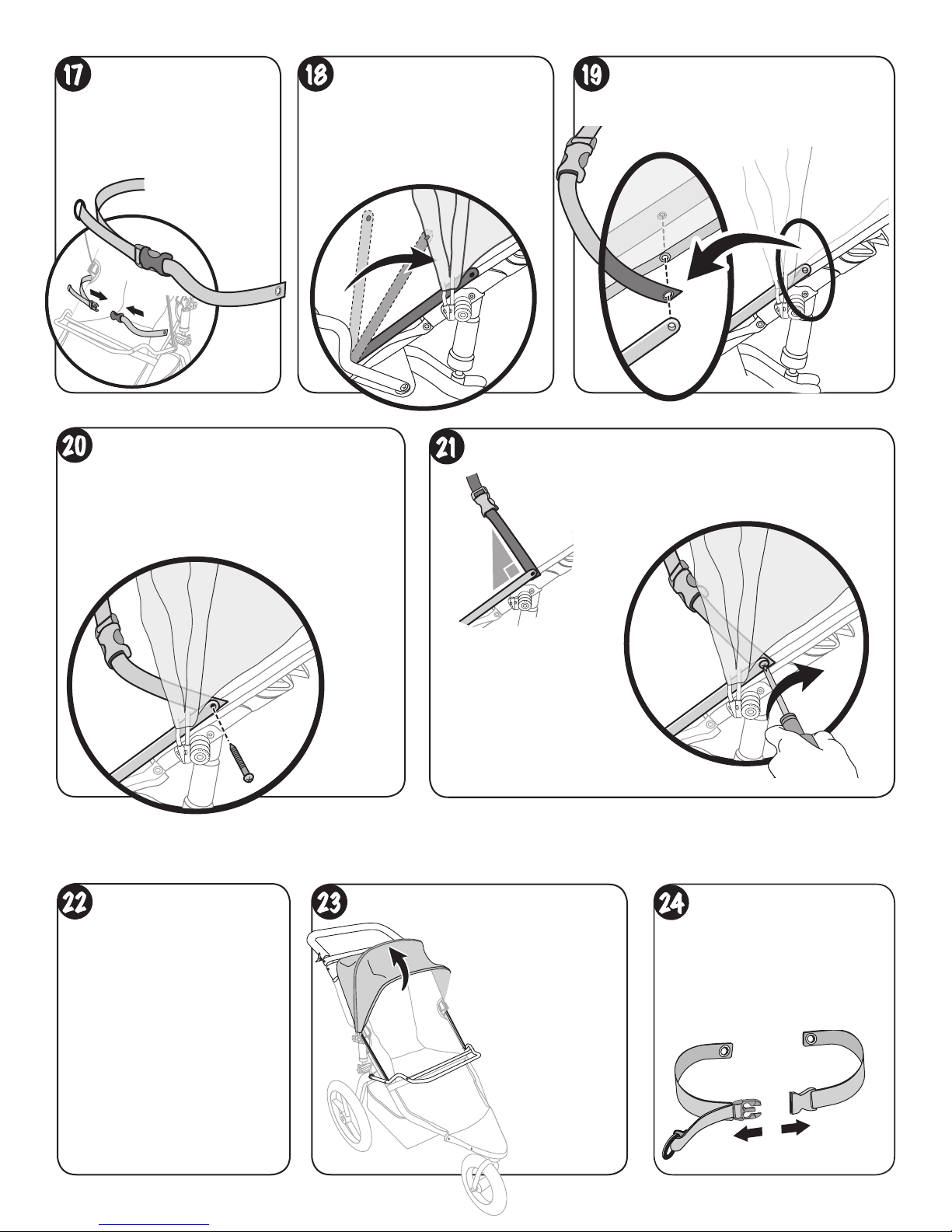

ATTACH RESTRAINT BELT M
POSITION RESTRAINT BELT M
Slide restraint belt M grommet between
end of arm and fabric grommet.
Align arm hole over
fabric grommet
and rivet nut.
OMA09D P3
90°
Hold strap at a 90
degree angle.
POSITION CANOPY
Position canopy
against handle bar.
UNBUCKLE
RESTRAINT BELT
Unbuckle restraint belt.
Place ends outside seat.
PREPARE STROLLER FOR INFANT CAR SEAT INSTALLATION
SET PARKING BRAKE
See the “Parking Brake”
section of your stroller
owner’s manual.
INSERT SHARP SCREW
Insert sharp screw through end of
arm, restraint belt grommet, fabric
grommet and into rivet nut.
Note:
If screw does not turn easily,
unscrew and start again.
POSITION ARM
TIGHTEN SHARP SCREW
Tighten rmly with
Phillips screwdriver.
POSITION RESTRAINT BELT F
Slide restraint belt F
grommet between end of
arm and fabric grommet.
BUCKLE BELT
ATTACH RESTRAINT BELT F
Position arm between canopy
and frame.
Align arm hole over fabric
grommet and rivet nut.
Connect restraint belt F
to restraint belt M.
OMA09D P4
90°
Hold strap at a 90 degree angle.

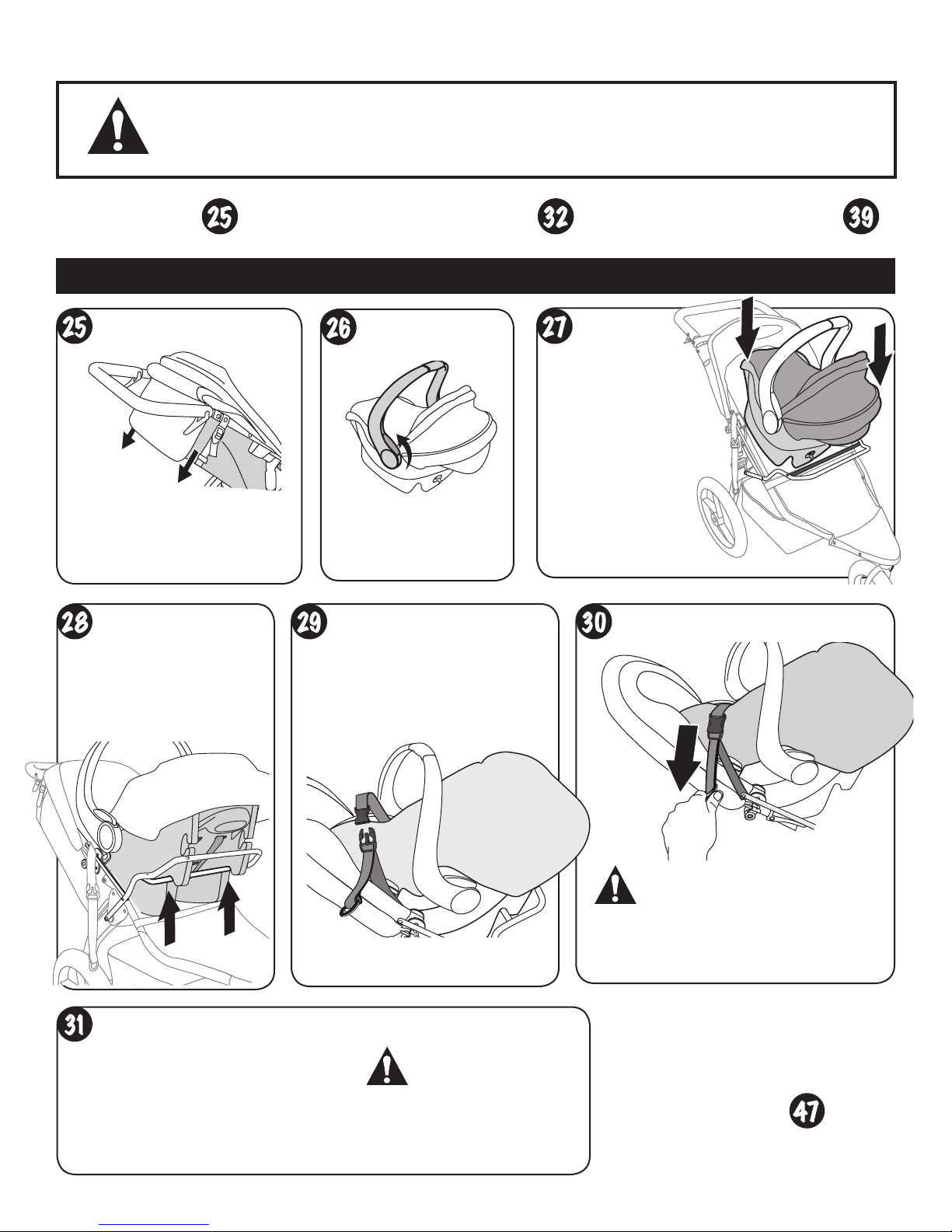

TO REMOVE Britax®
Go To
Pull on red ring
to tighten.
TIGHTEN RESTRAINT BELT
Be sure restraint belt tension is not
constricting child as it may cause
serious injury.
DOUBLE CHECK CAR SEAT IS SECURELY ATTACHED
Warning
Pull car seat upward without
removing restraint belt.
You should not be able to
remove car seat without
unfastening restraint belt.
Warning
Failure to securely attach
car seat may result in
serious injury or death.
INSTALL INFANT CAR SEAT
When installing car seat in the ICSA for the rst time, test t with
the car seat unoccupied to ensure you understand the process.
Installing occupied Infant Car Seat on ICSA for rst time may result
in accident, serious injury or death.
Warning
Fasten restraint belt over top
of infant car seat as shown.
FASTEN RESTRAINT BELT
Britax®
Move car seat
handle into upright
carrying position.
RAISE HANDLE
ENGAGE CAR SEAT
LOWER SEAT BACK
Lower seat back 7” to 8”.
See “Reclining Seat”
section of your stroller
owner’s manual.
Slide grooves on
underside of car seat
onto ICSA accessory bar.
POSITION
CAR SEAT
Place car seat
“rear facing” onto
ICSA accessory
bar, in a straight
downward
motion.
OMA09D P5

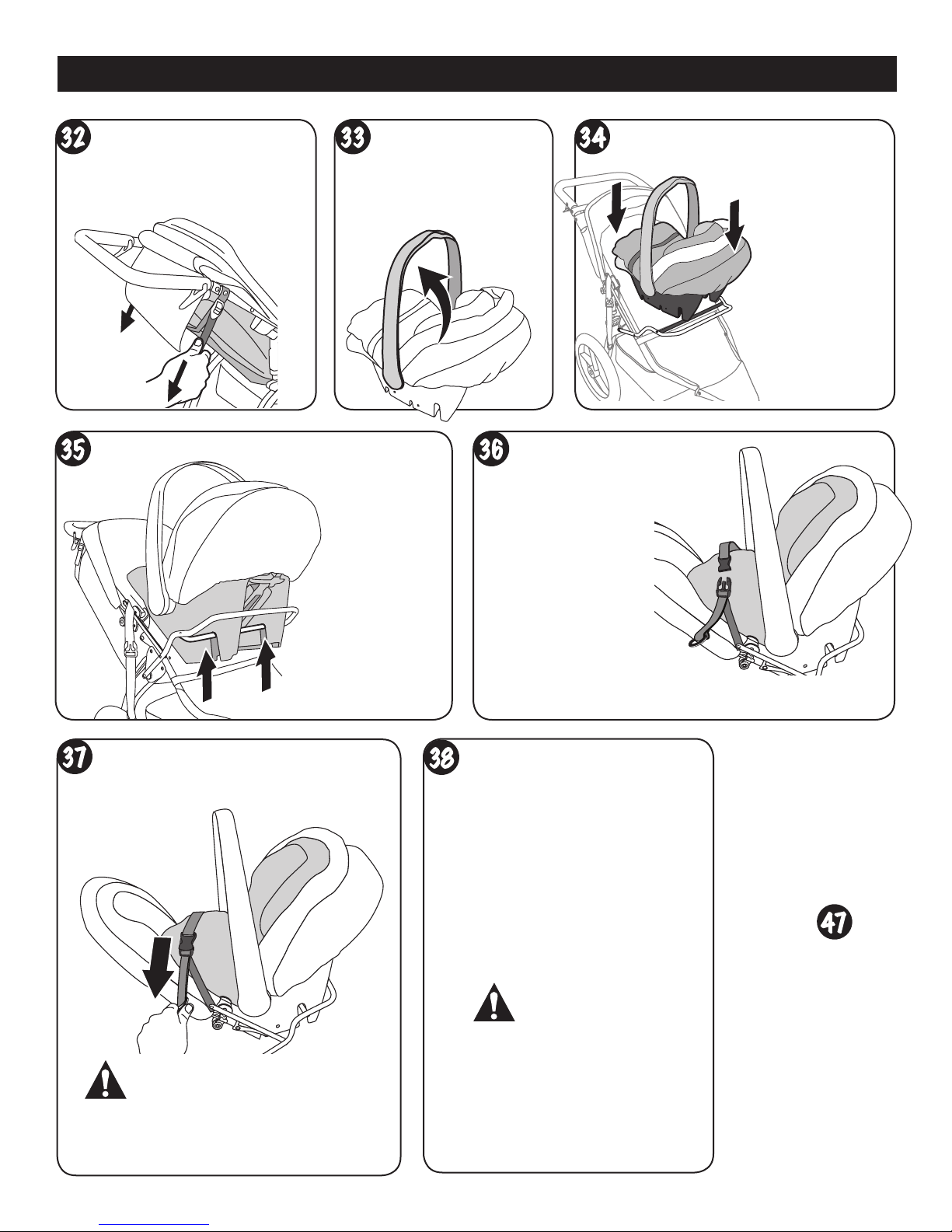

Britax®Go To Peg Pérego®Go To Graco®Go To
FASTEN RESTRAINT BELT
ENGAGE CAR SEAT
Peg Pérego®
TO REMOVE
Peg Pérego®
Go To
Be sure restraint belt tension is not
constricting child as it may cause
serious injury.
Warning
Pull on red ring to tighten.
TIGHTEN RESTRAINT BELT DOUBLE CHECK CAR SEAT
IS SECURELY ATTACHED
Pull car seat upward without
removing restraint belt.
You should not be able to
remove car seat without
unfastening restraint belt.
Warning
Failure to securely
attach car seat may
result in serious injury
or death.
Fasten restraint belt
over top of infant car
seat as shown.
Slide grooves on
underside of car
seat onto ICSA
accessory bar.
Move car seat handle
into upright carrying
position.
POSITION HANDLE
Place car seat
“rear facing”
onto ICSA
accessory bar,
in a straight
downward
motion.
POSITION CAR SEAT
RAISE SEAT BACK
See the “Reclining Seat”
section of your stroller
owner’s manual.
OMA09D P6
ENGAGE CAR SEAT
Fasten restraint belt over top of
infant car seat as shown.
FASTEN RESTRAINT BELT

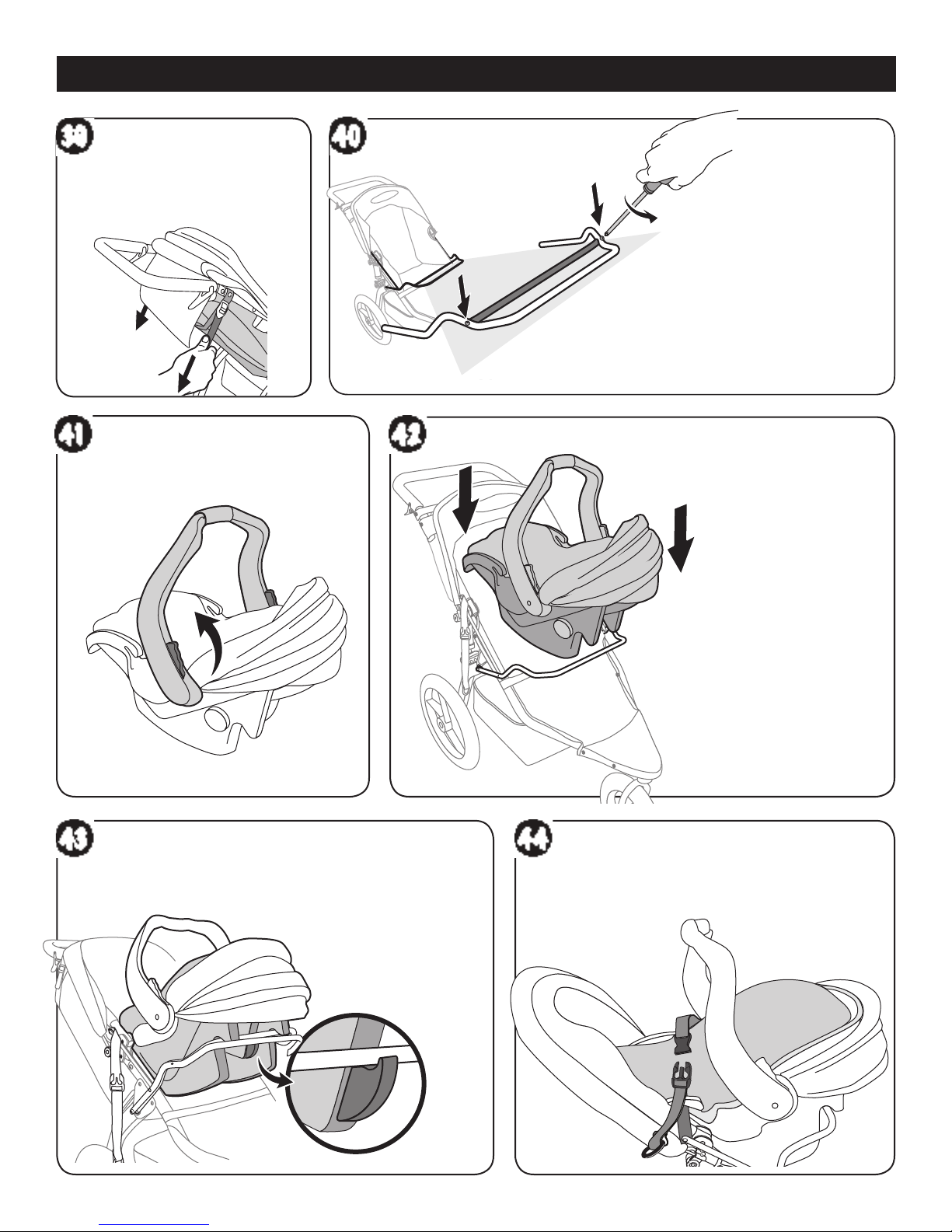

RAISE SEAT BACK REMOVE ACCESSORY BAR
Using a Phillips screwdriver,
remove both screws.
Move car seat handle into
upright carrying position.
POSITION HANDLE
Graco®
POSITION CAR SEAT
Place car seat “rear
facing” onto ICSA
main bar, in a straight
downward motion.
Red hook on Graco®
should be under
main bar.
Slide grooves on underside of
car seat onto ICSA main bar.
TIP: Attach short screws to
accessory bar for future use.
CAUTION: Ends of accessory bar are sharp!
See the “Reclining Seat”
section of your stroller
owner’s manual.
OMA09D P7

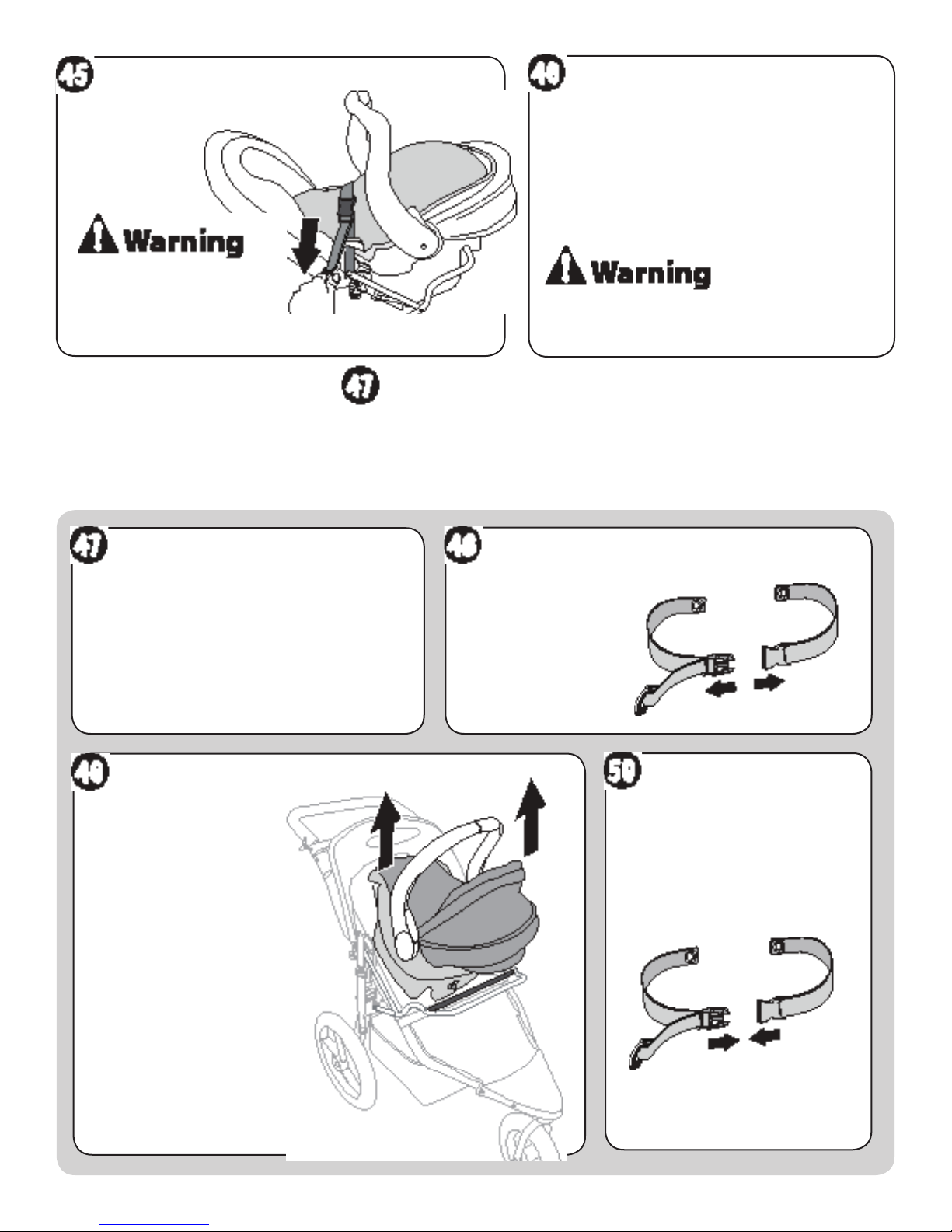

Pull on red ring to tighten.
TIGHTEN RESTRAINT BELT
TO REMOVE Graco®Go To
Be sure restraint
belt tension is not
constricting child as it
may cause serious injury.
Pull car seat upward without removing
restraint belt.
You should not be able to remove
car seat without unfastening restraint belt.
DOUBLE CHECK CAR SEAT
IS SECURELY ATTACHED
Failure to securely attach car seat
may result in serious injury or death.
UNFASTEN RESTRAINT BELT
Unfasten restraint
belt. Place ends
outside seat.
With car seat handle
in upright position,
lift car seat straight
up and o ICSA bar.
Fasten restraint belt
when not in use.
SET PARKING BRAKE
See the “Parking Brake”
section of your stroller
owner’s manual.
FASTEN RESTRAINT BELT
Britax®
Peg Pérego®
Graco®
With car seat handle
in upright position,
squeeze red release
button under Graco®
car seat canopy, lift
car seat straight up
and o ICSA bar.
TO REMOVE CAR SEAT
REMOVE CAR SEAT
OMA09D P8
REMOVE ACCESSORY BAR

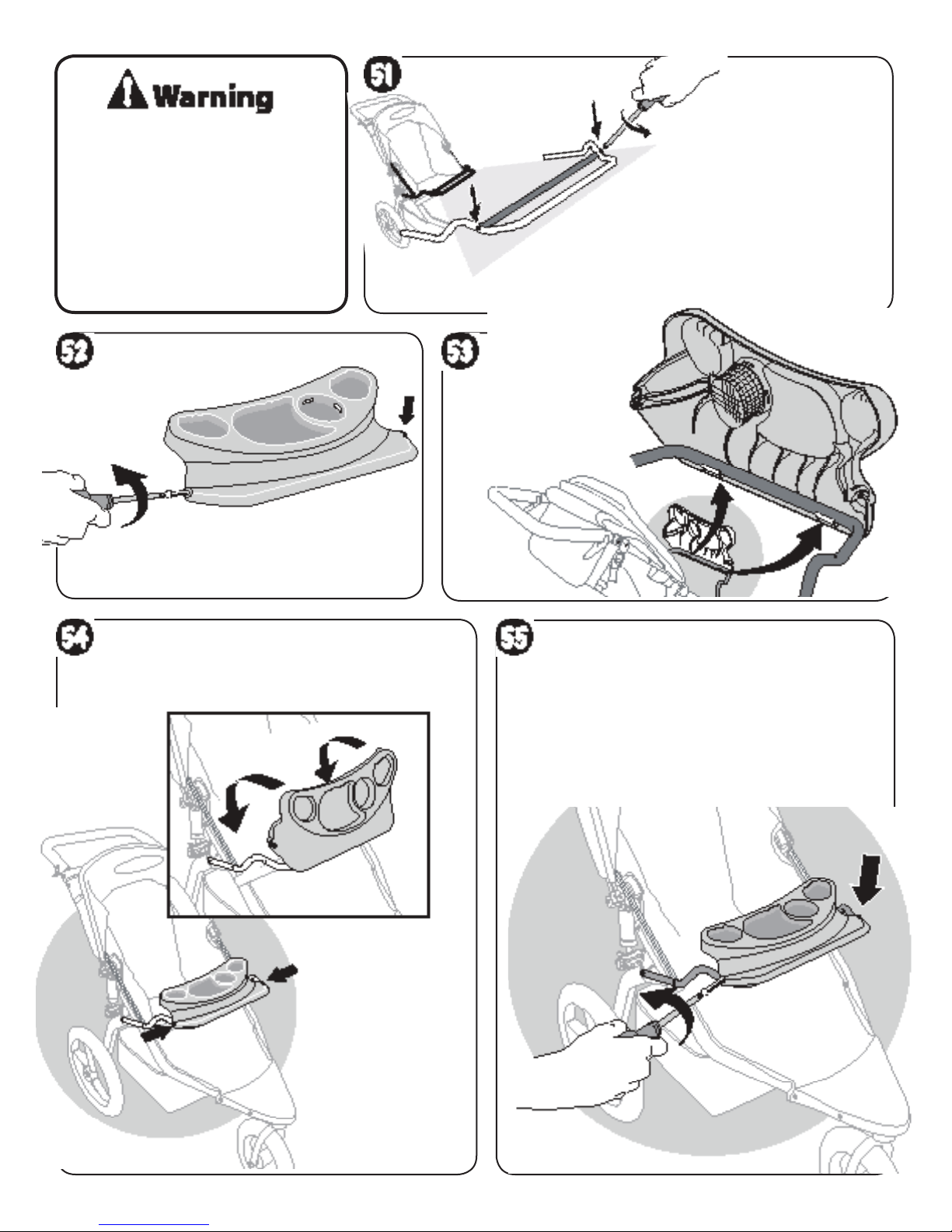

TRAY INSTALLATION
REMOVE SCREWS
Using a Phillips screwdriver,
remove long screws from tray.
SECURE TRAY
Insert long screw through each hole in tray,
main bar and into nut on underside of tray.
Tighten rmly with Phillips screwdriver.
ROTATE TRAY
Rotate tray towards stroller seat
until it rests on main bar.
Hook tray onto
main bar.
ENGAGE TRAY
Children should not be
placed directly in the
BOB Stroller seat with
the ICSA installed, unless
tray is installed for
safety and protection.
Line up holes.
Using a Phillips screwdriver,
remove both screws.
TIP: Attach short screws to
accessory bar for future use.
CAUTION: Ends of accessory bar are sharp!
OMA09D P9

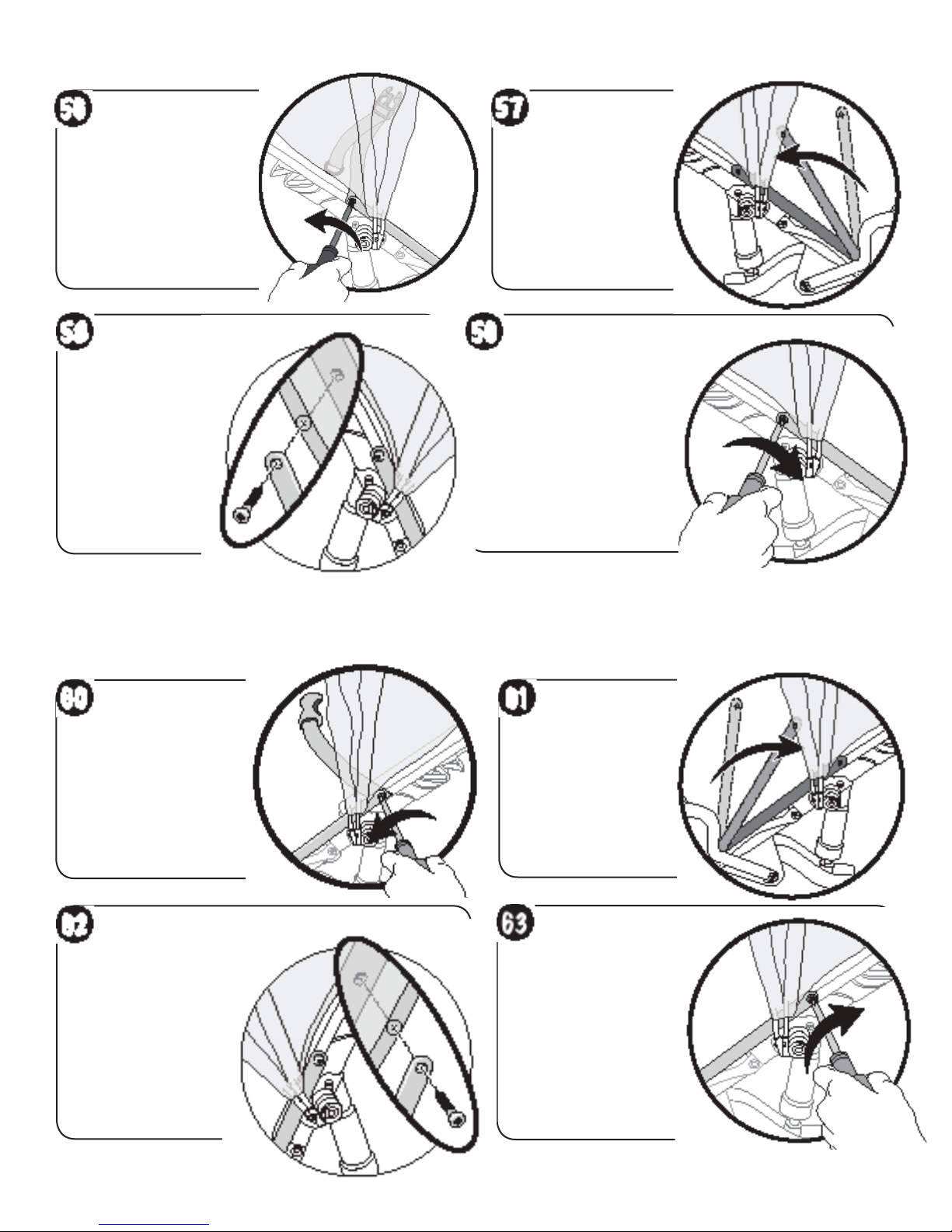

Position arm between
canopy and frame.
Align arm hole over
fabric grommet and
rivet nut.
Position arm
between canopy
and frame.
Align arm hole over
fabric grommet and
rivet nut.
REMOVE SHARP
SCREW AND BELT
Using a Phillips
screwdriver, remove
sharp screw and
restraint belt M.
REMOVE RESTRAINT BELT M
REPLACE SHARP SCREW
POSITION ARM
Insert sharp screw
through end of arm,
fabric grommet and
into rivet nut.
Note:
If screw does not
turn easily, unscrew
and start again.
Tighten rmly with
Phillips screwdriver.
TIGHTEN SHARP SCREW
REMOVE SHARP
SCREW AND BELT
REMOVE RESTRAINT BELT F
REPLACE SHARP SCREW
POSITION ARM
Insert sharp screw
through end of arm,
fabric grommet and
into rivet nut.
Note:
If screw does not
turn easily, unscrew
and start again.
Tighten rmly with
Phillips screwdriver.
TIGHTEN SHARP SCREW
Using a Phillips
screwdriver, remove
sharp screw and
restraint belt F.
OMA09D P10
Autres manuels pour INFANT CAR SEAT ADAPTER
1
Ce manuel convient aux modèles suivants
11
Table des matières
Autres manuels BOB Poussette
BOB
BOB SPORT UTILITY Manuel utilisateur
BOB
BOB DUALLIE Manuel utilisateur
BOB
BOB MA0201 Manuel utilisateur
BOB
BOB DUALLIE Manuel utilisateur
BOB
BOB Revolution Manuel utilisateur
BOB
BOB Revolution Duallie Manuel utilisateur
BOB
BOB Revolution Manuel utilisateur
BOB
BOB SPORT UTILITY STROLLER Guide de configuration
BOB
BOB OMS09B Manuel utilisateur
BOB
BOB Revolution Manuel utilisateur
BOB
BOB MA0501 Manuel utilisateur
BOB
BOB Revolution Manuel utilisateur
BOB
BOB Revolution Manuel utilisateur
BOB
BOB Ironman Guide de configuration
BOB
BOB MOTION Manuel utilisateur
BOB
BOB DUALLIE Manuel utilisateur
BOB
BOB Revolution Manuel utilisateur
BOB
BOB Revolution Manuel utilisateur
BOB
BOB REVOLUTION PRO DUALLIE Manuel utilisateur
BOB
BOB Sun Shield Manuel utilisateur
