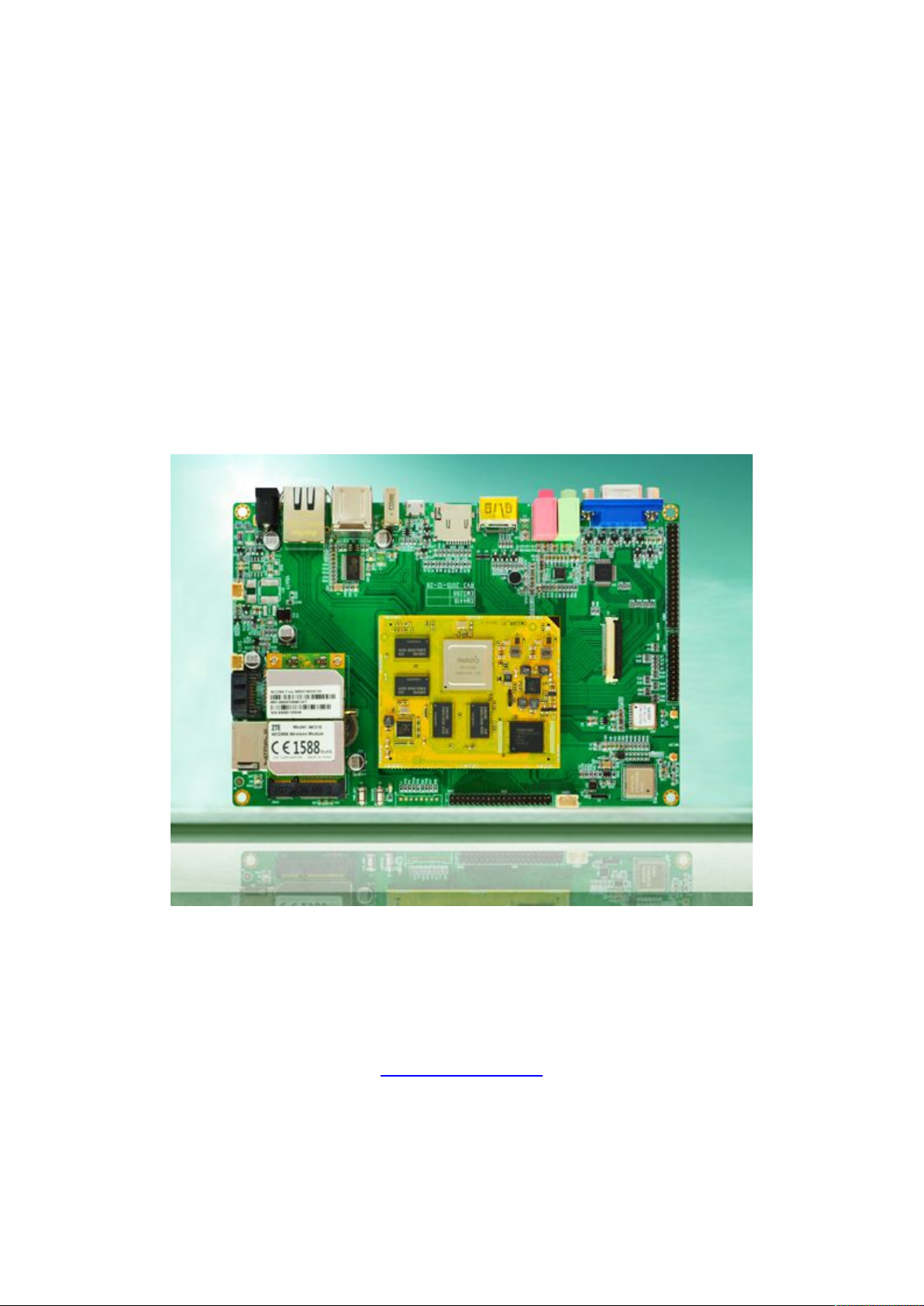

1 EM3288 Introduction

1.1 Summary

EM3288 is a single board computer based on the Rockchip RK3288, Quad Core Cortex-A17 @1.8GHz.

RK3288 is powerful on multithreaded computing operation, graphics processing and video decoding

ability. RK3288 supports Mali-T760 MP4 Graphics Processing, OpenGL ES1.1/2.0/3.0, OpenVG1.1,

OpenCL, Directx11, and can 4Kx2K archieve 4kx2k H.264 and 10 bits of H.265 video decoding, 500%

performance boost over Mali-400. On display aspects, RK3288 supports up to 18Gbps Data transmission

rate and 4Kx2K@60Hz Video resolution.

It is implemented with a MINI3288 computer-on-module providing most of the functions and interfaces,

and EM3288_C carrier board providing connectors and several additional functions. The rich feature set

of EM3288 is customizable according to the price / performance needs of the target application. EM3288

contains expansion connectors which accommodate a wide range of standard peripheral devices. Wide

input range switched power supply is compatible with requirements for telecom and automotive

applications. EM3288 is provided with full ready-to-run Android4.4.4 and Ubuntu SW packages and

comprehensive user manual and designing guide.

1.2 Rockchip RK3288 Features

The first SoC with real 4Kx2K video decoder

The first SoC with total solution for HDCP2.x security.

RK3288 is a high performance application processor for high-end tablet, notebook, all-in-one device,

smart monitor and TV-Box. Especially it is one of most powerful solution for 4Kx2K TV-Box.

Integrate quad-core Cortex-A17 with separately Neon and FPU coprocessor, also shared 1MB L2 Cache.

More than 32bits address will support up to 8GB access space.

Currently, latest generation and most powerful GPU is embedded to support smoothly high-resolution

(3840x2160) display and mainstream game. Support OpenVG1.1, OpenGL ES1.1/2.0/3.0, OpenCL1.1,

RenderScript and DirectX11 etc.

Full-format video decoder, including 4Kx2K multi-format decoder.

Lots of high-performance interface to get very flexible solution, such as multi-pipe display with

dual-channel LVDS, dual-channel MIPI-DSI, eDP1.1, HDMI2.0 , dual-channel MIPI-CSI2 interface with

13MP ISP embedded.

Fully-integrated hardware-based security solution will provide HDCP2.x for miracast and all kinds of DRM

solution based on different OS.

Dual-Channel 64bits DDR3/LPDDR2/LPDDR3 provide demanding memory bandwidths for

high-performance and high-resolution application.

CPU

www. boardcon.com

Quad-Core Cortex-A17

Separately Integrated Neon and FPU per CPU

32KB/32KB L1 ICache/DCache per CPU

Unified 1MB L2 Cache

LPAE (Large Physical Address Extensions) , support up to 8GB address

Space Virtualization Extensions Support

DVFS support

GPU

- 3D GPU

Quad-Core Mali-T7 series, latest powerful graphics processor

Architected for GPU computing

Support OpenGL ES1.1/2.0/3.0, OpenVG1.1, OpenCL1.1 and Renderscript, Directx11

DVFS support

- 2D GPU

Multi-Core architecture

Up to 8Kx8K input and 4Kx4K

Output High-quality image scale

Up/down Dither operation

Image rotation with 90/180/270 degree or x/y-

mirror BitBLT, Alpha Blending, Raster Operation

VPU

- Video Decoder

Support MPEG-2,MPEG-4,AVS,VC-1,VP8,MVC with up to 1080p@60fps

Support multi-format video decoder with up to 4Kx2K

High-quality deinterleave

- Video Encoder

Support muti-format video encoder with up to 1080p@30fps

- Video Input

Dual-channel input for front and rear camera

Dual-channel MIPI-CSI2 interface with 4-lane per channel

8/10/12 bits standard DVP interface

Maximum 5Mpixel for front camera

Maximum 13Mpixel for rear camera with high-performance ISP

- Video Display

Dual-panel display with 2 separately interface

Maximum resolution is 4Kx2K

CABC support to decrease interface power

www. boardcon.com

Dual channel 8/10bits LVDS

Dual channel MIPI-DSI

HDMI2.0 to support maximum 4Kx2K display

Optional eDP1.1 interface

1.3 EM3288 Specifications

Feature

Specifications

CPU

· Rockchip RK3288 , Quad Core Cortex-A17 up to 1.8GHz

· 28nm HKMG process

GPU

· ARM Mali-T764 GPU, with TE, ASTC, AFBC technology

· Support OpenGL ES1.1/2.0/3.0, OpenVG1.1, OpenCL, DirectX11

Memory

2GB DDR3

Flash

8GB eMMC Flash, up to 32GB

Power

5V/3A

USB

3x USB2.0 Host, 1x USB2.0 OTG

LCD

1x 26-pin MIPI connector, 1x 40-pin LVDS(1280x800), 1x 40-pin TTL LCD

connector

VGA

1x VGA connector

Ethernet

10/100/1000M, RJ45 interface

Serial port

1x 3pin connector, for debug

HDMI

HDMI V2.0, up to 4Kx2K@60fps

Audio

Microphone Header, MIC

WiFi/Bluetooth

AP6210 module. Support WiFi and Bluetooth. 2.4GHz/5GHz WiFi, support

802.11 a/b/g/n; BT4.0

SD card

1x Micro SD card slot

RTC

Real Time Clock, powered by external lithium battery

Button

Power, Recover

GPIO

1x 8-pin Control;

1x 40-pin GPIO

Other interfaces

1x SATA, 1x SATA-Power, 1x 3G Module, 1x SIM Card, 1x Lithium battery

interface

Optional modules

GPS, WIFI, 3G, Bluetooth, USB camera

Dimension

117.5 x 175.3mm

www. boardcon.com

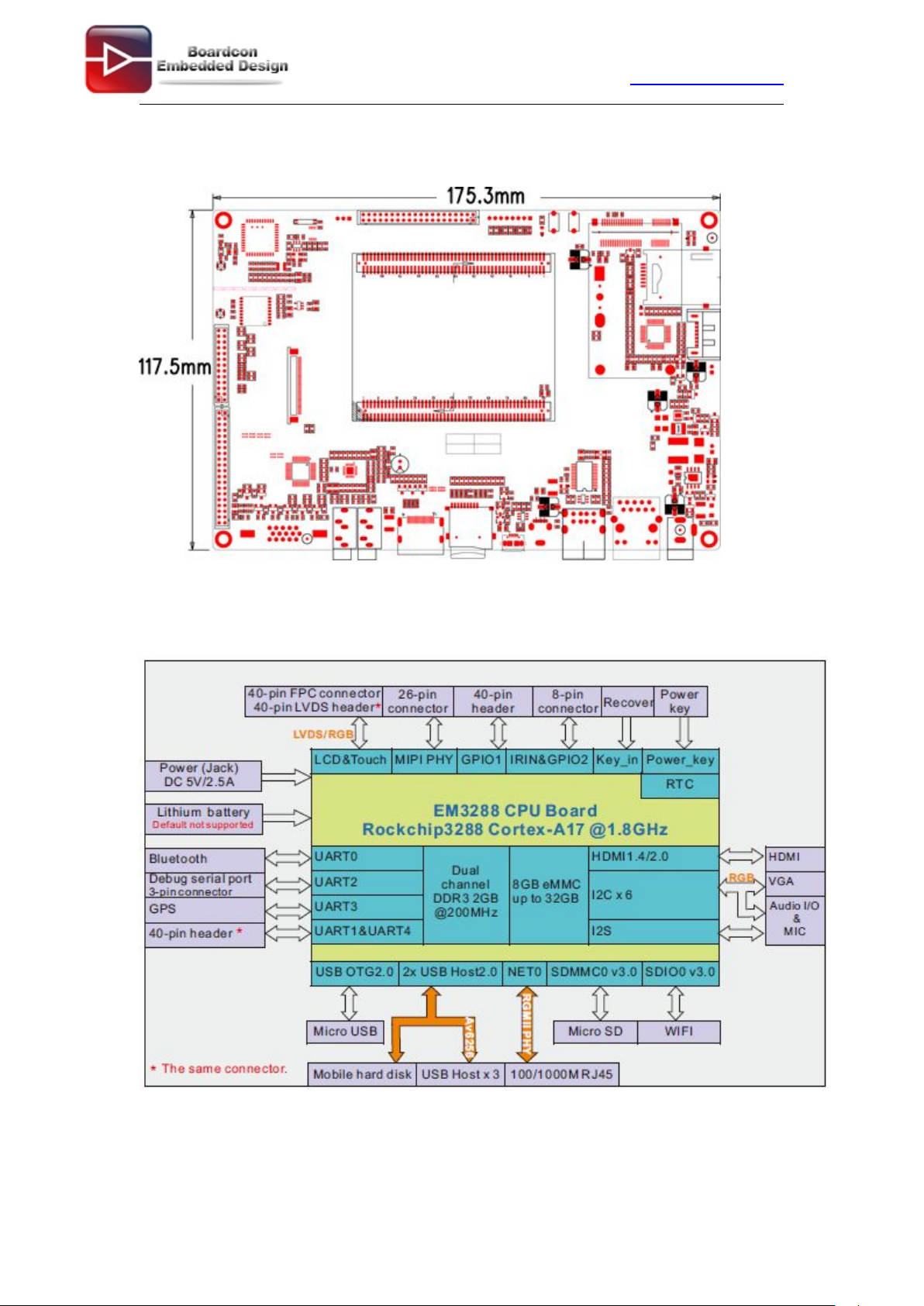

1.4 PCB Dimension

1.5 Block Diagram

www. boardcon.com

1.6 Motherboard Power meter

Support

voltage

5v/2.5A

System

Connected devices

Electric

current(A)

System

Connected devices

Electric

current(A)

Android

4.4.4

5v power

0.464

Android

4.4.4

Power, 10.1 inch HD

capacitive screen

0.753

Android

4.4.4

Power, sd card, play

1080P video, U disk, usb

Mouse, debug serial,

Ethernet, 10.1 inch HD

capacitive LVDS,

headphone

1.13

Android4

.4.4

SLEEP+(Power, sd

card, U disk, usb

Mouse, debug

serial, Ethernet,

10.1 inch HD

capacitive LVDS,

headphone )

0.35

1.7 CPU Introduction

MINI3288 is a Computer-on-module (CoM) based on Rockchip RK3288 SoC. Integrate quad-core

Cortex-A17 with separately Neon and FPU coprocessor, also shared 1MB L2 Cache. Support real 4Kx2K

video decoder, 3D GPU processor with OpenGL ES3.0, OpenCL1.1 and DirectX11. It is a high

performance application module for high-end tablet, notebook, all-in-one device, smart monitor and

TV-Box.

Board Dimension

* Board size: 70mm x 58mm

* Pin to Pin space: 1.3mm

* Pin number: (J11+J12) x 100 = 200 pins

* Layer: 8 Layers, complying with EMS/EMI

www. boardcon.com

Feature

* MINI3288 Development Board: EM3288

* Processor: Rockchip RK3288, Quad Core Cortex-A17 @ 1.8GHz

* DDR: 2GB DDR3

* NAND Flash: 8GB eMMC

* Preinstalled Android4.4.4

* Power supply: 5V/2.5A

* The modular is led out most signals of RK3288, such as USB Host, USB OTG, LCD, VGA, UART,

Gigabit Ethernet, HDMI, Audio, SD/MMC/SDIO, SPI, I2C, I2S, ADC, MIPI-CSI/DSI, LVDS and so on.

* Application: MID, POS, PND, and Terminal controller

* Compatible module: MINI3066,MINI4418

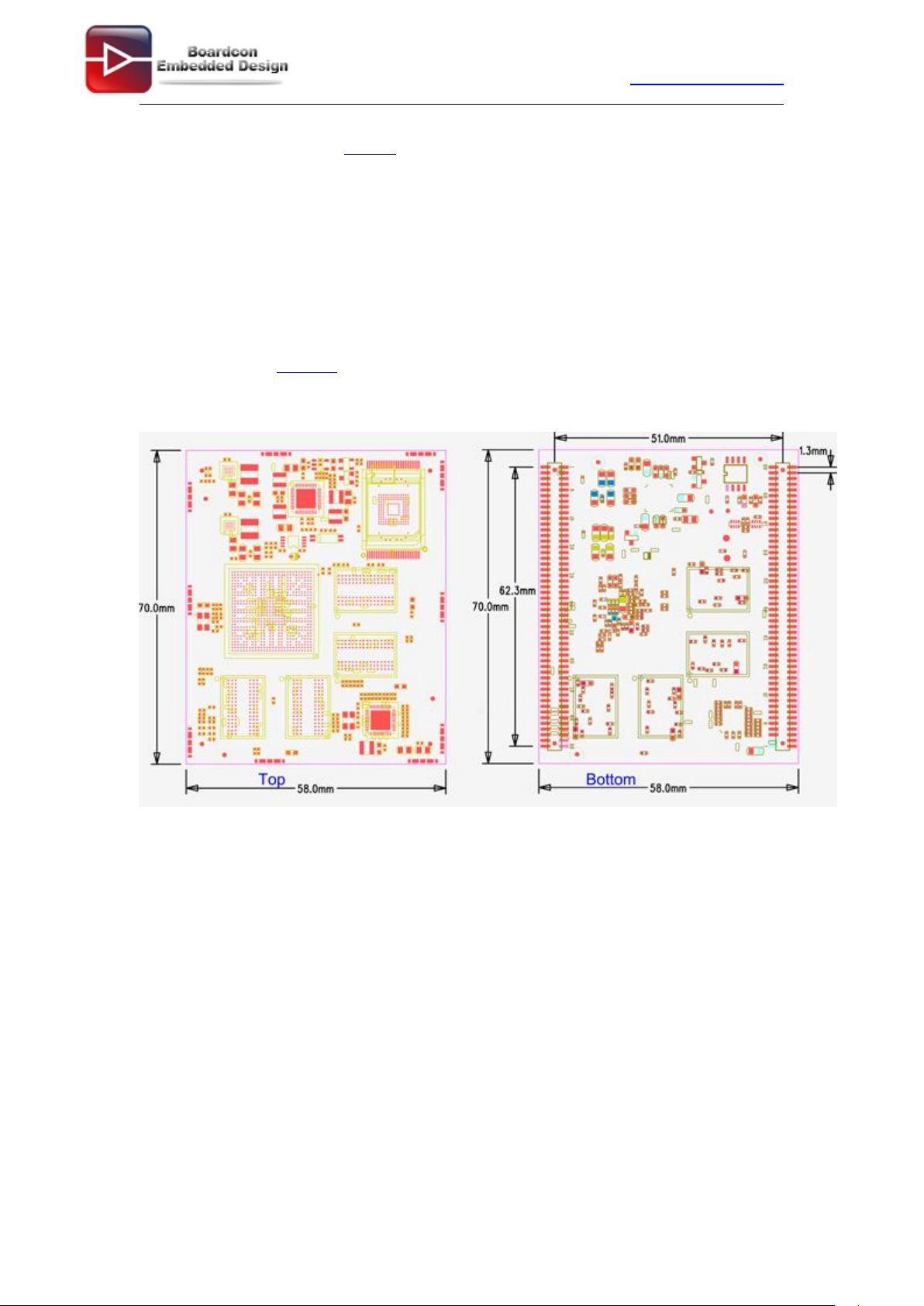

PCB Dimension

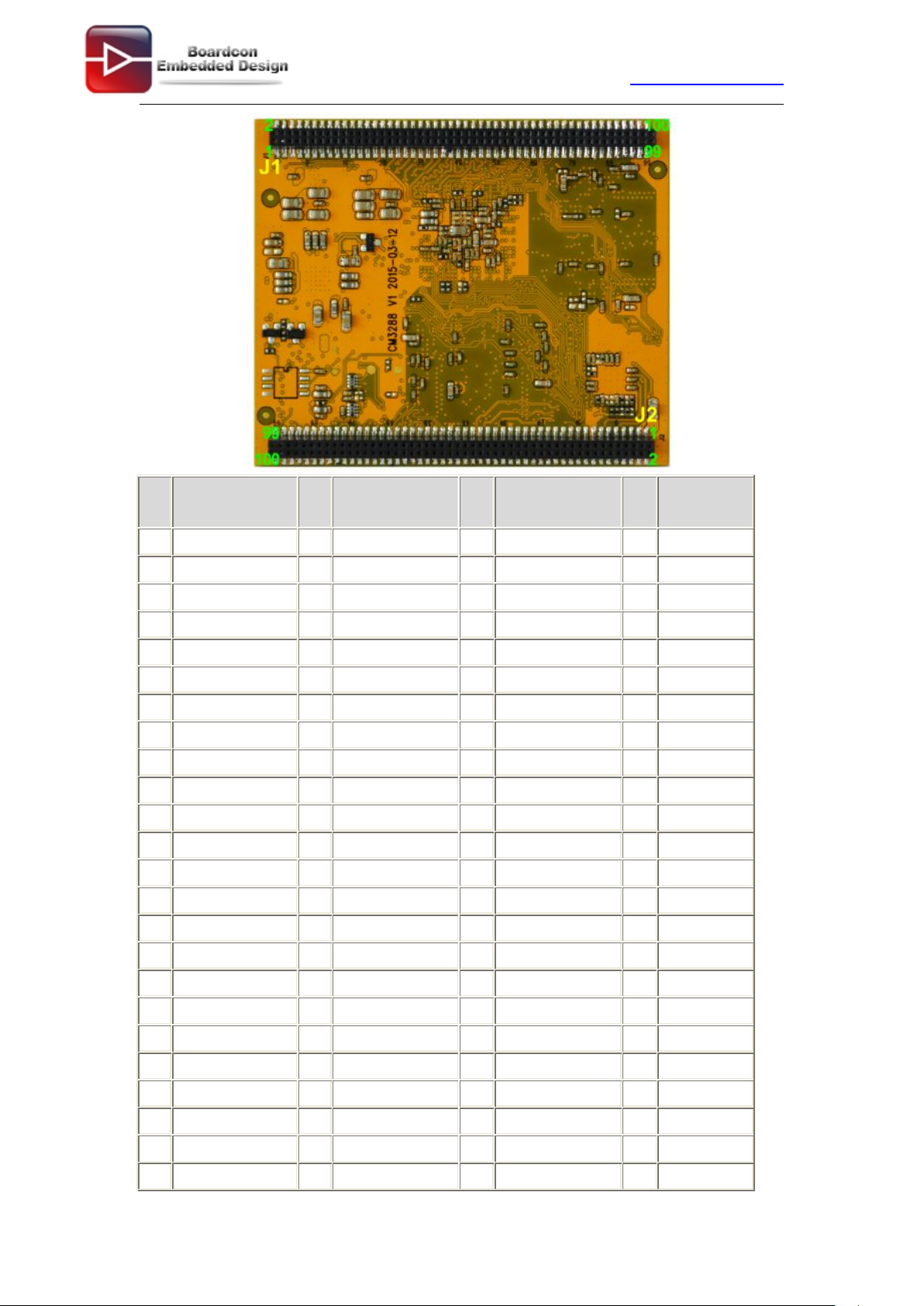

Pin Definition

www. boardcon.com

(J1)

Signal

(J1)

Signal

(J2)

Signal

(J2)

Signal

TX_C

MIPI_TX/RX_D2P

VDD5V

TS0_D7

TX_0-

MIPI_TX/RX_D1P

GND

TS0_D6

TX_C+

MIPI_TX/RX_D3P

VDD5V

GND

TX_0+

GND

TS0_SYNC

GND

MIPI_TX/RX_D3N

nRESET

TS0_D2

GND

VDD3V3_EN

MDI0+

TS0_D3

TX_1-

HSIC_STROBE

MDI1+

TS0_D0

TX_2-

HSIC_DATA

MDI0-

TS0_D1

TX_1+

GND

MDI1-

TS0_CLK

TX_2+

CIF_D1

LCD1_BL

TS0_VALID

HDMI_HPD

CIF_D0

MDI2+

TS0_ERR

HDMI_CEC

CIF_D3

MDI3+

DEMO_RST

I2C5_SDA_HDMI

CIF_D2

MDI2-

SDMMC_CLK

I2C5_SCL_HDMI

CIF_D5

MDI3-

GND

CIF_D4

GND

SDMMC_D0

LCD_VSYNC

CIF_D7

RST_KEY

SDMMC_CMD

LCD_HSYNC

CIF_D6

SDIO0_CMD

SDMMC_D2

LCD_CLK

CIF_D9

SDIO0_D0

SDMMC_D1

LCD_DEN

CIF_D8

SDIO0_D1

SDMMC_DET

LCD_D0_LD0P

VIN_INT

SDIO0_D2

SDMMC_D3

LCD_D1_LD0N

VIN_EN

SDIO0_D3

SDMMC_PWR

LCD_D2_LD1P

CIF_HREF

SDIO0_CLK

PWR_LED

LCD_D3_LD1N

CIF_VSYNC

BT_WAKE

GND

LCD_D4_LD2P

CIF_CLKOUT

NFC_WAKE

SATA_EN

Autres manuels pour EM3288

Table des matières

Autres manuels Boardcon Carte mère

Boardcon

Boardcon EM3288 Manuel utilisateur

Boardcon

Boardcon Idea6410 Manuel utilisateur

Boardcon

Boardcon Android6410 Manuel utilisateur

Boardcon

Boardcon EM-IMX8M-MINI Manuel utilisateur

Boardcon

Boardcon EMA40i Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur
