2006 ENGINE

Engine Mechanical - Repair Instructions - X3 & X5 (M54

ENGINE GENERAL

00 00 250 BMW ENGINE OIL SERVICE (M54/56)

Recycling:

Catch and dispose of used oil in a suitable container.

Observe country-specific waste-disposal regulations.

Undo oil filter cap (36 A/ ).

Fig. 1: Iden ifying Oil Fil er Cap (36 A/F)

Cour esy of BMW OF NORTH AMERICA, INC.

2006 BMW X5 30i

2004-2006 ENGINE Engine Mechanical - Repair Instructions - X3 & X5 (M54

2006 BMW X5 30i

2004-2006 ENGINE Engine Mechanical - Repair Instructions - X3 & X5 (M54

Oil flows from oil

filter housing into oil pan.

Ins alla ion:

Tightening torque: 11 42 2AZ. Refer to ENGINE - TIGHTENING TORQUES .

Ins alla ion:

Replace seals and coat with oil.

Fig. 2: Loca ing Seals

Cour esy of BMW OF NORTH AMERICA, INC.

Once oil has drained from oil filter housing, open oil drain plug or draw off oil.

2006 BMW X5 30i

2004-2006 ENGINE Engine Mechanical - Repair Instructions - X3 & X5 (M54

Fig. 3: Opening Oil Drain Plug

Cour esy of BMW OF NORTH AMERICA, INC.

Ins alla ion:

Replace sealing ring.

Tightening torque: 11 13 1AZ. Refer to ENGINE - TIGHTENING TORQUES .

00 00 250 BMW ENGINE OIL SERVICE INCL. SUPPLEMENTARY SERVICE (M54 / M56)

Engine oil service:

NOTE: Work step 00 00 250 comprises the engine oil and supplementary services.

Only the engine oil service will be described in these repair instructions.

For the supplementary service work steps, refer to the vehicle -specific

inspection sheet.

2006 BMW X5 30i

2004-2006 ENGINE Engine Mechanical - Repair Instructions - X3 & X5 (M54

Release and tighten down main flow oil filter cap with a socket only.

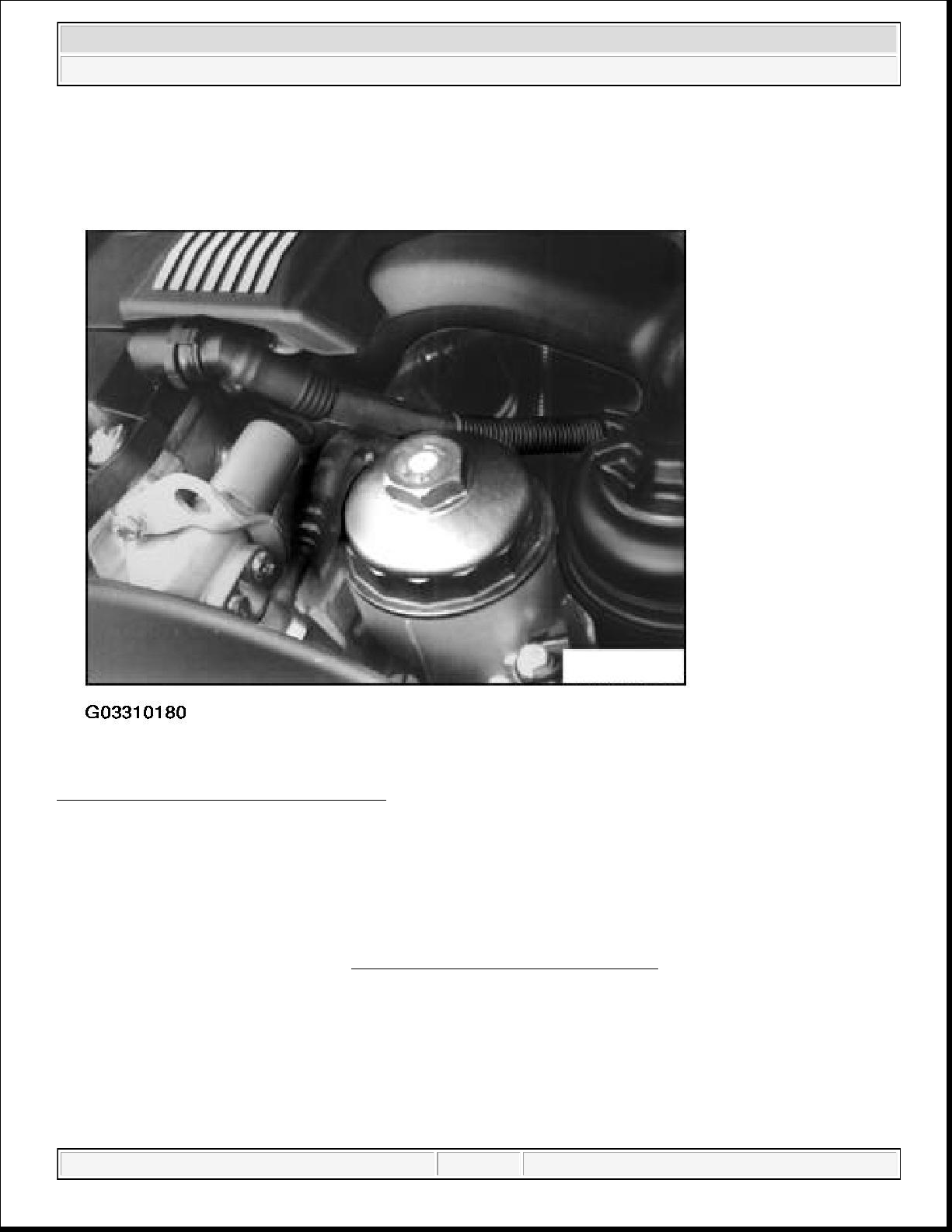

Fig. 4: View Of Main Flow Oil Fil er Cap

Cour esy of BMW OF NORTH AMERICA, INC.

When the main flow oil filter cap is opened, engine oil flows from the oil filter housing back into the oil sump.

Release main flow oil filter cap and remove towards top.

Ins alla ion:

Tightening torque 11 42 2AZ. Refer to ENGINE - TIGHTENING TORQUES .

Ins alla ion:

Replace and oil O

ring.

2006 BMW X5 30i

2004-2006 ENGINE Engine Mechanical - Repair Instructions - X3 & X5 (M54

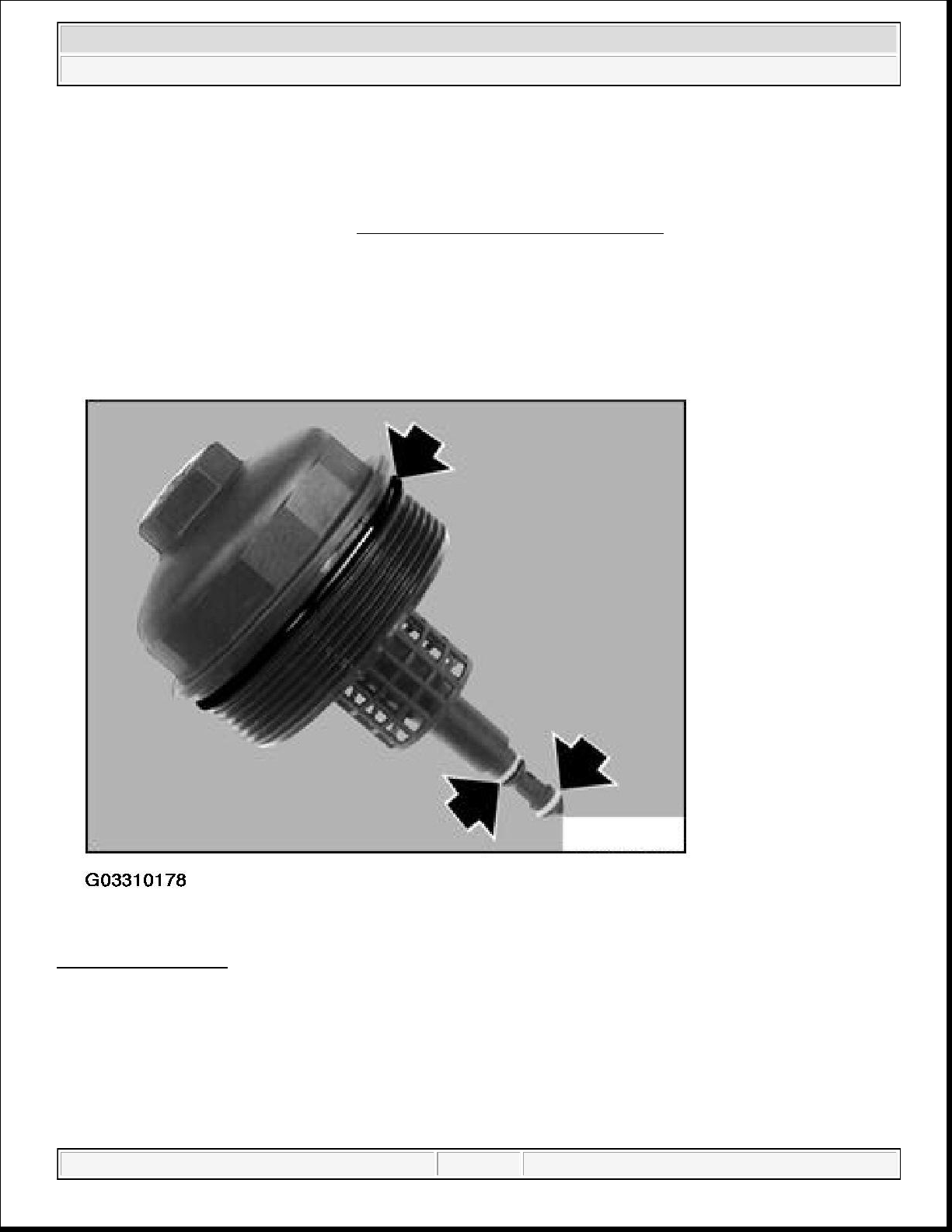

Fig. 5: Loca ing Oil O-Ring

Cour esy of BMW OF NORTH AMERICA, INC.

Drain or draw off engine oil.

2006 BMW X5 30i

2004-2006 ENGINE Engine Mechanical - Repair Instructions - X3 & X5 (M54

Fig. 6: Opening Oil Drain Plug

Cour esy of BMW OF NORTH AMERICA, INC.

When engine oil is drained, open cap in engine underguard.

Open oil drain plug and drain off engine oil.

Ins alla ion:

Replace sealing ring.

Tightening torque 11 13 1AZ. Refer to ENGINE - TIGHTENING TORQUES .

Complete vehicle and set in horizontal position.

Top up engine oil.

Start engine and run at idle until oil indicator lamp goes out.

2006 BMW X5 30i

2004-2006 ENGINE Engine Mechanical - Repair Instructions - X3 & X5 (M54

Switch off engine, wait approx. 5 minutes and then check engine oil level.

Top up engine oil if necessary.

Supplemen ary service:

Refer to vehicle-specific inspection sheet.

11 00 039 CHECKING COMPRESSION OF ALL CYLINDERS (M60 / M62 / M73 / S62 / M54)

Special ools required:

110 224

110 226

Cut off power supply to ignition coils (disconnect plug connection at DME control unit).

Necessary preliminary tasks:

Connect charger or a second battery.

Read out fault memory of DME control unit

Pull fuel pump relay or fuel pump fuse.

Start engine and allow residual fuel to drain out (pressure reduction).

Remove all spark plugs.

Screw special tool 11 0 226 by hand into spark plug thread and connect special tool 11 0 0224.

IMPORTANT: High tension - mortal danger!

IMPORTANT: Check Schrader valve on special tool 11 0 226 for tight fit.

2006 BMW X5 30i

2004-2006 ENGINE Engine Mechanical - Repair Instructions - X3 & X5 (M54

Fig. 7: Iden ifying Special Tools

Cour esy of BMW OF NORTH AMERICA, INC.

Depress accelerator and actuate starter until compression stops rising.

NOTE: Check that sealing ring is in perfect condition (see arrow .

2006 BMW X5 30i

2004-2006 ENGINE Engine Mechanical - Repair Instructions - X3 & X5 (M54

Fig. 8: Checking Compression

Cour esy of BMW OF NORTH AMERICA, INC.

Compression pressure, refer to ENGINE - TECHNICAL DATA .

Assemble engine.

Now clear the fault memory.

11 00 045 CHECKING ABSOLUTE COMPRESSION OF ALL CYLINDERS

Wi h BMW Diagnosis Informa ion Sys em (DIS)

2006 BMW X5 30i

2004-2006 ENGINE Engine Mechanical - Repair Instructions - X3 & X5 (M54

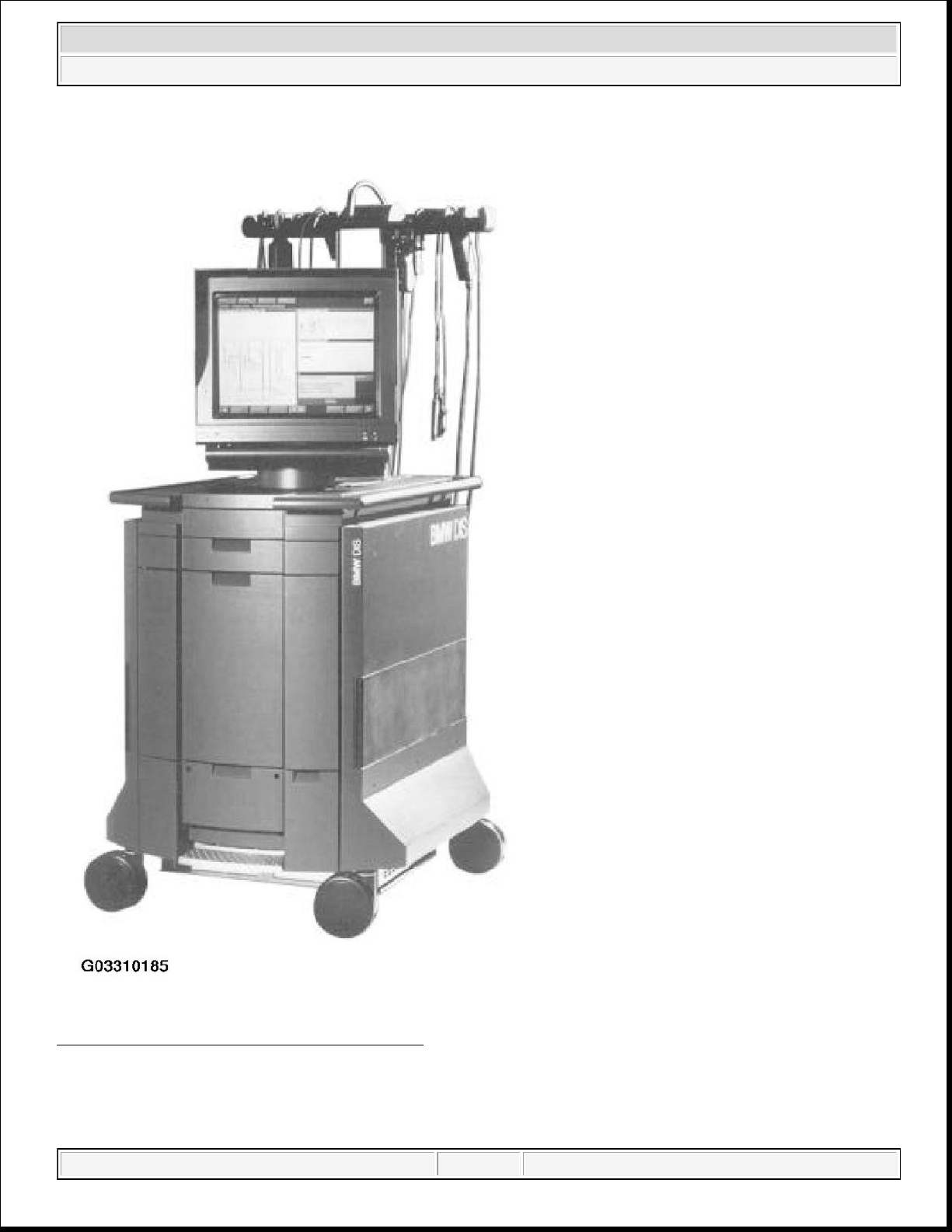

Fig. 9: View Of Diagnosis Informa ion Sys em

Cour esy of BMW OF NORTH AMERICA, INC.

Connect DIS tester



BMW measuring technology

2006 BMW X5 30i

2004-2006 ENGINE Engine Mechanical - Repair Instructions - X3 & X5 (M54
