BLOTZ B10-PS-004 Manuel utilisateur

10mm Nuclear Power Station

B10-PS-004

Please read these instructions fully before starting construction.

PVA or equivalent glue will be required to stick sections together.

Sand paper can be used to gently clean any joints.

A sharp modelling knife will be required to remove sections from the sprue. Please use knives with due care and remember

to cut away from yourself at all times.

During the construction of this model you may find it convenient to use pegs / elastic bands to hold pieces in place while

you allow glue to dry.

Take the three small walls and their roof from sprue as

shown above.

Glue the three walls together….

..;then glue the roof on top.

Take the back wall.

Glue the assembly to it as shown.

Take the other four walls and the base from the

sprue.

Glue those four walls plus the rear wall into place.

Glue the roof into position.

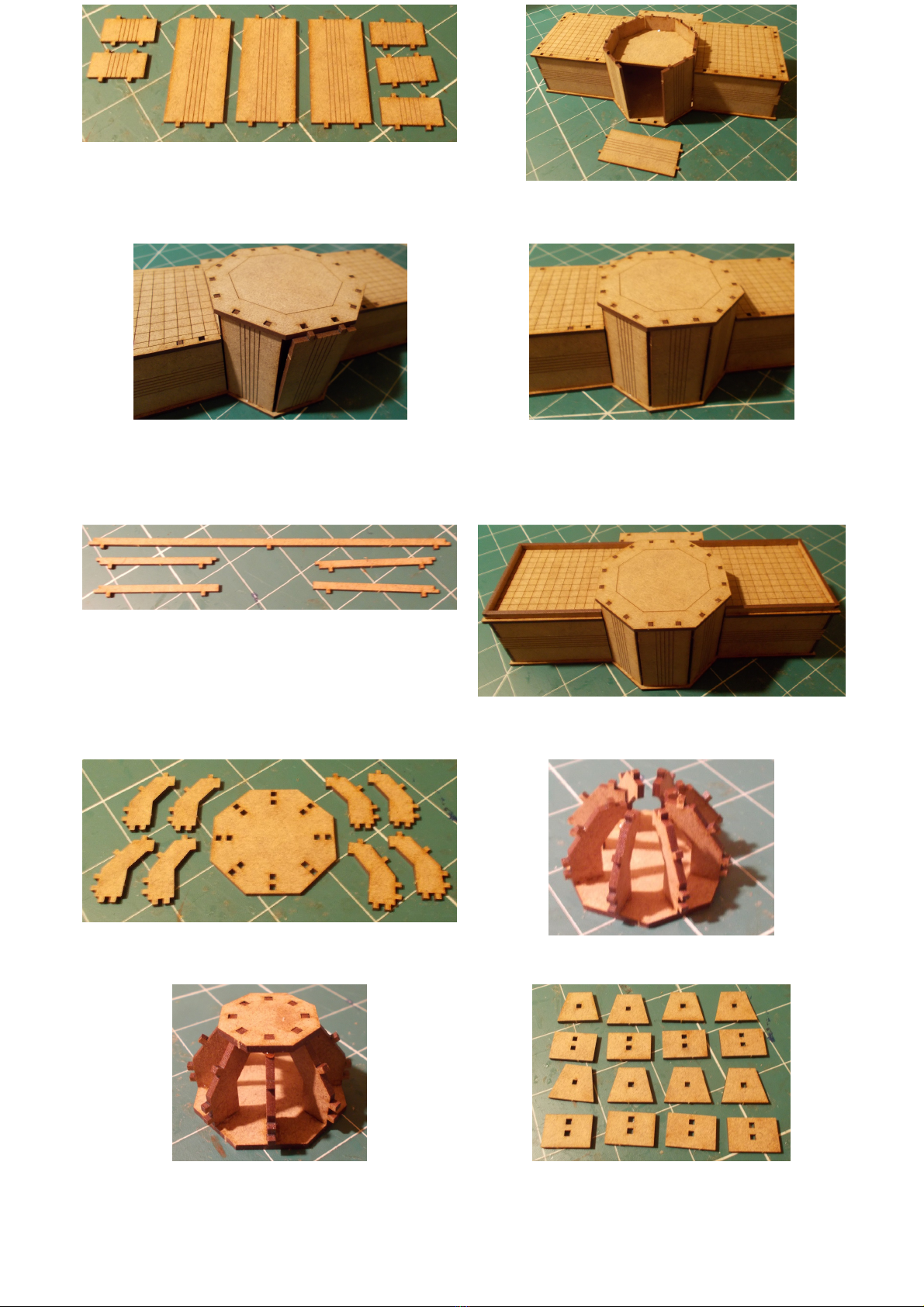

Take the wall pieces shown above from the sprue.

Glue all of the shorter pieces and two of the longer

ones into place.

Attach the cap by inserting the lugs from each walls

piece in turn. This can be eased by using yoor finger

from within through the gap. Then put the front wall

into place.

Carefully lift the cap enough to get the top lugs of

the front wall into position.

Take the roof edges from the sprue.

Glue the front and rear pieces into position before

adding the side sections.

Take the base of the dome and the supports from the

sprue.

Glue the supports to the base.

Add the central roof section moving around it to

insert the lugs from the supports one at a time.

Take the outer skin of the dome.

Work around the dome adding each panel in turn.

The completed dome.

The completed power station.

If you do not glue the dome in place it can be swapped out for a radar dish turning the building into a radar

station. (radar sold separately)
