Blodgett SG2136 E & G Guide d'application

SG2136 E & G

CONVEYOR OVEN

REPLACEMENT PARTS LIST

Superseding All Previous Parts Lists.

The Company reserves the right to make substitution in the event that items specified are not available.

ERRORS: Descriptive and/or typographic errors are subject to correction.

EFFECTIVE AUGUST 29, 2001

www.blodgett.com

AUGUST 29, 2001 2 SG2136E & G

IMPORTANT: When ordering parts, please provide the model, gas

type and serial number of the oven. The identification plate is

located on the front of the control box above the conveyor belt.

SERIAL NUMBER IDENTIFICATION CODE:

FC = SG2136 GAS OVENS

FD = SG2136 ELECTRIC OVENS

SERIAL NUMBER EXAMPLES

072501FC001T

07/25/01 = DATE

FC = LETTER CODE FOR SG2136 GAS

001 = FACTORY SEQUENCE

T = TOP, B = BOTTOM, M = MIDDLE, S = SINGLE

(LAST LETTER IS HOW OVEN WAS PURCHASED OR ORDERED)

SERIAL NUMBER LOCATION / KEY:

THE BLODGETT CORPORATION

50 Lakeside Avenue, Burlington, Vermont 05401 USA

Telephone: (802) 860-3700 (800) 331-5842 Fax: (802) 860-3732

www.blodgett.com

TABLE OF CONTENTS

CONTROL BOX, ELECTRIC INTERIOR VIEW .................................. PAGE 4

CONTROL BOX, GAS INTERIOR VIEW ........................................... PAGE 5

INTERFACE BOARD, EXPLODED .................................................... PAGE 6

CONTROL BOX EXTERIOR & INTERIOR TOP VIEW ........................ PAGE 7

GAS BURNER COMPONENTS, DOMESTIC ..................................... PAGE 8

GAS BURNER COMPONENTS, CE & EXPORT ................................. PAGE 9

GAS BURNER COMPONENTS, FRANCE & BELGIUM ..................... PAGE 10

CONVECTION COMPONENTS ......................................................... PAGE 11

CONVEYOR COMPONENTS - SINGLE BELT ................................... PAGE 12

CONTROL COMPONENTS ............................................................... PAGE 13

CONTROL COMPONENTS - EXPLODED REAR/FRONT VIEWS ...... PAGE 14

DOOR COMPONENTS ..................................................................... PAGE 15

EXTERIOR VIEW & ACCESSORIES ................................................. PAGE 16

STACKING KITS .............................................................................. PAGE 17

Doors Are Not Returnable

AUGUST 29, 2001 3 SG2136E & G

AUGUST 29, 2001 4 SG2136E & G

CONTROL BOX - INTERIOR VIEW

ELECTRIC OVENS-DOMESTIC, EXPORT, AND CE

Ref. Part

No. No. Description

1 T0321 Fan Guard, top

2 M9609 Axial Fan, top, 7"

3 M10278 Interface Board

M10589 Interface Plate & Decal Kit (not pictured)

4 R7603 Hi-Limit Thermostat

5 M10479 Block Off Plate, Electric Ovens

6 M10112 Plate, Power Line Adaptor, Electric Ovens

7 M9622 Probe, RTD 20" 100 Ohms

8 R0166 Terminal Ground Block, Qty 1 per oven

9 M4542 Terminal Power Block, Qty 2 per oven

10 R1580 End Stop, Terminal Block, Qty 1 per oven

11 M9477 Din Rail, for Terminal Block mounting

12 M10482 Contactor, 60 Amp, 24V, 3 PH

13 M8991 Probe Well Assy, EGO

14 M10556 Conveyor Drive Motor

15 M10519 Motor Mount Bracket

16 M10512 Pulley, Sprocket

17 M9616 Axial Fan, bottom

18 M0571 Fan Guard, bottom

19 M10277 Access Cover, Control Box

Ref. Part

No. No. Description

20 M2697 Element, 208V (**Need Kits) 1 PH

20 M2699 Element, 220V (**Need Kits) 1 PH

20 M2698 Element, 240V (**Need Kits) 1 PH

20 M2571 Element, 208V (**Need Kits) 3 PH

20 M2572 Element, 240V (**Need Kits) 3 PH

20 M2574 Element, 240/415V 3 PH EXPORT

20 M2573 Element, 220/380V 3 PH EXPORT

21 M10214 Control Box Bottom

M10471 Control Box, Top Assy, not pictured

See page 6

22 M10486 Pressure Tube Assy

23 M10460 Fuseholder Bracket

24 M10424 Control Box, Lower Panel

25 M10509 Retractable Pin Plunger, Locking

T0321

Fan Guard,

top

M9609

Axial Fan, top, 7"

M2697

M2699

M2698

M2571

M2572

M2574

M2573

Element

M10278

Interface

Board

R7603

Hi-Limit

Thermostat

M10479

Block Off

Plate

M10556

Conveyor Drive Motor

M10519

Motor Mount

Bracket

M10512

Pulley

M8991

Probe Well

Assy, EGO

M9622

Probe, RTD,

20" 100 Ohms

M10214

Control Box

Bottom

R1580

End Stop

M4542

Terminal Power

Block, Qty 2

R0166

Terminal

Ground Block 8

M9477

Din Rail

M10112

Plate, Power

Line Adaptor

M9622

Probe, RTD,

20" 100 Ohms

M10277

Access

Cover, Control

Box

M10482

Contactor

M10486

Pressure

Tube Assy

M9616

Axial Fan,

bottom

18 M0571

Fan Guard,

bottom

24 M10424

Control Box,

Lower Panel

M10460

Fuseholder

Bracket

M10509

Retractable

Pin, Plunger

AUGUST 29, 2001 5 SG2136E & G

CONTROL BOX - INTERIOR VIEW

GAS OVENS-DOMESTIC, EXPORT, AND CE

T0321

Fan Guard,

top

M9609

Axial Fan, top, 7"

M10278

Interface

Board

R7603

Hi-Limit

Thermostat

M10556

Conveyor

Drive Motor

M10519

Motor Mount

Bracket

M10512

Pulley

19 M9616

Axial Fan,

bottom

M10279

Ignition

Control

25 M10211

Burner Assy

24 M2027

Burner Plate

Support

M9622

Probe, RTD,

20" 100 Ohms

M8991

Probe Well

Assy, EGO

M10486

Pressure

Tube Assy

M8999

Gas Valve,

Nat/LP 33488

Flex Tubing

(Mounts here)

Ref. Part

No. No. Description

1 T0321 Fan Guard, top

2 M9609 Axial Fan, top, 7"

3 M10278 Interface Board

4 M10279 Ignition Control Board

5 M10489 Bracket, Ignition Control Board

6 R7603 Hi-Limit Thermostat

7 M10270 Block Off Plate, Gas Ovens

8 M10112 Plate, Power Line Adaptor, Gas Ovens

9 M9622 Probe, RTD 20" 100 Ohms

10 R0166 Terminal Ground Block, Qty 1 per oven

11 R0164 Terminal Power Block, Qty 2 per oven

12 R1580 End Stop, Terminal Block, Qty 1 per oven

13 M9477 Din Rail, for Terminal Block mounting

14 M8991 Probe Well Assy, EGO

15 M10486 Pressure Tube Assy

16 M10556 Conveyor Drive Motor

Ref. Part

No. No. Description

17 M10519 Motor Mount Bracket

18 M10512 Pulley, Sprocket

19 M9616 Axial Fan, bottom

20 M0571 Fan Guard, bottom

21 M10589 Interface Plate & Decal Kit

22 M8999 Gas Valve, Nat & LP

23 33488 Flex Tubing, 12"

24 M2027 Burner Plate Support

25 M10211 Burner Assy

26 M10460 Fuseholder Bracket

27 M10424 Control Box, Lower Panel

28 M10214 Control Box, Bottom

M10471 Control Box Top Assy, not pictured,

see page 6

29 M10509 Retractable Pin Plunger, Locking

M9887 Blower

Burne

M10589

Interface Plate

& Decal Kit

M10489

Bracket,

Igniton Control

Board

R1580

End Stop

R0164

Terminal Power

Block, Qty 2

R0166

Terminal

Ground Block 10

M9477

Din Rail

M10112

Power Line

Adaptor Plate

M9887

Blower Assy

M10270

Block Off

Plate

M10214

Control Box

Bottom

M10460

Fuseholder

Bracket

20 M0571

Fan Guard,

bottom

27 M10424

Control Box,

Lower Panel

M9622

Probe, RTD,

20" 100 Ohms

29 M10509

Retractable

Pin, Plunger

AUGUST 29, 2001 6 SG2136E & G

INTERFACE BOARD COMPONENTS

M9720

Relay, 2 Pole

Ref. Part

No. No. Description

1 M10139 Heat Relay, 1 Pole

2 M9720 Relay, 2 Pole Qty 2

3 M10165 Pressure Switch

M9705 Tubing Polyurethane for pressure switch

4 M10278 Interface Board, Complete as shown above

M10139

Heat Relay, 1 Pole

3M10165

Pressure

Switch

4M10278

Interface

Board

CONTROL BOX EXTERIOR & INTERIOR TOP VIEW

DOMESTIC, EXPORT, AND CE

Ref. Part

No. No. Description

1 M9477 Din Rail

2 M10488 Mounting Bracket

3 R1580 End Stop

4 M0593 Terminal Block

5 M9659 Conveyor Motor Gear Control

6 M10271 Mounting Plate

7 M9608 Power Supply, 24V

8 M10475 Bushing 1/2

9 M10280 PLC Control

10 M9611 RTD Converter

11 M10451 Control Box Top

12 M10277 Access Cover

13 22241 Manifold Bracket

14 M10254 Access Panel, Control Box

15 M6035 Latch, Access Panel

16 M10419 Tunnel

M10451

Control Box

Top

M9477

Din Rail 1

M10488

Mounting

Bracket 3

R1580

End Stop 4M0593

Terminal

Block

5M9659

Conveyor Motor

Gear Control

6M10271

Mounting

Plate

7M9608

Power

Supply, 24V

M10136

PLC Control

M9611

RTD

Converter

NOTE: M10471, COMPLETE TOP ASSY

M10475

Bushing, 1/2

TOP VIEW , UNDER SIDE

R.H. SIDE

M10277

Access Cover

13 22241

Manifold

Bracket

M10254

Access

Panel,

Control Box

M6035

Latch

M10419

Tunnel

See Stack Assy part numbers

on page 7-9

AUGUST 29, 2001 7 SG2136E & G

M9611

RTD

Converter

M10280

PLC Control

AUGUST 29, 2001 8 SG2136E & G

GAS BURNER COMPONENTS

DOMESTIC OVENS

M3219

Plastic Cap

4588

Nipple, 3/4 NPT

M0282

Gas Valve,

Manual

M8999

Gas Valve, Main

LP & Nat

4588

Nipple, 3/4 NPT

1003

Tee 3/4

17876

Bushing 17

M8690

Bushing

1/2x 1/8 5

M0281

Plug

21225

Elbow

M0317

Elbow

R5347

Nipple

597

Ell, 90º

16 33488

Flex

Tubing

M10211

Burner Assy

M9887

Blower Assy

Ref. Part

No. No. Description

1 M3219 Plastic Cap

2 1003 Tee, 3/4

3 17876 Bushing 3/4 x 1/2

4 10809 Nipple, Pipe 1/2 x 2

5 M0281 Plug 1/8

6 4588 Nipple 3/4"

7 M0282 Gas Valve, Manual

8 M8999 Gas Valve, Main LP & Nat

9 21225 Elbow 1/4 x 1/8

10 M0317 Elbow 1/2 NPT Street Qty 3 per oven

11 R5347 Nipple 1/2 NPT x 3.00

12 597 Ell, Black 90º

13 M9887 Blower Motor Assy

14 M10211 Burner Assy

M0415 Flame Sensor, not pictured

M10593 Pilot Burner & Ignitor Assy, NAT

M10594 Pilot Burner & Ignitor Assy, LP

15 M2835 Elbow 1/8

16 33488 Flex Tubing 1/4 x 12"

17 M8690 Bushing 1/2 x 1/8

10809

Nipple, Pipe1/2 x 2

15 M2835

Elbow 1/8

NOTE: M10215, Complete Stack Assy

Nat & LP

M0317

Elbow

AUGUST 29, 2001 9 SG2136E & G

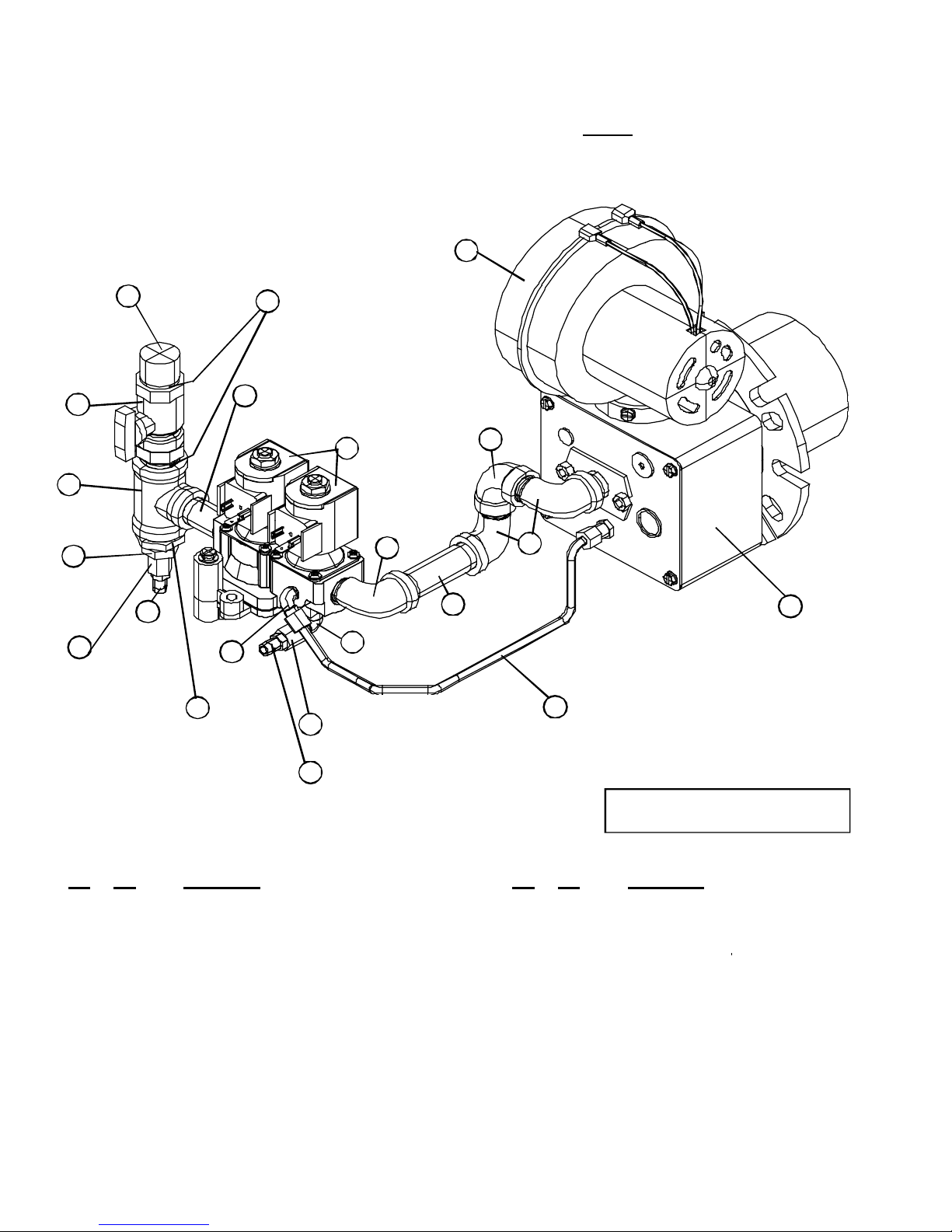

GAS BURNER COMPONENTS

FOR EXPORT & CE OVENS ONLY

EXCEPT FOR FRANCE & BELGIUM, SEE PAGE 9

Ref. Part

No. No. Description

1 M3219 Plastic Cap

2 1003 Tee

3 17876 Bushing

4 M8690 Bushing 1/2 x 1/8

5 M3443 Bushing Export Adapter

6 M2841 Fitting, Pressure Tap

7 4588 Nipple 3/4 NPT

8 M0282 Gas Valve, Manual

9 M8999 Gas Valve, Main LP & Nat

10 21225 Elbow 1/4 T x 1/8 NPT

11 M0317 Elbow 1/2 NPT Street Qty 3 per oven

12 R5347 Nipple 1/2 NPT x 3.00

13 597 Ell, Black 90º

14 M9887 Blower Motor Assy

M3219

Plastic Cap

4588

Nipple, 3/4 NPT

M0282

Gas Valve, Manual

4588

Nipple, 3/4 NPT

1003

Tee

M8690

Bushing

17876

Bushing

M3443

Bushing,

Export

Adapter

M2841

Fitting,

Pressure

Tap

10809

Nipple, Pipe1/2 x 2

M8999

Gas Valve, Main

LP & Nat

21225

Elbow

18 33488

Flex

Tubing

M0317

Elbow

R5347

Nipple

597

Ell, 90º

M0317

Elbow 15

M10211

Burner Assy, Nat

MXXXXX

Burner Assy, LP

M9887

Blower Assy

M2841

Fitting,

Pressure Tap

M3443

Bushing,

Export Adapter

17 M2835

Elbow, 1/8 NPT

Street

NOTE: M10505, Complete Stack Assy

Nat & LP

Ref. Part

No. No. Description

15 M10211 Burner Assy

M0415 Flame Sensor, not pictured

M10593 Pilot Burner & Ignitor Assy, NAT

M10594 Pilot Burner & Ignitor Assy, LP

16 10809 Nipple, Pipe 1/2 x 2

17 M2835 Elbow 1/8 NPT Street

18 33488 Flex Tubing 1/4 x 12"

M10700 Gas Conversion Kit, LP to NAT CE & Gen Exp

M10701 Gas Conversion Kit, Nat to LP CE& Gen Exp

M10505 Complete Stack Assy, Nat & LP as shown above

GAS BURNER COMPONENTS

FRANCE & BELGIUM OVENS ONLY

Ref. Part

No. No. Description

1 M3219 Plastic Cap

2 M0282 Gas Valve, Manual

3 4588 Nipple, 3/4 NPT

4 1003 Tee 3/4

5 M8690 Bushing 1/2 x 1/8

6 M3443 Bushing, Export Adapter

7 17876 Bushing 3/4 x 1/2

8 M2841 Fitting, Pressure Tap

9 M10507 Nipple & Orifice Assy

10 M8999 Gas Valve, Main LP & Nat

11 M0317 Elbow 1/2 NPT Street Qty 3 per oven

12 R5347 Nipple

13 597 Ell, 90º

14 M9887 Blower Motor Assy

NOTE: M10506, Complete Stack Assy

Nat & LP

17876

Bushing

3/4 x 1/2

M0282

Gas Valve,

Manual

4588

Nipple, 3/4 NPT

M3219

Plastic Cap

M10507

Nipple & Orifice

Assy

M8999

Gas Valve, Main

LP & Nat

1003

Tee 3/4

M8690

Bushing

1/2 x 1/8

M3443

Bushing,

Export

Adaptor

M2841

Fitting,

Pressure

Tap

17 M2835

Elbow 1/8

8M2841

Fitting,

Pressure Tap

6M3443

Bushing, Export Adaptor

16 33488

Flex Tubing

R5347

Nipple

597

Ell, 90º

M0317

Elbow

M0317

Elbow

M9887

Blower Assy

M10211

Burner Assy

21225

Elbow

AUGUST 29, 2001 10 SG2136E & G

Ref. Part

No. No. Description

15 M10211 Burner Assy

M0415 Flame Sensor, not pictured

M10593 Pilot Burner & Ignitor Assy, NAT

M10594 Pilot Burner & Ignitor Assy, LP

16 33488 Flex Tubing 12"

17 M2835 Elbow 1/8

18 21225 Elbow

M10702 Gas Conversion Kit, LP to Nat

France and Belgium

M10708 Gas Conversion Kit, Nat to LP

France and Belgium

M10506 Complete Stack Assy, Nat & LP

as shown above

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Blodgett Four

Blodgett

Blodgett S1820G Series Manuel utilisateur

Blodgett

Blodgett 900 SERIES Mode d’emploi

Blodgett

Blodgett BCX-14G Manuel du propriétaire

Blodgett

Blodgett 901 Base Manuel du propriétaire

Blodgett

Blodgett 1048 Manuel du propriétaire

Blodgett

Blodgett MT3255E Manuel du propriétaire

Blodgett

Blodgett Mark V Guide d'application

Blodgett

Blodgett Double 1000 Manuel utilisateur

Blodgett

Blodgett CONVEYOR OVEN MT1820E Guide d'application

Blodgett

Blodgett ELECTRIC CONVEYOR OVEN MT1828E Manuel utilisateur

Blodgett

Blodgett MT3270 Series Manuel utilisateur

Blodgett

Blodgett 1060 Manuel du propriétaire

Blodgett

Blodgett ELECTRIC CONVEYOR OVEN MT1828E Manuel utilisateur

Blodgett

Blodgett 901 Double Manuel utilisateur

Blodgett

Blodgett MT1828 Series Manuel utilisateur

Blodgett

Blodgett MT2136 Series Manuel d'installation et d'exploitation

Blodgett

Blodgett CTB SERIES Manuel utilisateur

Blodgett

Blodgett 1048 Manuel du propriétaire

Blodgett

Blodgett RE-42 Manuel utilisateur

Blodgett

Blodgett Combi Synergy R11021 Manuel d'utilisation et d'entretien

Blodgett

Blodgett MT3870 Manuel utilisateur

Blodgett

Blodgett BG2136 Double Manuel

Blodgett

Blodgett Mark V Manuel utilisateur

Blodgett

Blodgett MT3255 Series Manuel d'installation et d'exploitation

Manuels Four populaires d'autres marques

Bosch

Bosch HVA531NS0 Manuel utilisateur

Electrolux

Electrolux EOF6P46X Manuel utilisateur

NEFF

NEFF B44S32 5GB Series Manuel utilisateur

Combi

Combi BLODGETT BC142GDS Manuel utilisateur

AEG

AEG COMPETENCE 311704300 Manuel utilisateur

Falcon

Falcon DOMINATOR PLUS G3106 Series Guide de l'utilisateur

Rational

Rational SCC WE 61G Manuel utilisateur

Smeg

Smeg DOSPA38X Manuel d'installation et d'exploitation

Electrolux

Electrolux air-o-convect 20 GN 2/1 Manuel utilisateur

Miele

Miele HR 1954-2 Manuel utilisateur

KHIND

KHIND OT50 Manuel utilisateur

Henny Penny

Henny Penny Smoker Box Manuel utilisateur

Lang

Lang ECOD-AP Manuel utilisateur

AEG

AEG BEK455310M Manuel utilisateur

Frigidaire

Frigidaire FNGE90JGR Manuel utilisateur

Hotpoint

Hotpoint FE9 S831 JSH IX Manuel utilisateur

GE Advantium SCB2000 Manuel utilisateur

AEG

AEG DE401301DM Manuel utilisateur
